MyStat Startup

| Pairing to CCU

Pairing the MyStat with the Central Control Unit (CCU) allows it to communicate with the CCU and terminal-level equipment in the ClimaVision system.

Steps For Pairing

In the CCU interface, in the Floor Layout tab, add a floor and a zone. Then click Pair Module to pair a module as a MyStat terminal profile.

On the Select Device Type screen, select the MyStat.
On the Select Module Type screen, select a profile.
On the MyStat, press and hold both the up and down arrow buttons for 3 seconds. Then press to navigate to the Installer Options screen.
Use the up and down arrow buttons to navigate to Pair with CCU. Then press to select.
In the CCU interface, select the Bluetooth address that matches the one shown on the MyStat's Advertising screen.
In the CCU interface, enter the 6-digit PIN shown on the MyStat's Advertising screen and click Proceed.
On the Pairing Steps screen, click Pair.

Alternate Pairing Method (Not Using Bluetooth)

If there are no devices found after attempting to pair, or the desired device does not appear as an available device, click Connect to pair the MyStat manually.

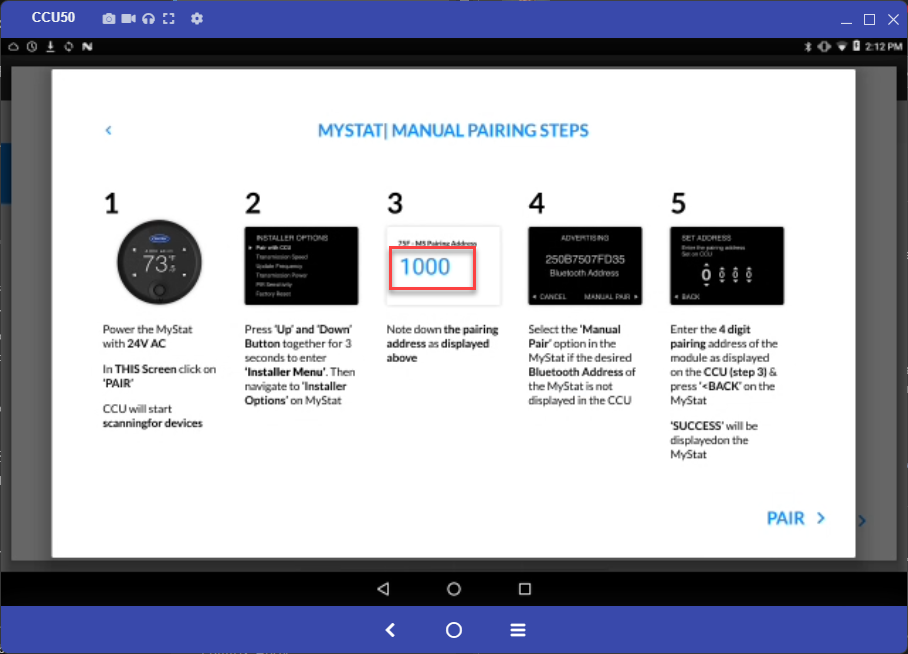

Note the pairing address displayed in step 3 of the Manual Pairing Steps screen shown below. You will enter this address into the MyStat.

On the MyStat, press and hold both the up and down arrow buttons for 3 seconds. Then press to navigate to the Installer Options screen.
Use the up and down arrow buttons to navigate to Pair with CCU. Then press to select.
Wait 15 seconds. When the Manual Pair option appears on the Advertising screen, press the down arrow button to select it.
On the LwMesh Address screen, enter the pairing address displayed on the Manual Pairing Steps screen in the CCU interface. Use the down arrow button to adjust the value and press to select the next digit.
Press the button on the MyStat to confirm the pairing address.
In the CCU interface Manual Pairing Steps screen, click Pair.

Once paired, choose and configure a profile.

| Choosing the right profile

The following profiles (control algorithms) are available for the MyStat:

| Conventional Package Unit (CPU) Profile - I/O Configuration Options

I/O Type	Purpose	Default Configuration	Configuration Options
Relay 1	To enable staged conditioning controls	Cooling Stage 1	Cooling Stage 1 Cooling Stage 2 Heating Stage 1 Heating Stage 2 Fan Low Speed Fan High Speed Fan Enable Occupied Enable Humidifier Dehumidifier Externally Mapped DCV Damper
Relay 2	To enable staged conditioning controls	Fan Low Speed
Relay 3	To enable staged conditioning controls	Heating Stage 1
Relay 4	To enable staged conditioning controls	Fan High Speed
Analog Out	To enable modulating conditioning controls	Water Modulating Valve	Cooling Linear Fan Speed Heating Staged Fan Speed Externally Mapped DCV Modulating Damper
Universal In	To enable the supply water temperature measurement	Key Card Sensor (AI)	Supply Air Temperature Generic Alarm NO Generic Alarm NC Key Card Sensor (AI) Door/Window (N/C) - Title 24 Door/Window (AI) - Title 24

| 2-Pipe Fan Coil Unit Profile - I/O Configuration Options

I/O Type	Purpose	Default Configuration	Configuration Options
Relay 1	To enable staged conditioning controls	Water Valve	Fan Low Speed Fan High Speed Aux Heating Water Valve Fan Enable Occupied Enable Humidifier Dehumidifier Externally Mapped DCV Damper
Relay 2	To enable staged conditioning controls	Fan Low Speed
Relay 3	To enable staged conditioning controls	Aux Heating
Relay 4	To enable staged conditioning controls	Fan High Speed
Analog Out	To enable modulating conditioning controls	Water Modulating Valve	WaterModulating Valve Fan Speed Externally Mapped DCV Modulating Damper
Universal In	To enable the supply water temperature measurement	Supply Water Temperature	Supply Water Temperature

| Heat Pump Unit Profile - I/O Configuration Options

I/O Type	Purpose	Default Configuration	Configuration Options
Relay 1	To enable staged conditioning controls	Compressor Stage 1	Compressor Stage 1 Compressor Stage 2 Aux Heating Fan Low Speed Fan High Speed Fan Enable Occupied Enable Humidifier Dehumidifier 0 - Energize in Cooling B - Energize in Heating Externally Mapped DCV Damper
Relay 2	To enable staged conditioning controls	Aux Heating
Relay 3	To enable staged conditioning controls	Fan Low Speed
Relay 4	To enable staged conditioning controls	0 - Energize in Cooling
Analog Out	To enable modulating conditioning controls	Compressor Speed	Compressor Speed Fan Speed Externally Mapped DCV Modulating Damper
Universal In	To enable the supply water temperature measurement	Key Card Sensor (AI)	Supply Air Temperature Generic Alarm NO Generic Alarm NC Key Card Sensor (AI) Door/Window (N/C) - Title 24 Door/Window (AI)

| Scheduling

See Schedules and Schedule States for information on scheduling in the ClimaVision web interface.

| Alerts

See Managing Alerts in ClimaVision Web UI Portal and Managing Alerts in the ClimaVision Web UI Mobile App.

| MyStat User Interface - Basic Functions

See the steps below to perform basic functions on the MyStat.

To...	Do the following...
Adjust the setpoint	Press the up or down arrow buttons.
Change the conditioning mode	Press the button to enter the Conditioning Modes screen, then press again to select a mode. The MyStat automatically switches back to the home screen after a few seconds.
Change the fan mode	Press the button to enter the Fan Speed screen, then press again to select a mode. The MyStat automatically switches back to the home screen after a few seconds.

Note: If the MyStat zone is assigned to a named schedule, setpoint adjustments only remain in effect until the next schedule change. If a zone schedule is assigned, the setpoint adjustments are permanent.

| MyStat User Interface - Installer Options

You can view and configure certain parameters in the MyStat. See the steps below.

On the MyStat, press and hold both the up and down arrow buttons for 3 seconds. Then press to navigate between the option screens.
Use the up and down arrow buttons to navigate to a menu item. Then press to select.
Press the up and down arrow buttons to change the setting.
Press to exit the selection.
Press to navigate back to the home screen.

Screen	Menu item and description	States
Inputs	Room Temp - MyStat's onboard temperature sensor	deg F or C
	Humidity - MyStat's onboard humidity sensor	% RH
	Occupancy - MyStat's onboard occupancy (PIR) sensor	0 or 1
	Universal IN - This input can be configured as an Analog or Thermistor input based on the sensor connected.	Depends on configuration and sensor type. See I/O configuration table above.
Outputs	Relays 1-4 - Outputs to control external devices like HVAC stages or fans
Outputs	Analog Out - Provides analog output signal for external control
Version	Room - Displays the zone name	Zone name
	Pairing Address - Unique address used for device pairing	Example: 1001
	FW Version - Firmware version	Example: 1.6
	Serial Number - Unique identifier for the device	6 digits
HVAC Options	Temp Offset - Adjusts displayed temperature by a set value
	Temp Mode - Heating, cooling, or auto mode selection
	Temp Unit - Fahrenheit or Celsius	Fahrenheit or Celsius
	Humidify Over - Activates humidification above setpoint
	Dehumidify Under - Activates dehumidification below setpoint
Installer Options	Pair with CCU - Initiates the Advertising screen
	Transmission Speed - Transmission speed setting of 900 mHz mesh network	Low (default) or Medium
	Transmission Power - Power setting of 900 mHz mesh network	11 dBm (default),8, 5, 2, -1
	Factory Reset - Initiates factory reset of MyStat
	Configure PIN - Allows an installer to set a PIN to lock out a user from making configuration changes	4-digit PIN (0000) default
HVAC Profile	Select Profile - Choose a predefined operating profile
HVAC Profile	Configure Profile - Customize settings for a selected profile
