MyStat UI Navigation

| Overview

MyStat, the newly introduced device under the Carrier ClimaVision products umbrella, a curtailed version of the HyperStat both in size and capability. Its unique design makes it a perfect option for single-stage equipment control.

MyStat does support all the other capabilities like the Transmission Power & Speed Setting, Standalone capability, and HVAC options that are part of the HyperStat and other devices in the ClimaVision product portfolio.

Understanding the UI navigation is important for users to navigate to the required options and use them.

| UI Navigation

Conditioning Mode

From the Device

• Press the icon button to access the conditioning mode setting screen.

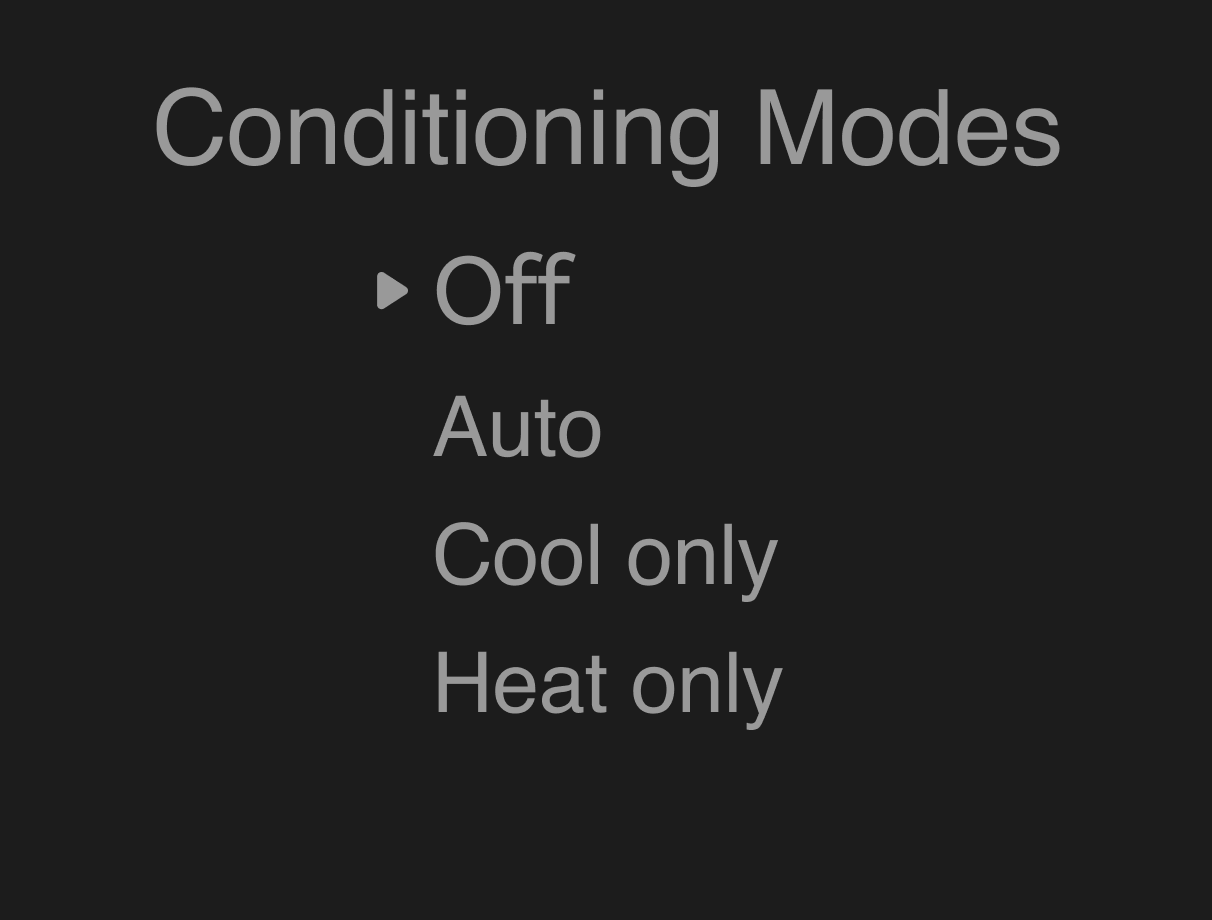

The conditioning mode setting screen displays as below

• Press the icon button again to navigate through the options and set them for use.

Fan Mode

From the Device

• Press the icon button to access the Fan mode setting screen.

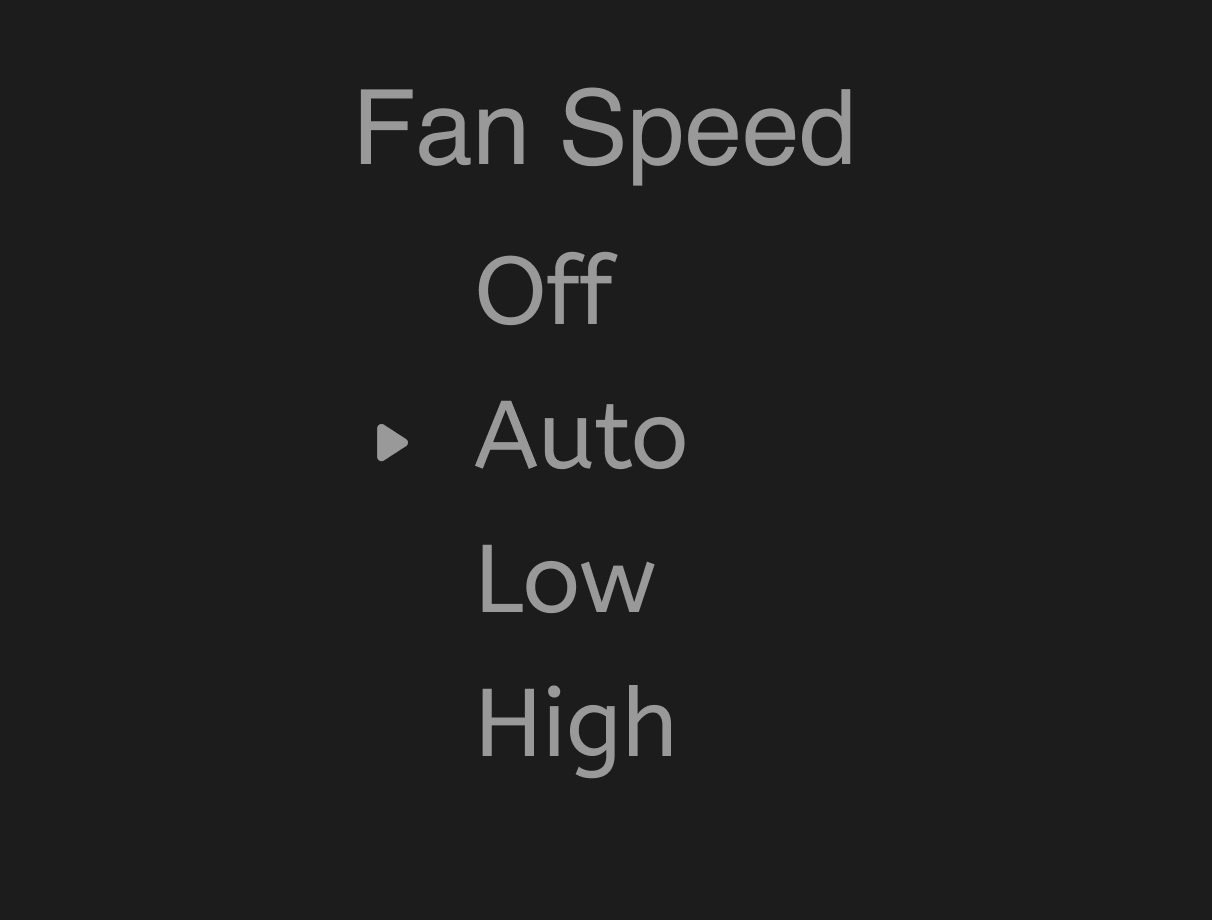

The Fan mode setting screen displays as below.

• Press the icon button again to navigate through the options and set them for use.

Other Screens

From the device

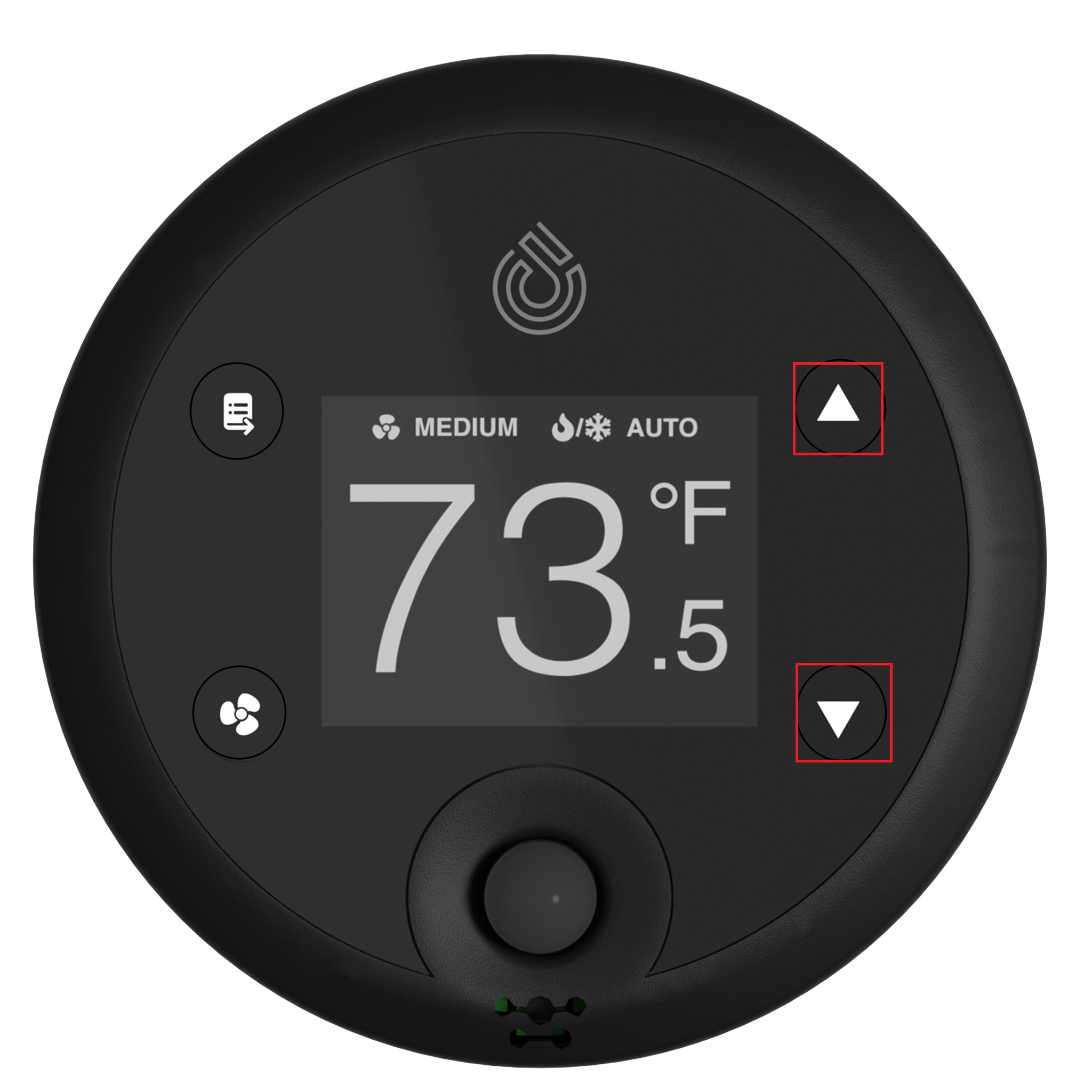

• Press and hold both the up arrow and down arrow button for 3 seconds

The Inputs screen Displays as below.

• Press the icon button to navigate to the next screen.

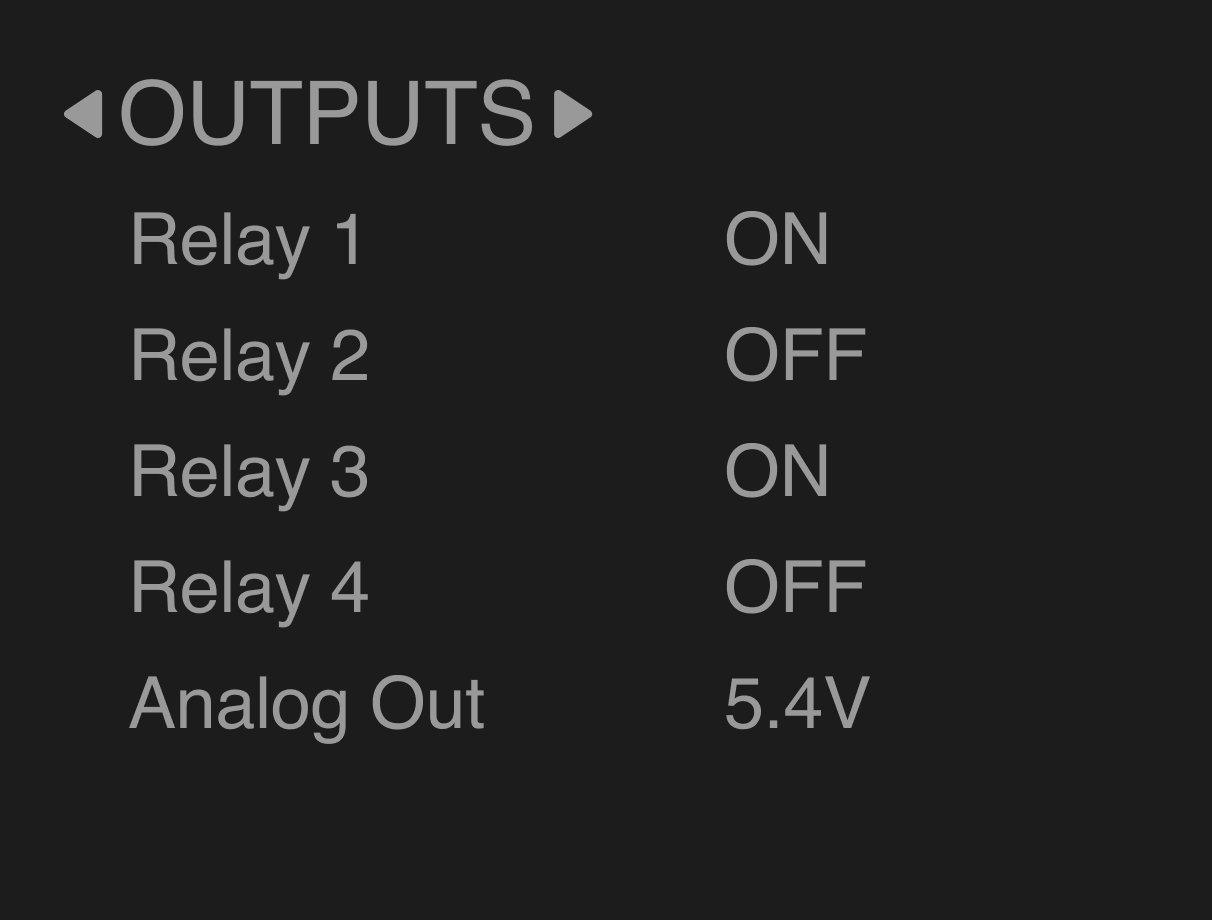

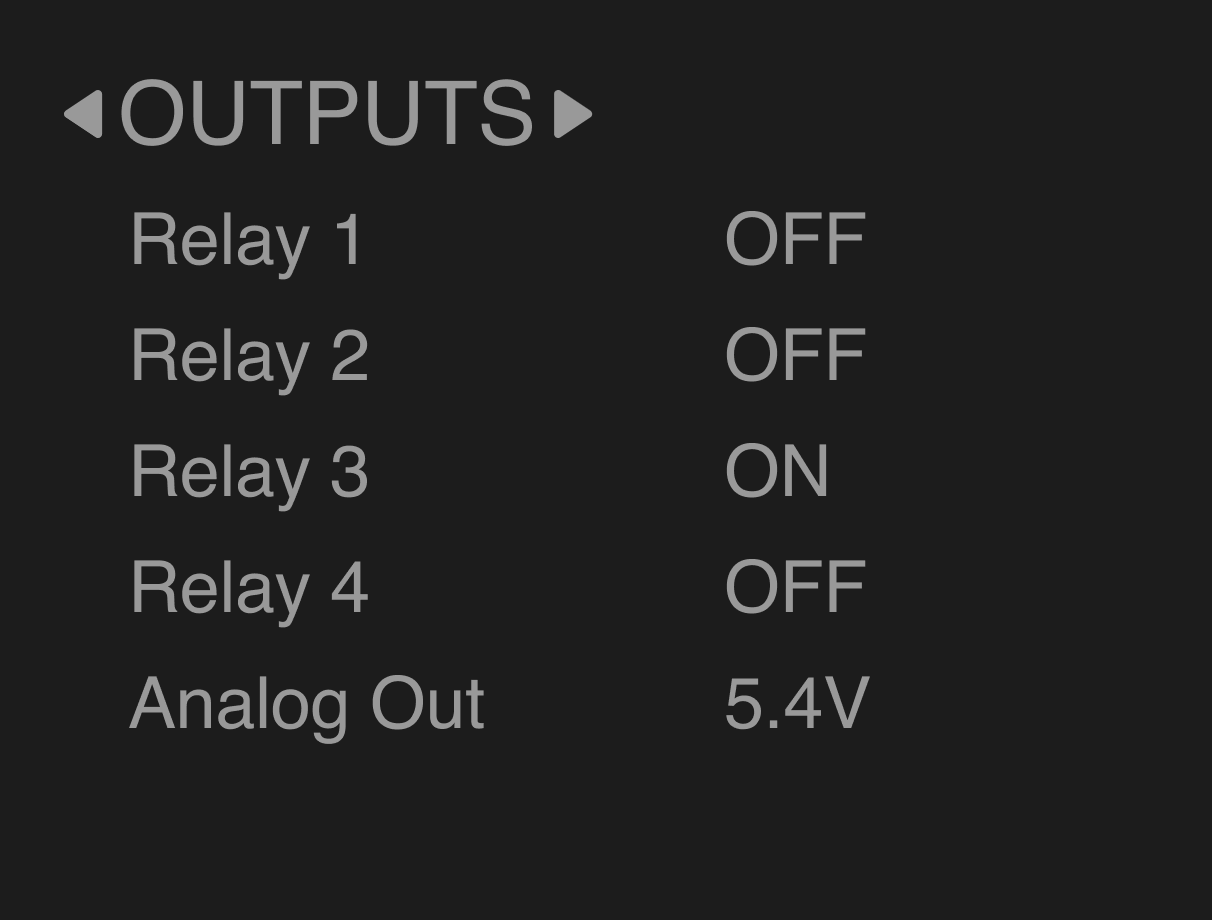

The Outputs screen Displays as below.

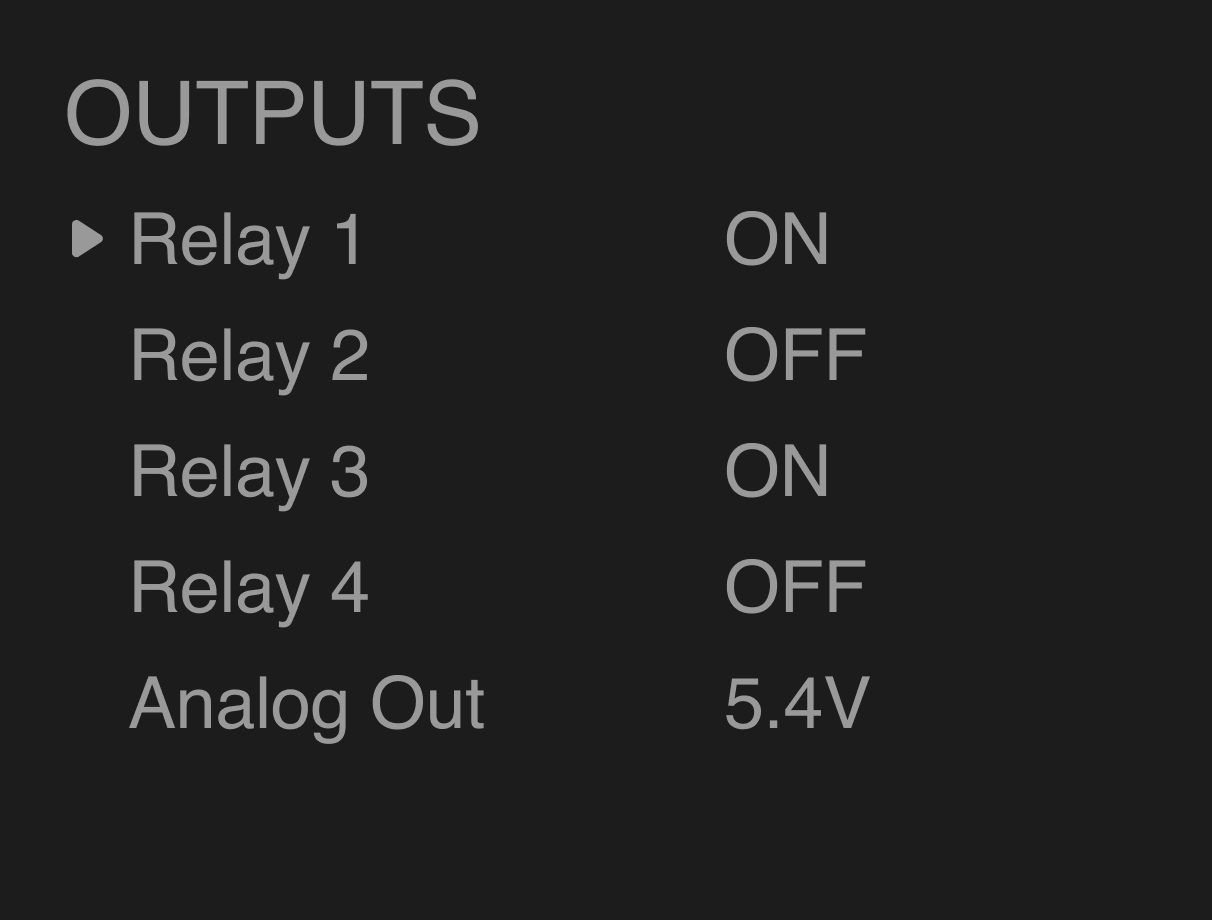

• Press the down arrow button to access the outputs on the screen.

• Press the icon button to access the output option to set it.

• Press the down arrow button to navigate through the options available and select them.

• Press the icon button to exit the selection.

• Press the up arrow to get back to the main menu.

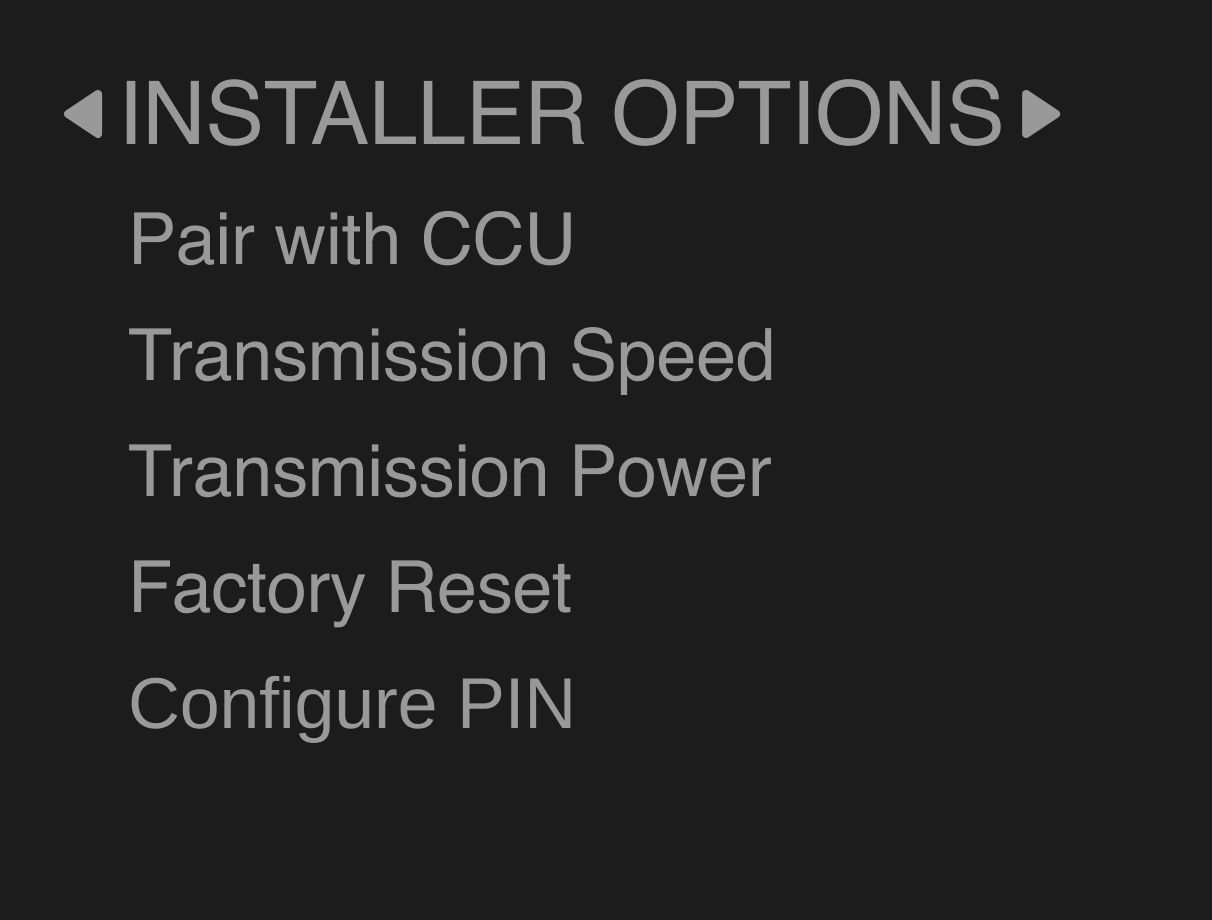

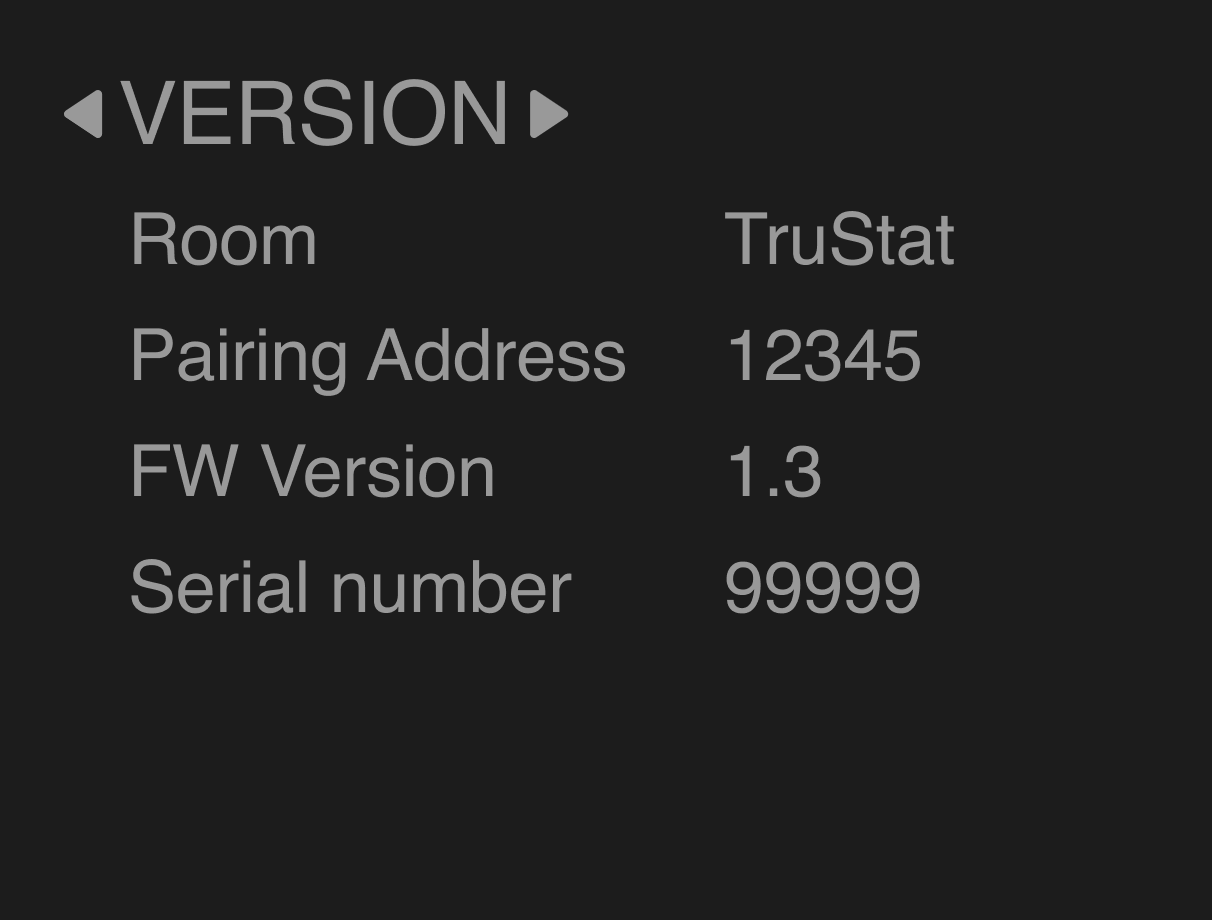

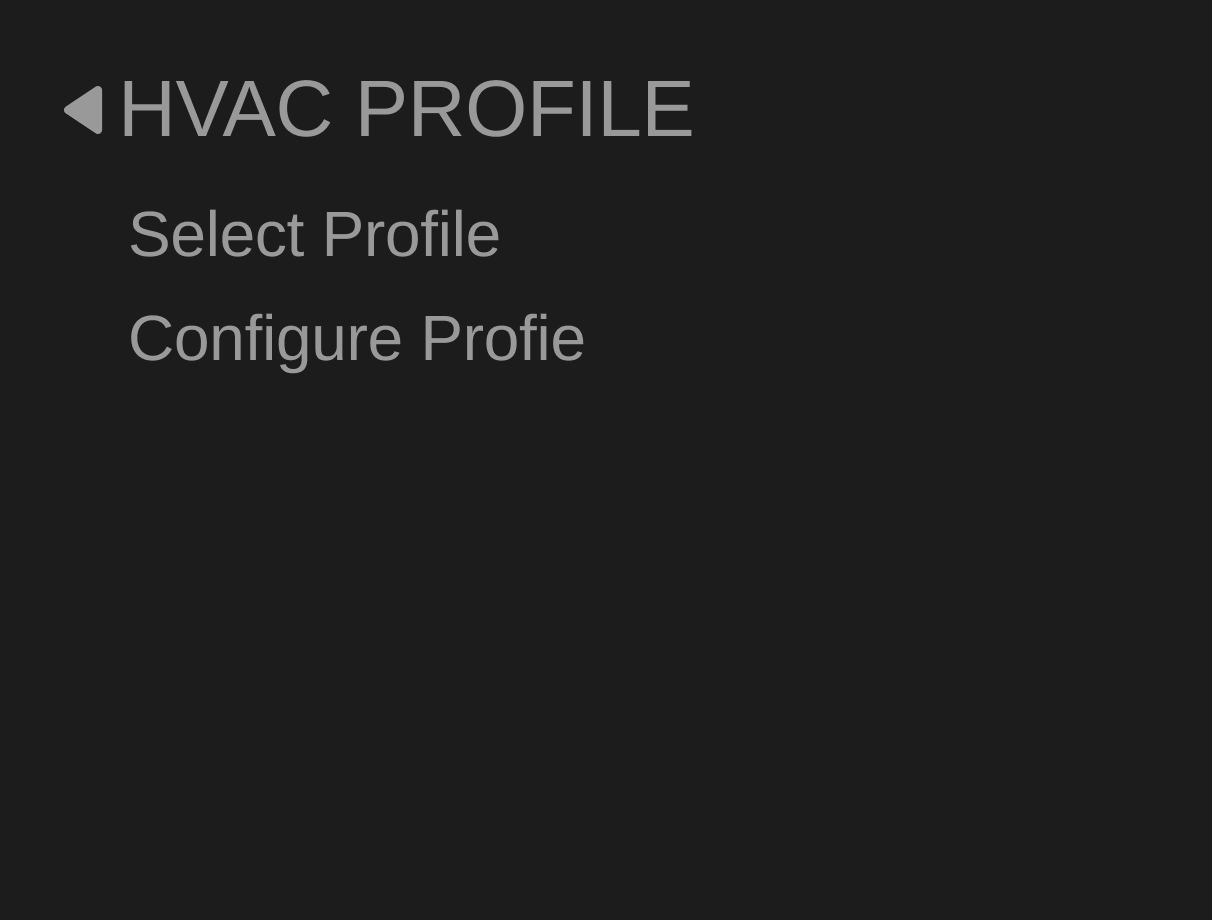

• Press the icon button to navigate to other screens as below

• Use the steps specified in the outputs screens section to navigate to the options available in various screens and modify the option parameters.
• Press the icon button to navigate back to the home screen.
