| Introduction
The Trendline Analytics feature includes the existing custom widgets capability, which has been enhanced with a common framework featuring calculated parameters with Blockly support for parameter conditions. Also, additional enhancements have been introduced, which include a dual Y-axis configuration, Y-axis scaling, with minimum/maximum configuration values, enabling users to derive deeper insights and make more informed decisions.
| Accessing Trendline Analytics
To access Trend Line Analytics
From the ClimaVision Web UI home screen
- Click to access the system-level or zone-level widgets screens.

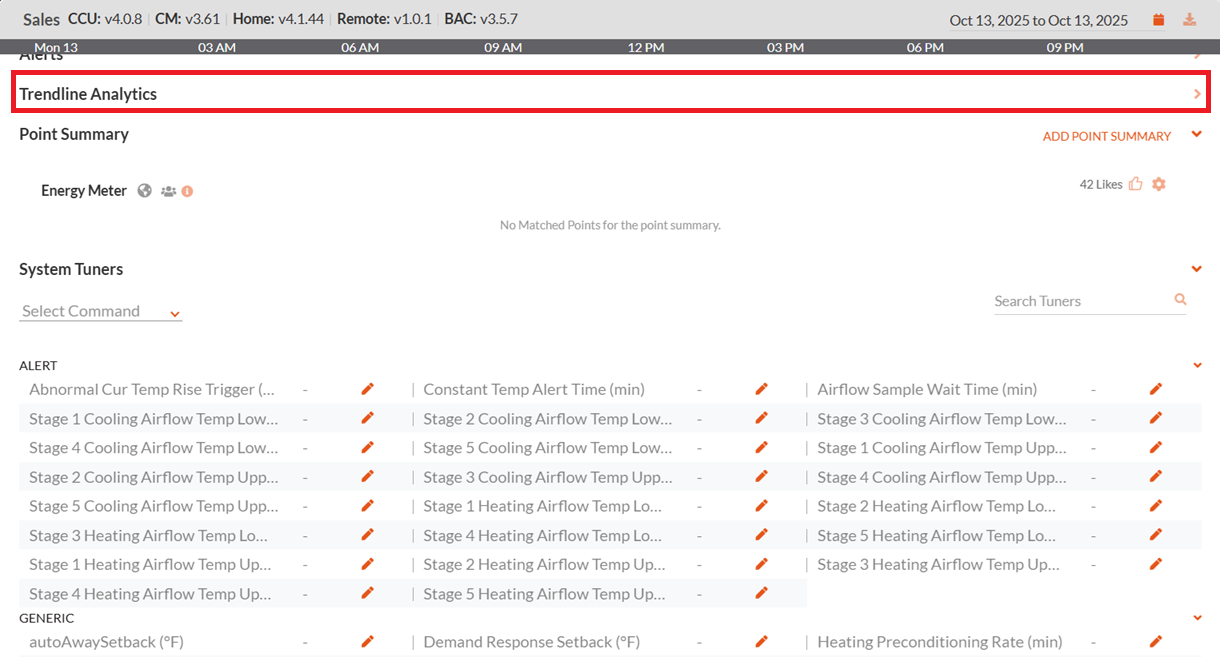

- Click to expand the Trendline Analytics section.

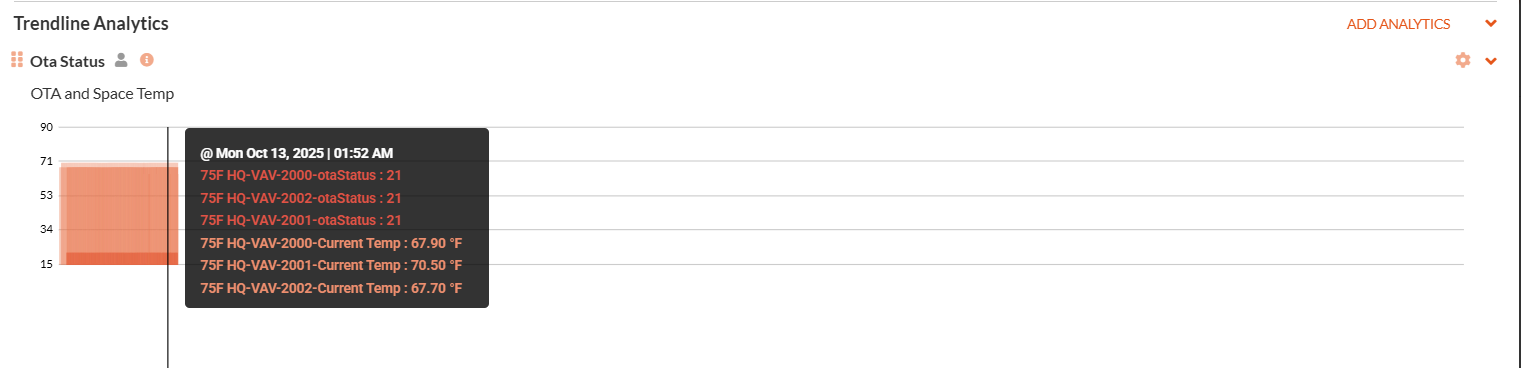

The section displays the trendline analytics widgets, added for viewing within the zone and system, alongside the default widgets.
| Adding a Trendline Analytics Widget
To add a trendline analytic widget

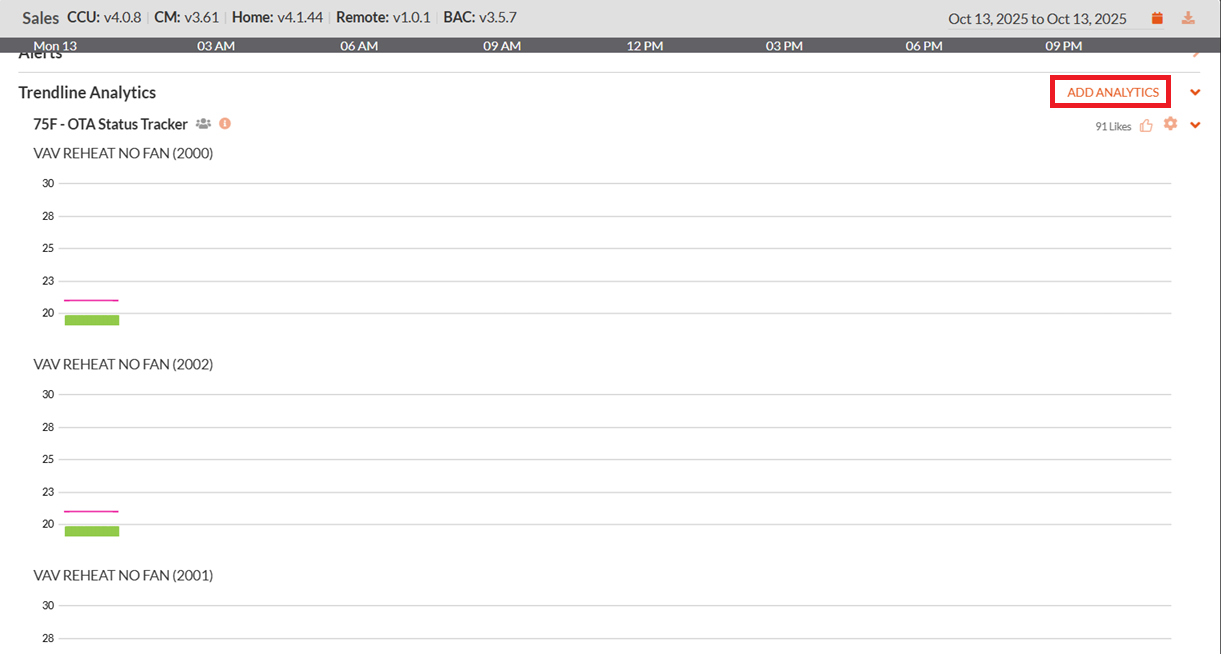

- Click Add Analytics

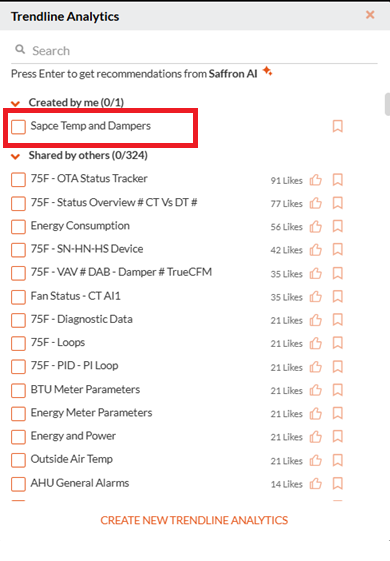

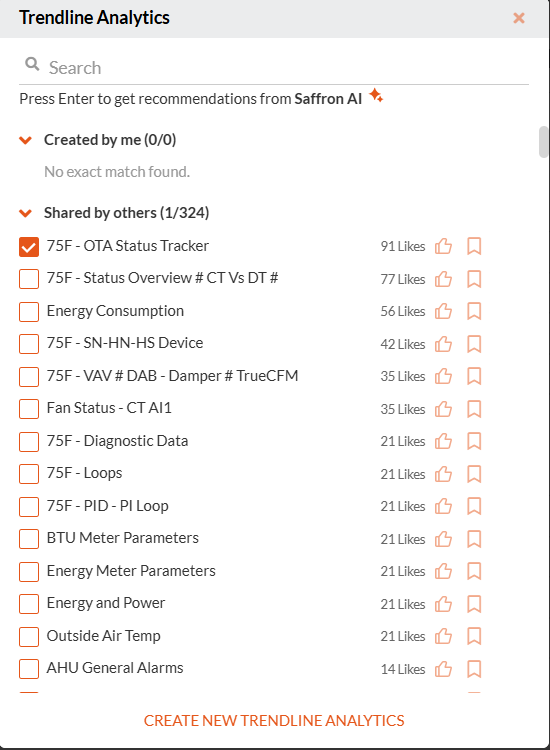

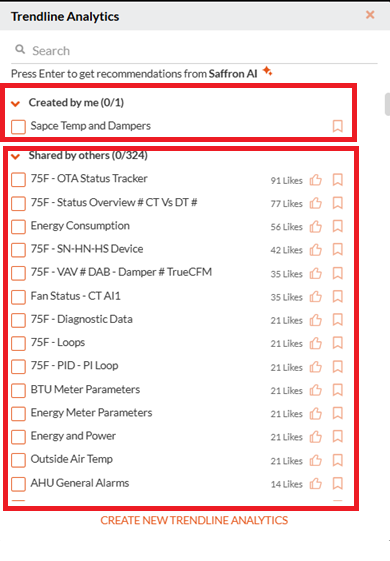

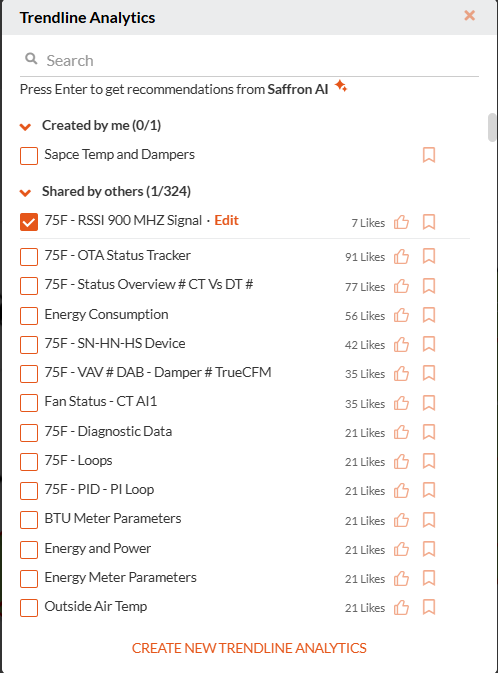

The common pool window for trendline analytics widgets is displayed, as shown below.

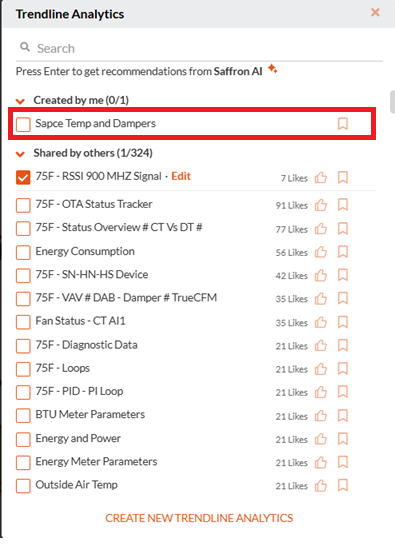

- Select any of the Trendline Analytics from the common pool to add it to the zone or system widget screen.

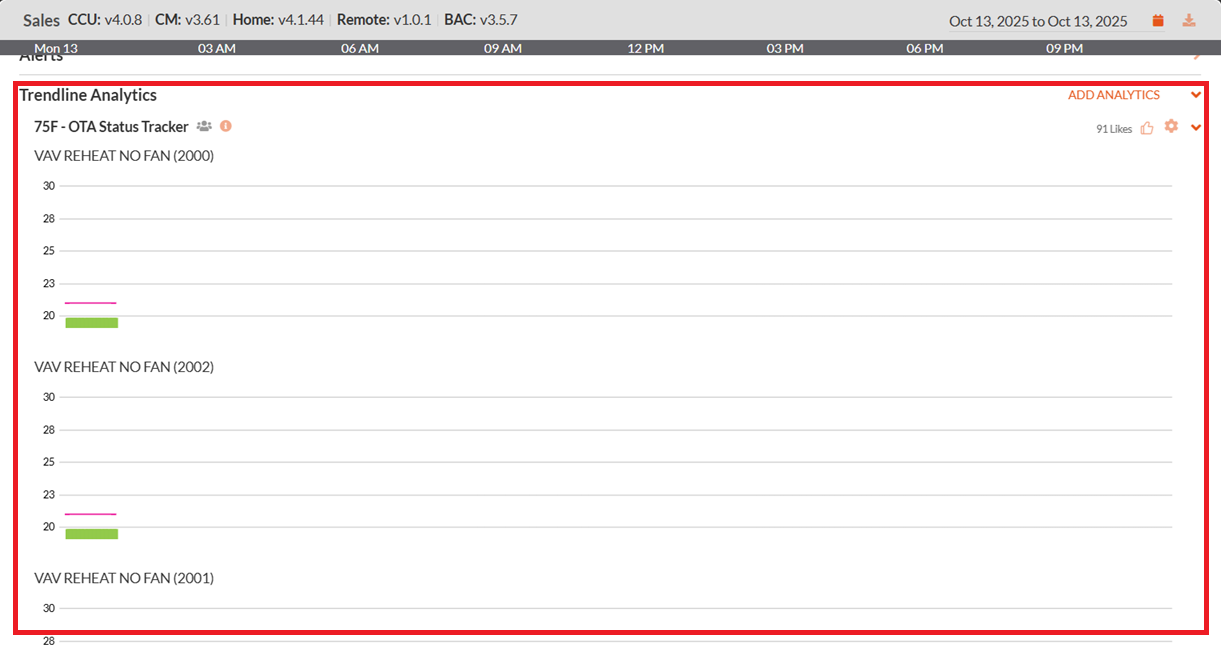

The added analytics can be viewed, as shown below.
| Creating New Trendline Analytics
To create a new trendline for analytics

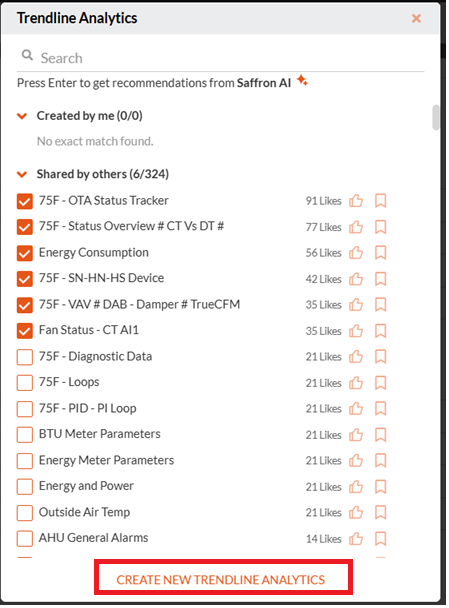

- Click Create New Trendline Analytics.

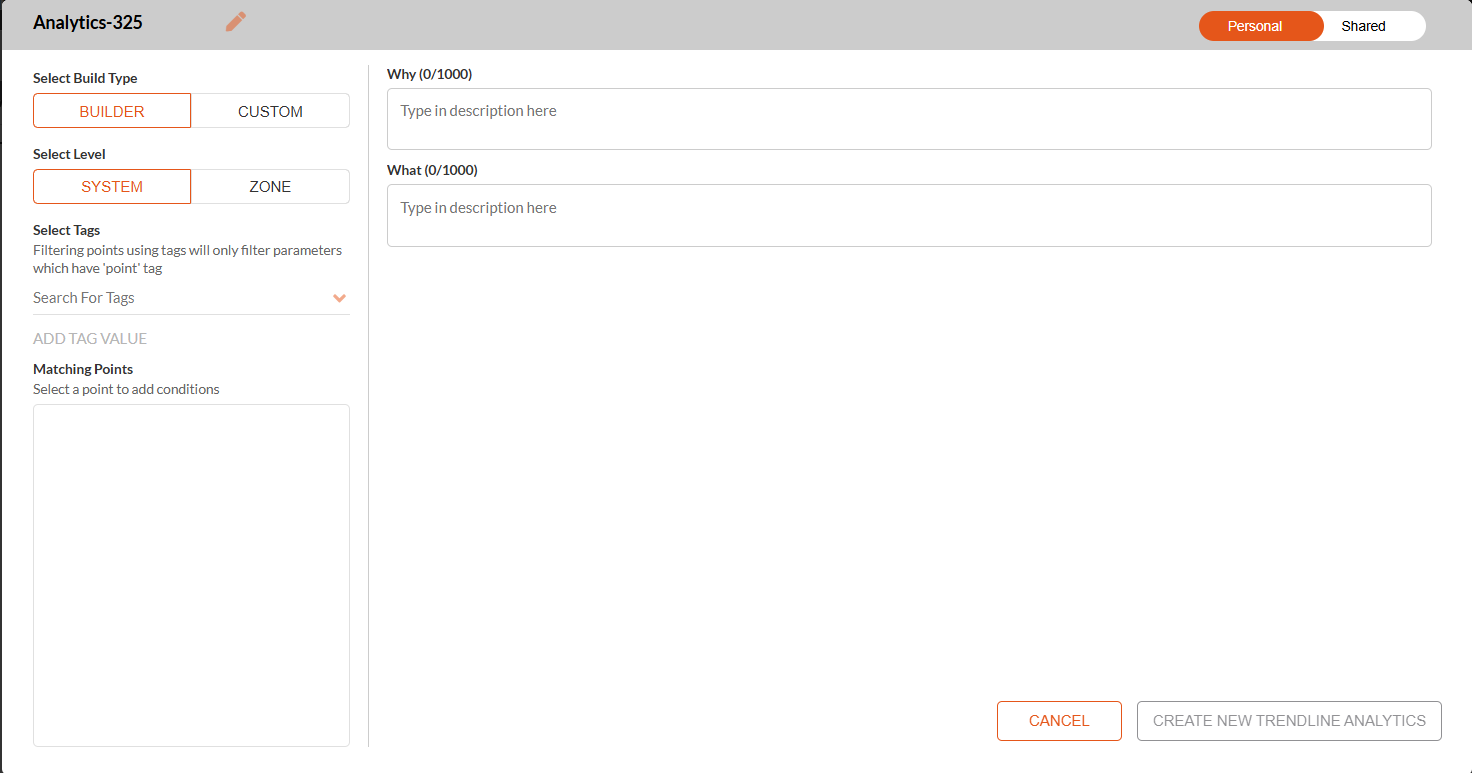

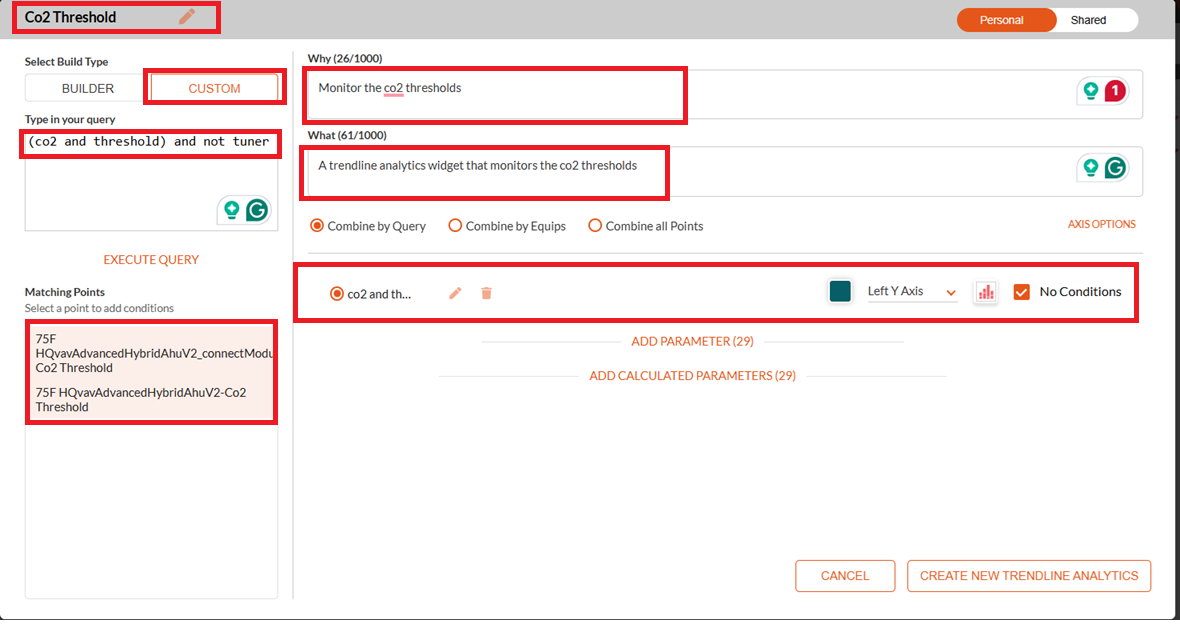

The Trendline Analytics builder window displays.
The following table explains the various fields displayed on the builder:
| Field | Description | ||||||

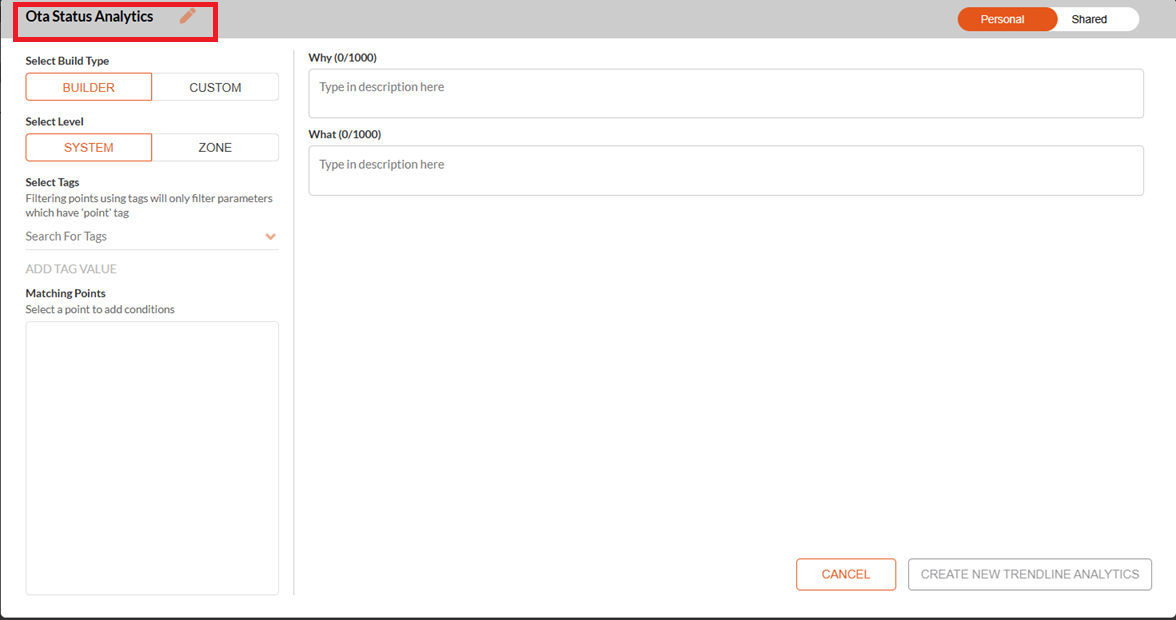

| Analytics Name | You can use this field to set a name for the analytics created. Note: The names cannot contain any empty names or special characters at the beginning. Allowed special characters are hyphen (-), underscore (_), space (), hash (#) and percentage (%). | ||||||
| Select Build Type | You can use this option to select a build type, used to build the analytics.
| ||||||
| Select Summary Type | You can use this option to select a specific Summary Type.
| ||||||
| Shared/Personal | You can use this option to set the trendline analytic widget as a personal or shared one. Note: A trendline analytic widget can be shared or can be viewed as a personal one. A personal trendline analytic widget can be viewed only by the user who has created the analytic, whereas a shared one can be viewed by other users. | ||||||
| Why and What | You can use this option to add the why and what description of the trendline analytic widget and its purpose of creation.
| ||||||
| Widget Aggregation | You can use this option to define an aggregation type for the widget.
| ||||||
| Cancel | You can use this option to exit the builder. | ||||||
| Create a New Trendline Analytics | You can use this option to create a new trendline analytic widget |

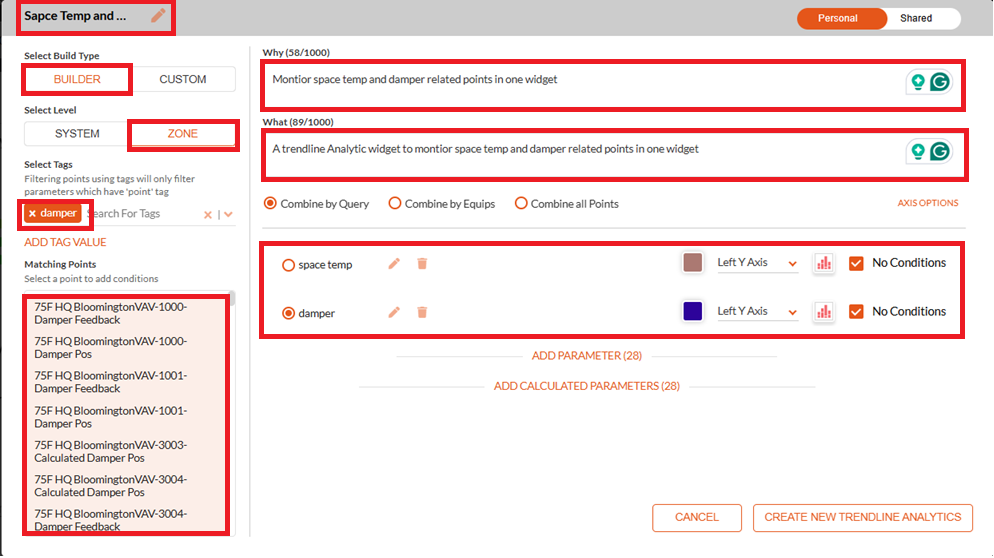

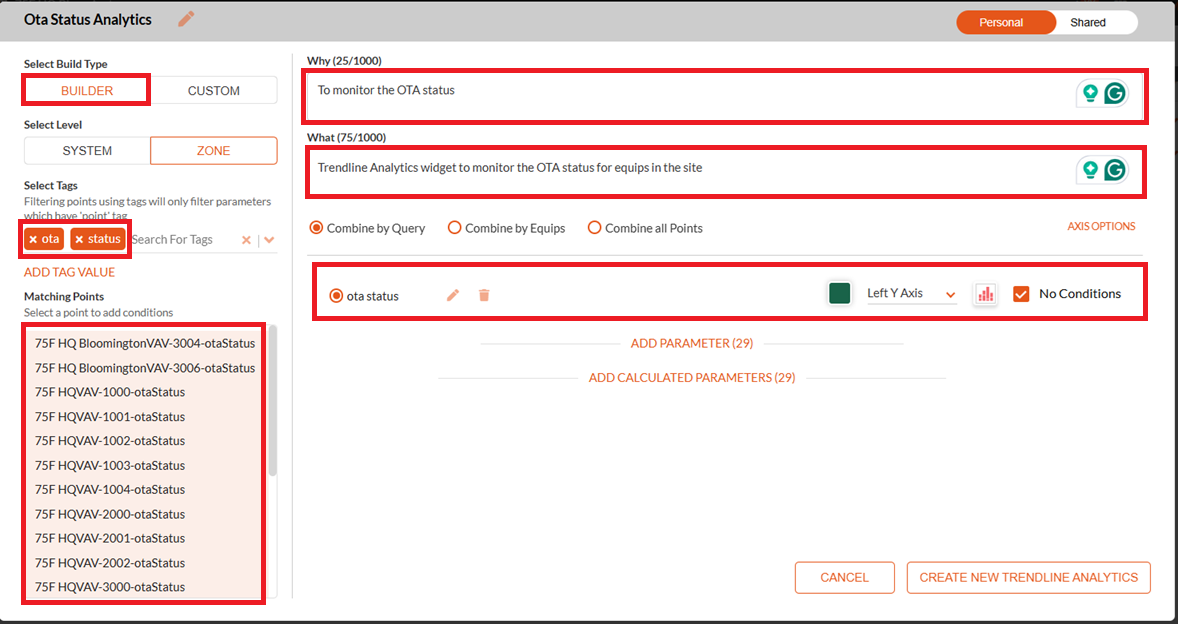

- Query and add the required points, and enter all the required details, as shown below.

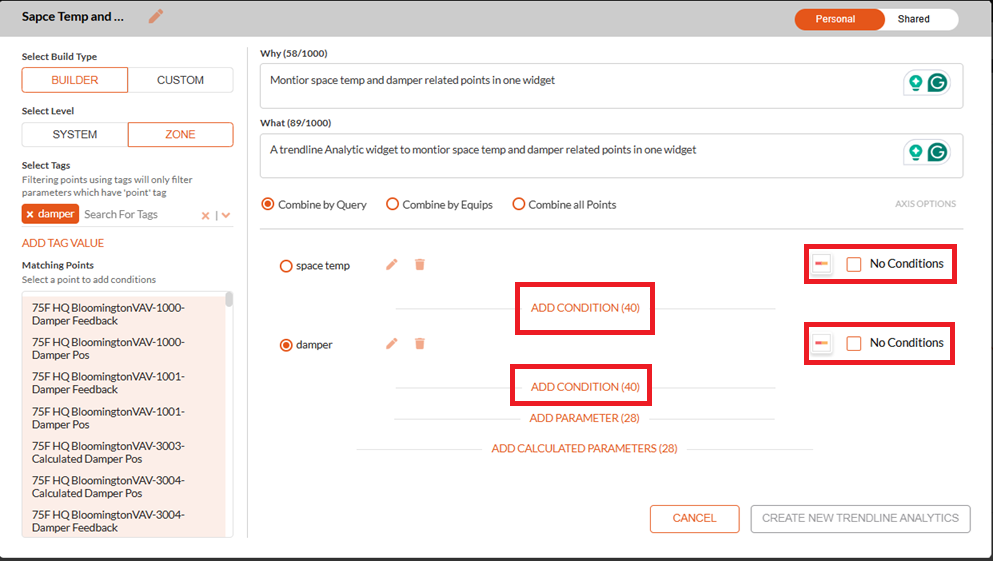

- Uncheck the No Conditions and click Add conditions to add conditions.

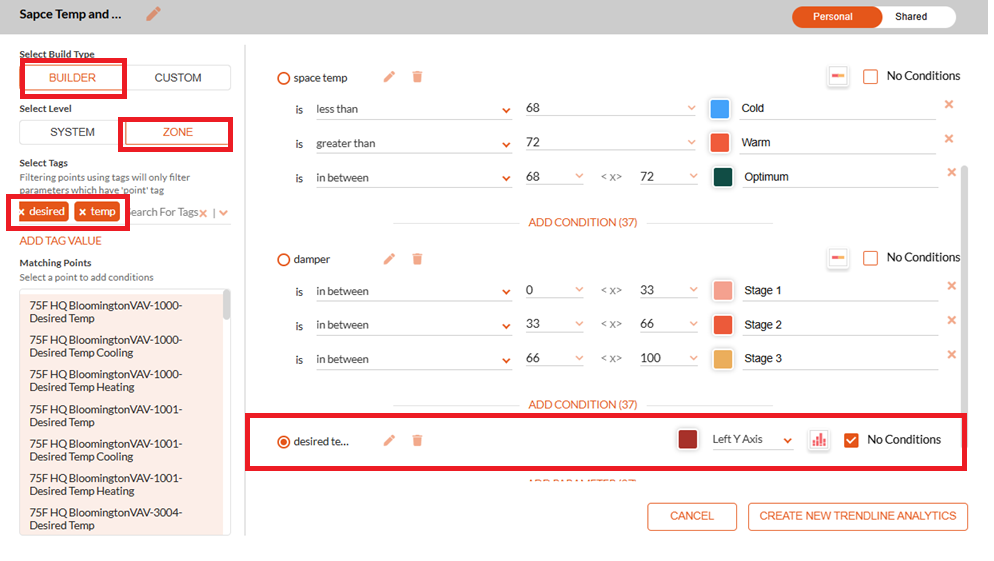

- Add the required conditions, as shown below.

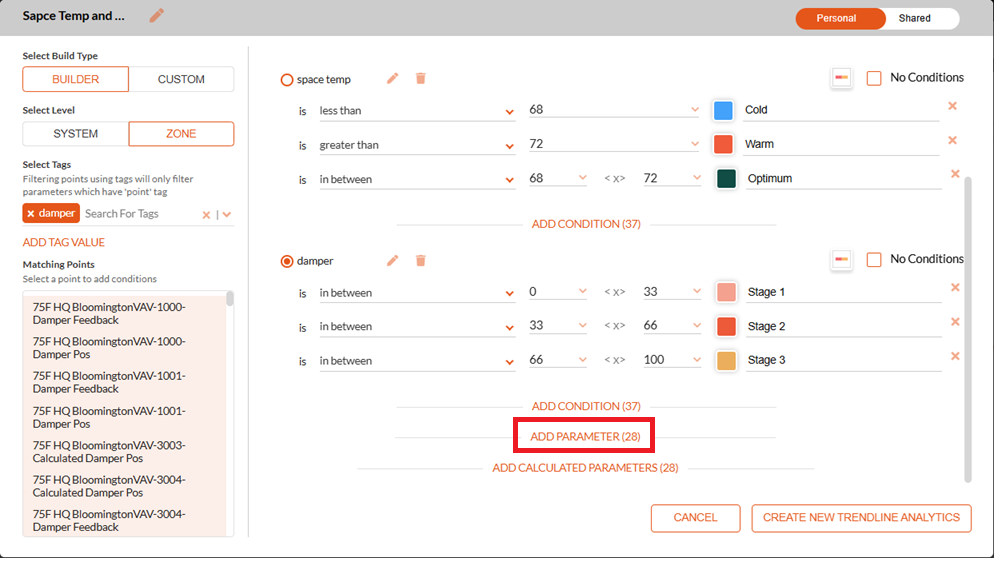

- Click Add Parameters to add more parameters.
Note: You can add up to 40 conditions per widget.
- Add the additional parameters required.
Note: You can add up to 100 parameters per widget.
- Set the Axis for the trendline widget using the option provided.
- Set the widget for the trendline widget using the option provided.
- Click Create New Trendline Analytics to create the widget.
The widget gets created, and the same is made available for applying for a site.
| Types of Analytics
Analytics are categorized into two types depending on visibility. They are as follows:
- Analytics Created by Me - Analytics shared by me are the ones that are created by the signed-in users and shared with other users. This is visible to all Internal and Facilisight users once shared.
- Analytics shared by others- Analytics shared by others are the ones that are created by other users as shared analytics This as well is visible to all Internal and Facilisight users once shared.
Note: Support users have the capability to share analytics to Internal Portal only or both Internal+Web UI
| Like and Bookmark Capability

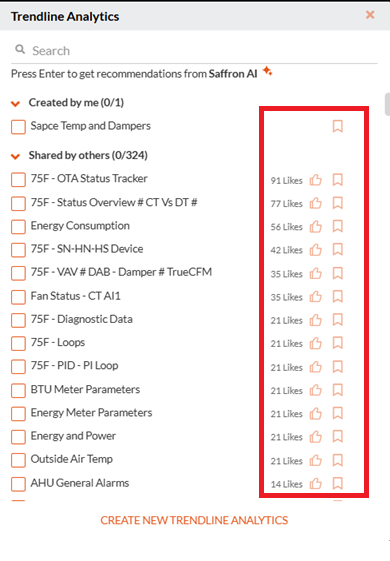

The common framework also provides capability to the users to like and bookmark analytics for future reference.
Note: The Like option is only available for analytics shared by others. However, a user can bookmark analytics created or shared by others for reference.
| View Capability
The common framework also provides capability to the users to view created analytics shared by others
Note: Users will be able to add a maximum of 20 analytics from Site Overview and 20 analytics from a specific system or zone page

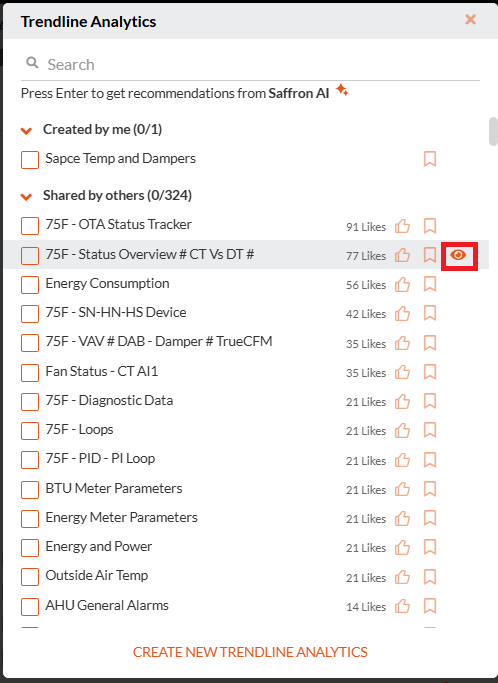

- Click the view icon to view analytics shared by others

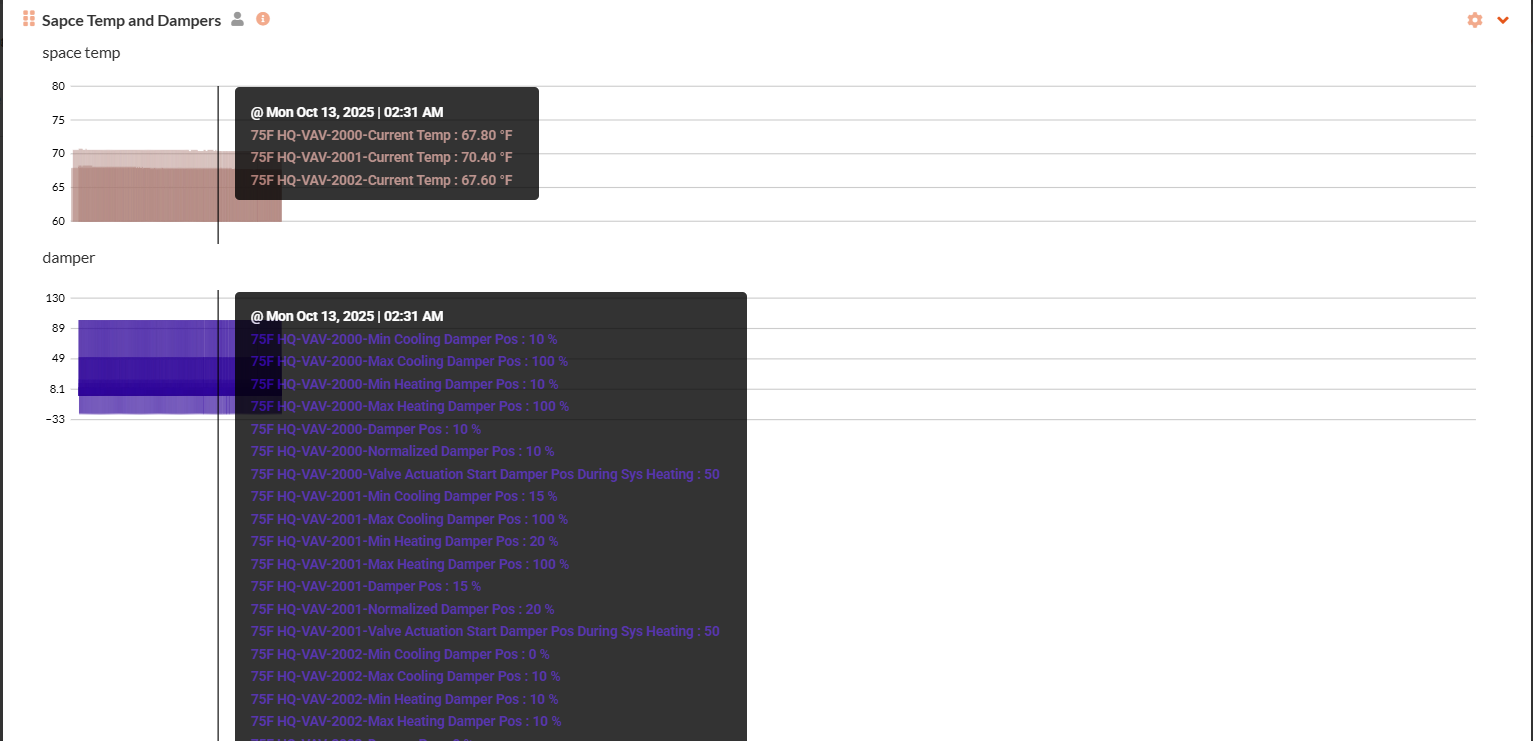

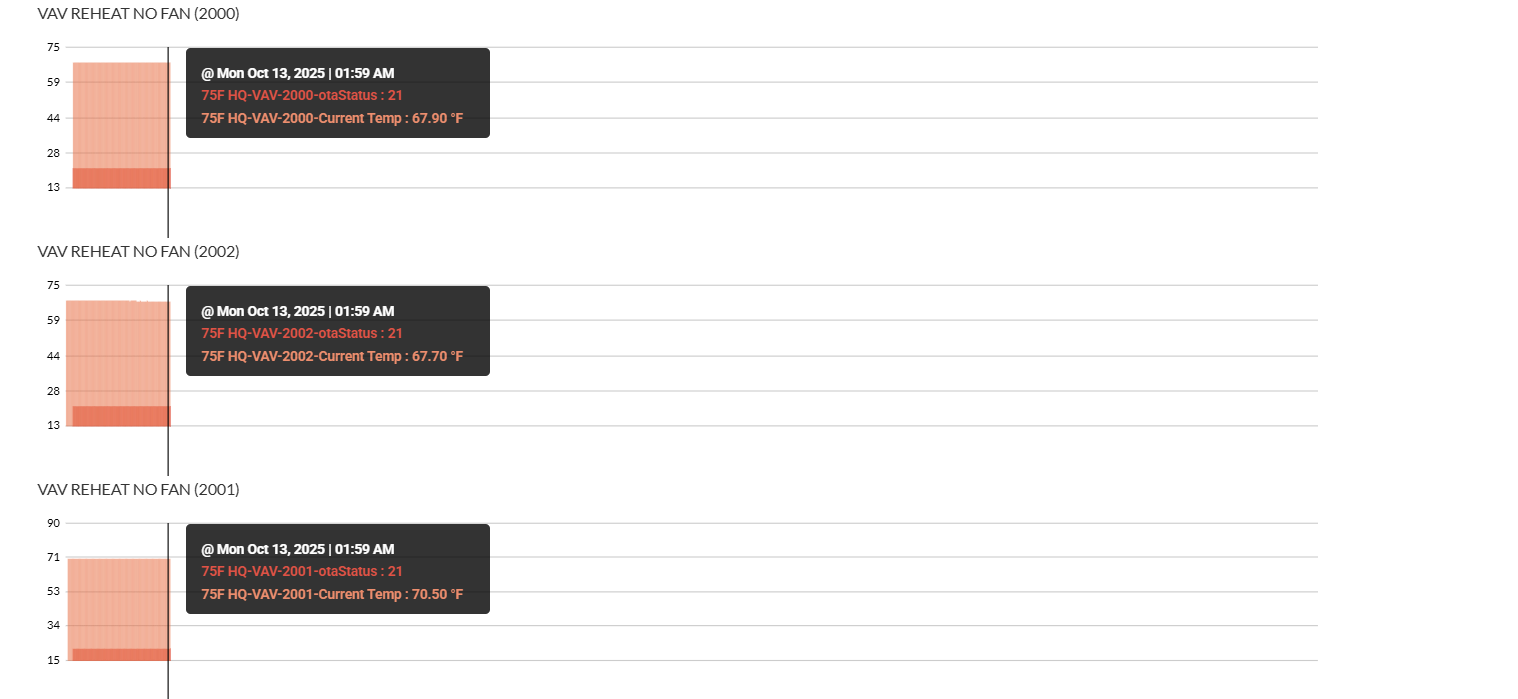

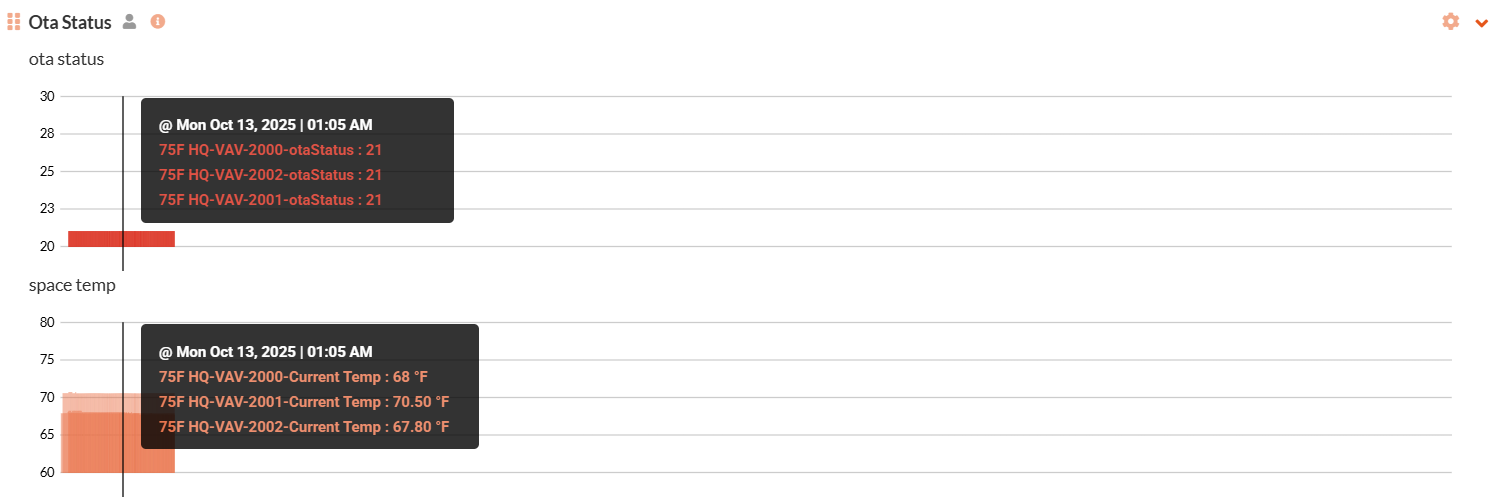

The analytics is displayed.
| Search Capability

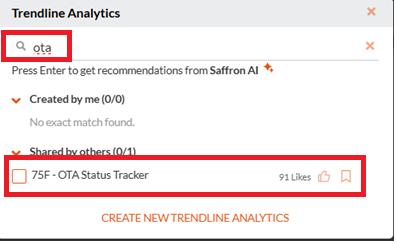

Users can also search for specific analytics by typing in the name in the search bar.
|

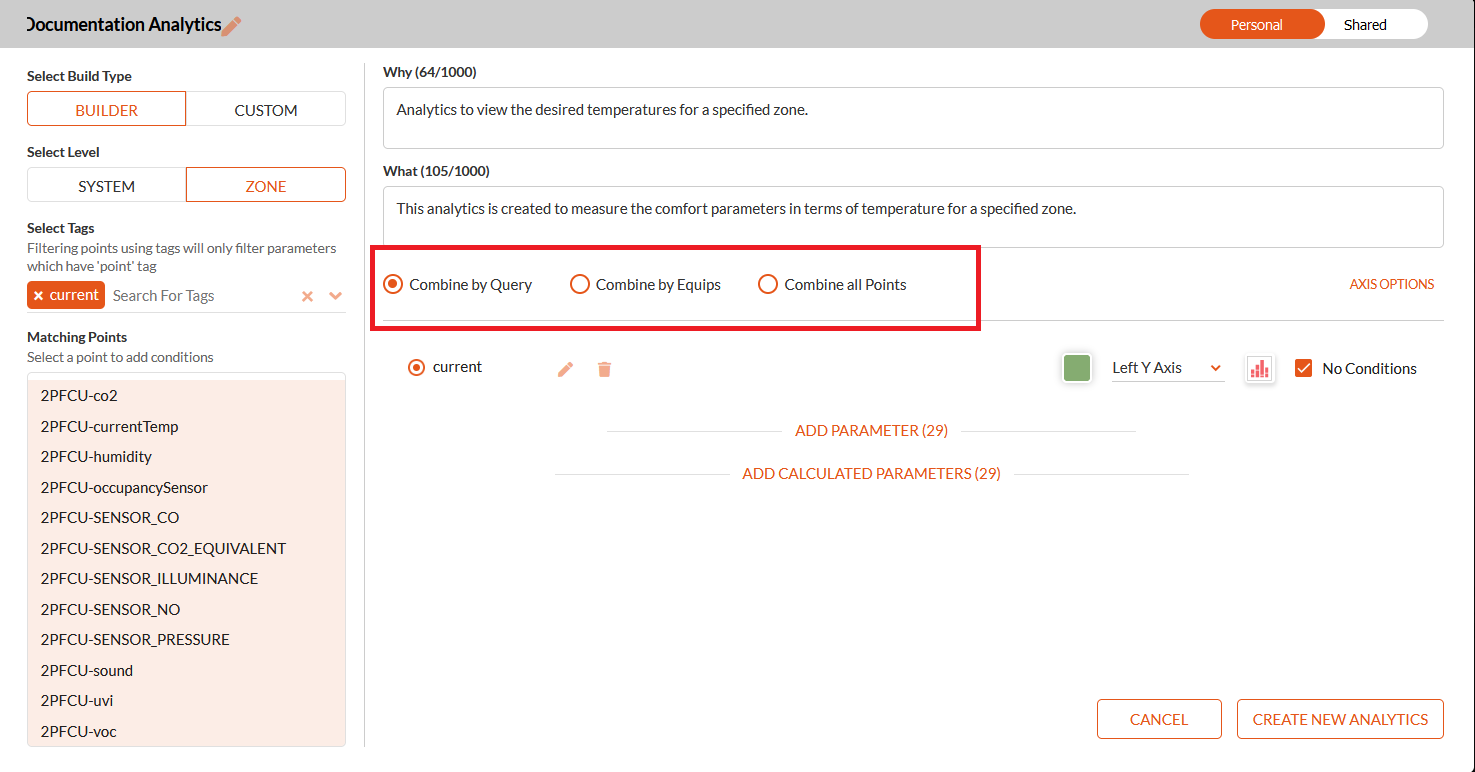

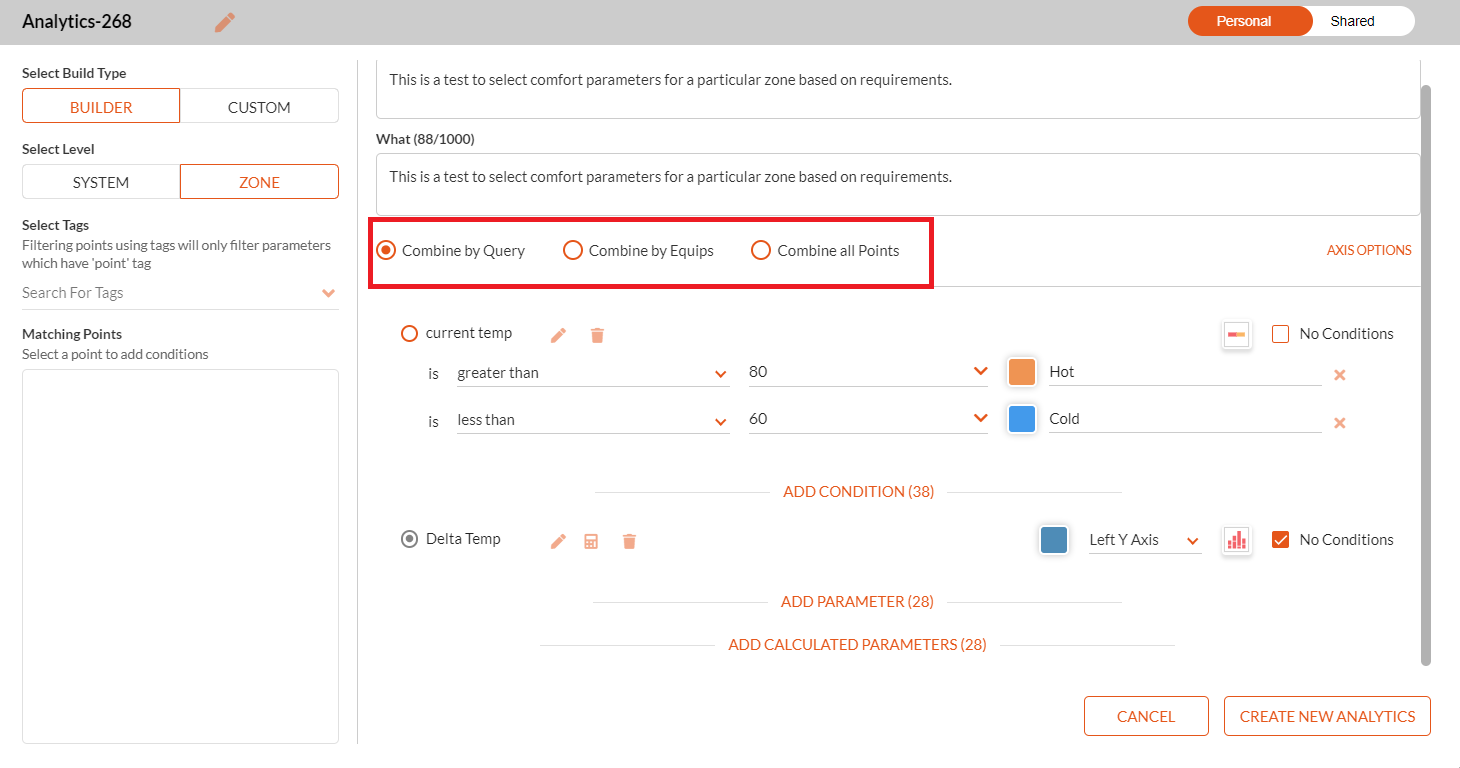

Users will have the option to combine analytics by query, combine by equips or combine all the points associated with it.

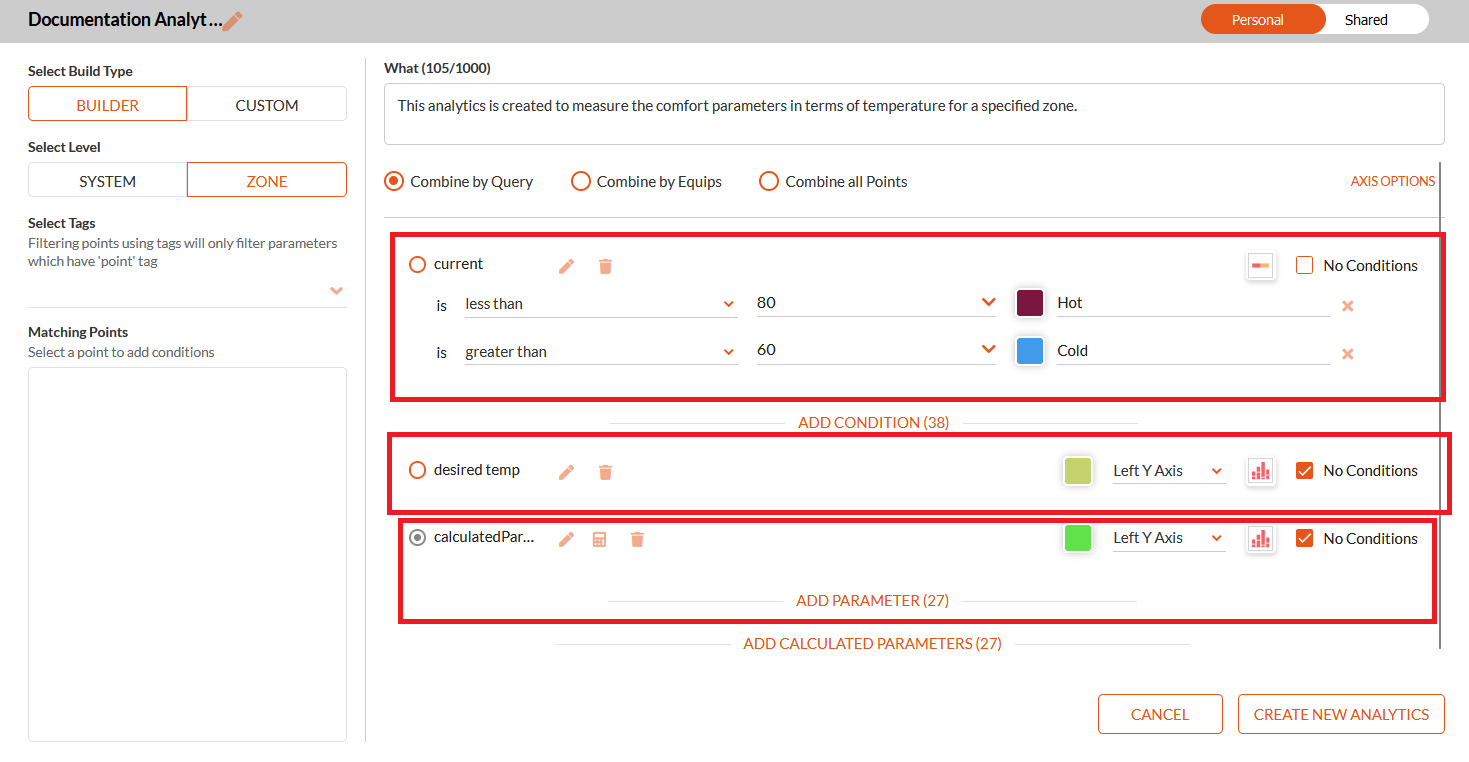

- Select the parameters and the calculated parameters for the analytics
Note: Users will be able to add a maximum of 30 parameters along with 40 conditions for each parameter
- Select the calculator icon to access the Blockly page

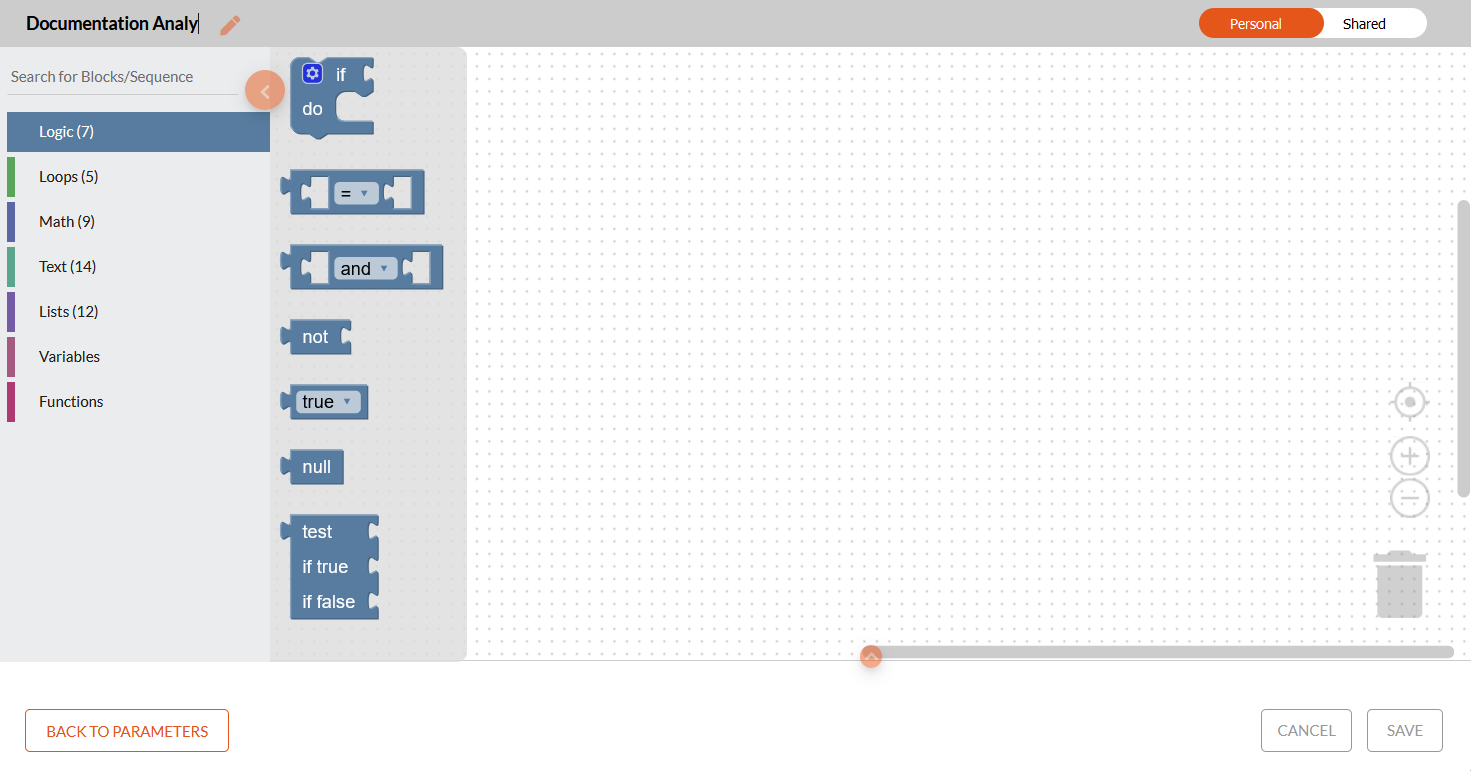

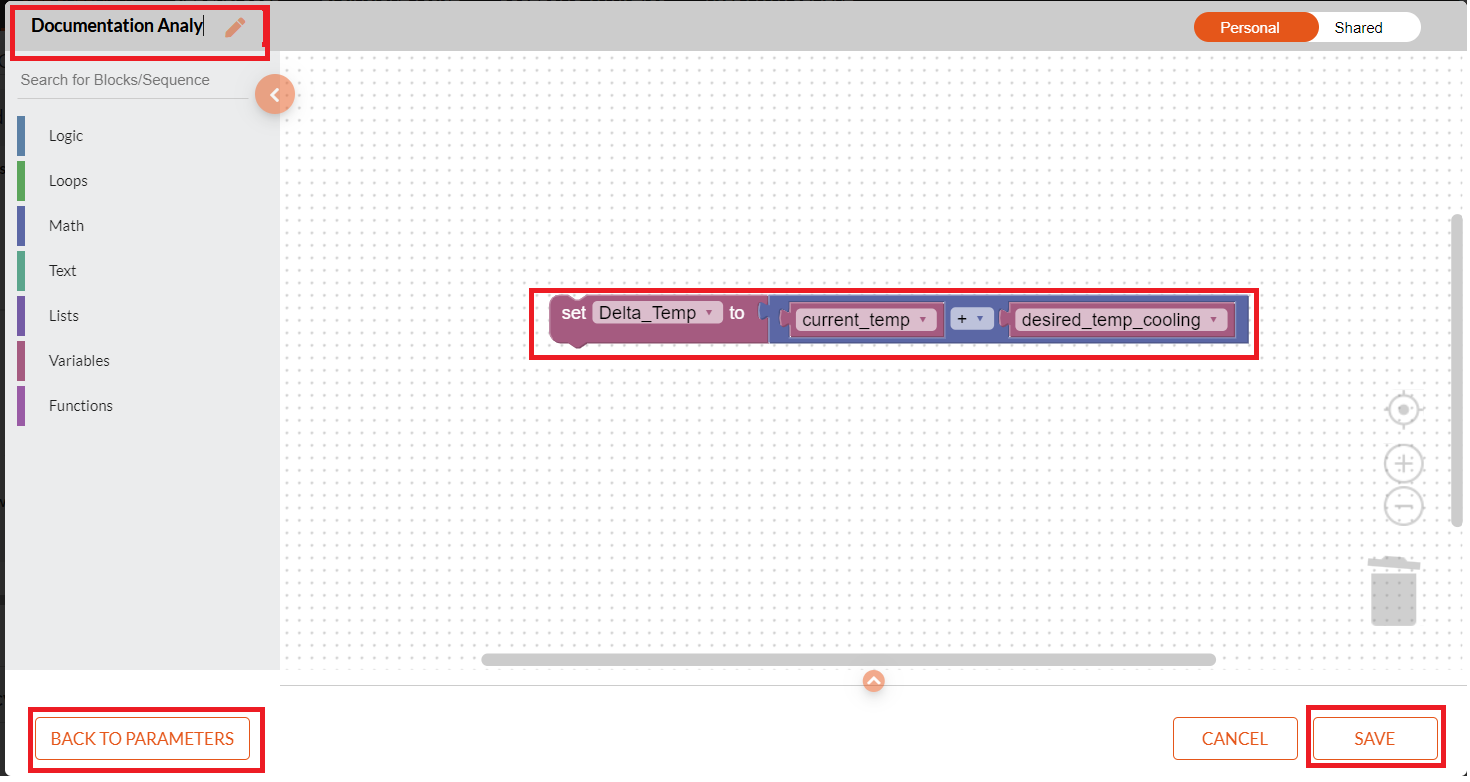

- Use the Blockly blocks to compute and display the calculated parameters, as below:
- Click Save to save and confirm the calculation blocks built.
- Click Back to Parameters to go back to the parameters addition screen.
- Click Create New Analytics to confirm the widget created.
| Editing an Analytics

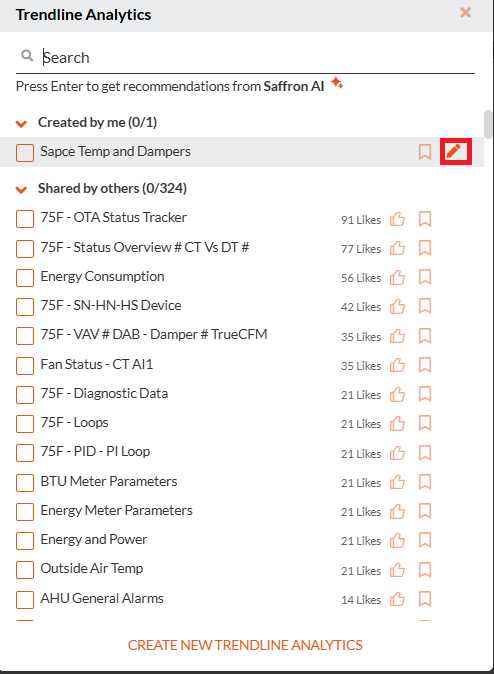

- Select the edit icon to further edit an analytics once created

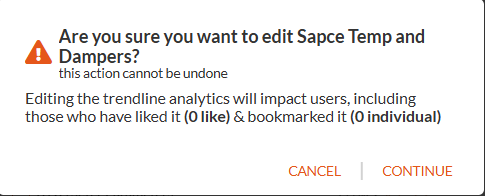

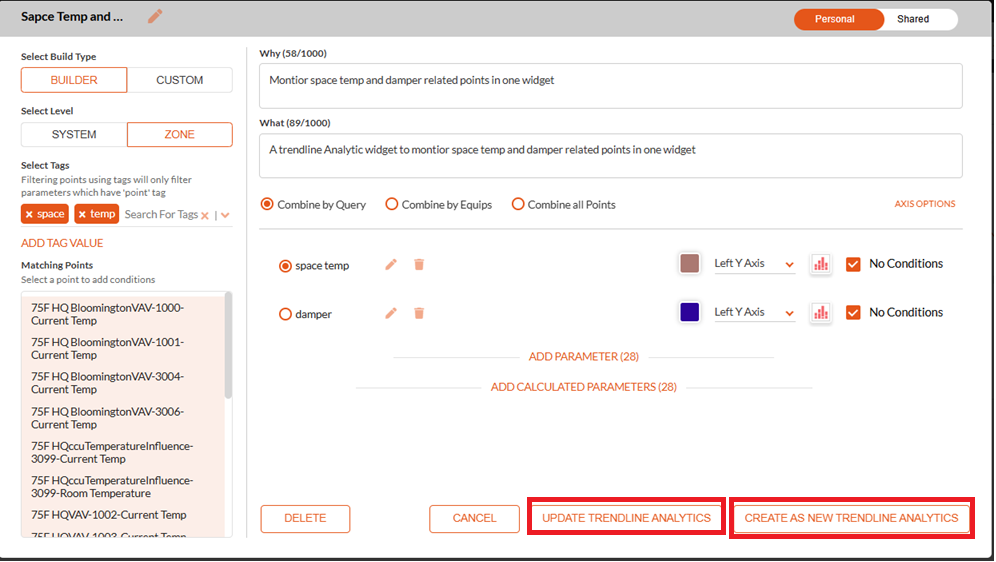

A warning message window pops up as shown below, with information about the number of sites using the widget and the consequences of editing the widget.
- Click Continue to edit.
- Make the necessary edits.
- Click Update Trendline Analytics to update the changes to the current widget.
or
- Click Create as New Trendline Analytics to save it as a new widget.
| Bulk Application Builder for Analytics.
Earlier, applications in Analytics were applied globally to all zones by default, limiting flexibility for zone-specific needs. With this enhancement, users can now filter and select the zones where an application should be applied and also bulk push applications across multiple zones in one go. This provides greater control, flexibility, and efficiency, enabling faster deployment and more tailored management of analytics applications.

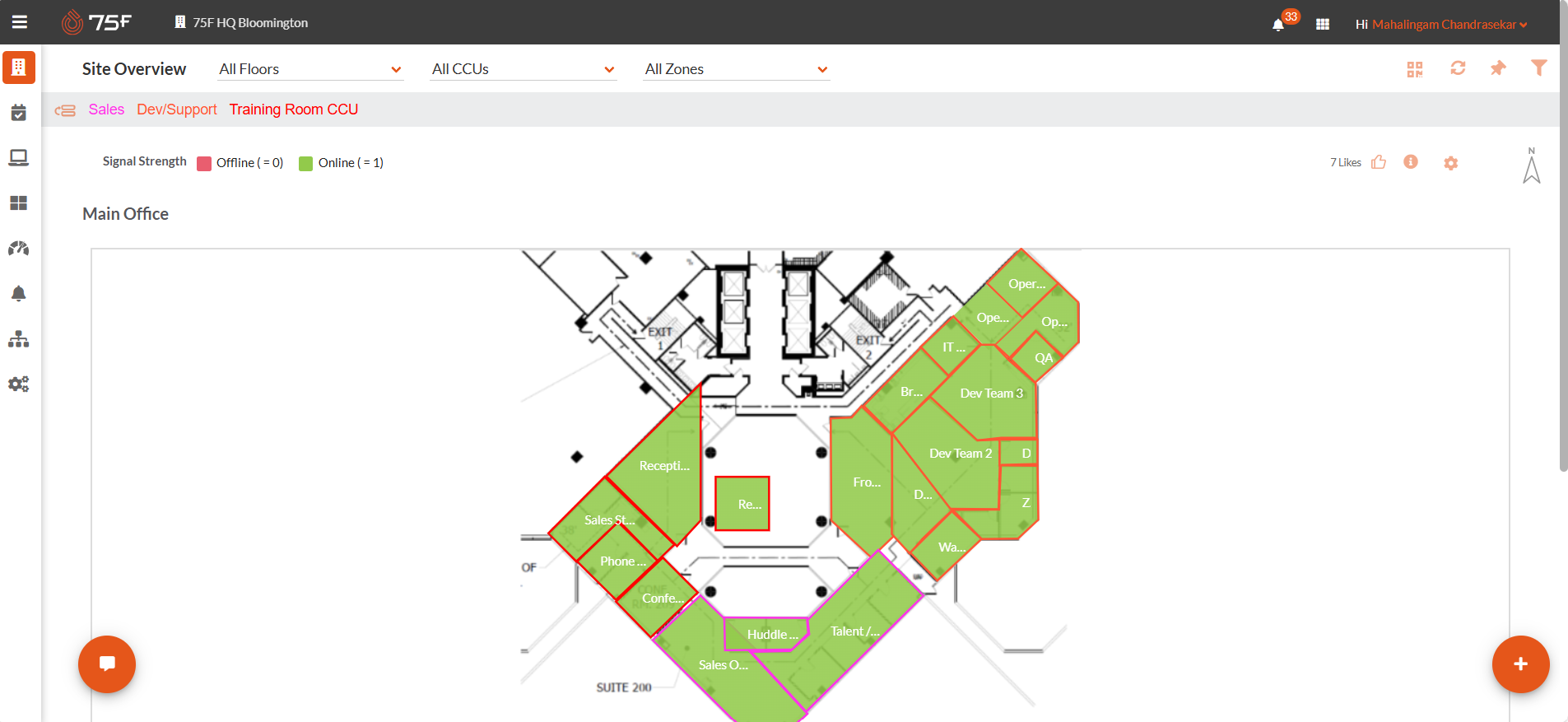

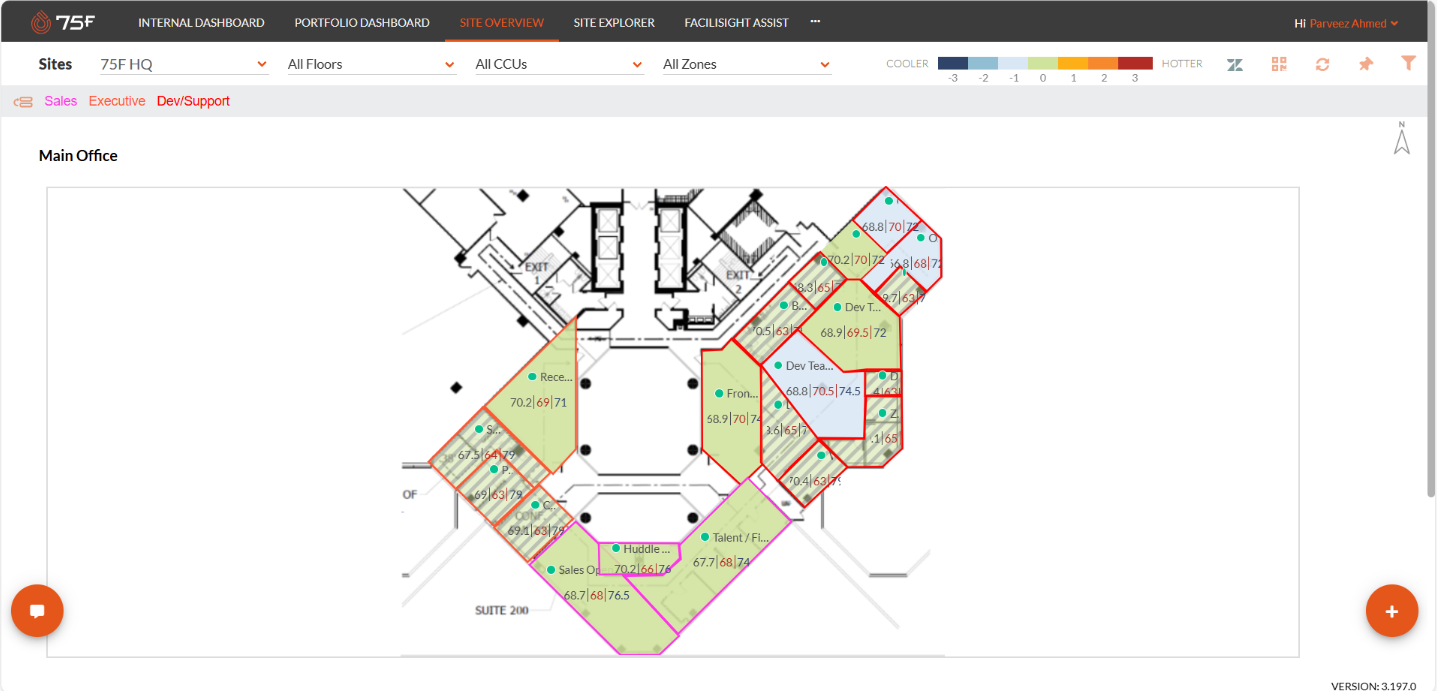

From the Site Overview page

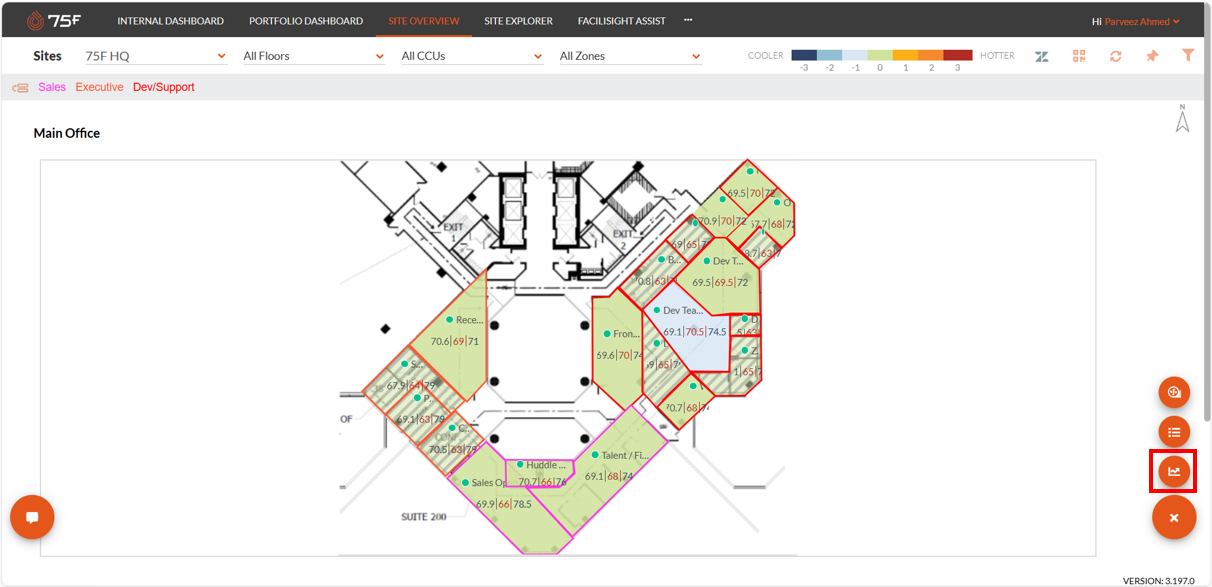

- Click the + icon
- Click the Analytics icon
The Analytics option is displayed.
- Select any Analytics.

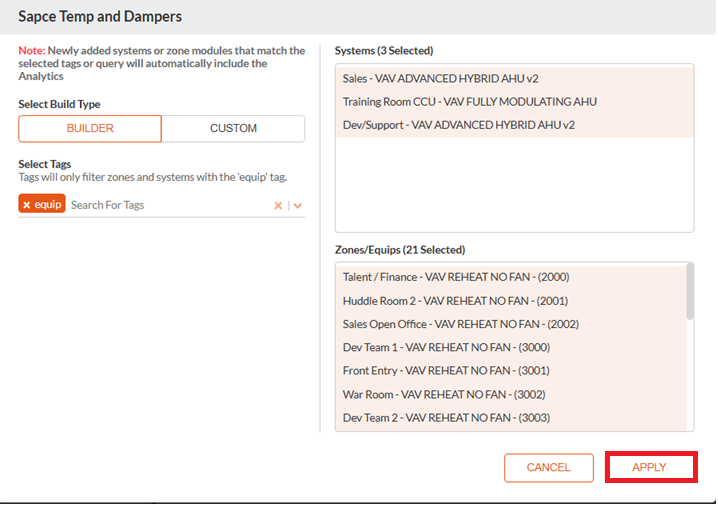

The filter page is displayed.

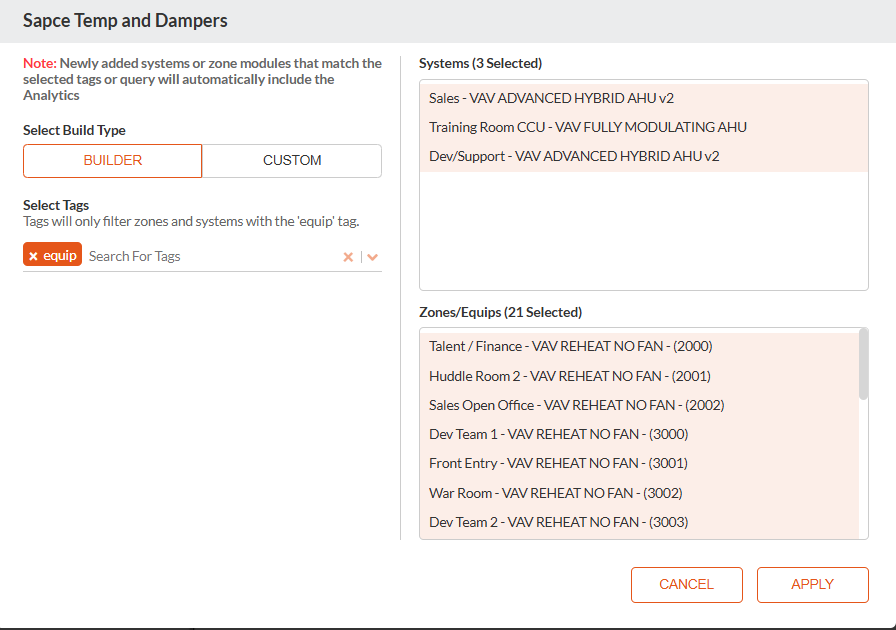

- Type or select the tag. The displayed systems will only have the selected analytics pushed to them, rather than being applied to all systems in the bulk.
- Click Apply.

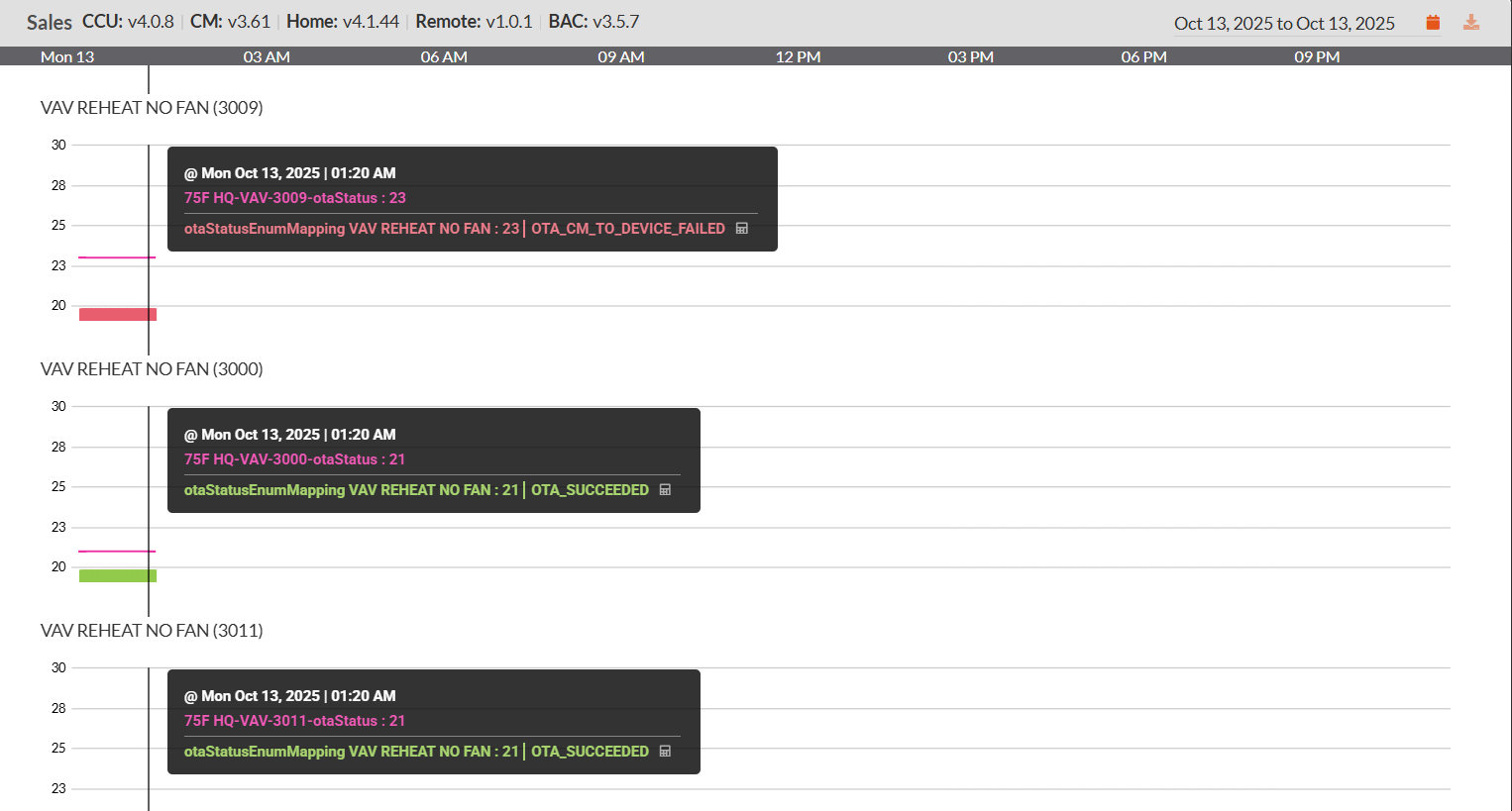

This enhancement allows users to filter and select the zones where an application should be applied, and also bulk push applications across multiple zones in a single action.
| Advanced Features
The analytics come with advanced features to aid the user in making informed decisions on datasets. They are described as follows:
1. Dual Y-Axis Configuration

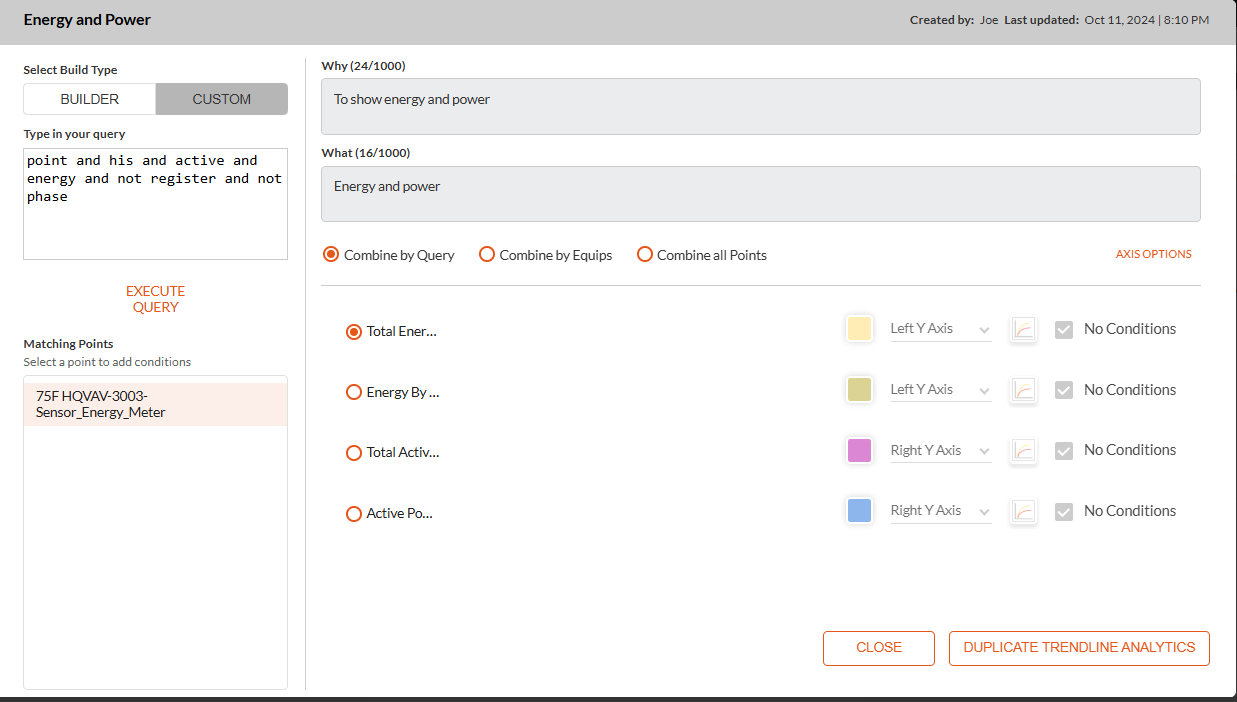

Users will have the flexibility to configure the Y-axis, selecting from both queried and calculated parameters. By default, the Y-axis will be set to “Left Y-axis,” but users can change this setting to “Right Y-axis” if they prefer.
However, it’s important to note that if any conditions are applied to the parameters, the dual Y-axis configuration will not be available. Once the configuration is applied, only the user who created it will have the authority to modify the settings, ensuring that the configuration remains consistent.
2. Y-Axis Scaling

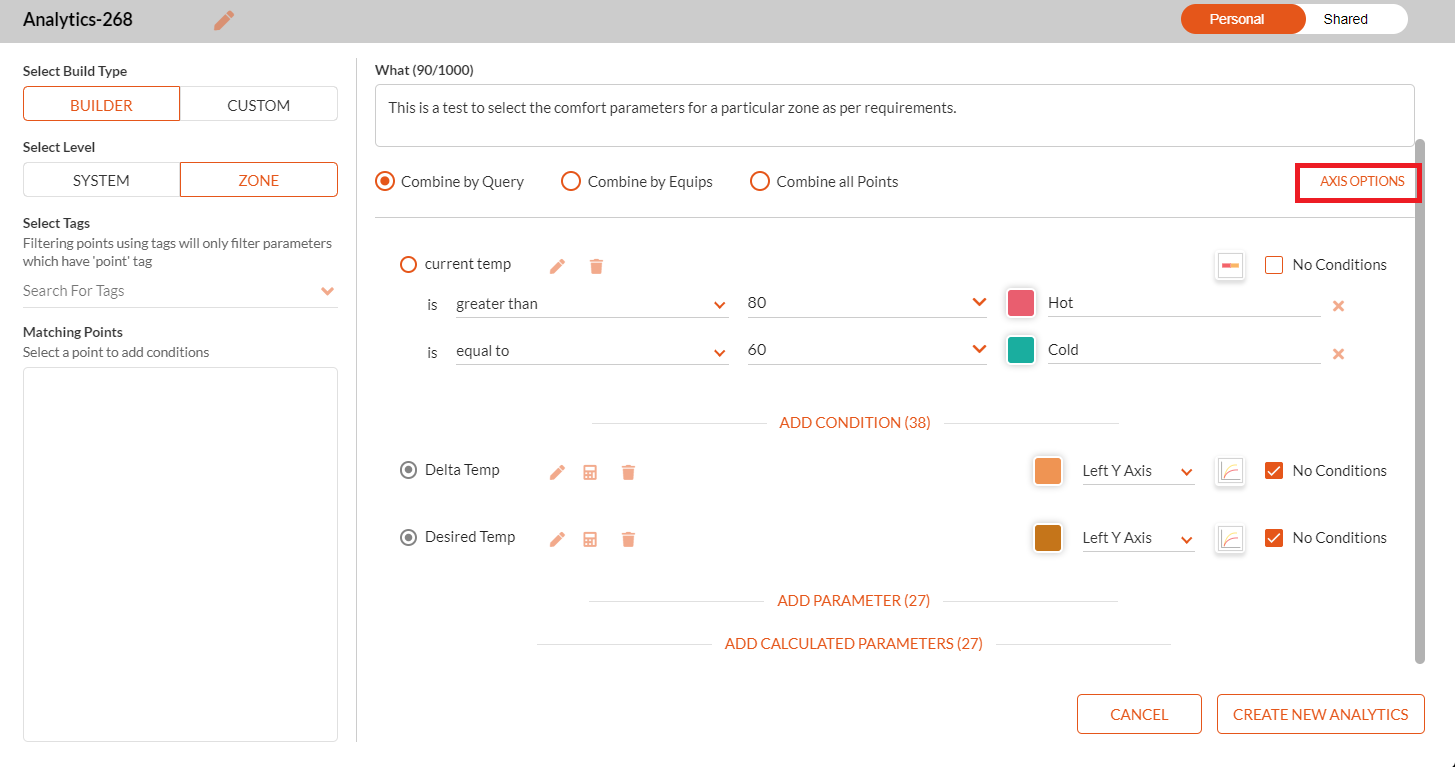

Users will have the flexibility to scale the Y-axis. The “Axis Options” call-to-action will be available for configuration. Depending on the dual-axis setup, users can scale both the left and right Y-axes. They will also be able to set minimum and maximum values for both the left and right Y-axes.
Additionally, users will have the option to revert to the default auto-scaling by clicking on the revert icon. Once the configuration is applied, only the user who created it will have the authority to modify the settings, ensuring consistency.

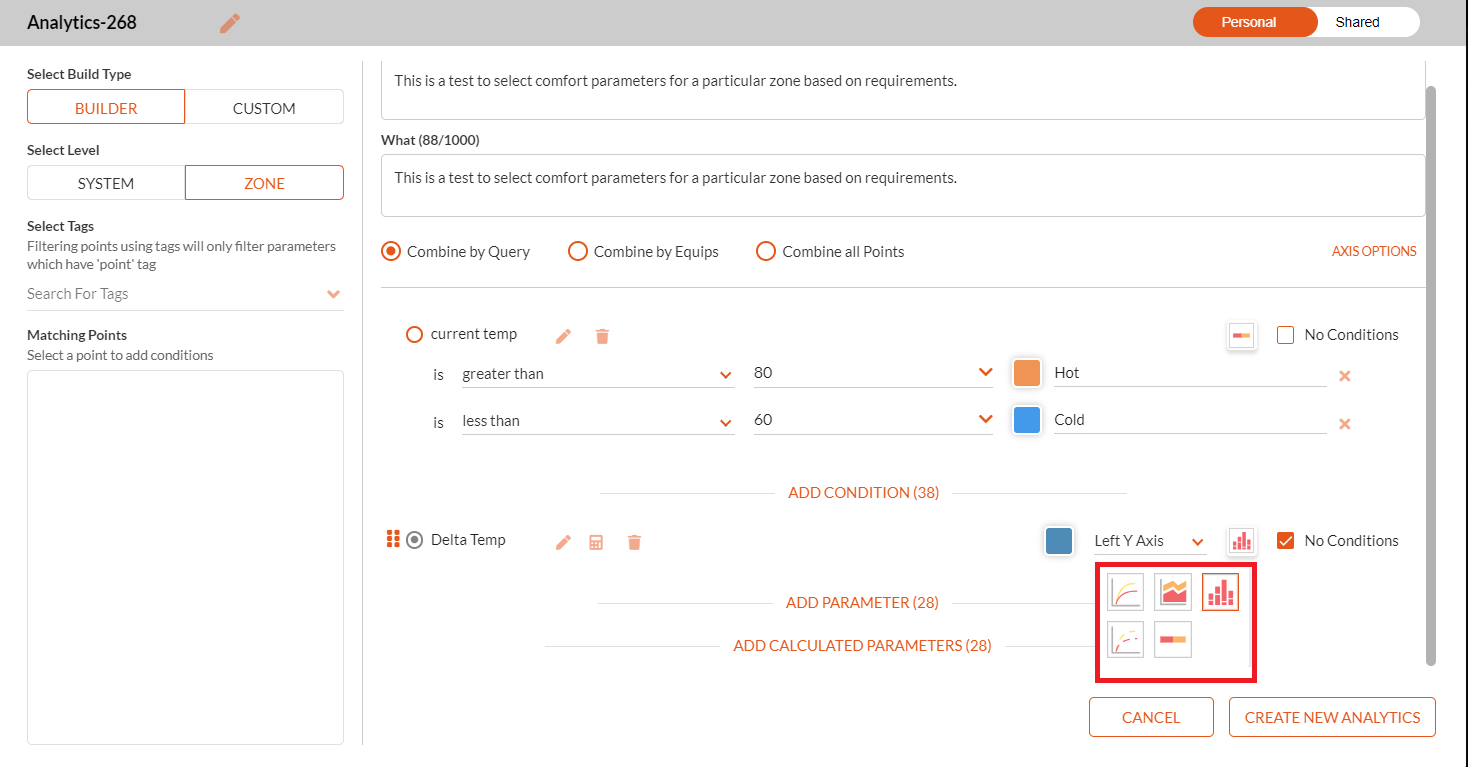

- Select the option to analyze combining by query, equips, or points

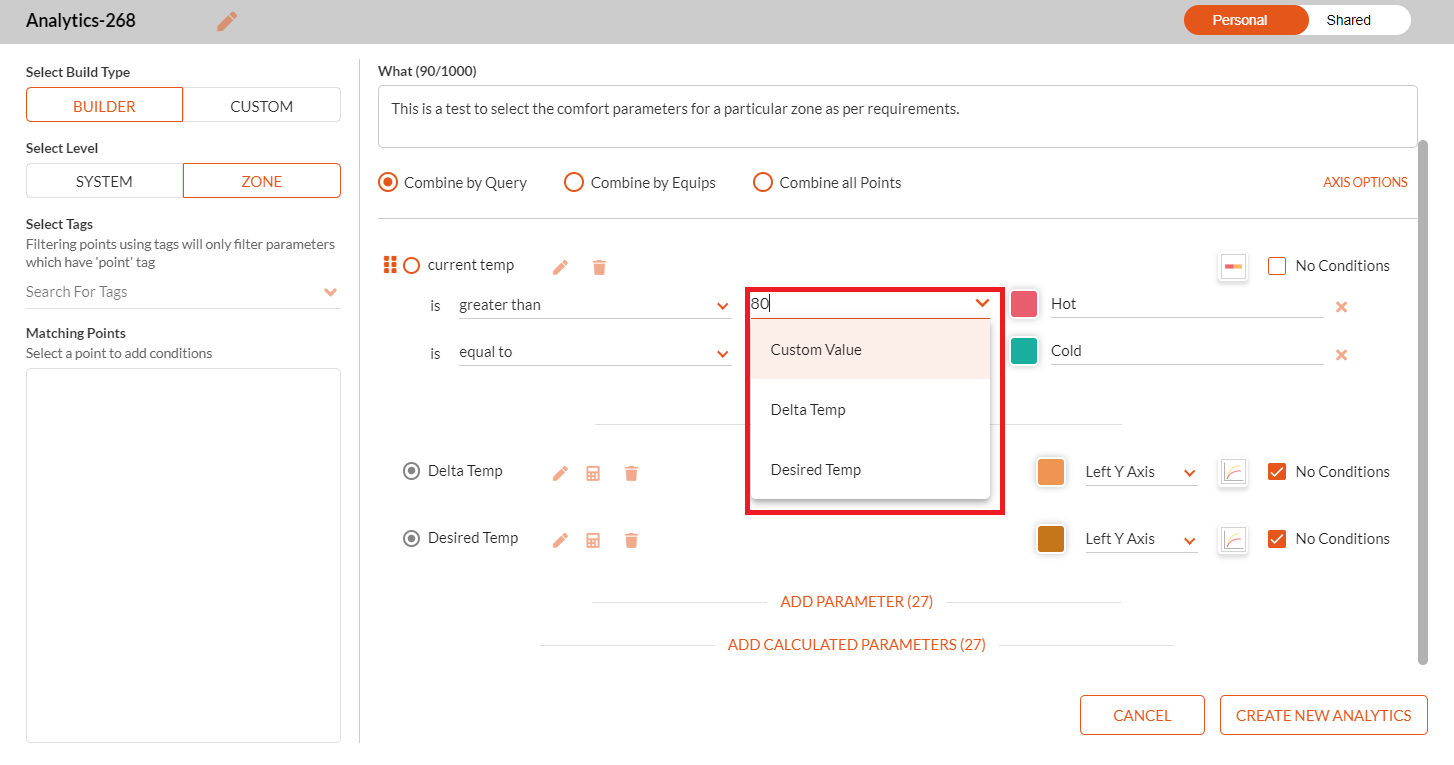

- Select the value dropdown to assign a custom value to the parameter or select the parameter itself

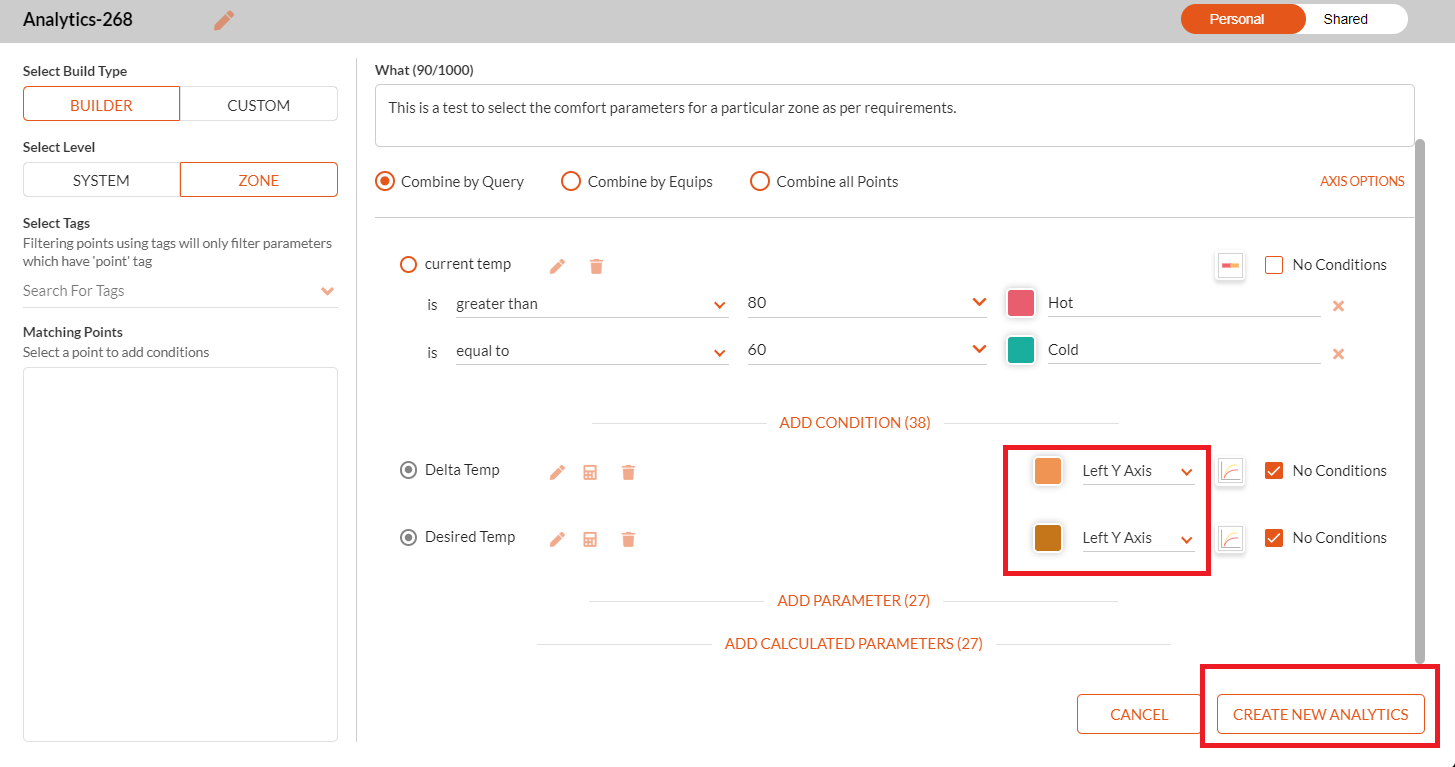

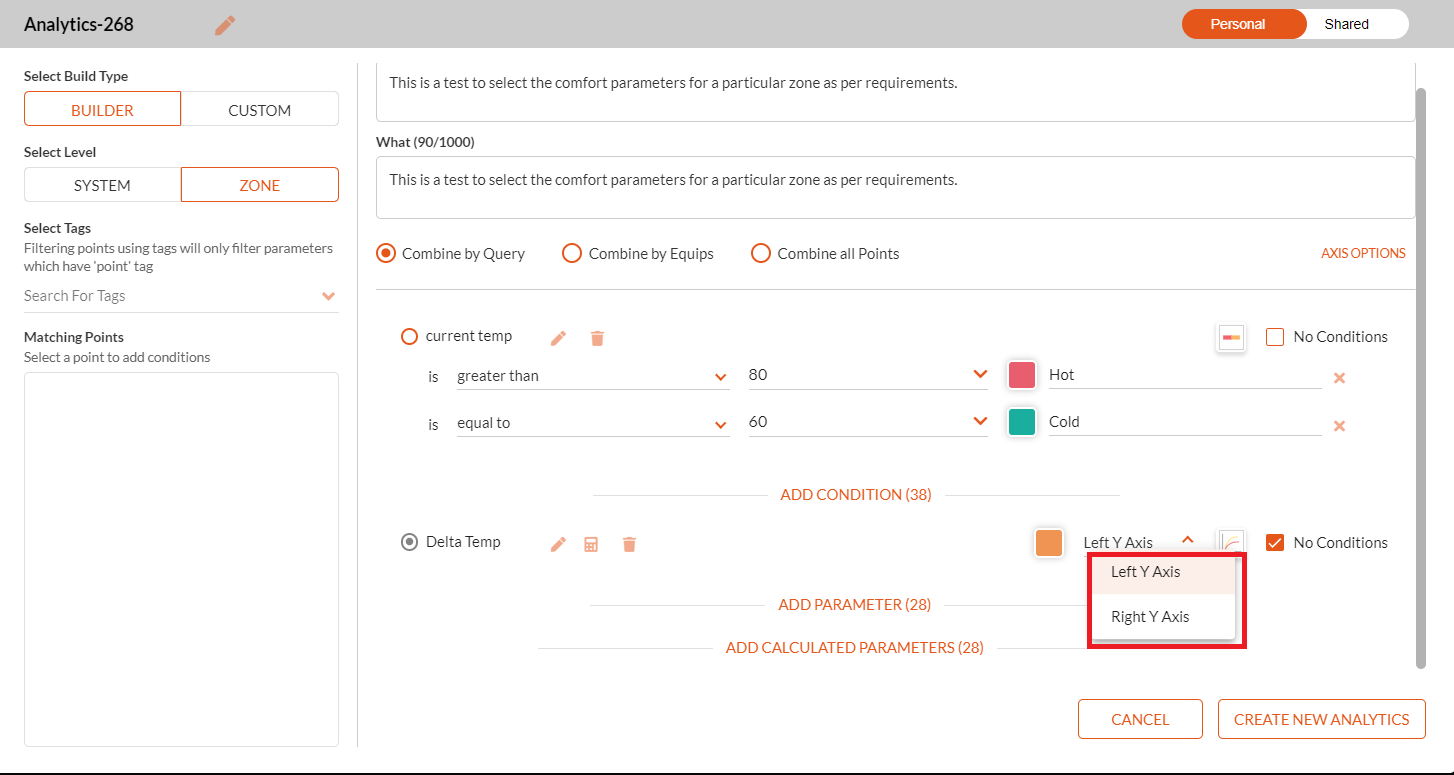

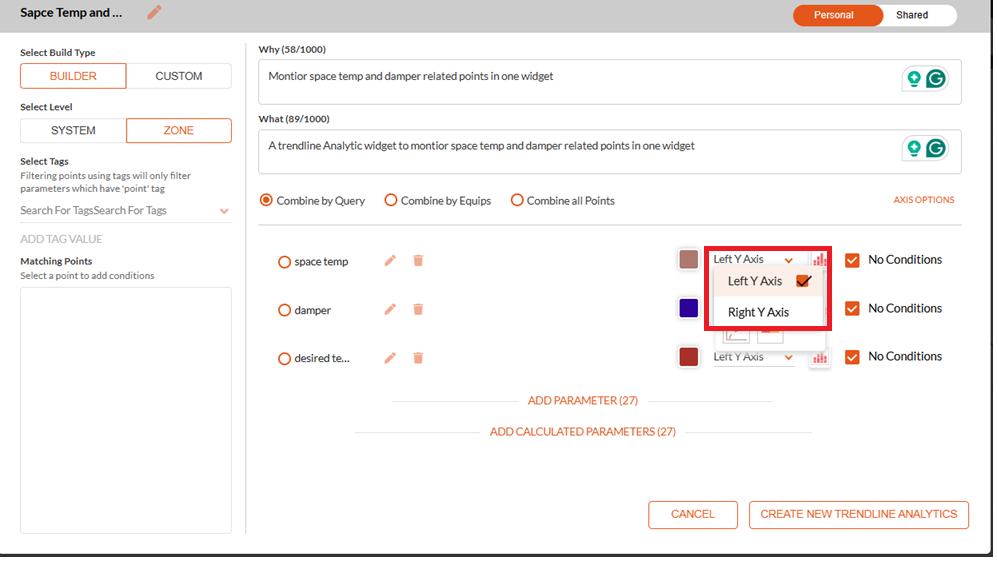

- Click the dropdown to select the Left or Right Y axis from the option

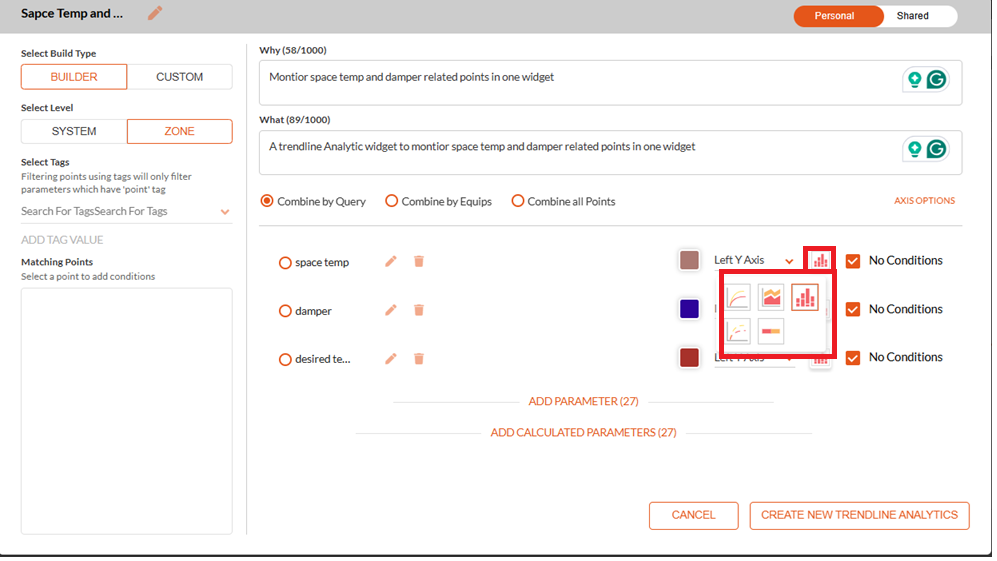

- Select a specific chart to analyse.

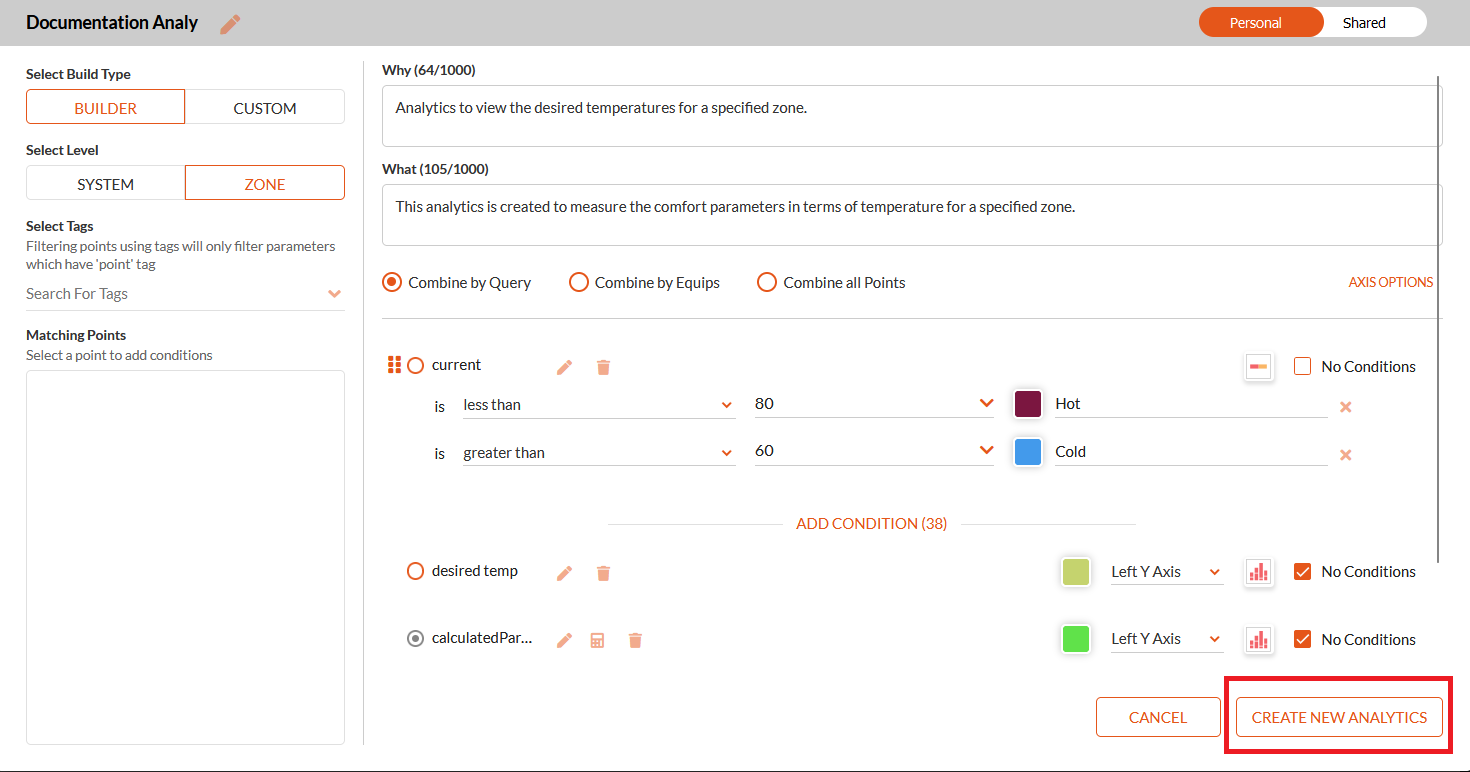

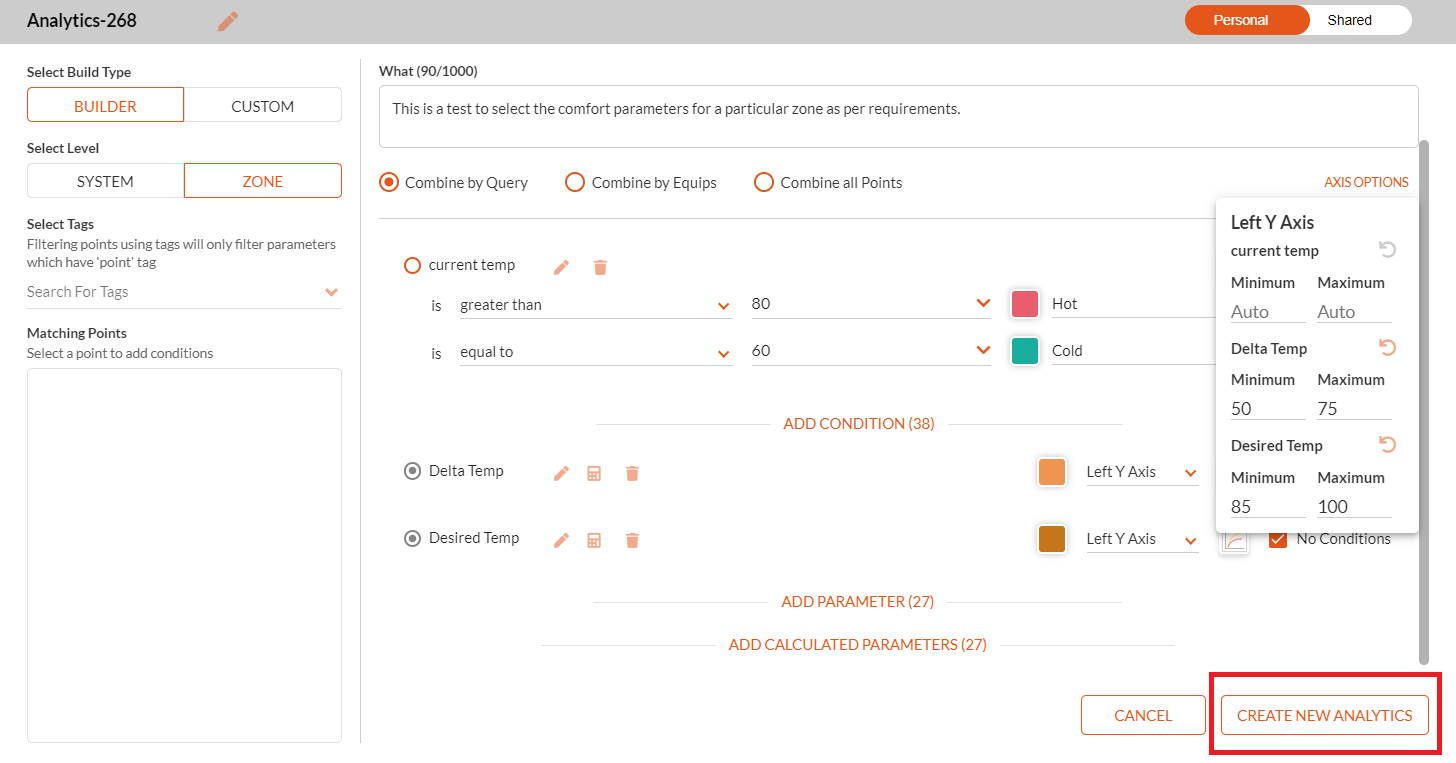

- Click Create New Analytics to create a new analytics with dual Y-axis Configuration
Y-Axis Scaling

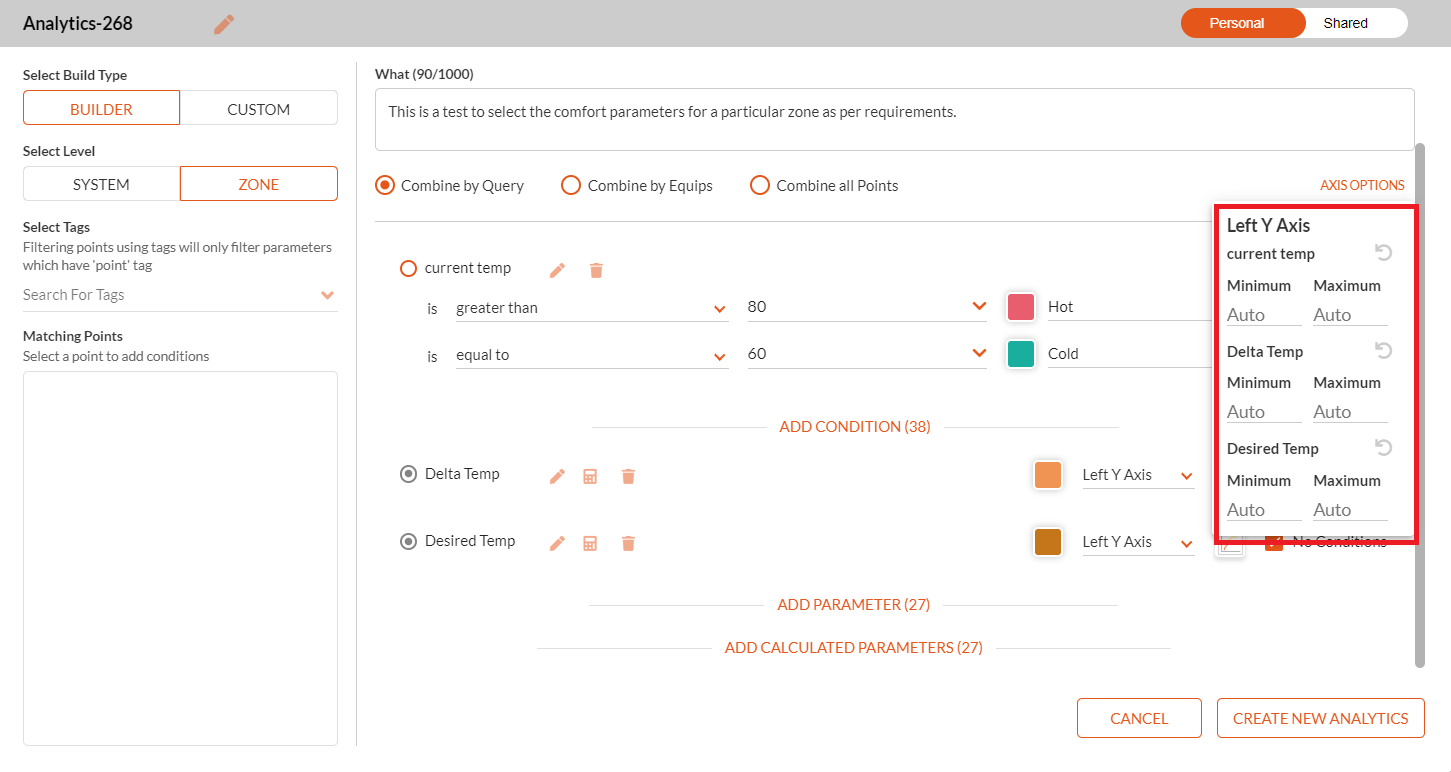

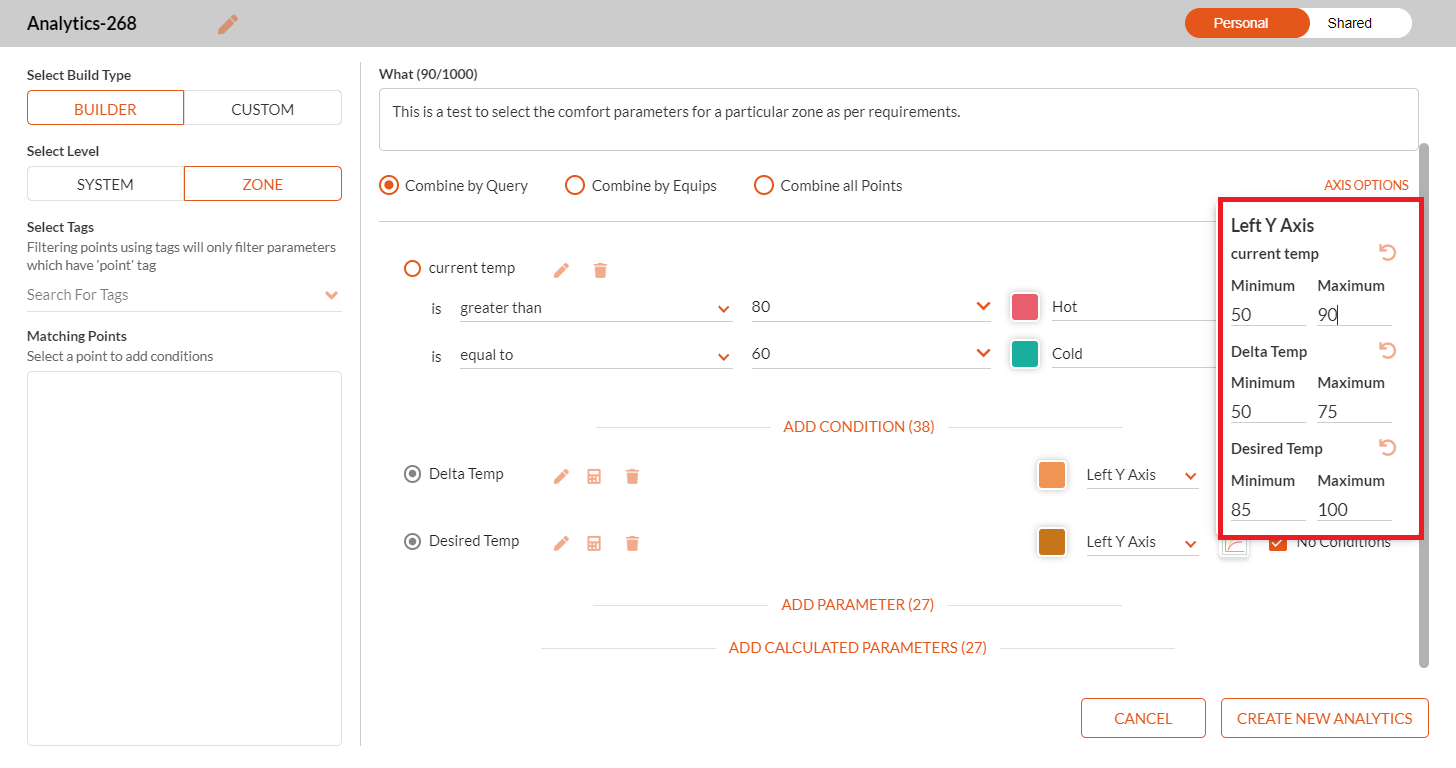

- Click Axis options to select the scaling for the X-axis or Y-axis configuration.
The Axis Options are displayed.

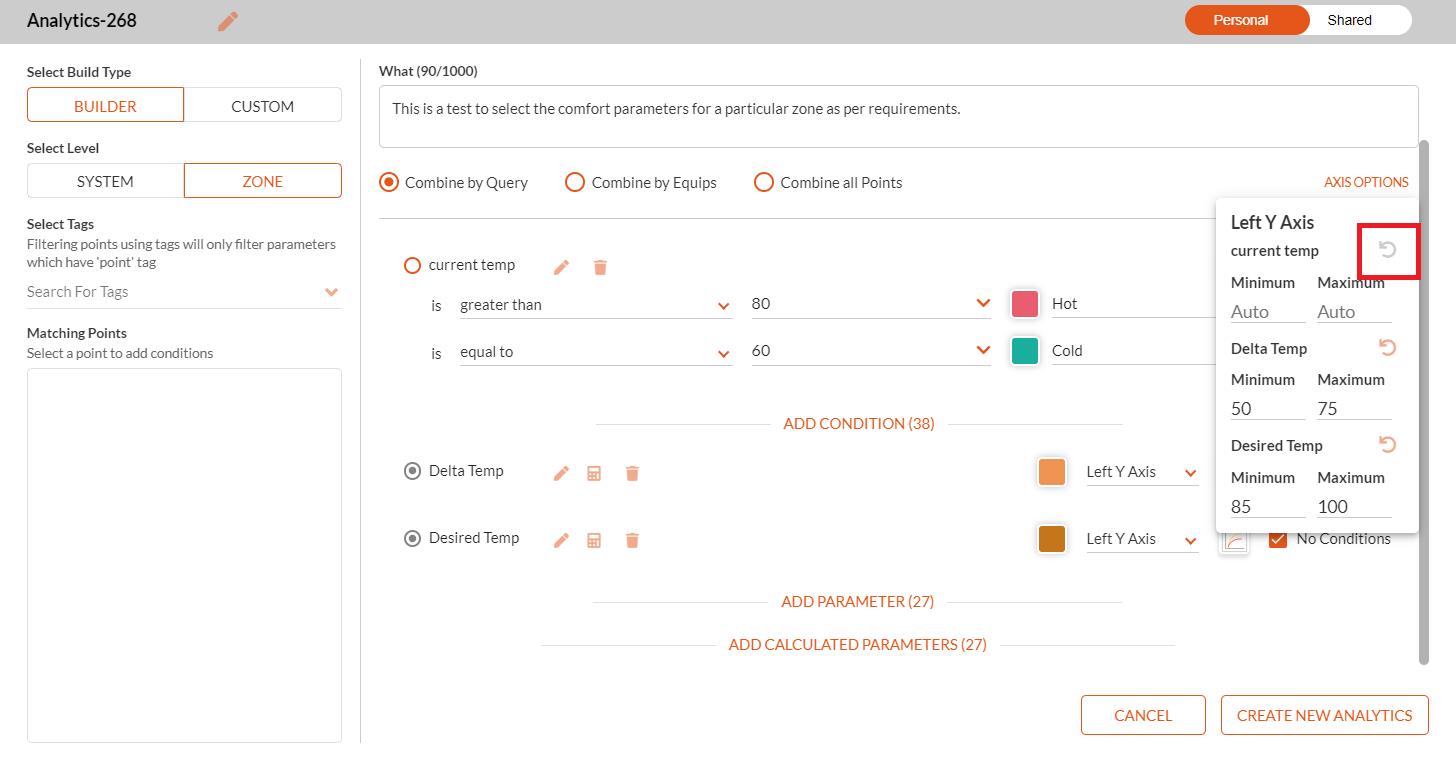

- Select the minimum and maximum values for the Axis configured. By default, the values are set to Auto.
- Click the revert icon to revert the scaling values to default, i.e., auto scaling.
- Click Create New Analytics to save the analytics.

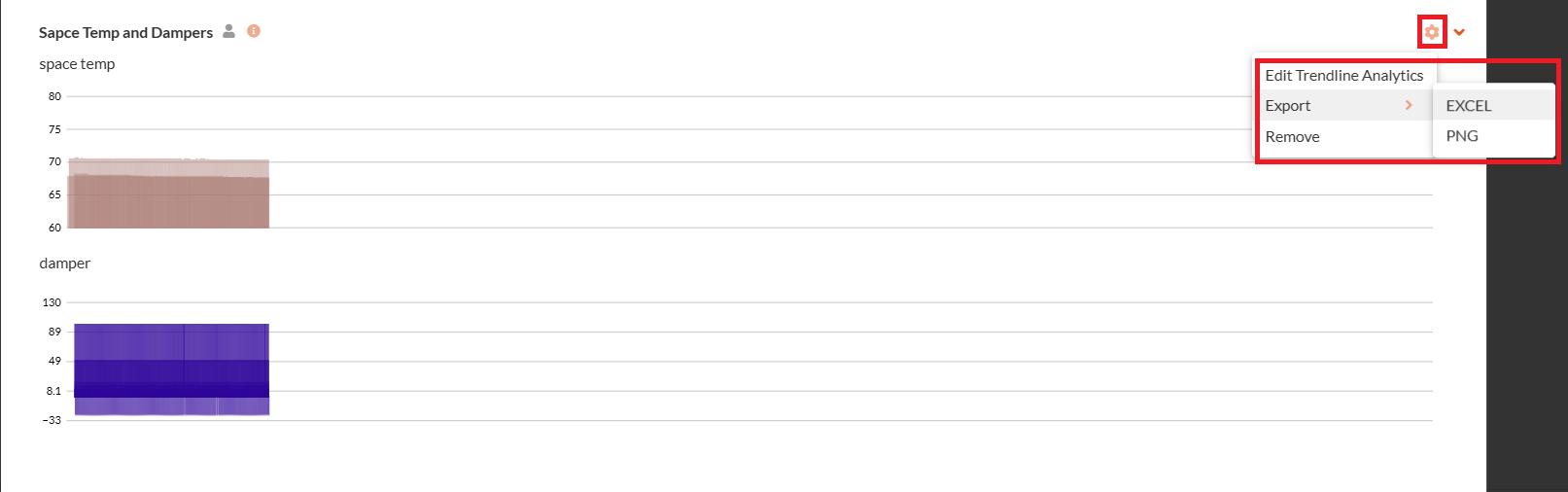

- Click the Options icon to export, edit, or remove from view the analytics.
