QR Code & Short URL for ClimaVision Web UI & Internal Portal

| Introduction

The QR code and short URL feature allow customers and clients to easily access the digital twin of physical equipment, including key parameters, historical trends, and further analysis, directly from the site. This is especially useful in situations where they do not have access to the ClimaVision Web Ui portal. By simply scanning the QR code, users are quickly connected to a webpage that presents critical site-specific information, offering a seamless and efficient way to interact with the data. The feature also enables the user to print the QR code in batches and use them further as stickers for ease of access.

For those who may not have a QR code scanner, the feature also provides a short URL link that can be shared by users of the Internal portal or the ClimaVision Web Ui portal. This ensures that all clients and customers, regardless of their technical capabilities, can conveniently access the webpage and view the necessary information without any hindrance.

| Generating the QR code

In Internal Portal or ClimaVision Web Ui,

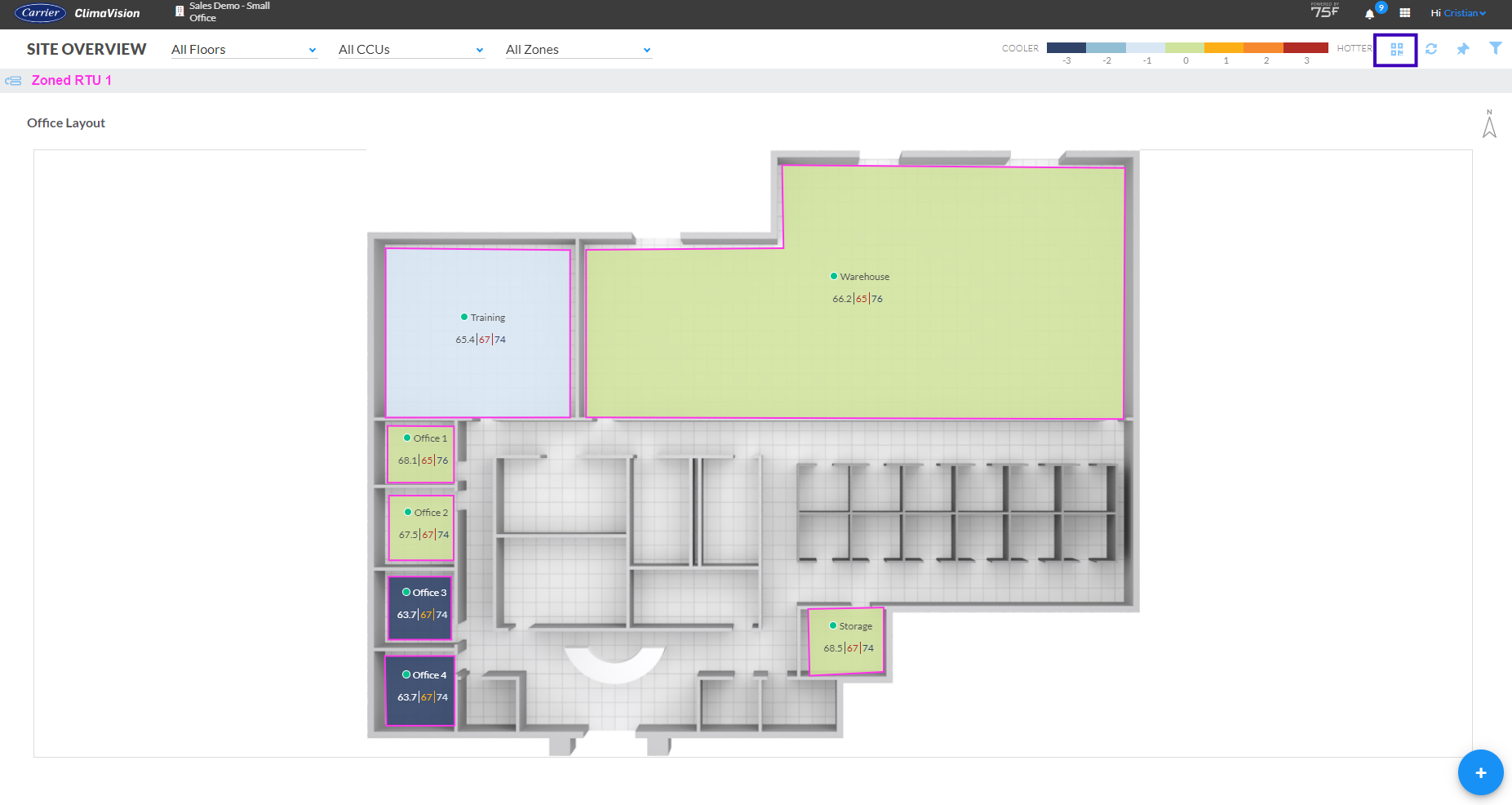

• Click the QR code  icon

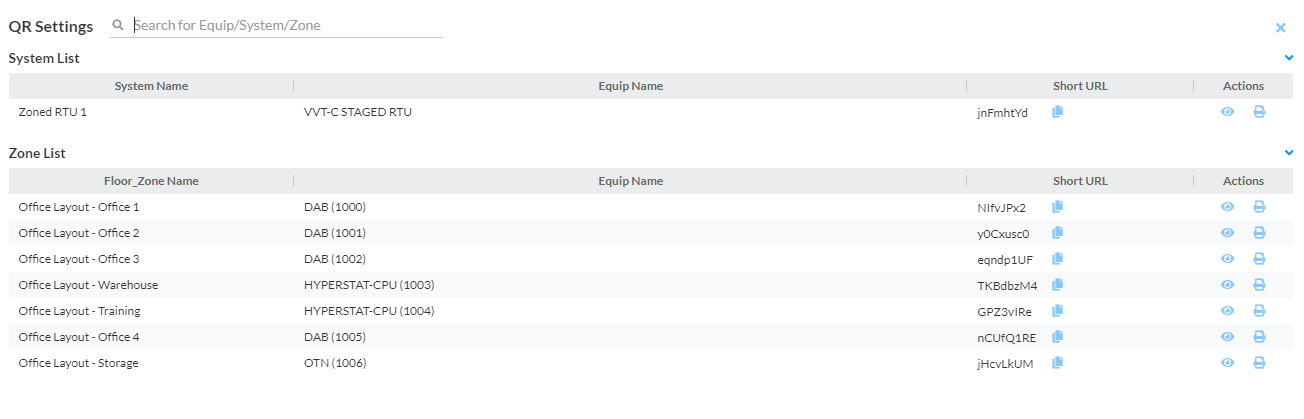

The QR settings page is displayed.

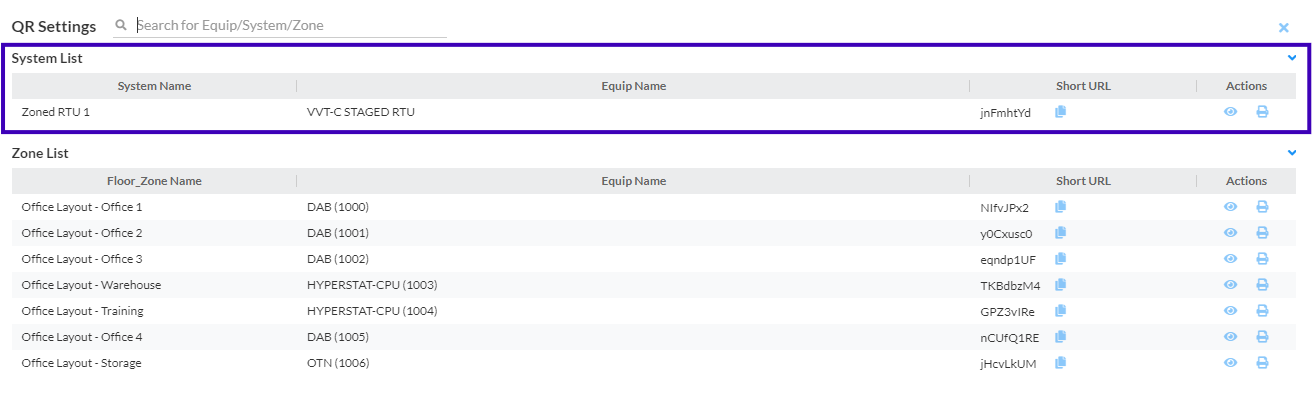

The system name along with their corresponding equip name is displayed under the System list.

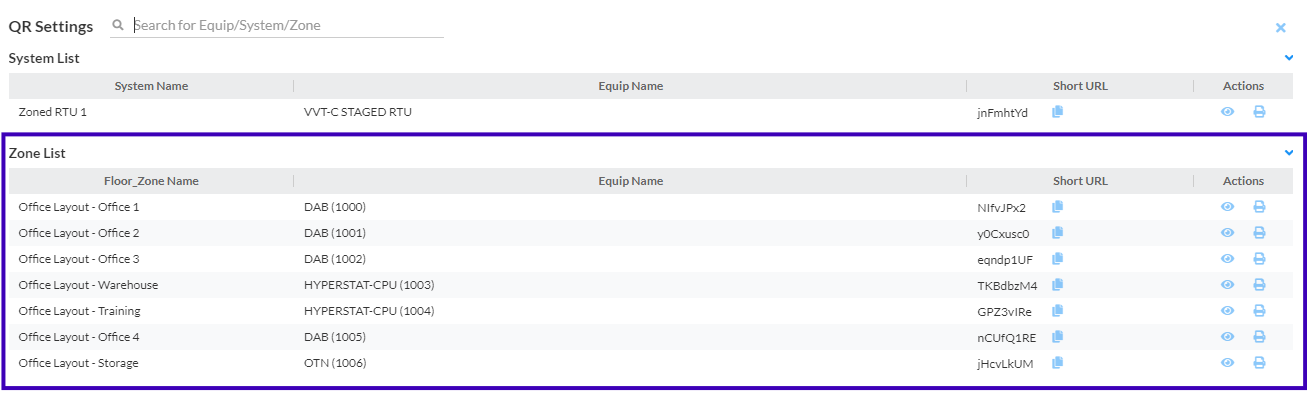

The zone name along with their corresponding equips is displayed under the zone list.

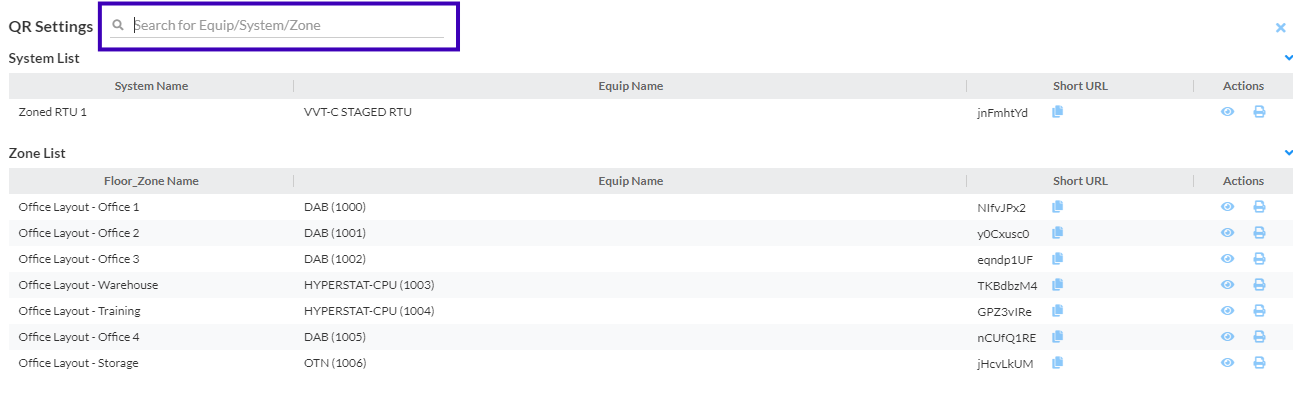

• Search for a specific system/zone/equip under the search bar.

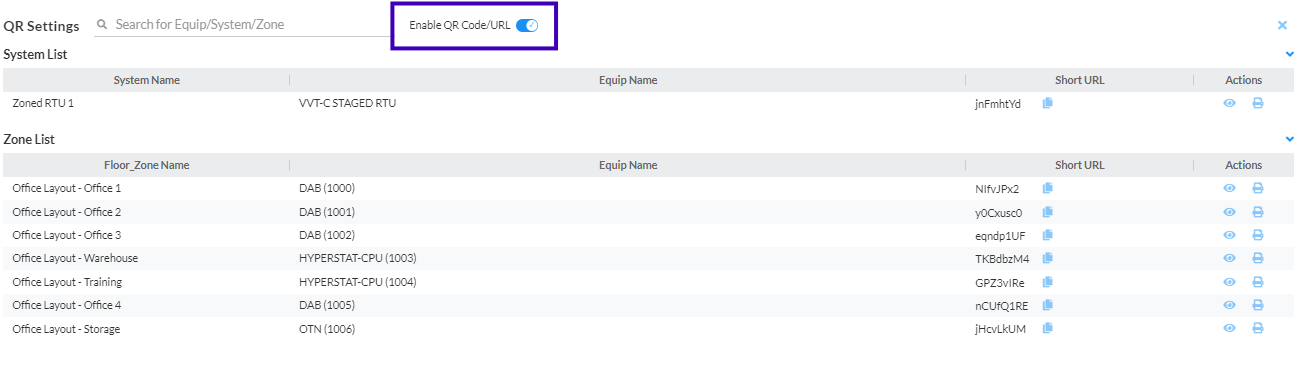

• Click the toggle button to disable or enable the QR code/short URL for a system/zone (Only available in our internal portal. Contact our support team to have this feature activated on your site)

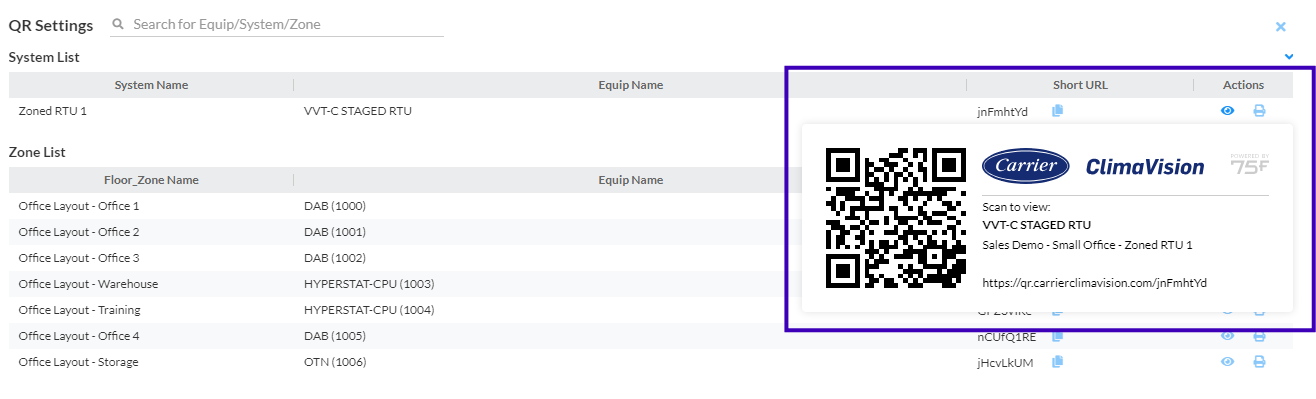

• Click on the view  icon to view the QR for the corresponding equip.

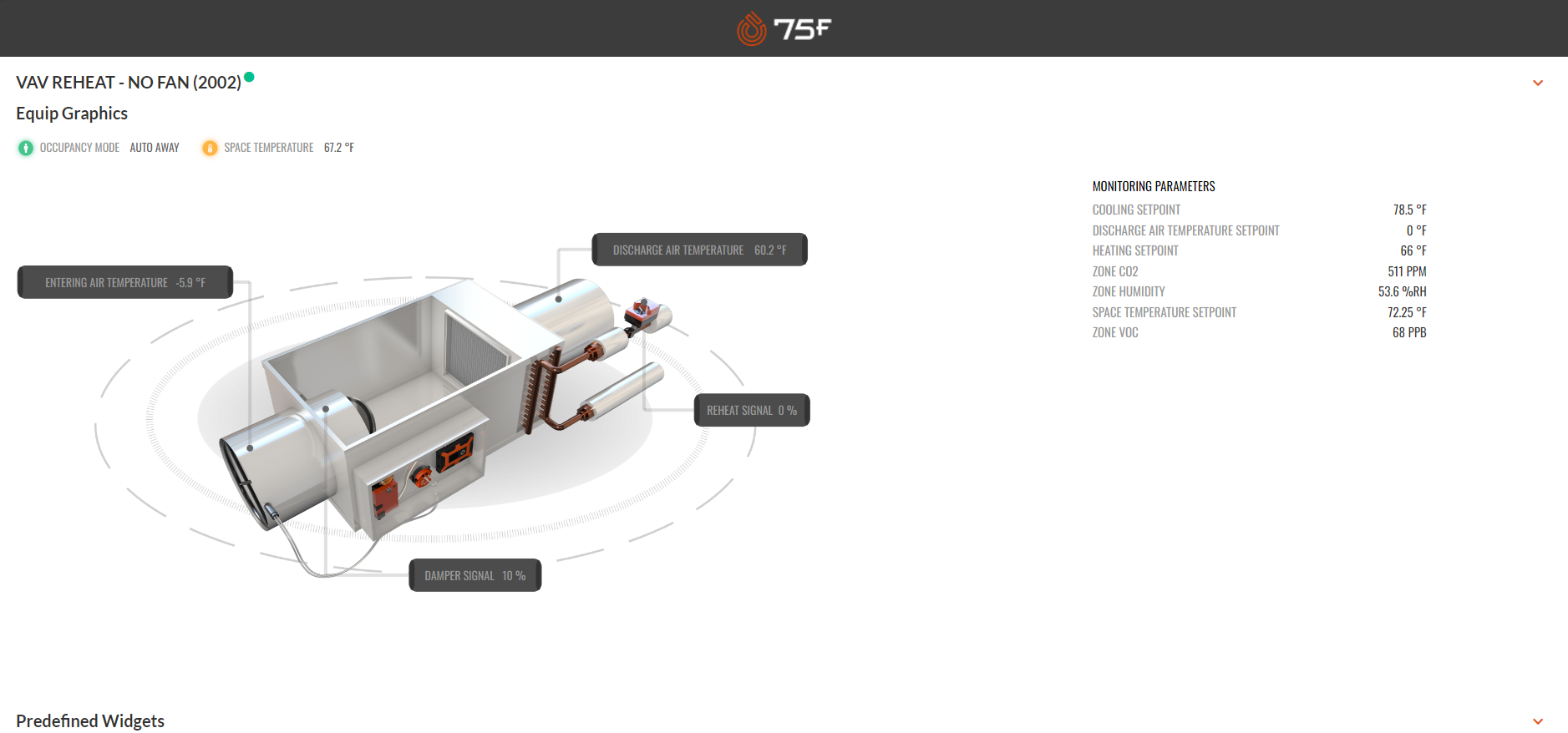

• Scan the QR code to view the corresponding equip graphics, monitoring parameters and widgets.

Note: The parameters are in view only mode and cannot be edited.

| Short URL

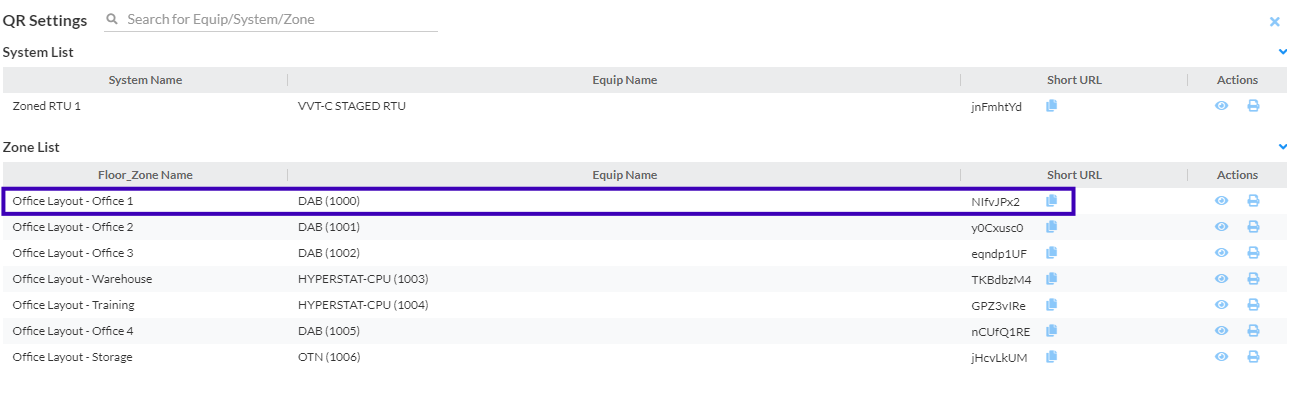

• Copy the URL for the corresponding system/zone name to share and view it in a browser.

The corresponding equip parameters are displayed.

| Printing the QR code

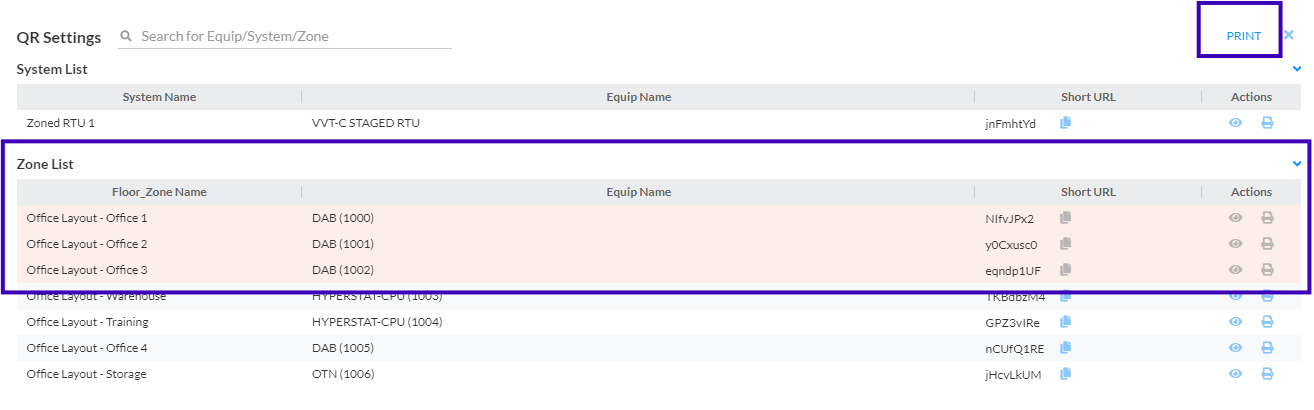

• Select CTRL+ click to select single or multiple equips under a zone/system list to print their corresponding QR codes

• Click the print icon  to print a specific QR code

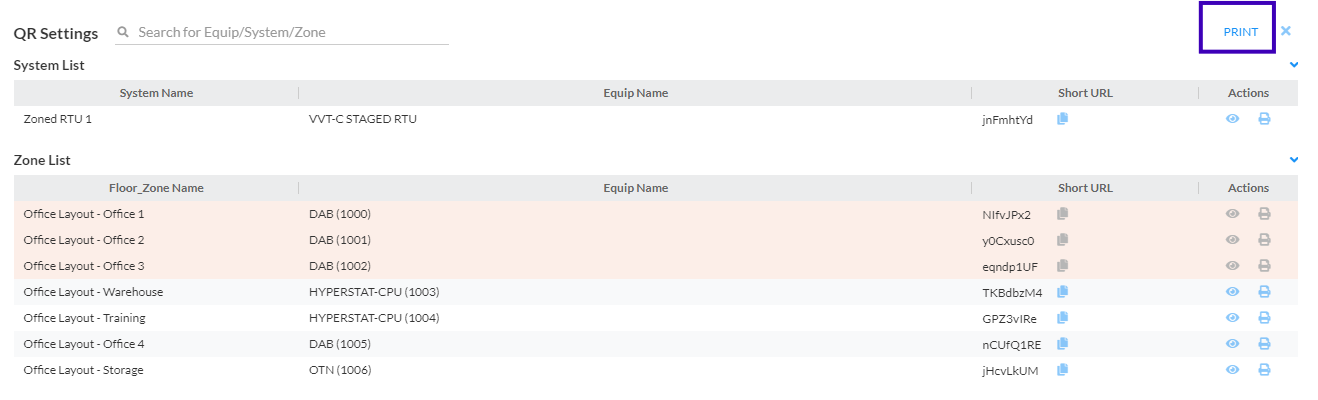

• Click the print button on the top right corner to print multiple QR codes.

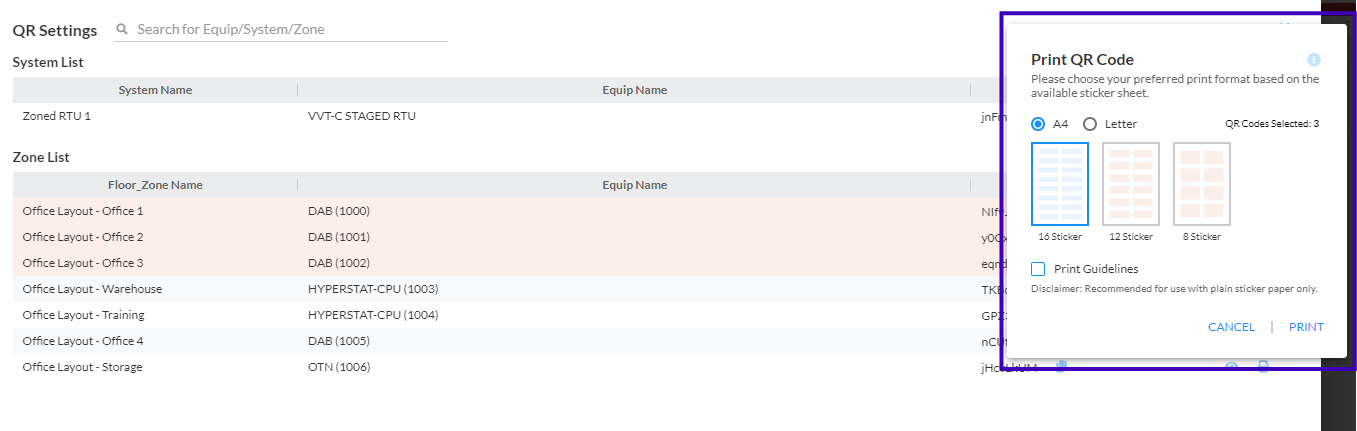

The print screen is displayed.

The QR code can be printed in A4 size sheet or Letter size sheet in batches of 16, 12 or 8 stickers respectively.

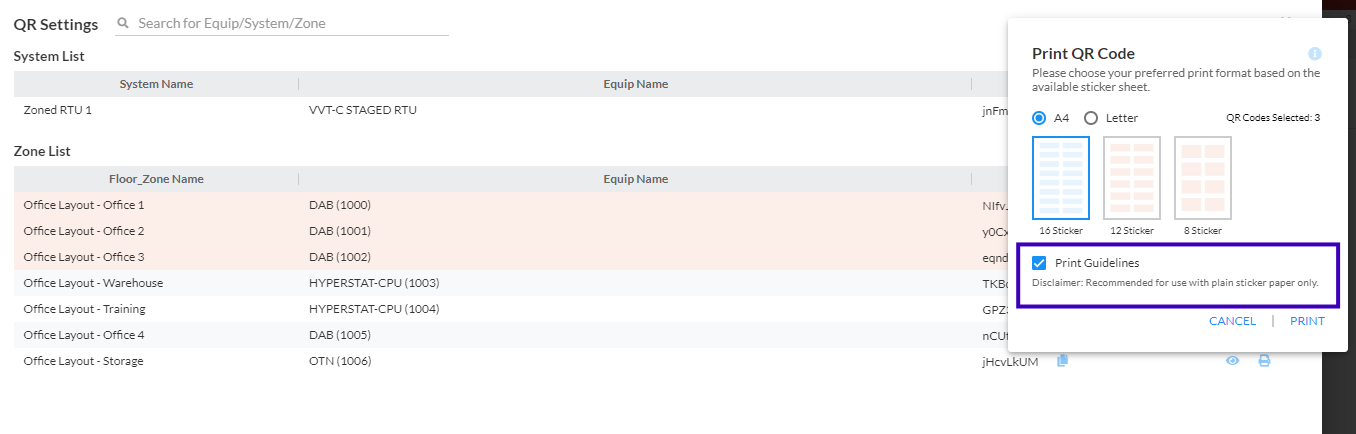

• Go through the printing guidelines and select the corresponding checkbox before printing the QR codes.

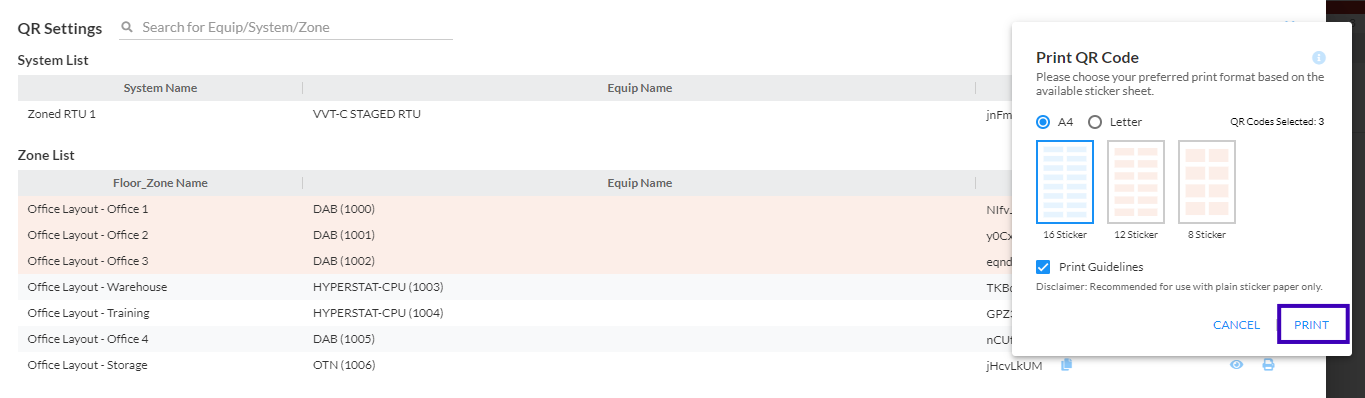

• Click on print the print the QR codes or cancel to cancel the action.

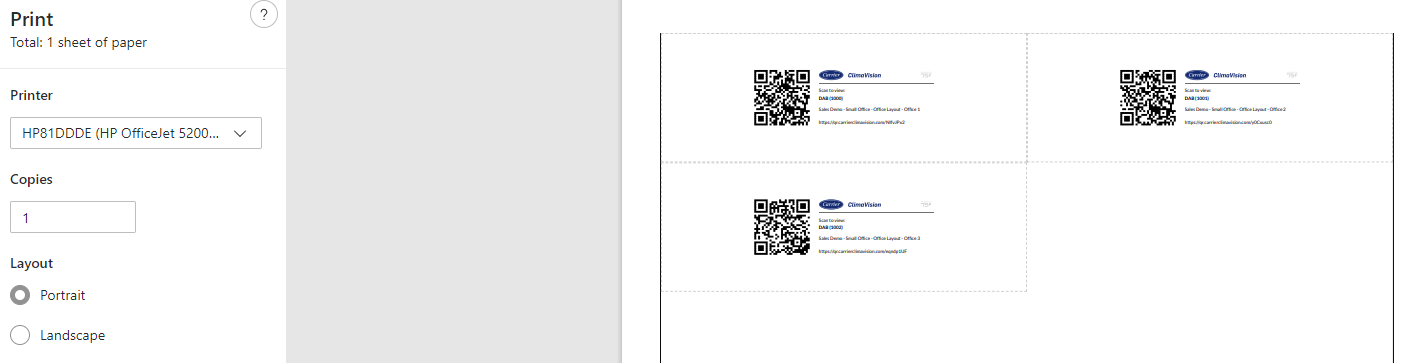

The QR code/codes are ready to print.
