| Important Enhancements & Fixes

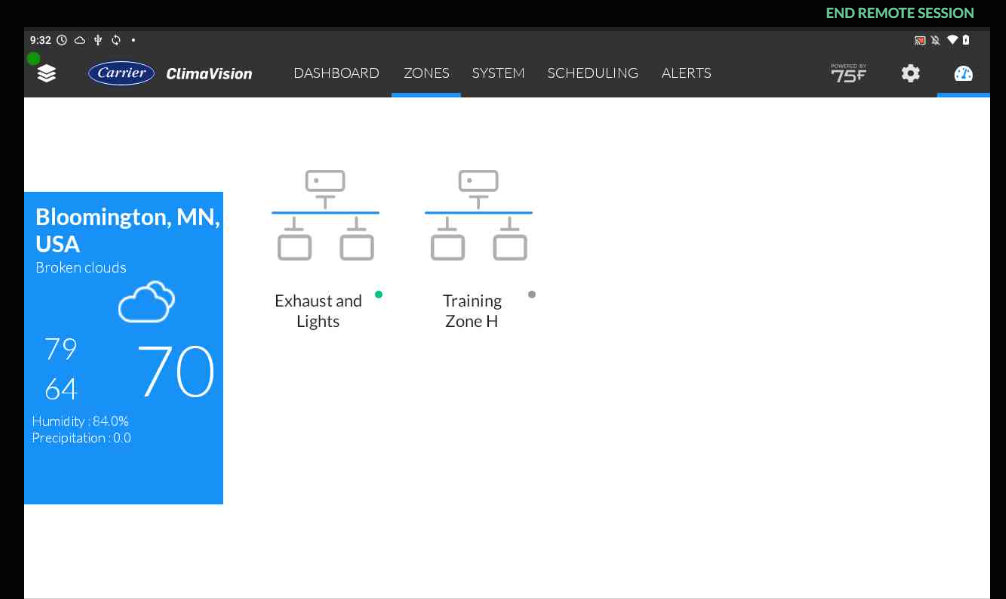

Connect as a zone:

The Connect module can now be paired as a zone in the CCU. Currently, custom sequences created in the Site sequencer tool are downloaded and manually transferred to Connect Modules via WebUSB.

With this implementation, we have enabled Over-The-Air (OTA) delivery of sequences and firmware updates to Connect Modules via CCU, eliminating manual intervention.  Users can directly push the custom sequences to the desired zone paired using a connect module in the CCU.

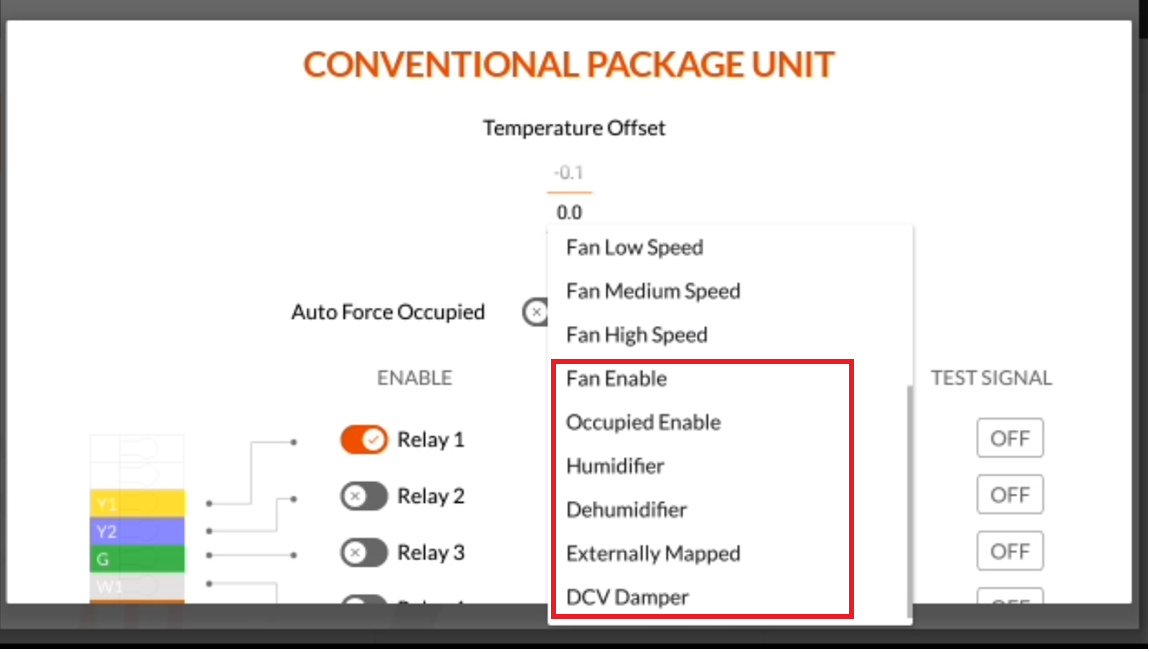

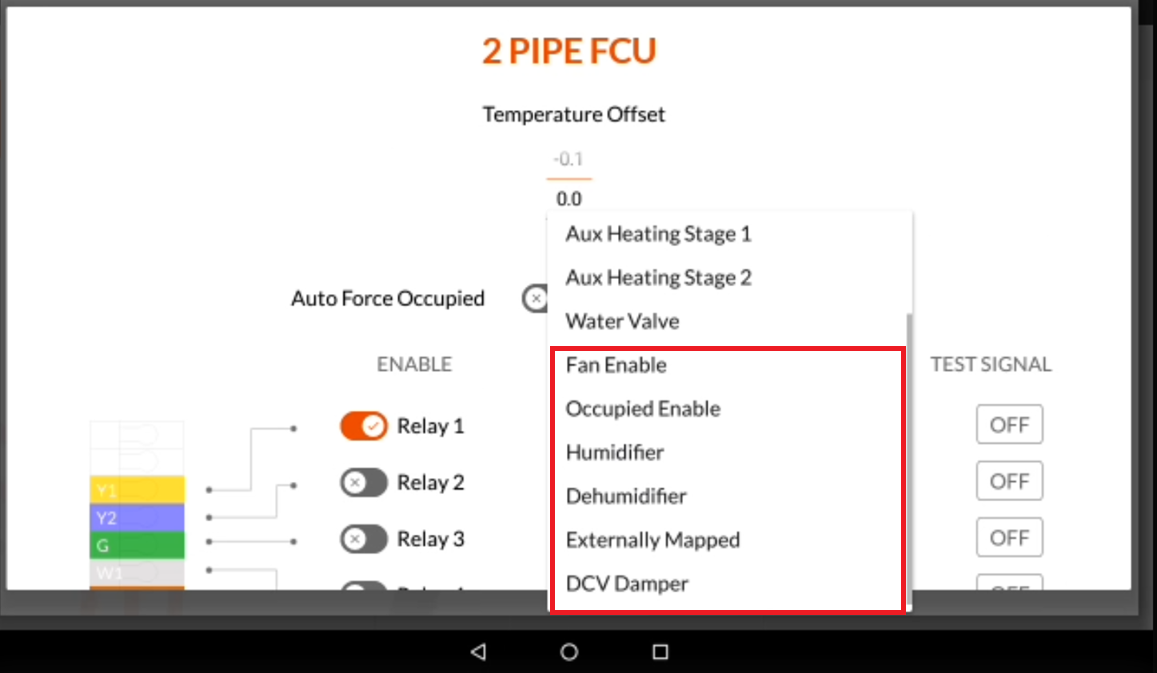

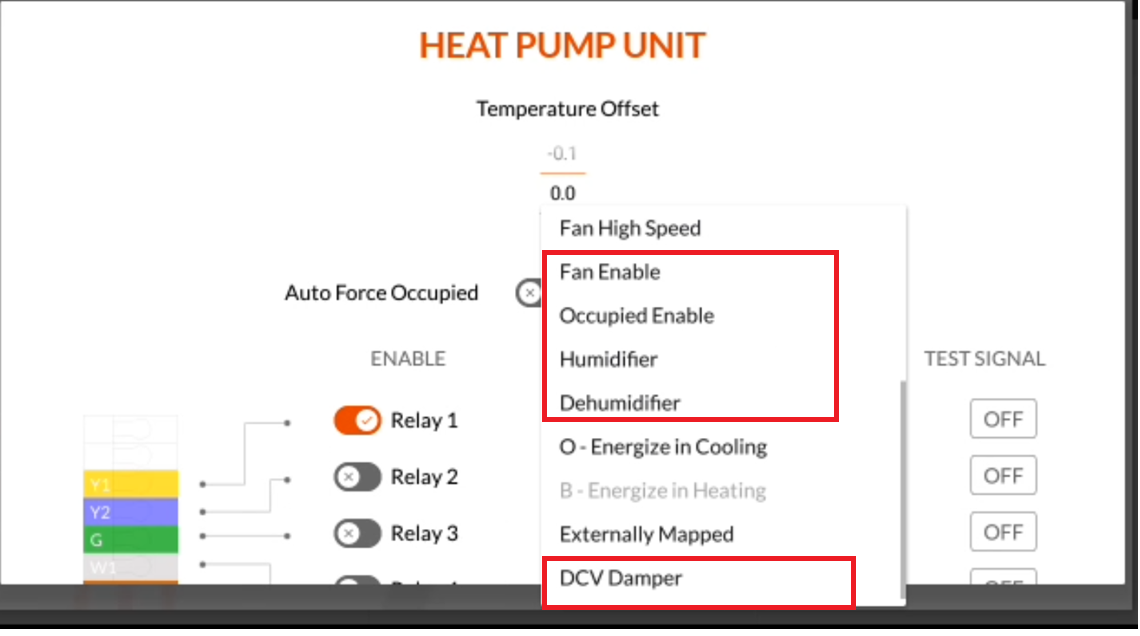

Standalone profile normalization:

Standalone profiles have standardized control options like fan/occupied enable, and DCV damper. It also introduces input parameter monitoring and aligns control algorithms across profiles for consistent HVAC behavior.

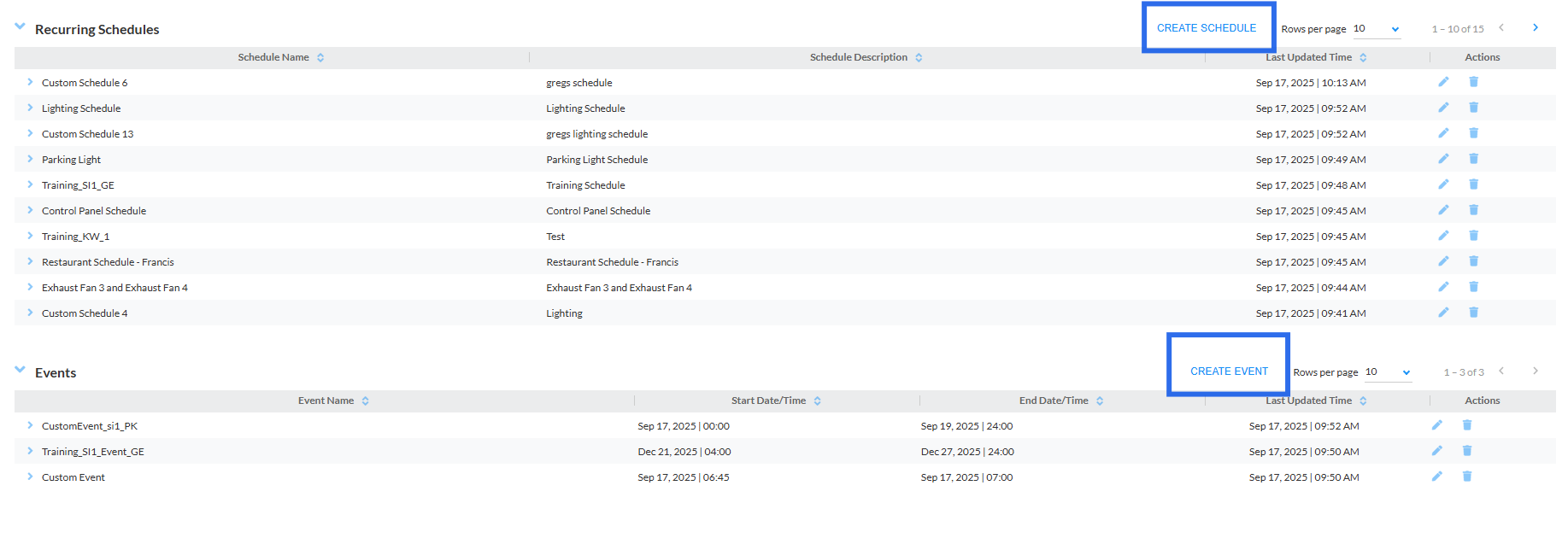

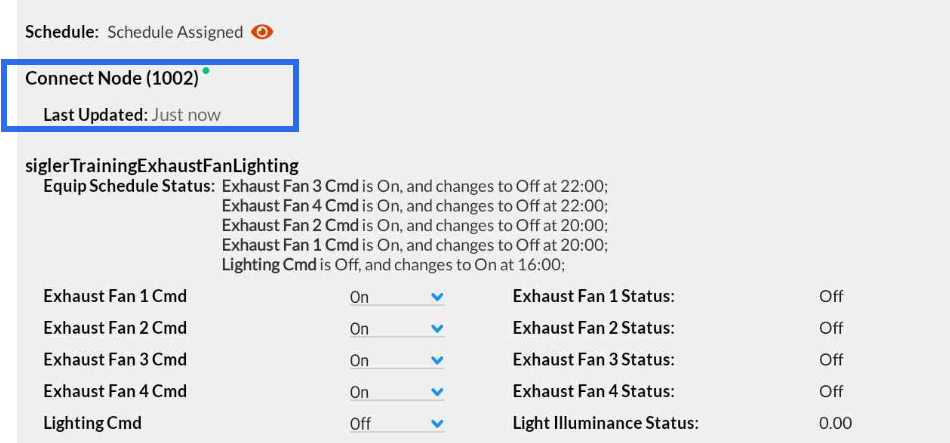

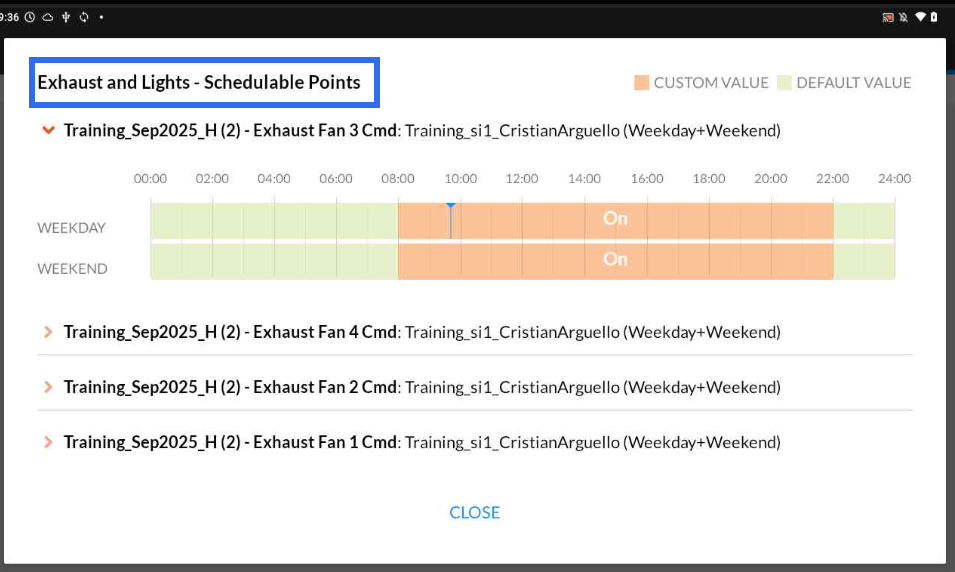

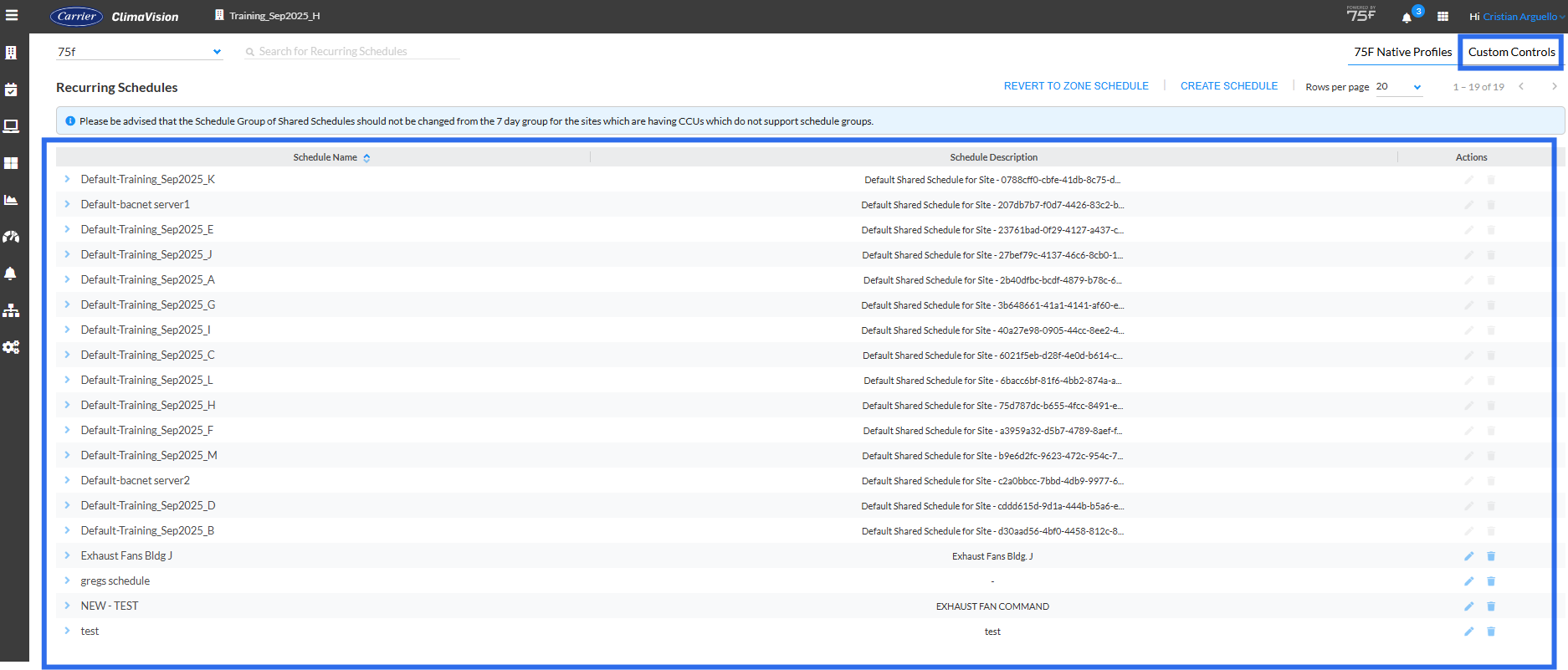

Support for point-based schedule for Custom Controls:

This feature enables scheduling and automation of writable points on Modbus, BACnet, Connect Node zones, and PCN devices using both recurring and event-based schedules. Users can define default and custom states, apply schedules in bulk, and control devices with fine-grained, point-level precision.

New & Updated Docs

Saffron AI Generative Dashboard (Internal)
Connect Module as Zone (Internal - Coming Soon)
Saffron AI Generative Dashboard (Internal)
Connect Module Overview & Installation (Coming Soon)
Custom Equip Graphics - Common Framework
Point-Based Scheduling for Custom Controls
Custom Parameters (Point Summary) Common Framework with Blockly (Internal)
Analytics - Common Framework with Blockly
Point-Based Scheduling for ClimaVision Web UI (Internal)

| Software Release Versions

ComponentLatest Version
CCU4.0.5 and above
Internal Portal3.197.0 and above
Web UI Portal3.186.0 and above
Facilities App3.0.42 and above
Occupant App3.0.6 and above
Bac App3.5.5 and above

| Firmware/ Hardware Feature Availability Versions

Firmware/ HardwareFeature Availability Versions
Hyperstat V2.0102.1 and above
HyperLite102.1 and above
Mystat1.8 and above
Control Mote4.0 and above
SmartNode5.43 and above
Smartnode V2100.7 and above
HyperStat Main Board1.42 and above
Connect Module1.9 and above
