| Important Enhancements & Fixes

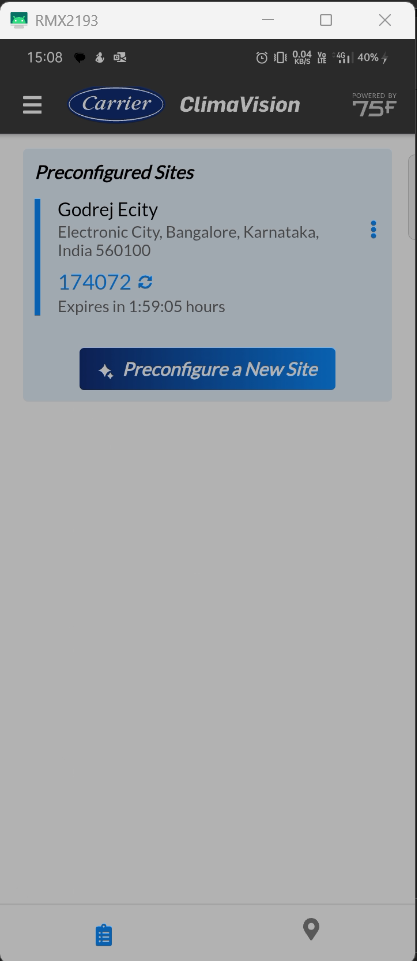

Site Pre-Configuration is a feature of the 75F system that lets users preconfigure site-specific settings, automation sequences, and device configurations before deployment.

This allows installers to procure, set, and preconfigure 75F equipment and take it to the site for easy installation.

The following are the key advantages that come with the site pre-configuration:

  • Remote Setup & Staging – Configure building automation settings remotely before hardware installation.
  • Standardization – Ensure consistency across multiple locations by using predefined templates.
  • Faster Deployment – Reduce on-site configuration time, enabling plug-and-play installation.
  • Cloud-Based Management – Utilize the 75F platform to push configurations remotely to CCUs.
  • Custom Profiles – Define HVAC schedules, setpoints, zone controls, and automation sequences per site.

image (14).png

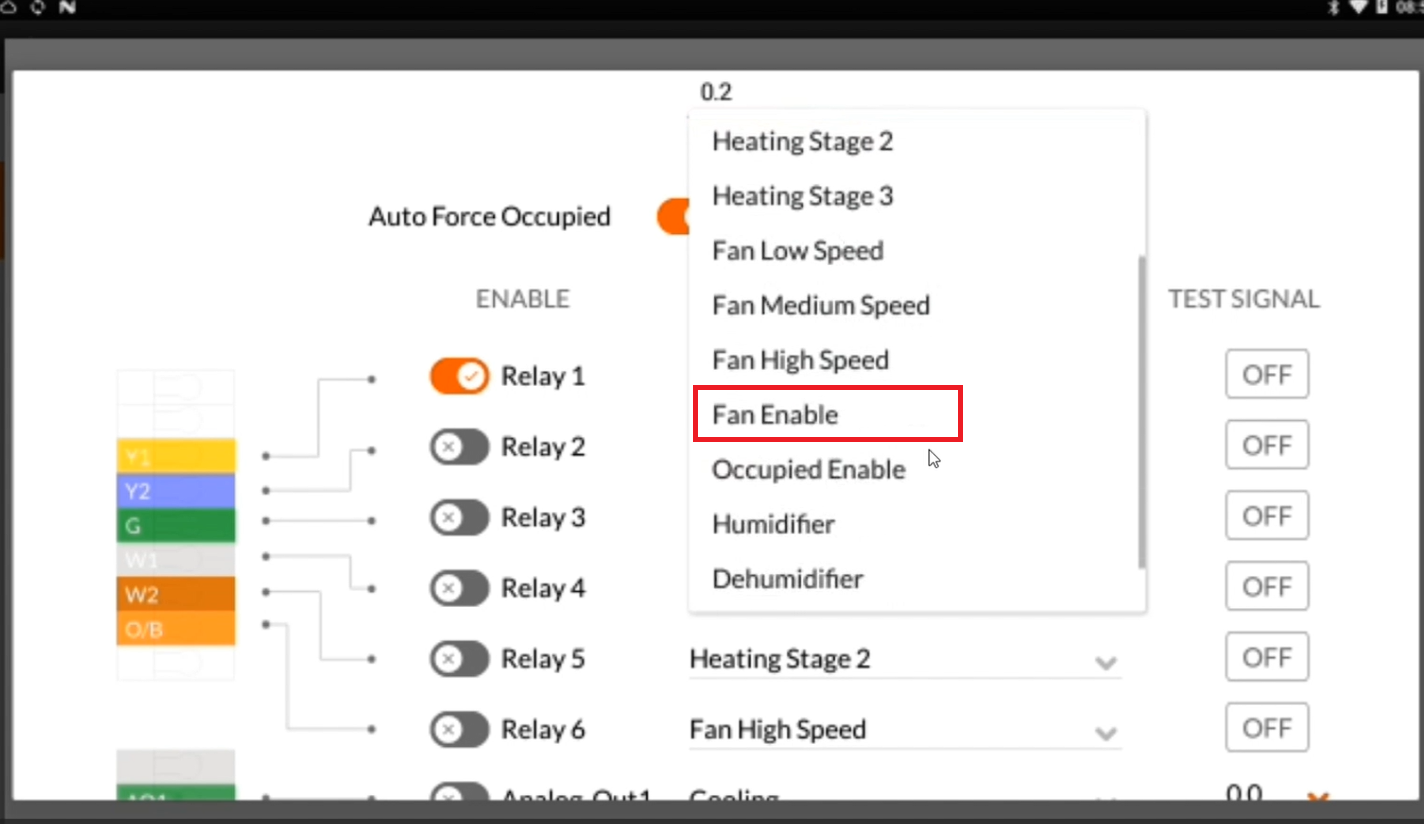

Fan Enable Mapping in Stats: Fan Enable can now be assigned to a relay independently in HyperStatHyperStat Split, without mapping other fan options.

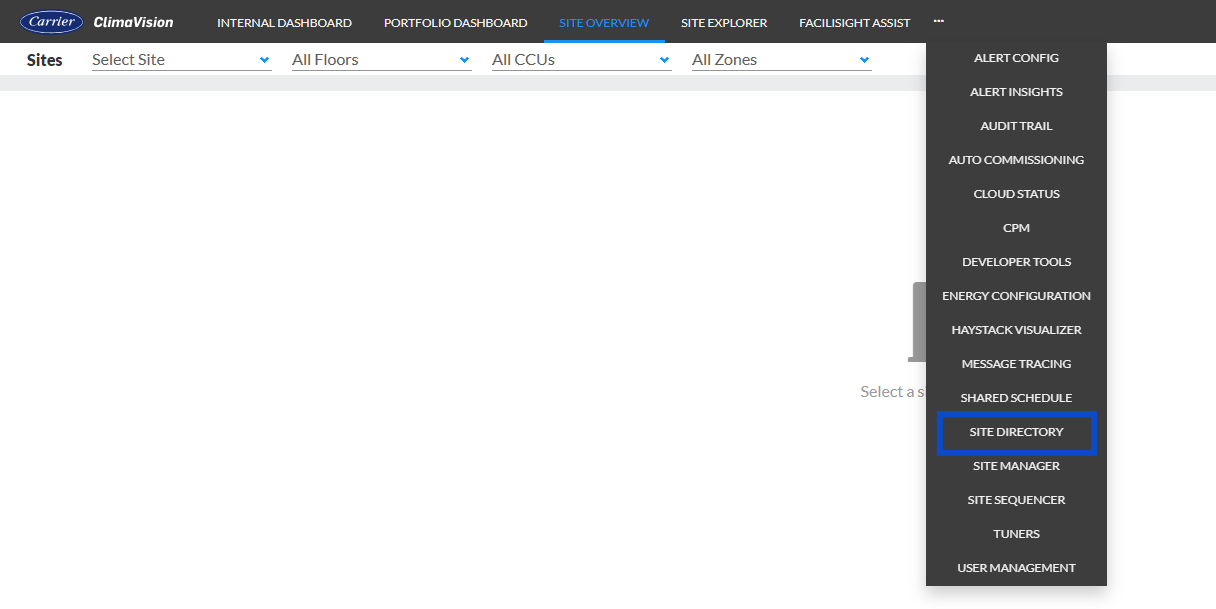

As part of our ongoing efforts to improve clarity and usability across the ClimaVision platform, the "Building" page has been renamed to "Site Directory."

Sites directory is an internal ClimaVision application that is used to manage the sites that are installed in the system.

You can manage sites as follows:

  • Edit site details
  • Delete a dormant site
  • Generate a passcode for adding CCU to the site

| Software Release Versions

ComponentLatest Version
CCU3.4.4 and above
Internal Portal3.95.0 and above
Web Ui Portal3.89.0 and above
ClimaVision App3.0.27 and above
Occupant App3.0.2 and above
Bac App3.3.20 and above

| Firmware/ Hardware Feature Availability Versions

Firmware/ HardwareFeature Availability Versions
Hyperstat V2.0101.6 and above
Mystat1.4 and above
Control Mote3.62 and above
SmartNode5.42 and above
Smartnode V2100.2 and above
HyperStat Main Board1.39 and above
Connect Module1.9 and above
