OTA Progress Updates

| Overview

The OTA progress updates is a feature implemented in the ClimaVision system, to improve transparency and progress visualization of Over the Air firmware updates for the hardware devices.

This enhances the message-handling capability between the cloud and CCU, and thus addresses issues like:

No way to track OTA updates.
No actual status notifications for the users on updates.

The implementation targets the following aspects:

Status updates for the OTA initiated from portals in the portal.
Progress of the update
Notifying the users of the success and failure of the updates

| OTA Status Updates

As part of the above-mentioned aspects, the following capability is added.

Communication status between CCU and cloud

When an OTA is initiated from the portals to update firmware on the field device. The CCU could provide a status back to the cloud. This status is visualized in the portals, for the end user to act upon. For information on how to initiate an Over the air firmware update for devices, from the portal refer to Remote Tuner Commands for the Hardware

The OTA Statuses implemented are as follows:

Statuses	Description
Packet received	An indication that the firmware download from CCU to CM is completed.
Download started.	An indication that firmware download from CM to the field device is started.
Update Completed	An indication that the CM successfully updated the field device.

The above table is a broader classification of the statuses implemented, to track an OTA update progress. For a drill down on the actual statuses refer to the sections below.

| OTA Status Update Point

The implementation to achieve the OTA status visibility uses a newly added point OtaStatus, and its respective Enums to provide information about different stages of the OTA update.

Following are the Enumerations used for the point OtaStatus and their descriptions:

Enumeration	Enumeration Description
0	OTA_REQUEST_RECEIVED
1	OTA_UPDATE_STARTED
2	OTA_REQUEST_IN_PROGRESS
3	OTA_FIRMWARE_DOWNLOAD_FAILED
4	OTA_CCU_TO_CM_FAILED
5	OTA_CCU_TO_CM_UPDATE_STARTED
6	OTA_CCU_TO_CM_PERCENT_COMPLETED_10
7	OTA_CCU_TO_CM_PERCENT_COMPLETED_50
8	OTA_CCU_TO_CM_PERCENT_COMPLETED_100
9	OTA_CCU_TO_CM_FIRMWARE_RECEIVED
10	OTA_CM_TO_DEVICE_PACKET_STARTED
11	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_10
12	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_20
13	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_30
14	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_40
15	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_50
16	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_60
17	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_70
18	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_80
19	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_90
20	OTA_CM_TO_DEVICE_PERCENT_COMPLETED_100
21	OTA_SUCCESSED
22	OTA_TIMEOUT
23	OTA_CM_TO_DEVICE_FAILED
24	NODE_STATUS_VALUE_FW_OTA_SUCCESSFUL

| OTA Failure Handling

The OTA updates initiated from the portals could fail for various reasons and at two places in the OTA process steps.

While firmware upgrade packets are being received
After firmware upgrade packets are received

During these steps of the process, when the CCU application crashes for any reason, the OTA update fails.

During this kind of failure, when the CCU application comes back online, it recognizes an active request for the update is present.

This request for the update can be visualized in the Portal with the failure status message, and the same can be resumed.

| OTA Failure Update

The OtaStatus also provides the status of the failed OTA update.

Following are the Enumerations used for the point OtaStatus and their descriptions on the OTA Update failure statuses.

Enumeration	Enumeration Description
25	NODE_STATUS_VALUE_FW_OTA_FAIL_REBOOT_INTERRUPTION
26	NODE_STATUS_VALUE_FW_OTA_FAIL_NOT_FOR_ME_DEV_TYPE
27	NODE_STATUS_VALUE_FW_OTA_FAIL_NOT_FOR_ME_FW_VERSION
28	NODE_STATUS_VALUE_FW_OTA_FAIL_IMAGE_SIZE
29	NODE_STATUS_VALUE_FW_OTA_FAIL_EXT_FLASH_ERROR
30	NODE_STATUS_VALUE_FW_OTA_FAIL_IMAGE_VERIFICATION
31	NODE_STATUS_VALUE_FW_OTA_FAIL_INACTIVITY_TIMEOUT
32	NO INFO

Based on an enum value visualized for the point OtaStaus the user can conclude on the failure status of an OTA update.

| OTA Status Update Visualizations

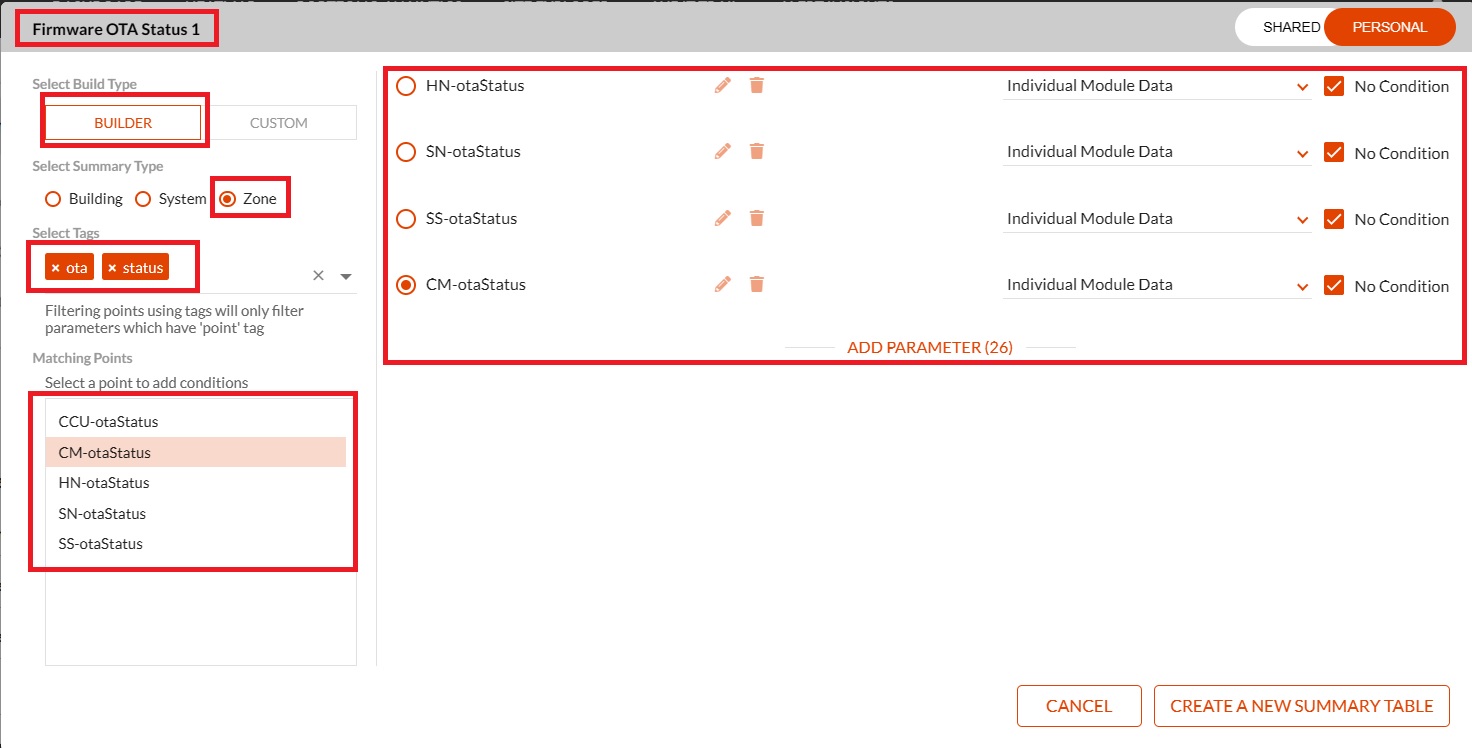

The OTA status updates can be visualized in various places like the Summary table. by adding point OTA Status to the summary table using the filter shown below.

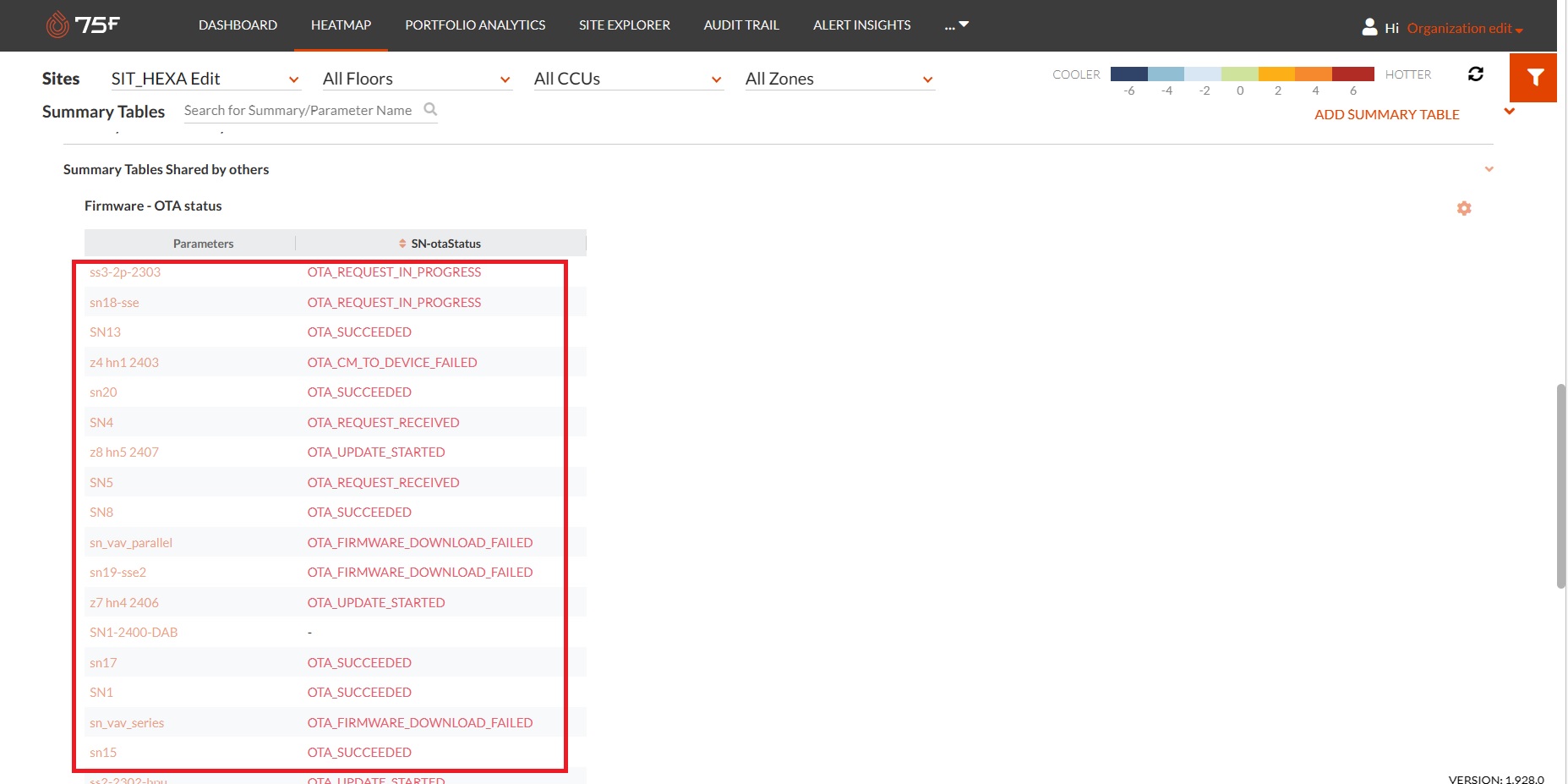

Published Summary table

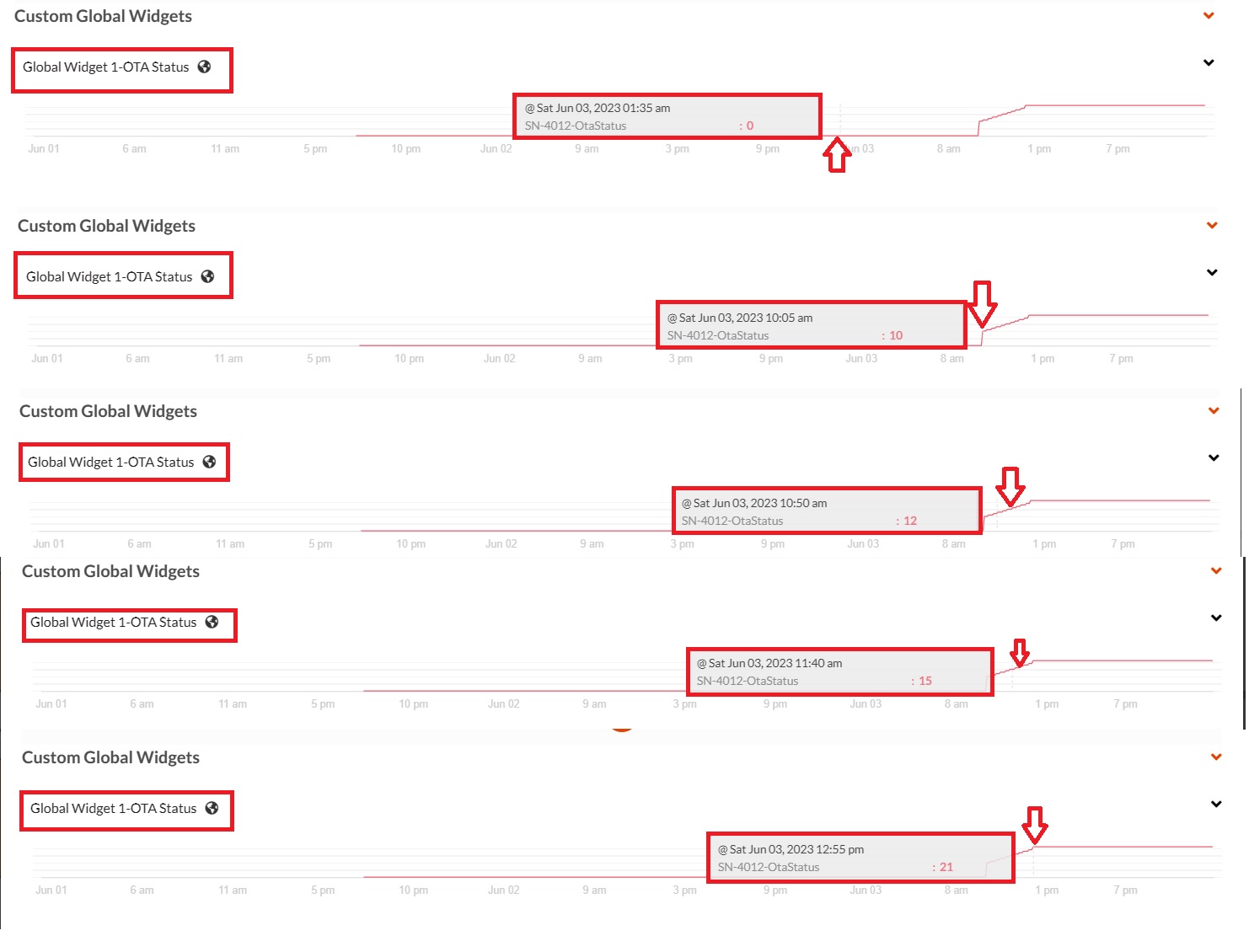

And in the system widget screen, as a custom visualization, as below

| Feature Availability Versions

The OTA progress tracking feature is available from the CM version 3.31 and above.
The OTA progress tracking feature is available from the CCU version 3.31 and above.
