| Overview
The VAV terminal profile follows guideline 36 in all its aspects of operation. The Damper position calculation for a VAV box at the terminal side contributes to the effective operation of the system-level equipment.
The algorithm in the 75F VAV system ensures the same, and sequences are in place to optimally drive the damper position calculations, leading to optimal usage of system-level equipment (AHU/RTU), achieving enhanced energy savings.
For more information on the influence of Damper positions on system-level equipment refer to Damper Position & Zone Priority Driven Trim and Respond Requests.
| Possible Configuration
The VAV Terminal profile comes with four possible types of configuration and controls, which are as follows.
- Room temperature-based control
- Airflow CFM-based control
- Room CO2 level based control
- Room VOC level-based control
based on the site requirement, the building configuration can be modified and the required controls can be opted for.
The Damper position calculation for different types of configuration and control is different.
| Damper Position Calculation for Room Temperature-based Control

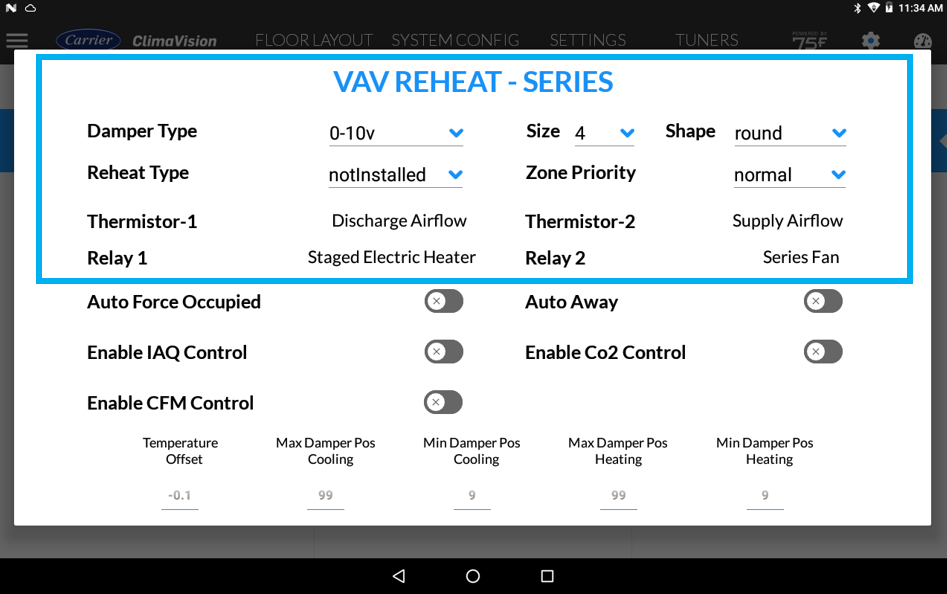

The above configuration is a room temperature-based control. The VAV terminal sequences for the Damper position calculation for the same are like the example illustration below.
When the System is cooling:
| Zone/Room Demanding Cooling | Zone/Room Demanding Heating | ||
|
The Damper position is scaled from the Minimum to the Maximum position ( Configured parameters), based on the resultant PI loop (Cooling), that uses the current and desired temperatures (Cooling). Example: Let us Assume the PI loop output signal is 80%, the same is translated to Damper Positions as
|
|
In the VAV terminal profile, the user can track the airflow CFM setpoint in real-time against the actual CFM read from the DPS which is visualized in CCU and Portal using the available widget.
Also, In the VAV Terminal profile, the user can track effective DAT/DAT (Discharge Air Temperature setpoint against the CFM setpoint utilized by the airflow loop when the CFM is engaged. This is done by the logical points created in the CCU which can now be tracked on the portal using the available widget.
| Damper Position Calculation for Room Temperature & CFM-based Control
The above configuration is a room temperature & CFM-based control. The VAV terminal sequences for the Damper position calculation for the same are like the example illustration below.
| Zone/Room Demanding Cooling | Zone/Room Demanding Heating |
|
On the cooling side the PI loop (Cooling Loop Output), which uses the current and desired temperatures (Cooling) is used to determine the Airflow setpoint. The Loop output signal is scaled for configured Minimum and Maximum CFM to determine the Airflow setpoint. Example: Let us Assume the PI loop output signal is 80%, the same is translated to Airflow Setpoint as
|
On the heating side the PI loop (Heating Loop Output), which uses the current and desired temperatures (heating) is used to determine the DAT setpoint. The Loop output signal is scaled for the SAT setpoint (which is equal to DAT and considered as the heating minimum endpoint, before the reheat loop triggers) and reheatZoneMaxDischargeTemp ( heating maximum endpoint) to determine the DAT setpoint. Example: Let us Assume the PI loop output signal is 80%, the same is translated to Airflow Setpoint as
|
| Zone/Room Demanding Cooling | Zone/Room Demanding Heating |
|
The Damper position is scaled from the Minimum to the Maximum position (Configured parameters), based on the resultant CFM Loop Output Signal, which uses the Airflow Setpoint and calculated actual CFM, as shown above. For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV |
The Damper remains at a minimum from 0% - 50% of the Heating Loop Output, till a maximum Discharge Air Temperature (DAT) is reached. This is defined by the tuner parameter VAV-reheatZoneMaxDischargeTemp, which is by default 90F. The Reheat loop output triggers, that use the DAT set point and actual DAT for the loop output calculation, as shown above. For 50% and above of the Heating Loop Output (when the DAT is more than the zone temperature+ reheatZoneToDATMinDifferential), the damper position is proportionally scaled for the rest of the Loop output if the required conditioning is not achieved. The damper increases from 20%(the configured), or calculated min damper position whichever is higher, to 100% when the heating loop output is 100%
Note: The default value of the following tuners has been changed for efficient airflow balancing to give more weightage to the Integral side of the loop and also to reduce the amount of time it takes for the integral to ramp up. The new tuner values are as follows:
Note: In the system, edits to PI Loop related tuners such as proportionalKfactor, IntegralKfactor, temperatureProportionalRange, TemperatureIntegralTime, and any other PI related tuners made through the Internal Portal are consumed on the fly without the need for a restart. This seamless process ensures that the PI Loop restarts automatically with the updated tuner values. This is also applicable for the Trim and Response loop configuration.
|
In the VAV terminal profile, the user can track the airflow CFM setpoint in real-time against the actual CFM read from the DPS which is visualized in CCU and Portal using the available widget.
Also, In the VAV Terminal profile, the user can track effective DAT/DAT (Discharge Air Temperature setpoint against the CFM setpoint utilized by the airflow loop when the CFM is engaged. This is done by the logical points created in the CCU which can now be tracked on the portal using the available widget.
| Damper Position Calculation for Room Temperature & CO2/VOC based control
The above configuration is a room temperature, IAQ & CO2-based control. The VAV terminal sequences for the Damper position calculation for the same are like the example illustration below.
The Damper position is scaled from the Minimum to the Maximum position ( Configured parameters), based on the resultant PI loop (Cooling), that uses the current and desired temperatures (Cooling/Heating).
Where the minimum position is altered based on the breach in CO2 or VOC levels. below is an example of the same
Example:
Let us Assume there is a CO2 breach in the system
- zoneCO2Threshold=800 ppm
- zoneCO2Target=1000 ppm
- Zone CO2 Breach Range = 200 ppm
- Zone Current CO2=875 ppm
- Actual Breach= 75 ppm
- Breach Percentage= 75/200*100= 37.5%
The new minimum damper position is 37.5%, using the same the actual damper position is calculated as below.
Let us Assume the temperature-based PI loop output signal is 80%, the same is translated to Damper Positions as follows
- Configured min damper position=20%
- Calculated Min Damper Position=37.5%
- Max Damper Position=100%
- Range of the Damper Position= 62.5%
- 80% loop output signal scaled for Damper position range (80)= 80*62.5/100= 5000/100= 50%
- Actual Damper Position = 37.5 (Minimum Damper Position) + 50% = 87.5%
The same applies to VOC breaches as well:
Example:
Let us Assume there is a VOC breach in the system
- zone VOC Threshold=400 ppb
- zone VOC Target=500ppb
- Zone VOC Breach Range = 100 ppb
- Zone Current VOC =475 ppb
- Actual Breach= 75 ppb
- Breach Percentage= 75/100*100= 75%
The new minimum damper position is 75%, using the same the actual damper position is calculated as below.
Let us Assume the temperature-based PI loop output signal is 80%, the same is translated to Damper Positions as follows
- Configured min damper position=20%
- Calculated Min Damper Position=75%
- Max Damper Position=100%
- Range of the Damper Position= 25%
- 80% loop output signal scaled for Damper position range (80)= 80*25/100= 2000/100= 20%
- Actual Damper Position = 20 (Minimum Damper Position) + 75% = 95%
| Damper Position Calculation for Room Temperature, CFM, CO2 & VOC based control
In this configuration, the Damper Position calculation would have four calculation stages.
- The Breach percentage on the CO2& VOC breaches, as in the above section.
- The Breach Percentage translated to the new minimum cfm.
- The airflow set point calculation using the new minimum and maximum airflow cfm, and the temperature-based PI loop output.
- The CFM loop output calculation from the airflow set point and actual airflow, which is translated to the Damper position minimum and Maximum.
Below is an Example calculation for the same
Example:
The Breach percentage on the CO2 breach
Let us Assume there is a CO2 in the system
- zoneCO2Threshold=800 ppm
- zoneCO2Target=1000 ppm
- Zone CO2 Breach = 200 ppm
- Zone Current CO2=825 ppm
- Actual Breach= 25 ppm
- Breach Percentage= 25/200*100= 12.5%
The Breach percentage on the VOC breach
Let us Assume there is a VOC breach in the system
- zone VOC Threshold=400 ppb
- zone VOC Target=500ppb
- Zone VOC Breach Range = 100 ppb
- Zone Current VOC =475 ppb
- Actual Breach= 75 ppb
- Breach Percentage= 75/100*100= 75%
Note: When both CO2 and VOC are enabled for control, the highest breach percentage among both is considered for the minimum damper position, for the actual damper position calculation.
As per the above, let us consider the Breach Percentage from VOC = 75% for the new minimum cfm calculation
The Breach Percentage translated to the new minimum cfm.
- Min CFM(Cooling/Heating)=50 cfm
- Max CFM(Cooling/Heating)=250 cfm
- Airflow CFM Range = 200 cfm
- 75 % Breaches Transaltes to =75*200/100= 15000/100= 150 cfm
- The New minimum CFM= 50 (Min CFM(Cooling/Heating))+ 150= 200 cfm
The airflow set point calculation
Let us Assume the PI loop output signal is 80%, the same is translated to Airflow Setpoint as
- New Min CFM(Cooling/Heating)=200 cfm
- Max CFM(Cooling/Heating)=250 cfm
- Airflow CFM Range = 50 cfm
- 80% loop output signal scaled for Airflow CFM Range (50)= 50*80/100= 4000/100= 40 cfm
- Actual Airflow Setpoint= 200 (Min CFM(Cooling/Heating))+ 40= 240 cfm
The CFM loop output calculation from the airflow CFM set point and actual airflow CFM, which is translated to the Damper position minimum and Maximum.
For effects in the system-level equipment refer to Damper Position & Zone Priority Driven Trim and Respond Requests.
| Damper Position Calculation & System Operation When System is Heating
When the system is heating:
| Zone/Room Demanding Cooling | Zone/Room Demanding Heating |
|
The Damper position moves to the minimum position, not allowing further hot air into the room, and the Active airflow setpoint will be no higher than the minimum endpoint (minimum Cfm) When the profile is configured for only Temperature and Cfm-based control or When the CO2 & VOC are configured, they do not influence the control (No breaches).
When the CO2 & VOC breach influences the control of the operation the step for the System in cooling mode is followed where the breach contributes to the minimum Cfm |
From 0% to 50% (which is tuner value valveActuationStartDamperPosDuringSysHeating) of the heating loop output, the damper position is proportionally scaled to let in more hot air.
For the remaining heating loop output which is above valveActuationStartDamperPosDuringSysHeating (50%), both the Damper position and Reheat are scaled as below. Where, the remaining 50% damper position increases by 1% for every 1% heating loop increase, whereas the reheat increases by 2% for every 1% heating loop increase. |
