Tuners are a feature set in the Carrier system, which are a set of predefined parameters that can be modified or changed in order to customize and finely tune our system's functioning to cater to specific building types and specific customer needs.
These tuner variables play a vital role in controlling the algorithm steps and functioning of different profiles.
Tuners provide the users with the capability to fine-tune the tuner parameters at 4 different levels.
Below is a complete list of tuners that are available for various types of conditioning that are made available as profiles in the Carrier system, along with their respective aspects lie the description, default value and Min, max incremental values, and the level at which it can be applied.

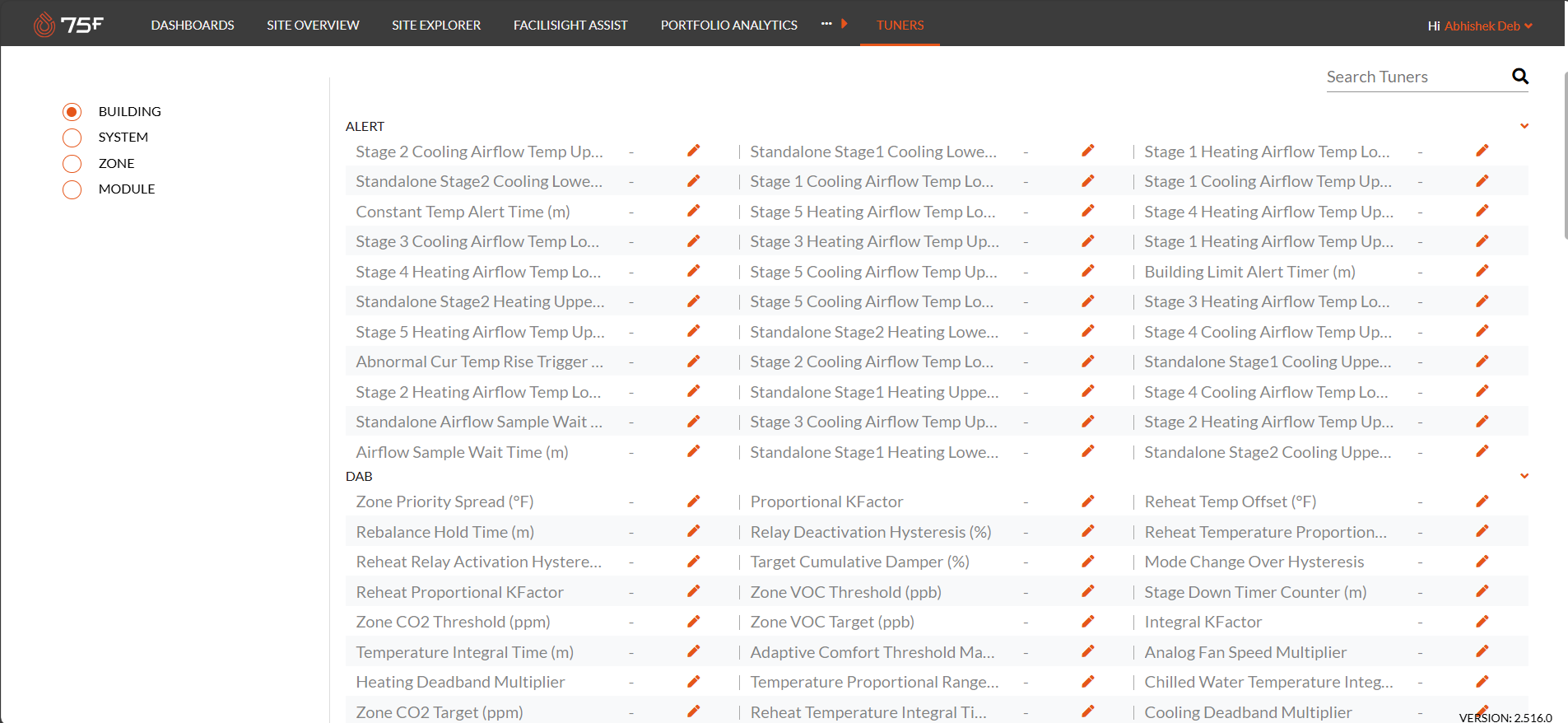

| List of Tuners
The following table gives the complete list of Tuners.

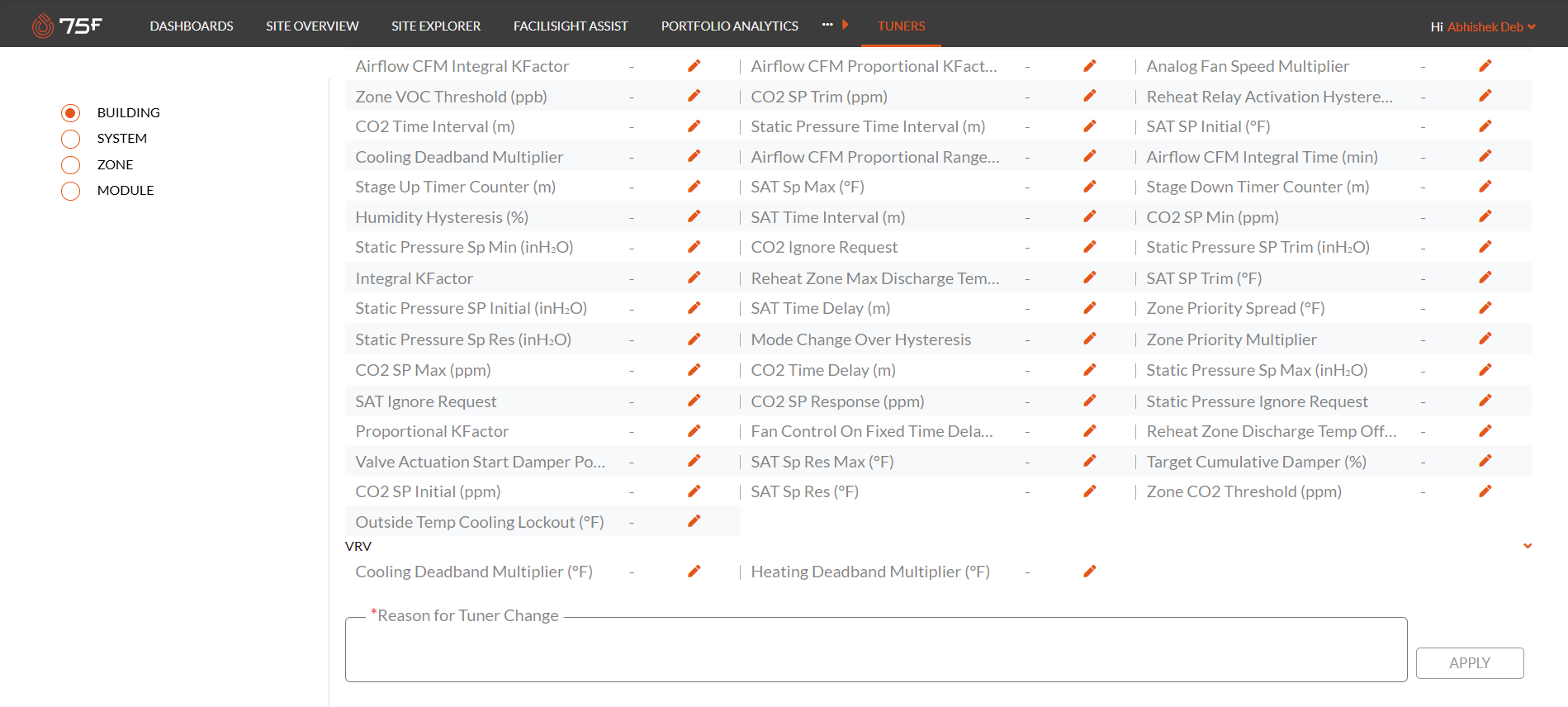

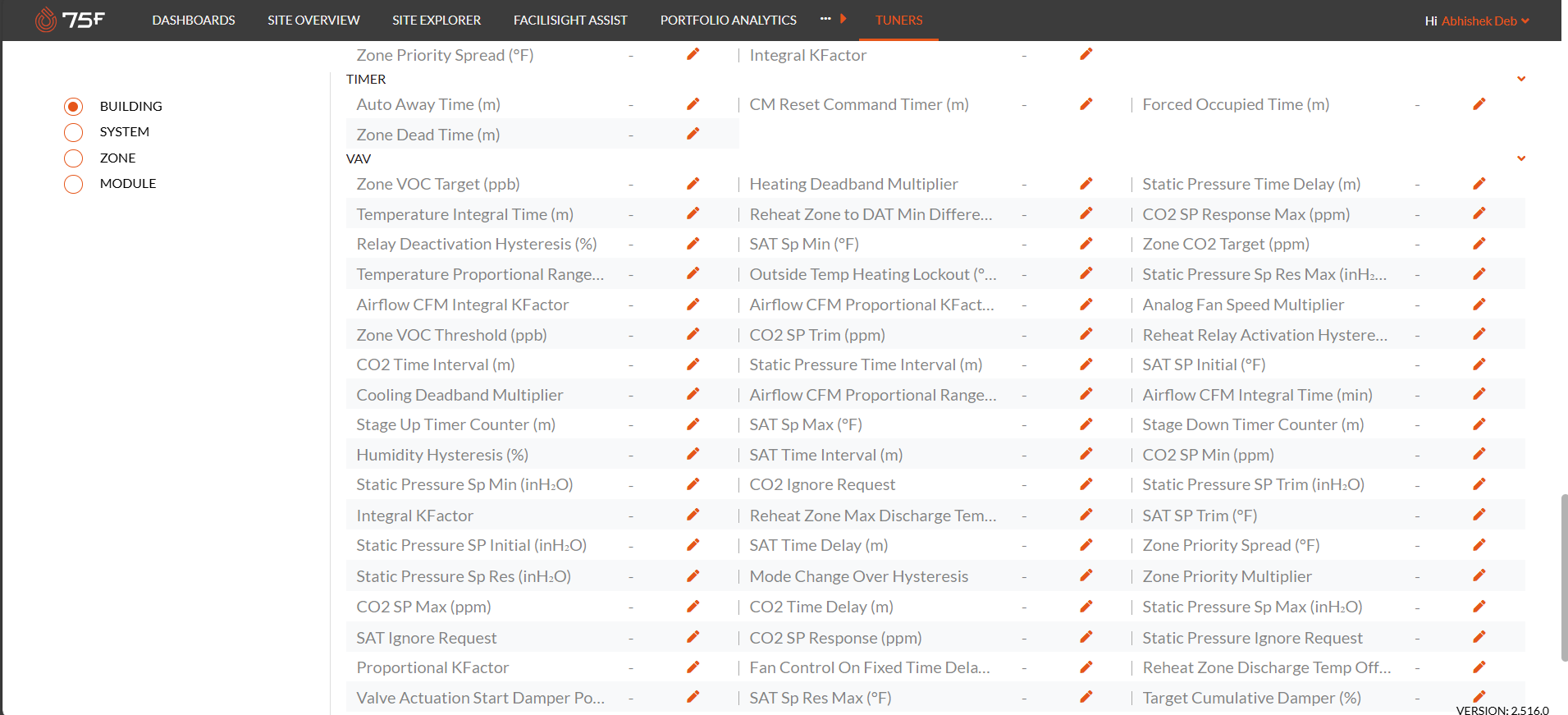

Tuner Group | Tuner Name | Tuner Description | Unit | Default Value | Min, Max, Incremental Values | Priority Array Level |
Tuner Group | Tuner Name | Tuner Description | Unit | Default Value | Min, Max, Incremental Values | Priority Array Level |
VVT-C | analogFanSpeedMultiplier | Tuner that determines how fast a fan can move based on heating or cooling load | NA | 1 | 0.1, 3.0, 0.1 | Building, System |
VVT-C | coolingDeadband | Range of temperatures where no cooling occurs. E.g. if SP is 70F with coolingdeadband as 2 then range between 68 ~ 72 no cooling will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
VVT-C | coolingDeadbandMultiplier | Tuner that manages value of coolingdeadband. This tuner multiplies with the value of coolingdeadband and manages value of coolingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
VVT-C | heatingDeadband | Range of temperatures where no heating occurs. E.g. if SP is 65F with heatingdeadband as 2 then range between 63 ~ 67 no heating will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
VVT-C | heatingDeadbandMultiplier | Tuner that manages value of heatingdeadband. This tuner multiplies with the value of heatingdeadband and manages value of heatingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
VVT-C | humidityHysteresis (%) | Tuner that determines a condition at which humidifier / dehumidifier will turn off after being turned on to control inside humidity | % | 5 | 0, 100, 1 | Building, System |
VVT-C | integralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
VVT-C | modeChangeoverHysteresis | Tuner that determines whether system should be in cooling or heating based on weighted average load. Once in heating or cooling mode this tuner will determine when changeover will happen to the other mode | NA | 0.5 | 0.0, 5.0, 0.5 | Building, System |
VVT-C | proportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
VVT-C | rebalanceHoldTime (m) | This tuner determines at what duration rebalancing of dampers (Normalization) for VVT-C should take place | m | 20 | 1.0, 60, 1 | Building, System |
VVT-C | relayDeactivationHysteresis (%) | Tuner that determines a condition at which relay will turn off after being turned on to control based on load | % | 10 | 0, 10, 0.5 | Building, System |
VVT-C | stageDownTimerCounter (m) | When we have stages to be turned OFF like stage 2 & 1, this tuner determines the time duration at which stages should be turned OFF when there is a sudden change in loop outputs | min | 2 | 0, 30, 1 | Building, System |
VVT-C | stageUpTimerCounter (m) | When we have stages to be turned ON like stage 2 & 1, this tuner determines the time duration at which stages should be turned ON when there is a sudden change in loop outputs | min | 5 | 0, 30, 1 | Building, System |
VVT-C | targetCumulativeDamper (%) | Tuner which ensures overall damper opening is at some percentage. For multi zones few damper can be operating at min and few at max value. So target cumulative damper value helps in normalization | % | 70 | 0, 100, 1 | Building, System |
VVT-C | temperatureIntegralTime (m) | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system | min | 30 | 1, 60, 1 | Building, System, Module |
VVT-C | temperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper operations | NA | 2 | 0, 10, 1 | Building, System, Module |
VVT-C | zoneCO2Target (ppm) | This tuners determines target value of CO2 in a zone | ppm | 1000 | 0, 2000, 10 | Building, Module |
VVT-C | zoneCO2Threshold (ppm) | This tuner determines a point where system starts controlling dampers to maintain space CO2 at target value in a zone | ppm | 800 | 0, 2000, 10 | Building, Module |
VVT-C | zonePriorityMultiplier | Each zone has a priority and this tuner manages value of zone priority in a zone. This tuner multiplies with the value of zone priority | NA | 1.3 | 0, 100, 1.3 | Building, Module |
VVT-C | zonePriorityMultiplier | This is a range of zone priority where occupant in a zone that is further away from the desired are exponentially more likely to feel uncomfortable. This prevents a zone with very large temp drifts from driving system operation | NA | 2 | 0, 10, 1 | Building, Module |
VVT-C | zoneVOCTarget (ppb) | This tuners determines target value of VOC in a zone | ppb | 500 | 0, 1000, 10 | Building, Module |
VVT-C | zoneVOCThreshold (ppb) | This tuner determines a point where system starts controlling dampers to maintain space VOC at target value in a zone | ppb | 400 | 0, 1000, 10 | Building, Module |
VVT-C | adaptiveComfortThresholdMargin | This tuner defines a value, when when subtracted from the averageDesiredCoolingTemp will result in the AverageComfortThreshold | NA | 4 | 1, 15, 1 | Building, System |
VVT-C | chilledWaterIntegralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1, 0.1 | Building, System |
VVT-C | chilledWaterProportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1, 0.1 | Building, System |
VVT-C | chilledWaterTemperatureIntegralTime | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system. | NA | 30 | 1, 60, 1 | Building, System |
VVT-C | chilledWaterTemperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper operations | NA | 4 | 1, 10, 1 | Building, System |
VVT-C | outsideTempCoolingLockout | This tuner determines the temperature below which no mechanical cooling should happen in a system | °F | 50 | 0, 70, 1 | Building, System |
VVT-C | outsideTempHeatingLockout | Thi tuner determines the temperature above which no mechanical heating should happen in a system | °F | 80 | 50, 100, 1 | Building, System |
VVT-C | zonePrioritySpread | This is a range of zone priority where occupant in a zone that is further away from the desired are exponentially more likely to feel uncomfortable. This prevents a zone with very large temp drifts from driving system operation | NA | 2 | 0, 10, 1 | Building, System, Module |
VAV | Co2TimeDelay | This tuner determines time delay for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | m | 2 | 1,20,1 | Building, System |
VAV | analogFanSpeedMultiplier | Tuner that determines how fast a fan can move based on heating or cooling load | NA | 1 | 0.1, 3.0, 0.1 | Building, System |
VAV | co2IgnoreRequest | This tuner determines number of ignore request for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | NA | 2 | 0,10,1 | Building, System |
VAV | co2SPInit (ppm) | This tuner determines initial setpoint for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | 800 | 0, 1500, 10 | Building, System |
VAV | co2SPMax (ppm) | This tuner determines maximum setpoint for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | 1000 | 100, 2000, 10 | Building, System |
VAV | co2SPMin (ppm) | This tuner determines minimum setpoint for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | 800 | 0, 1500, 10 | Building, System |
VAV | co2SPRes (ppm) | This tuner determines respond amount for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | -10 | -30.0, -1.0, 1.0 | Building, System |
VAV | co2SPResMax (ppm) | This tuner determines maximum response per time interval for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | -30 | -50.0, -1.0, 1.0 | Building, System |
VAV | co2SPTrim (ppm) | This tuner determines trim amount for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | ppm | 20 | 0, 50, 1.0 | Building, System |
VAV | co2TimeDelay (m) | This tuner determines time delay for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | m | 2 | 1,20,1 | Building, System |
VAV | co2TimeInterval (m) | This tuner determines time interval for a Trim & Respond setpoint reset logic for CO2. T&R logic is optimal for controlling a single variable CO2 that is subject to the requirements of multiple downstream zones | m | 2 | 0,10,1 | Building, System |
VAV | coolingDeadband | Range of temperatures where no cooling occurs. E.g. if SP is 70F with coolingdeadband as 2 then range between 68 ~ 72 no cooling will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
VAV | coolingDeadbandMultiplier | Tuner that manages value of coolingdeadband. This tuner multiplies with the value of coolingdeadband and manages value of coolingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
VAV | fanControlOnFixedTimeDelay (m) | Prior to starting the fan, the damper Position is first driven fully closed to ensure that the fan is not rotating backwards. Once the fan is proven on for fanControlONFixedTimeDelay, the damper override is released | min | 1 | 0, 10, 1 | Building, Module |
VAV | heatingDeadband | Range of temperatures where no heating occurs. E.g. if SP is 65F with heatingdeadband as 2 then range between 63 ~ 67 no heating will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
VAV | heatingDeadbandMultiplier | Tuner that manages value of heatingdeadband. This tuner multiplies with the value of heatingdeadband and manages value of heatingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
VAV | humidityHysteresis (%) | Condition at which humidifier / dehumidifier will turn off after being turned on to control inside humidity | % | 5 | 0, 100, 1 | Building, System |
VAV | integralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1.0, 0.1 | Building |
VAV | proportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1.0, 0.1 | Building |
VAV | reheatZoneToDATMinDifferential | When the system is in cooling and a zone requires heating, reheatZoneToDATMinDifferential+ZoneTemp=datSP. If this calculated datSp is greater than the max allowed datSp, then reheatMaxDischargeTemp will be used as the datSp | °F | 9 | 0, 20, 0.5 | Building, Module |
VAV | relayDeactivationHysteresis (%) | Tuner that determines a condition at which relay will turn off after being turned on to control based on load | % | 10 | 0, 10, 0.5 | Building, System |
VAV | satIgnoreRequest | This tuner determines number of ignore request for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | NA | 2 | 0,10,1 | Building, System |
VAV | satSPInit | This tuner determines initial setpoint for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | 65 | 50,70,1 | Building, System |
VAV | satSPMax | This tuner determines maximum setpoint for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | 65 | 55,75,1 | Building, System |
VAV | satSPMin | This tuner determines minimum setpoint for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | 55 | 45,65, 1 | Building, System |
VAV | satSPRes | This tuner determines respond amount for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | -0.3 | -0.1, -2.0, -0.1 | Building, System |
VAV | satSPResMax | This tuner determines maximum response per time interval for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | -1 | -0.1, -3.0, -0.1 | Building, System |
VAV | satSPTrim | This tuner determines trim amount for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | °F | 0.2 | -0.5, 5.0, 0.1 | Building, System |
VAV | satTimeDelay (m) | This tuner determines time delay for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | m | 2 | 0, 30, 1 | Building, System |
VAV | satTimeInterval (m) | This tuner determines time interval for a Trim & Respond setpoint reset logic for Supply Air temp. T&R logic is optimal for controlling a single variable Supply Air temp that is subject to the requirements of multiple downstream zones | m | 2 | 0, 20, 1 | Building, System |
VAV | stageDownTimerCounter (m) | When we have stages to be turned OFF like stage 2 & 1, this tuner determines the time duration at which stages should be turned OFF when there is a sudden change in loop outputs | min | 2 | 0, 30, 1 | Building, System |
VAV | stageUpTimerCounter (m) | When we have stages to be turned ON like stage 2 & 1, this tuner determines the time duration at which stages should be turned ON when there is a sudden change in loop outputs | min | 5 | 0, 30, 1 | Building, System |
VAV | staticPressureIgnoreRequest | This tuner determines number of ignore request for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | 2 | 0, 10, 1 | Building, System | |
VAV | staticPressureSPInit (inH₂O) | This tuner determines initial setpoint for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | 0.2 | 0.1, 2.0, 0.1 | Building, System |
VAV | staticPressureSPMax (inH₂O) | This tuner determines maximum setpoint for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | 1 | 0.1, 2.0, 0.1 | Building, System |
VAV | staticPressureSPMin (inH₂O) | This tuner determines minimum setpoint for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | 0.2 | 0.1, 2.0, 0.1 | Building, System |
VAV | staticPressureSPRes (inH₂O) | This tuner determines respond amount for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | 0.05 | 0.01, 0.2, 0.01 | Building, System |
VAV | staticPressureSPResMax (inH₂O) | This tuner determines maximum response per time interval for a Trim & Respond setpoint reset logicfor Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | 0.1 | 0.05, 0.5, 0.05 | Building, System |
VAV | staticPressureSPTrim (inH₂O) | This tuner determines trim amount for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | inch wc | -0.02 | -0.01, -0.5, - 0.01 | Building, System |
VAV | staticPressureTimeDelay (m) | This tuner determines time delay for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | m | 2 | 0, 30, 1 | Building, System |
VAV | staticPressureTimeInterval (m) | This tuner determines time interval for a Trim & Respond setpoint reset logic for Static Pressure. T&R logic is optimal for controlling a single variable Static Pressure that is subject to the requirements of multiple downstream zones | m | 2 | 0, 30, 1 | Building, System |
VAV | targetCumulativeDamper (%) | Tuner which ensures overall damper opening is at some percetage. For multi zones few damper can be operating at min and few at max value. So target cumulative damper value helps in normalization | % | 70 | 0, 100, 1 | Building, System |
VAV | temperatureIntegralTime (m) | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system. | min | 30 | 1, 60, 1 | Building, System, Module |
VAV | temperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper operations | NA | 2 | 0, 10, 1 | Building, System, Module |
VAV | valveActuationStartDamperPosDuringSysHeating | During system heating, this tuner determines the control signal for valve as the damper opens from vavleActuationStartDamperPosDuringSysHeating % to maxDamperPosHeating % . The actual mapping of valve actuator into the output signal depends on the type of actuator selected. Eg. if the max/min dampers are 100% and 40% and the calculated damper position is 80% then the valve control signal will be 33% and for a 2-10V actuator, the output will be 4.4V | NA | 50 | 0,100, 5 | Building, Module |
VAV | zoneCO2Target (ppm) | This tuners determines target value of CO2 in a zone | ppm | 1000 | 0, 2000, 10 | Building, Module |
VAV | zoneCO2Threshold (ppm) | This tuner determines a point where system starts controlling dampers to maintain space CO2 at target value in a zone | ppm | 800 | 0, 2000, 10 | Building, Module |
VAV | zonePriorityMultiplier | Each zone has a priority and this tuner manages value of zonepriority in a zone. This tuner multiplies with the value of zonepriority | NA | 1.3 | 0, 100, 1.3 | Building, Module |
VAV | zonePrioritySpread | This is a range of zonepriority where occupant in a zone that is further away from the desired are exponentially more likely to feel uncomfortable. This prevents a zone with very large temp drifts from driving system operation | NA | 2 | 0, 10, 1 | Building |
VAV | zoneVOCTarget (ppb) | This tuners determines target value of VOC in a zone | ppb | 500 | 0, 1000, 10 | Building, Module |
VAV | zoneVOCThreshold (ppb) | This tuner determines a point where system starts controlling dampers to maintain space VOC at target value in a zone | ppb | 400 | 0, 1000, 10 | Building, Module |
VAV | outsideTempCoolingLockout | This tuner determines the temperature below which no mechanical cooling should happen in a system | °F | 50 | 0, 70, 1 | Building |
VAV | outsideTempHeatingLockout | This tuner determines the temperature above which no mechanical heating should happen in a system | °F | 80 | 50, 100, 1 | Building |
VAV | reheatZoneDischargeTempOffset | °F | 20 | 0, 50, 1 | Building | |
VAV | reheatZoneMaxDischargeTemp | °F | 90 | 70, 120, 1 | Building | |
Alert | abnormalCurTempRiseTrigger | This tuner determines abnormal rise in the value of current temp which will trigger an alert. For example if current temp rises 4F suddenly then there will be an alert | °F | 4 | 1.0, 20, 1.0 | Building, Module |
Alert | airflowSampleWaitTime | This tuner determines how much time to wait for airflow temp to come before alert is raised | min | 5 | 0, 150, 1 | Building, System |
Alert | buildingLimitAlertTimer | This tuner determines the duration after which an alert for building limit temperature breach need to be raised | min | 45 | 0.0, 60, 1.0 | Building |
Alert | humidityCompensationOffset | |||||
Alert | constantTempAlertTime | This tuner determines the duration after which there should be an alert in case there is no change in temp of that zone. For example if for a zone temperature is constant at 71F for 40 mins there there should be an alert | min | 40 | 0, 360, 1 | Building, Module |
Alert | stage1CoolingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage1 cooling | °F | -20 | -150, 0, 1 | Building, System |
Alert | stage1CoolingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage1 cooling | °F | -8 | -150, 0, 1 | Building, System |
Alert | stage1HeatingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage1 heating | °F | 25 | 0, 150, 1 | Building, System |
Alert | stage1HeatingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage1 heating | °F | 40 | 0, 150, 1 | Building, System |
Alert | stage2CoolingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage2 cooling | °F | -25 | -150, 0, 1 | Building, System |
Alert | stage2CoolingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage2 cooling | °F | -12 | -150, 0, 1 | Building, System |
Alert | stage2HeatingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage2 heating | °F | 35 | 0, 150, 1 | Building, System |
Alert | stage2HeatingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage2 heating | °F | 50 | 0, 150, 1 | Building, System |
Alert | stage3CoolingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage3 cooling | °F | -25 | -150, 0, 1 | Building, System |
Alert | stage3CoolingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage3 cooling | °F | -12 | -150, 0, 1 | Building, System |
Alert | stage3HeatingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage3 heating | °F | 35 | 0, 150, 1 | Building, System |
Alert | stage3HeatingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage3 heating | °F | 50 | 0, 150, 1 | Building, System |
Alert | stage4CoolingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage4 cooling | °F | -25 | -150, 0, 1 | Building, System |
Alert | stage4CoolingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage4 cooling | °F | -12 | -150, 0, 1 | Building, System |
Alert | stage4HeatingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage4 heating | °F | 35 | 0, 150, 1 | Building, System |
Alert | stage4HeatingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage4 heating | °F | 50 | 0, 150, 1 | Building, System |
Alert | stage5CoolingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage5 cooling | °F | -25 | -150, 0, 1 | Building, System |
Alert | stage5CoolingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage5 cooling | °F | -12 | -150, 0, 1 | Building, System |
Alert | stage5HeatingAirflowTempLowerOffset | This tuner defines the lower limit for a range of Air flow temperature values when system is doing Stage5 heating | °F | 35 | 0, 150, 1 | Building, System |
Alert | stage5HeatingAirflowTempUpperOffset | This tuner defines the upper limit for a range of Air flow temperature values when system is doing Stage5 heating | °F | 50 | 0, 150, 1 | Building, System |
Alert | standaloneAirflowSampleWaitTime | This tuner point defines the amount of wait time the CCU air flow values has exceed the offset ranges after which CCU/System will generate an alert stating that Airflow is out of bounds based on the range of OFFSET values for various stages | m | 30 | 1.0 - 100, 1.0 | Building |
Alert | standaloneCoolingAirflowTempLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing cooling conditioning | °F | -25 | -150, - 0, 1.0 | System, Zone, Module |
Alert | standaloneCoolingAirflowTempUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing cooling conditioning | °F | -12 | -150, - 0, 1.0 | System, Zone, Module |
Alert | standaloneHeatingAirflowTempLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing heating conditioning | °F | 25 | 0, 150, 1 | System, Zone, Module |
Alert | standaloneHeatingAirflowTempUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing heating conditioning | °F | 50 | 0, 150, 1 | System, Zone, Module |
Alert | standaloneStage1CoolingLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing stage 1 cooling conditioning | °F | -20 | -150, 0, 1.0 | Building |
Alert | standaloneStage1CoolingUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing stage 1 cooling conditioning | °F | -8 | -150, 0, 1.0 | Building |
Alert | standaloneStage1HeatingLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing stage 1 heating conditioning | °F | 25 | -150, 0, 1.0 | Building |
Alert | standaloneStage1HeatingUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing stage 1 heating conditioning | °F | 40 | -150, 0, 1.0 | Building |
Alert | standaloneStage2CoolingLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing stage 2 cooling conditioning | °F | -25 | -150, 0, 1.0 | Building |
Alert | standaloneStage2CoolingUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing stage 2 cooling conditioning | °F | -12 | -150, 0, 1.0 | Building |
Alert | standaloneStage2HeatingLowerOffset | This tuner point defines the lower limit for the range of Air flow temperature values when equip/Standalone device is doing stage 2 heating conditioning | °F | 25 | 0, 150, 1 | Building |
Alert | standaloneStage2HeatingUpperOffset | This tuner point defines the upper limit for the range of Air flow temperature values when equip/Standalone device is doing stage 2 heating conditioning | °F | 50 | 0, 150, 1 | Building |

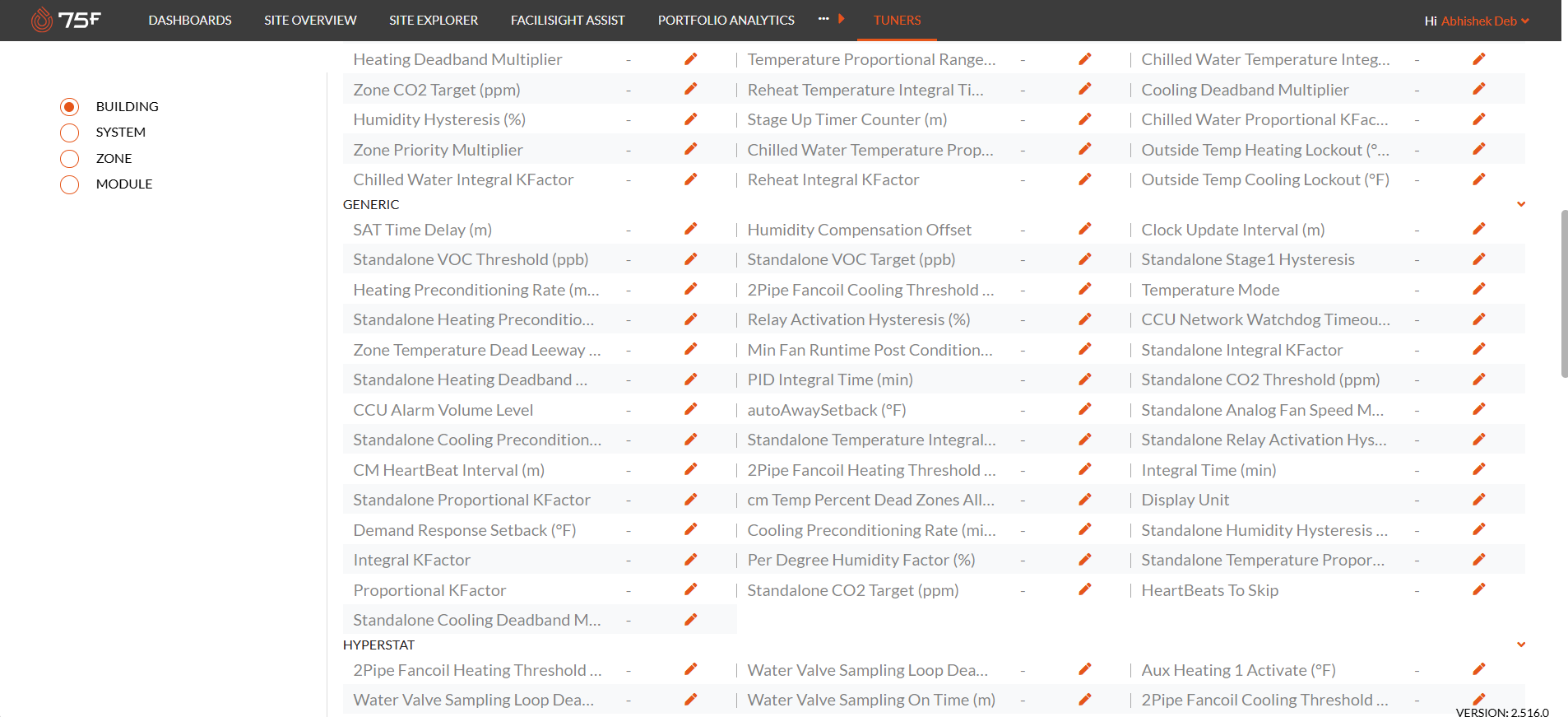

Generic | 2PipeFancoilCoolingThreshold | For a 2 pipe FCU, this tuner determines if the central plant is providing cold water when compared to supply water temp sensor. If Th2 (supply water sensor) is less than 2pipeFancoilCoolingThreshold (65) then the central plant is providing cold water | °F | 65 | 35, 70, 1.0 | Building |
Generic | 2PipeFancoilHeatingThreshold | For a 2 pipe FCU, this tuner determines if the central plant is providing hot water when compared to supply water temp sensor. If Th2 (Supply water sensor) is more than 2pipeFancoilHeatingThreshold (85) then the central plant is providing hot water | °F | 85 | 80, 150, 1.0 | Building |
Generic | buildingLimitMax | This tuner determines the maximum value of temperature which is generally acceptable within a building | °F | 90 | 50, 90, 1 | Building |
Generic | buildingLimitMin | This tuner determines the minimum value of temperature which is generally acceptable within a building | °F | 55 | 50, 90, 1 | Building |
Generic | buildingToZoneDifferential | Tuner that determines the maximum Zone setback that can be set by the Facility Manager. This allows a buffer between where the zone temperature is targeted during the unoccupied time and the place where we start alarming | NA | 3 | 0, 20, 1 | Building |
Generic | ccuAlarmVolumeLevel | This tuner determines the the volume of tablet when there is any alert | NA | 0 | 0, 7, 1 | Building, System |
Generic | clockUpdateInterval (m) | This tuner determines the time interval in which tablet clock will update with the time server | min | 15 | 1, 120, 1 | Building, System |
Generic | cmHeartBeatInterval (m) | This tuner determines the time interval at which CM communicates with the tablet | min | 1 | 1, 20, 1 | Building, System |
Generic | cmTempPercentDeadZonesAllowed | The CM temp needs to work along with Dead Zones Allowed. If number of zones dead is less than zone dead differentials then CM temp will not be in calculations as TI Profile is not enabled. This tuner should be taken into consideration in order to calculate SystemEquip - averageTemperature when number of zones that are dead should be greater than this tuner point value. | NA | 50 | 0, 100, 1 | Building, System |
Generic | coolingPreconditioningRate | Tuner that determines the number of minutes per degree difference between desired and current temperature the system should start cooling to meet the needs of the building by the occupied time | min/°F | 15 | 0,60,1 | Building, System, Zone |
Generic | coolingUserLimitMax | This tuner determines the maximum value which the user is allowed to change their Cooling desired temperature | °F | 77 | 72,80,1 | Building |
Generic | coolingUserLimitMin | This tuner determines the minimum value which the user is allowed to change their Cooling desired temperature | °F | 72 | 70,77,1 | Building |
Generic | heartBeatsToSkip | This tuner is part of synchronization between CM and CCU. This tuner value tells CM about number of heartbeats to miss before going to fail-safe mode | °F | 5 | 3, 20, 1 | Building, System |
Generic | heatingPreconditioningRate | Tuner that determines the number of minutes per degree difference between desired and current temperature the system should start heating to meet the needs of the building by the occupied time | min/°F | 15 | 0,60,1 | Building, System, Zone |
Generic | heatingUserLimitMax | This tuner determines the maximum value which the user is allowed to change their heating desired temperature | °F | 67 | 65,75,1 | Building |
Generic | heatingUserLimitMin | This tuner determines the minimum value which the user is allowed to change their heating desired temperature | °F | 72 | 60,70,1 | Building |
Generic | integralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1.0, 0.1 | Building |
Generic | perDegreeHumidityFactor (%) | This tuner is used with humidity compensation in V2. If mHumidityCompensation = measuredHumidity - humidityThreshold/perDegreeHumidityFactor | % | 10 | 0, 100, 1 | Building, System |
Generic | proportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1.0, 0.1 | Building |
Generic | standaloneCO2Target (ppm) | This tuners determines target value of CO2 for a standalone equip | ppm | 1000 | 0, 2000, 10 | Building |
Generic | standaloneCO2Threshold (ppm) | This tuner determines a point where a standalone equip starts controlling dampers to maintain space CO2 at target value in a zone | ppm | 800 | 0, 2000, 10 | Building |
Generic | standaloneCoolingPreconditioningRate | Tuner that determines the number of minutes per degree difference between desired and current temperature the standalone equip should start cooling to meet the needs of the zone by the occupied time | min/°F | 15 | 0, 60, 1.0 | Building |
Generic | standaloneCoolingDeadband | Range of temperatures where no cooling occurs for a standalone equip. E.g. if SP is 70F with coolingdeadband as 2 then range of temp shall be 68 ~ 72 | °F | 2 | 0.0, 10, 0.5 | Building |
Generic | standaloneHeatingPreconditioningRate (minute) | Tuner that determines the number of minutes per degree difference between desired and current temperature the standalone equip should start heating to meet the needs of the zone by the occupied time | min/°F | 15 | 0, 60, 1.0 | Building |
Generic | standaloneHeatingDeadband | Range of temperatures where no heating occurs for a standalone equip. E.g. if SP is 65F with heatingdeadband as 2 then range of temp shall be 63 ~ 67 | °F | 2 | 0.0, 10, 0.5 | Building |
Generic | standaloneStage1Hysteresis | Tuner that determines a condition at which humidifier / dehumidifier will turn off after being turned on to control inside humidity for a stage 1 standalone equip | % | 0.5 | 0.0, 10, 0.5 | Building |
Generic | standaloneVOCTarget (ppb) | This tuners determines target value of VOC in a zone for a standalone equip | ppb | 500 | 0, 1000, 10 | Building |
Generic | standaloneVOCThreshold (ppb) | This tuner determines a point where standalone equip starts controlling dampers to maintain space VOC at target value in a zone | ppb | 400 | 0, 1000, 10 | Building |
Generic | temperatureIntegralTime (m) | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system. | min | 30 | 1, 60, 1 | Building, Module |
Generic | temperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper opertions | °F | 2 | 0, 10, 1 | Building, Module |
Generic | unoccupiedZoneSetback | Determines how many degrees from the desired temperature the zone will be allowed to drift during unoccupied. Different zone may have different desired temperatures leading to different setbacks | °F | 5 | 0,20,1 | Building, Module |
Generic | userLimitSpread | Tuner that determines the range that the FM can select between the max/min user limits | NA | 4 | 1,20,1 | Building, System |
Generic | zoneTemperatureDeadLeeway | Tuner that determines how far beyond the building limits we allow temperatures before declaring a zone dead | °F | 10 | 1, 20, 1 | Building, System |
Generic | autoAwaySetback | Determines how many degrees from the desired temperature the zone will be allowed to drift during Autoaway. Different zone may have different desired temperatures leading to different setbacks | °F | 2 | 0, 20, 1 | Building, System, Module |
Generic | coolingDeadband | Range of temperatures where no cooling occurs. E.g. if SP is 70F with coolingdeadband as 2 then range between 68 ~ 72 no cooling will occur | °F | 2 | 0, 10.0, 0.1 | Building |
Generic | coolingDeadbandMultiplier | Tuner that manages value of coolingdeadband. This tuner multiplies with the value of coolingdeadband and manages value of coolingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building |
Generic | heatingDeadband | Range of temperatures where no heating occurs. E.g. if SP is 65F with heatingdeadband as 2 then range between 63 ~ 67 no heating will occur | °F | 2 | 0, 10.0, 0.1 | Building |
Generic | heatingDeadbandMultiplier | Tuner that manages value of heatingdeadband. This tuner multiplies with the value of heatingdeadband and manages value of heatingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building |
Generic | pidIntegralTime (m) | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system. | min | 30 | 5, 30, 5 | Building |
Generic | standaloneAnalogFanSpeedMultiplier | Tuner that determines how fast a fan can move based on heating or cooling load for as standalone devices or profiles | NA | 1 | 0.1, 3, 0.1 | Building, System, Module |
Generic | standaloneCoolingDeadbandMultiplier | Tuner that manages value of coolingdeadband for standalone devices/profiles . This tuner multiplies with the value of coolingdeadband and manages value of coolingdeadband | NA | 0.5 | 0, 5, 0.1 | Building, System, Module |
Generic | standaloneHeatingDeadbandMultiplier | Tuner that manages value of heatingdeadband for standalone devices/profiles. This tuner multiplies with the value of heatingdeadband and manages value of heatingdeadband | NA | 0.5 | 0, 5, 0.1 | Building, System, Module |
Generic | standaloneHumidityHysteresis | Tuner that determines a condition at which humidifier / dehumidifier will turn off after being turned on to control inside humidity | NA | 5 | 1, 100, 1 | Building, System, Module |
Generic | standaloneIntegralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1, 0.1 | Building, System, Module |
Generic | standaloneProportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1, 0.1 | Building, System, Module |
Generic | standaloneRelayActivationHysteresis | Tuner that determines a condition at which relay will turn off after being turned on to control based on load | NA | 10 | 0, 100, 1 | Building, System, Module |
Generic | standaloneTemperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper operations | NA | 2 | 0, 10, 1 | Building, System, Module |

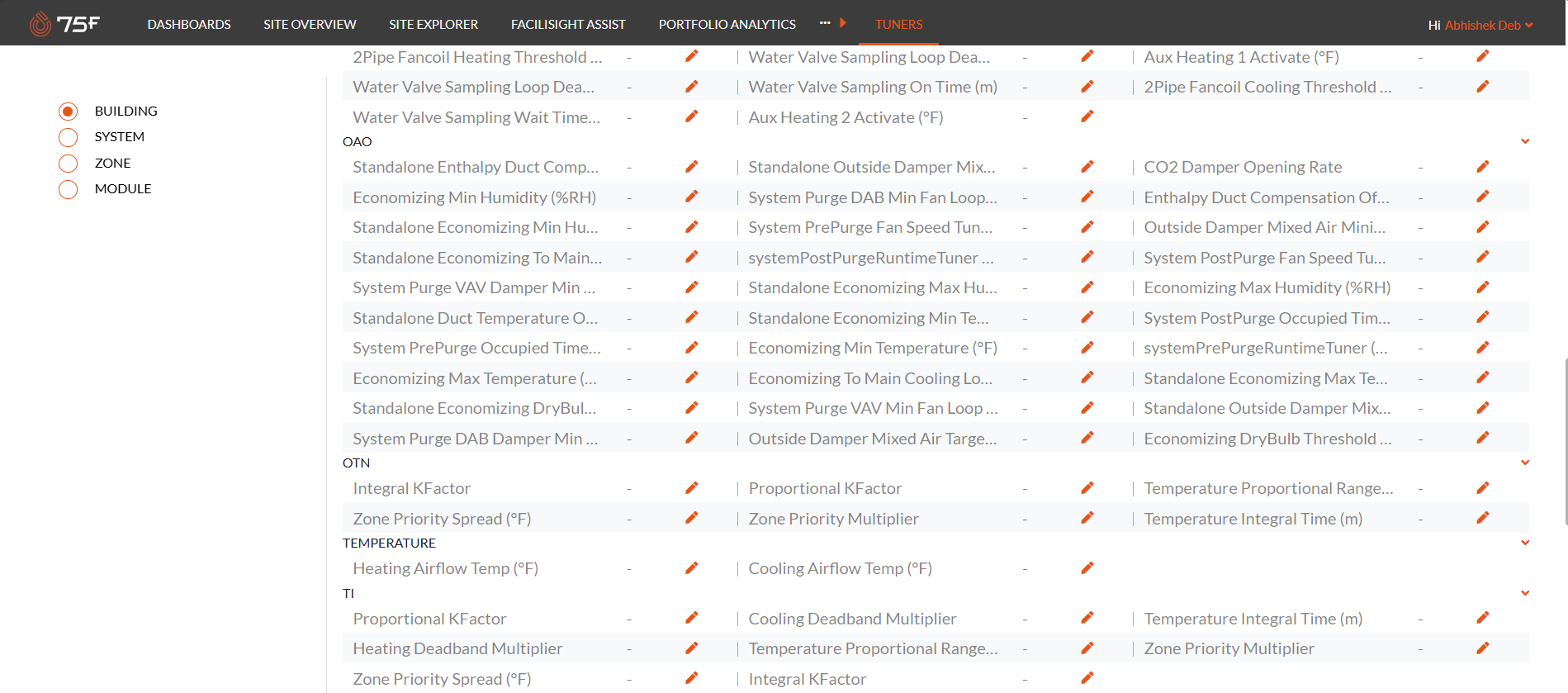

OAO | co2DamperOpeningRate | This tuner determines the rate at which outside air damper will open to manage CO2 level based on return air CO2 level | NA | 10 | 0, 200, 10 | Building, Zone |
OAO | economizingDryBulbThreshold | In case If inside enthalpy is lower than the outside enthalpy, free-cooling can still be done if outsideTemp is lower than economizingDryBulbThreshold tuner | °F | 55 | 0, 70, 0.5 | Building, Zone |
OAO | economizingMaxHumidity (%) | Once the outside humidity value goes beyond this value then the outside air damper will be completely closed even when free cooling is available | % | 100 | 0,100,1 | Building, Zone |
OAO | economizingMaxTemperature | Once the outside temperature value goes beyond this value then the outside air damper will be completely closed even when free cooling is available | °F | 70 | -50,120,1 | Building, Zone |
OAO | economizingMinHumidity (%) | Once the outside humidity value goes below this value then the outside air damper will be completely closed even when free cooling is available | % | 0 | 0,100,1 | Building, Zone |
OAO | economizingMinTemperature | Once the outside temperature value goes below this value then the outside air damper will be completely closed even when free cooling is available | °F | 0 | -50,80,1 | Building, Zone |
OAO | economizingToMainCoolingLoopMap | For a fully modulating RTU the economizingLoopOutput maps to the first economizingToMainCoolingLoopMap % of the cooling loop. When this is 30, 0 to 30% of systemCoolingLoopOp gets mapped to 0 to 100% of economizingLoop | °F | 30 | 0, 100, 1 | Building, Zone |
OAO | enthalpyDuctCompensationOffset | This tuner is used in OAO as an offset on outsideEnthalpy for determining whether free cooling can be used. If sum of outsideAirEnthalpy & this tuner value is less than insideAirEnthalpy then free cooling will be used | NA | 0 | 0, 10, 0.1 | Building, Zone |
OAO | outsideDamperMixedAirMinimum | This tuner describes the mixed air minimum temp below which the outside damper is completely closed even when free cooling is available. | °F | 44 | 30, 60, 1 | Building, Zone |
OAO | outsideDamperMixedAirTarget | This tuner describes the MAT target temp below which the outside damper starts closing | °F | 50 | 30, 60, 1 | Building, Zone |
OAO | systemPostPurgeFanSpeedTuner | Tuner that determines the at what speed the fan should be run during the purge | % | 50 | 0, 100, 1 | Building, Zone |
OAO | systemPostPurgeOccupiedTimeOffsetTuner | Tuner that determines the how long after the occupancy period the post purge will kick in | min | 20 | 0, 360, 1 | Building, Zone |
OAO | systemPostPurgeRuntimeTuner | Tuner that determines the how long the purge that occurs after the occupancy period will last | min | 120 | 0, 360, 1 | Building, Zone |
OAO | systemPrePurgeFanSpeedTuner | Tuner that determines the at what speed the fan should be run during the purge | min | 50 | 0, 100, 1 | Building, Zone |
OAO | systemPrePurgeOccupiedTimeOffsetTuner | Tuner that determines the how long before the occupancy period the pre purge will kick in | min | 180 | 0, 360, 1 | Building, Zone |
OAO | systemPrePurgeRuntimeTuner | Tuner that determines the how long the purge that occurs before the occupancy period will last | min | 120 | 0, 360, 1 | Building, Zone |
OAO | systemPurgeDabMinFanLoopOutput | Parameter that determines the minimum VVT-C fan loop output during the purge period | % | 50 | 0, 100, 1 | Building, Zone |
OAO | systemPurgeDabDamperMinOpenMultiplier | Parameter that determines the minimum VVT-C damper position during the purge and enhanced ventilation mode period | % | 1.5 | 0, 10, 0.1 | Building, Zone |
OAO | systemPurgeVavMinFanLoopOutput | Parameter that determines the minimum VAV fan loop output during the purge period | % | 50 | 0, 100, 1 | Building, Zone |
OAO | systemPurgeVavDamperMinOpenMultiplier | Parameter that determines the minimum VAV damper position during the purge and enhanced ventilation mode period | % | 1.5 | 0, 10, 0.1 | Building, Zone |
Temperature | adrCoolingDeadband | This tuner determines the automated demand response deadband to be used for a longer drift on the cooling side | °F | 3 | 0.1, 5, 0.1 | Building, Module |
Temperature | adrHeatingDeadband | This tuner determines the automated demand response deadband to be used for a longer drift on the heating side | °F | 3 | 0.1, 5, 0.1 | Building, Module |
Temperature | snCoolingAirflowTemp | Airflow temperature in deg F for SmarNode, above which we consider unit is in cooling mode for fail-safe mode | °F | 60 | 35, 70, 1 | Building, Module |
Temperature | snHeatingAirflowTemp | Airflow temperature in deg F for SmarNode, above which we consider unit is in heating mode for fail-safe mode | °F | 105 | 80, 150, 1 | Building, Module |
TI | coolingDeadband | Range of temperatures where no cooling occurs. E.g. if SP is 70F with coolingdeadband as 2 then range between 68 ~ 72 no cooling will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
TI | coolingDeadbandMultiplier | Tuner that manages value of coolingdeadband. This tuner multiplies with the value of coolingdeadband and manages value of coolingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
TI | heatingDeadband | Range of temperatures where no heating occurs. E.g. if SP is 65F with heatingdeadband as 2 then range between 63 ~ 67 no heating will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
TI | heatingDeadbandMultiplier | Tuner that manages value of heatingdeadband. This tuner multiplies with the value of heatingdeadband and manages value of heatingdeadband | NA | 0.5 | 0, 5.0, 0.1 | Building, Module |
TI | integralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
TI | proportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
TI | temperatureIntegralTime (m) | This tuner point defines the amount of time PI loop in the system integrates the error over a period until error value reaches to zero. It limits the speed of response and affects stability of the system. | min | 30 | 1, 60, 1 | Building, Module |
TI | temperatureProportionalRange | This tuner point defines the band of temperature, or range of temperature, over which the output of the controller is proportional. Example controlling the damper operations | NA | 2 | 0, 10, 1 | Building, Module |
TI | zonePriorityMultiplier | Each zone has a priority and this tuner manages value of zonepriority in a zone. This tuner multiplies with the value of zonepriority | NA | 1.3 | 0, 100, 1.3 | Building, Module |
TI | zonePrioritySpread | This is a range of zone priority where occupant in a zone that is further away from the desired are exponentially more likely to feel uncomfortable. This prevents a zone with very large temp drifts from driving system operation | NA | 2 | 0, 10, 1 | Building, System, Module |
Timer | autoAwayTime (m) | During Occupied period of the zone (Not during preconditioning period), If an Occupant is not detected for this tuner duration, the zone should enter 'Auto Away' mode if occupancy is enabled | min/°F | 60 | 40, 300, 1 | Building, Module |
Timer | cmResetCommandTimer (m) | This tuner determines the time duration after which CM needs to be reboot | min | 90 | 0, 300, 1 | Building, System |
Timer | forcedOccupiedTime (m) | During unoccupied time in case there is occupancy detected or user interacts with or edits user intent points then system enters in occupied mode for this tuner period only | min | 120 | 30, 300, 1 | Building, Module |
Timer | zoneDeadTime (m) | This tuner determines the duration after which if abnormal temp value is received or current temp values are not updating and continues to receive same temp, then zone will be marked as dead | min | 15 | 1, 300, 1 | Building, Module |
HyperStat | auxHeating1Activate (°F) | For a 2-pipe FCU, this tuner determines at what temperature, less than the heating desired temperature, should the Auxillary heating stage1 trigger. | °F | 3 | 0, 10, 1 | System, Zone, Module |
HyperStat | auxHeating2Activate (°F) | For a 2-pipe FCU, this tuner determines at what temperature, less than the heating desired temperature, should the Auxillary heating stage2 trigger. | °F | 4 | 0, 10, 1 | System, Zone, Module |
HyperStat | 2PipeFancoilHeatingThreshold | For a 2 pipe FCU, this tuner determines if the central plant is providing hot water when compared to supply water temp sensor. If Th2 (Supply water sensor) is more than 2pipeFancoilHeatingThreshold (85) then the central plant is providing hot water | °F | 85 | 80, 150, 1 | System, Zone, Module |
HyperStat | 2PipeFancoilCoolingThreshold (°F) | For a 2 pipe FCU, this tuner determines if the central plant is providing cold water when compared to supply water temp sensor. If Th2 (supply water sensor) is less than 2pipeFancoilCoolingThreshold (65) then the central plant is providing cold water | °F | 65 | 35, 70, 1 | System, Zone, Module |
HyperStat | waterValveSamplingOnTime (m) | For a 2-pipe FCU, when the water temperature is above or below the thresholds, this tuner defines a time interval for which the water valve needs to be opened post the waterValveSamplingWaitTime (m), before starting to sample for thresholds. | min | 2 | 0, 150, 1 | System, Zone, Module |
HyperStat | waterValveSamplingWaitTime (m) | For a 2-pipe FCU, when the water temperature is above or below the thresholds, this tuner defines a time interval. and if the water valve is not opened for more than this time interval, the water valve should be opened for 100% before starting to sample for thresholds | min | 58 | 0, 150, 1 | System, Zone, Module |
HyperStat | waterValveSamplingDuringLoopDeadbandOnTime (m) | For a 2-pipe FCU, when the water temperature is within the thresholds, this tuner defines a time interval for which the water valve needs to be opened post the waterValveSamplingDuringLoopDeadbandWaitTime(m), before starting to sample for thresholds. | min | 2 | 0, 150, 1 | System, Zone, Module |
HyperStat | waterValveSamplingDuringLoopDeadbandWaitTime (m) | For a 2-pipe FCU, when the water temperature is within the thresholds, this tuner defines a time interval. and if the water valve is not opened for more than this time interval, the water valve should be opened for 100% before starting to sample for thresholds | min | 5 | 0, 150, 1 | System, Zone, Module |
OTN | coolingDeadband | Range of temperatures where no cooling occurs. E.g. if SP is 70F with coolingdeadband as 2 then range between 68 ~ 72 no cooling will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
OTN | heatingDeadband | Range of temperatures where no heating occurs. E.g. if SP is 65F with heatingdeadband as 2 then range between 63 ~ 67 no heating will occur | °F | 2 | 0, 10.0, 0.1 | Building, Module |
OTN | integralKFactor | Condition with which the controller output is proportional to the amount of time the error is present | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
OTN | proportionalKFactor | Tuner that produces an output action that is proportional to the deviation between the set point and the measured process value for a PI Loop | NA | 0.5 | 0.1, 1.0, 0.1 | Building, System, Module |
OTN | zonePrioritySpread | This is a range of zone priority where occupant in a zone that is further away from the desired are exponentially more likely to feel uncomfortable. This prevents a zone with very large temp drifts from driving system operation | NA | 2 | 0, 10, 1 | Building, System, Module |
Comments
0 comments
Please sign in to leave a comment.
