Scheduling Standalone Stats

| Overview

The HyperStat and HyperStat Split now come with Real-Time Clock (RTC) support and scheduling capability in a standalone operation. The stats now operate with time-bound setpoints, fans, and operating modes.

The process involves the following steps:

• Setting up Real Time Clock (RTC) on Hyperstat / HyperLite (HyperStat Split).
• Creating Scheduled Events for Weekdays.
• Creating Scheduled Events for Weekends.

| Setting Up Real Time Clock (RTC)

To set up Real Time Clock (RTC)

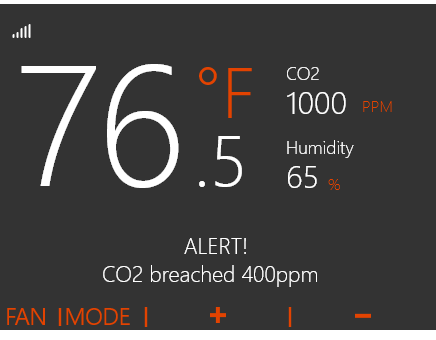

From the home screen of the HyperStat /HyperLite HyperLite (HyperStat Split),

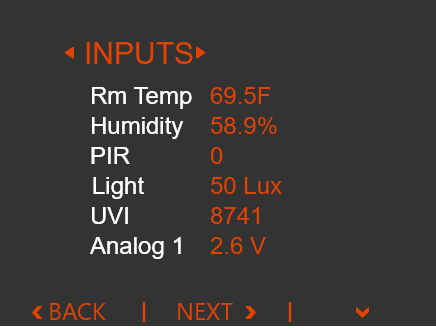

• Press the + & - buttons together to navigate to the inputs screen.

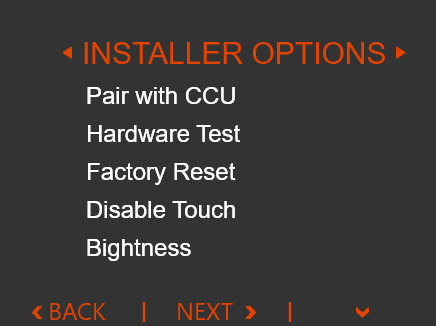

• Press the next button to navigate to the Installer options screen.

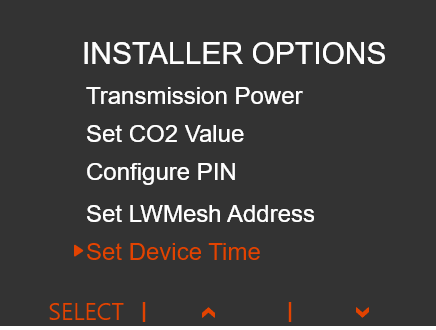

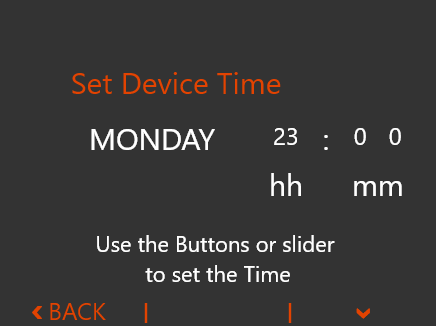

• Press the down arrow button to navigate to the Set Device Time option.

• Press the select button to access the Set Device Time option.

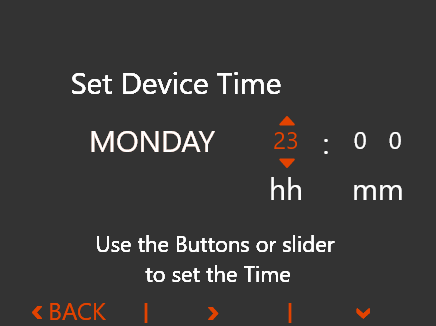

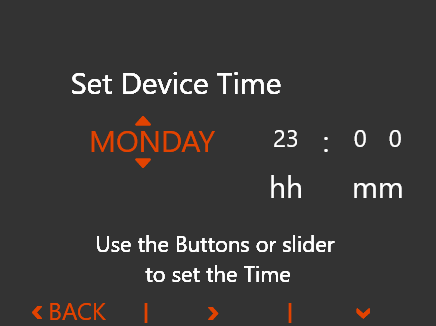

• Press the down arrow button to access the Day of the week.

• Use the down arrow button, or the slider to set the day of the week.

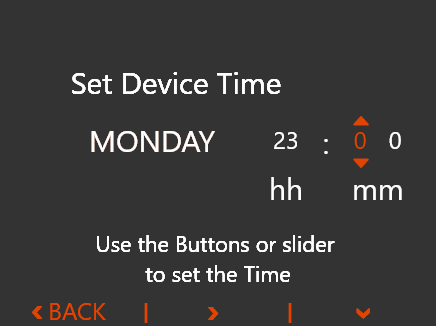

• Press the right arrow button to access the hour and digits of minute option as below

• Use the down arrow button, or the slider to set the hour and minutes for the device.

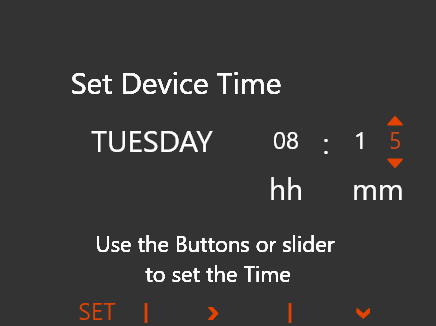

• Press the SET button to confirm the scheduled event.

| Setting Up Schedule Events

From the installer option screen

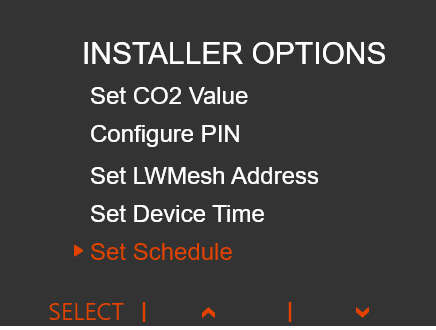

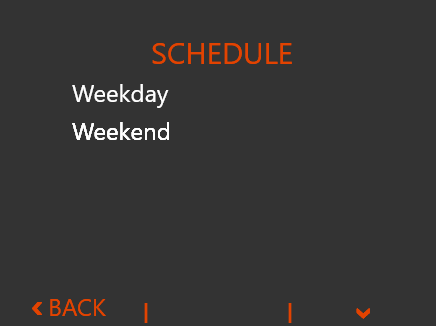

• Press the down arrow button to navigate to the Set Schedule option.

• Press the select button to access the Set Schedule option.

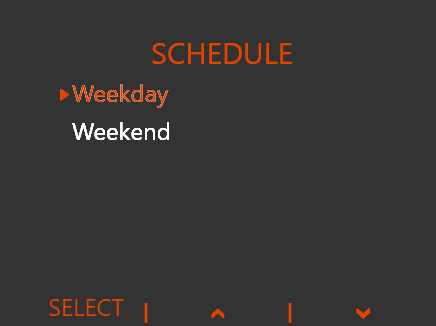

• Press the down arrow button to navigate to the Weekday Scheduling option.

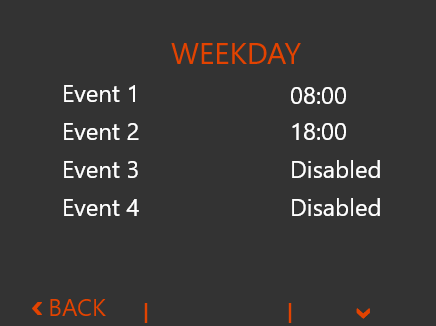

• Press the select button to access the weekday scheduled events.

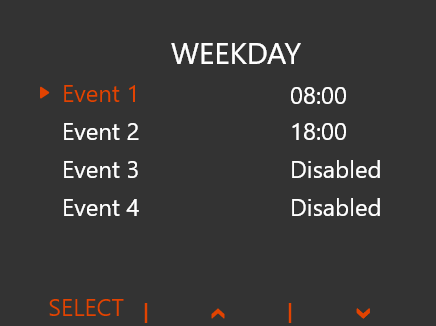

• Press the down arrow button to access any schedule events.

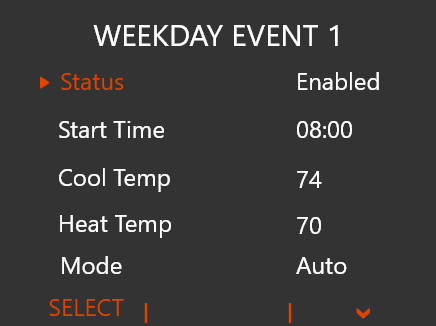

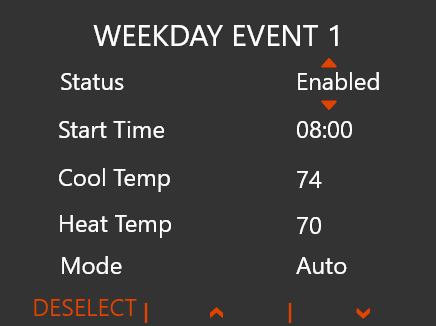

• Press the select button to configure the schedule event.

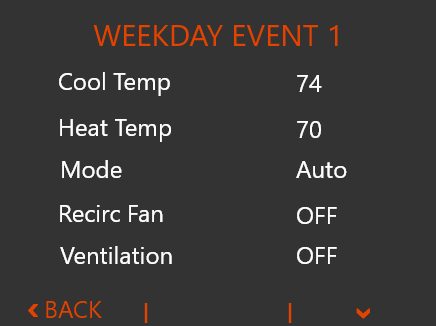

• Press the down arrow button to access configurable options.

• Press the select button to configure values for the configurable options.

• Use the down/ Up arrow button, or the slider to set the values.
• Press the Deselect button to confirm the value configured.

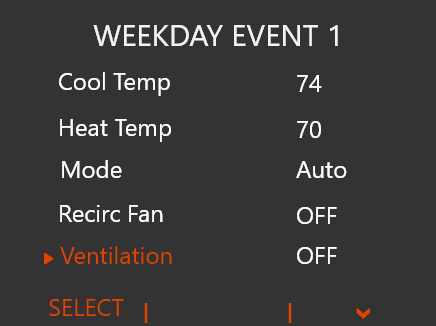

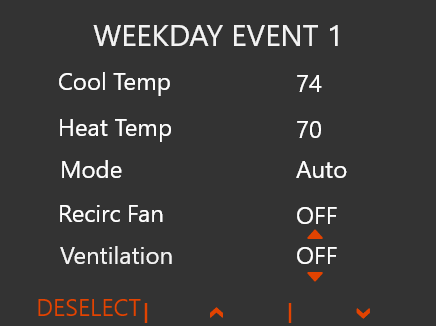

• Repeat the steps to set the value for other configurable options, as below.

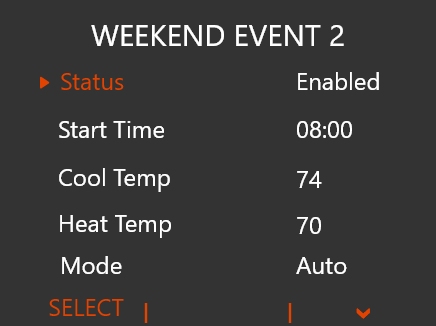

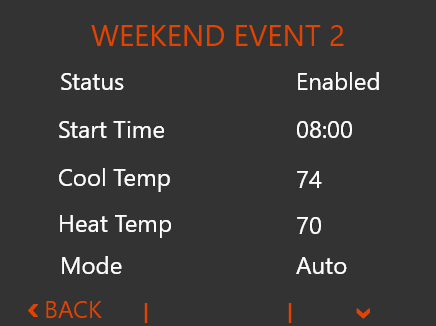

• As shown below, repeat the steps to set up the weekend event schedule.

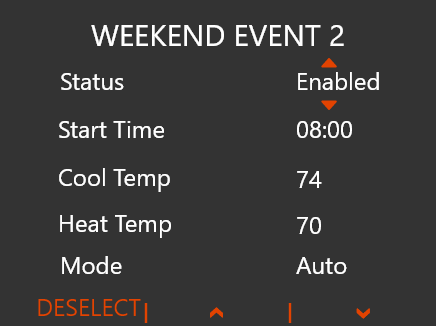

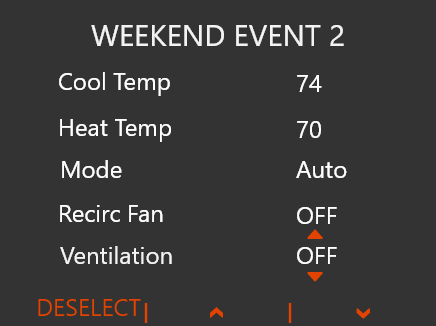

• Repeat steps to set the value for other options under a weekend schedule event, as below.

Note: An event created continues to exist, as long as no other events follow the first event. It applies to both weekday and weekend events.
