| Important Enhancements & Fixes

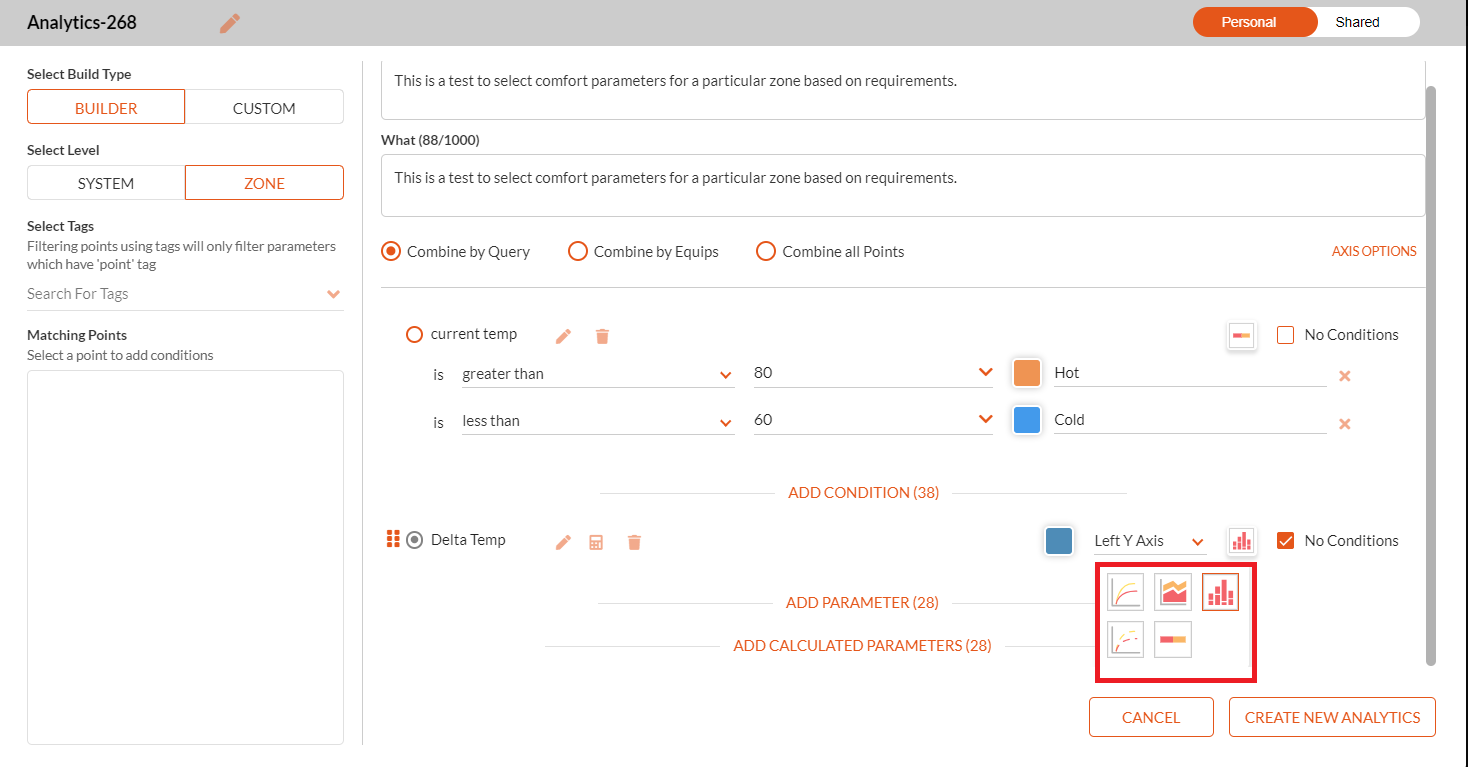

Analytics- Common Framework with Blockly

The Analytics feature includes the existing custom widgets capability which have been enhanced with a common framework featuring calculated parameters with Blockly support for parameter conditions. Also, additional enhancements have been introduced which include dual Y-axis configuration, Y-axis scaling, with minimum/maximum configuration values, enabling users to derive deeper insights and make more informed decisions.

Screenshot 2024-09-19 133723-1 (1)1.png

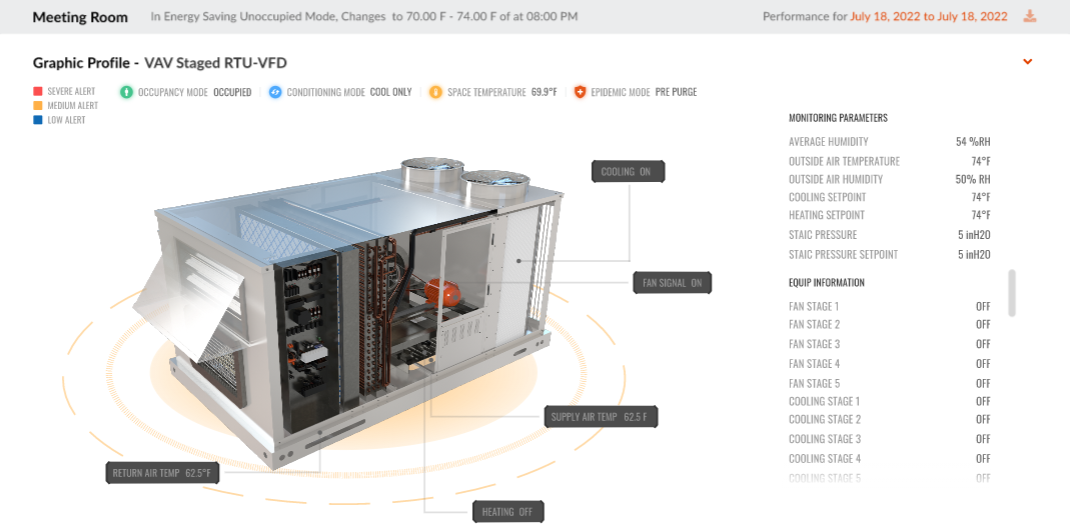

Alerts on Graphics

This feature enhances alert visibility by introducing color-coded Alert Rings to indicate the severity of alerts—Severe, Moderate, and Low, enabling quick identification of urgent issues. Additionally, active equipment alerts will be displayed in an accordion format on each System and Zone Page, allowing users to easily view all current alerts at a glance.

VAV Staged RTU-VFD.png

| New and Updated Docs

Analytics - Common Framework with Blockly

Equip Graphics for System Profile

VAV w/ Reheat (Parallel Fan)​

VAV w/ Reheat (No Fan)
VAV w/ Reheat (Series Fan)
VVT-C Terminal Profile
SmartNode- Active Chilled Beam+ Dedicated Outside Air System (DOAS)
HyperStat Split- CPU & Economizer Profile
HyperStat HPU (Heat Pump Unit)
HyperStat 2 Pipe Fan Coil Unit (2PFCU)
Airflow CFM & Reheat Loops on SmartNode
External API Requests From Site Sequencer
CCU VAV Advanced Hybrid AHU v2- Sequence of Operation
CCU Outside Air Optimizer (OAO) System Profile - Sequence of Operation
SmartNode Active Chilled Beams - Sequence of Operations

VAV Advanced Hybrid AHU v2 with Advanced AHU Controls

| Software Release Versions

Component
Latest Version
CCU 2.13.9 and above
ClimaVision Internal Portal 2.394.0 and above
ClimaVision Portal 2.386.0 and above
ClimaVision App 2.0.78 and above
Home App 4.1.22 and above



| Firmware/Hardware Feature Availability Versions

Firmware/ Hardware
Feature Availability Versions
Control Mote 3.54 and above
SmartNode 5.36 and above
HyperStat V2 101.1 and above
Connect Module 1.5 and above
