| How it Works
The ClimaVision HyperStat Split Conventional Package Unit & Economizer profile is a standalone profile, that provides heating, cooling, and Economizer equipment controls for conditioning.
HyperStat split is a combination of HyperLite and the Connect Module.
The HyperLite module is mounted inside the room providing the room Temperature, Humidity & IAQ sensing.
The Connect module is mounted on the RTU or FCU, to provide the necessary conditioning based on the temperature and IAQ sensed.
For more information on the HyperStat Split device and its mounting refer to HyperStat Split Overview & Installation.
It provides the flexibility to choose between fully modulating and staged equipment control. Possible equipment configurations include:
- 3 Stages of cooling equipment control
- 3 Stages of heating equipment control
- 3 Stages of fan speed control
- equipment control
- Fan Enabled and Occupied Enable control
- Humidifier and Dehumidifier control
- 2 Stages of Exhaust fan control
- Modulating Cooling, Heating, OAO Damper & Linear and Staged Fans for cooling and heating as Analog Outs
- Sensor Bus Inputs to accommodate up to 4 types of daisy-chained sensors
- 8 Digital/Analog/Thermistor-based Universal Inputs to accommodate varied forms of input as provided below in the Configuration parameters section table.
| Wiring

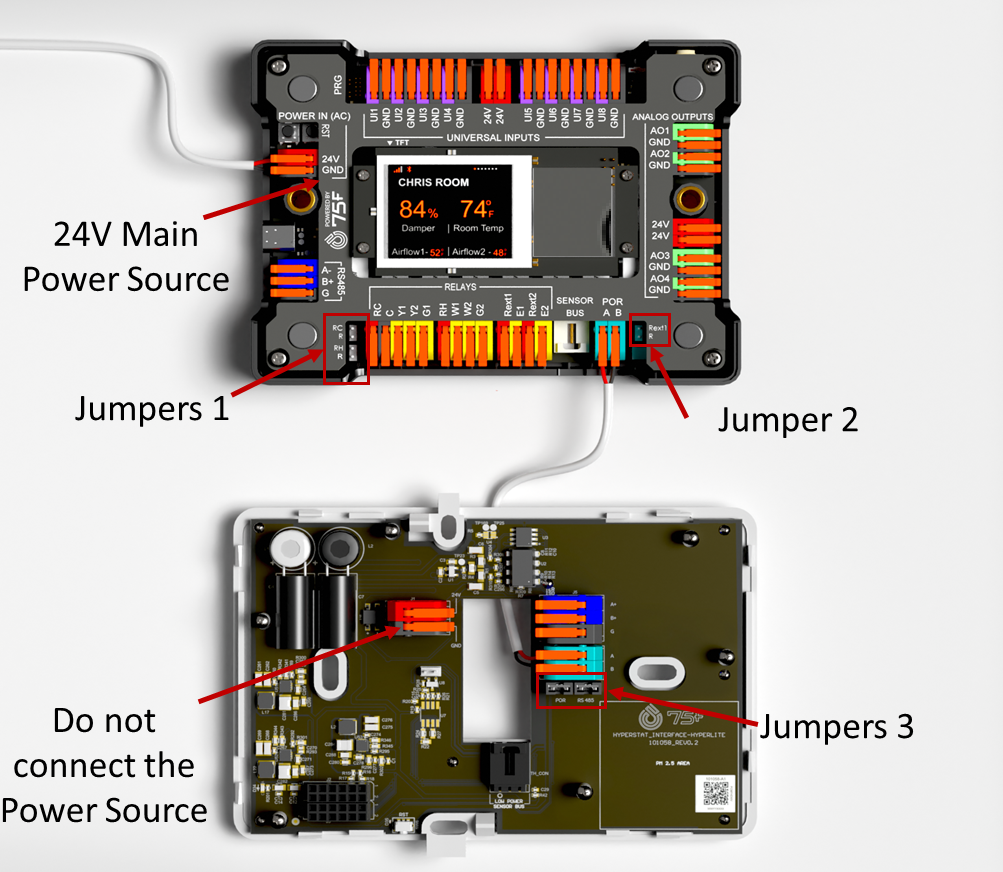

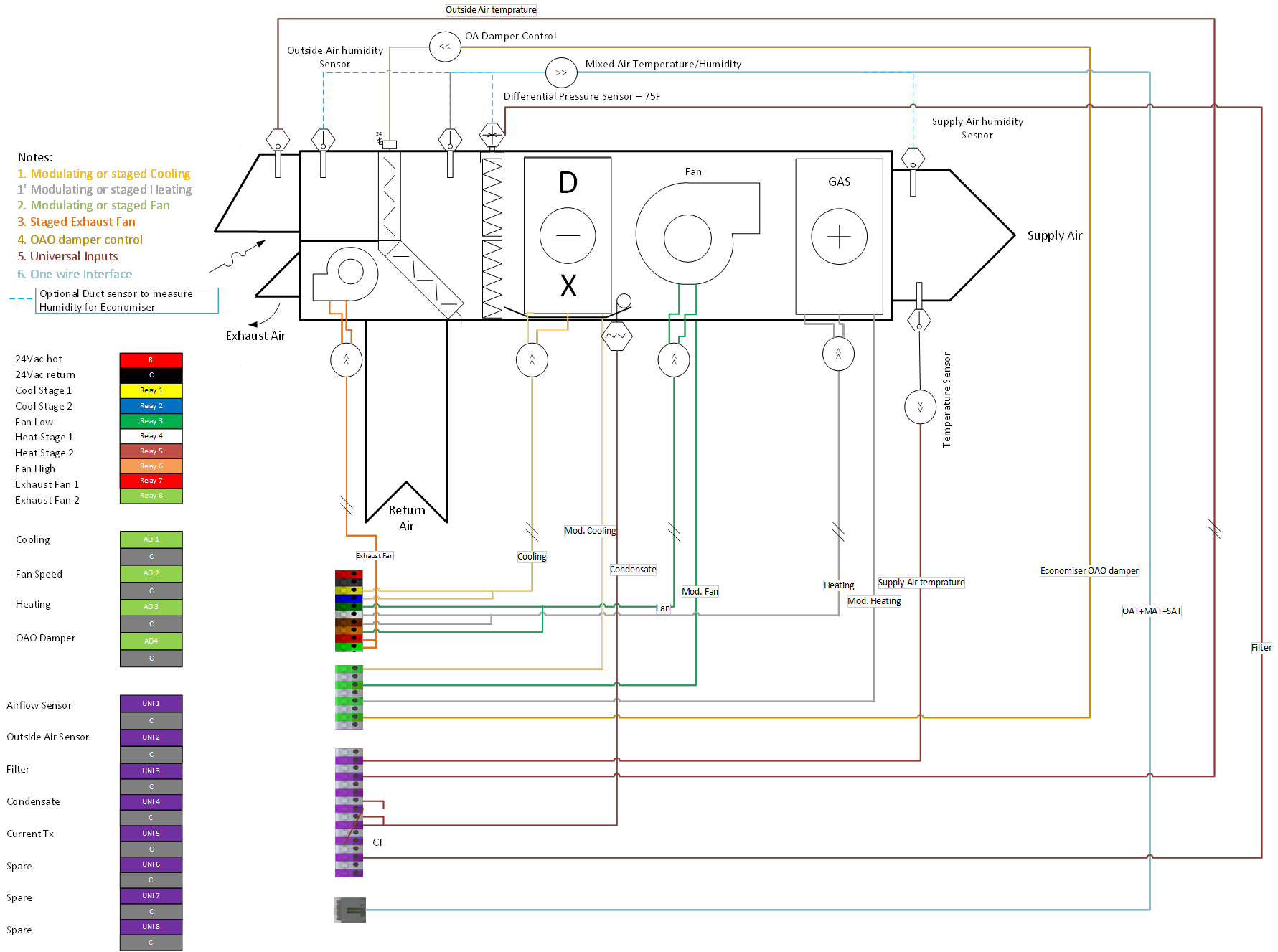

The following is a sample wiring illustrated for a HyperStat Split.
The wiring for the communication and power to the HyperLite is connected to POR A, B of Connect Module to Normal A & B of Lite.
The Table below provides more information on the wiring of the HyperStat Split.
| Supported wire length |
200 ft. |
| Supported cable type | The 18/2 Thermostat wire, does not support installations of multiple HS Splits on 18/4,18/6, or any higher core count wires |
| Wiring to be laid | In separate Conduits and not along with power-carrying wires. Plastic conduits are preferred. |
| Precaution | connect POR A of the connect module to A of the Lite, and POR B of the connect module to B of the Lite, and not otherwise. |
| Power Source | The power source must be 24V AC only. |
The Connect Module further features an additional OWI interface to connect 75F OWI-compatible sensors.
For more information on the jumper refer to HyperStat Split Overview & Installation.
| Pairing
The HyperLite module of the HyperStat Split gets paired to the CCU. To pair a HyperLite module,

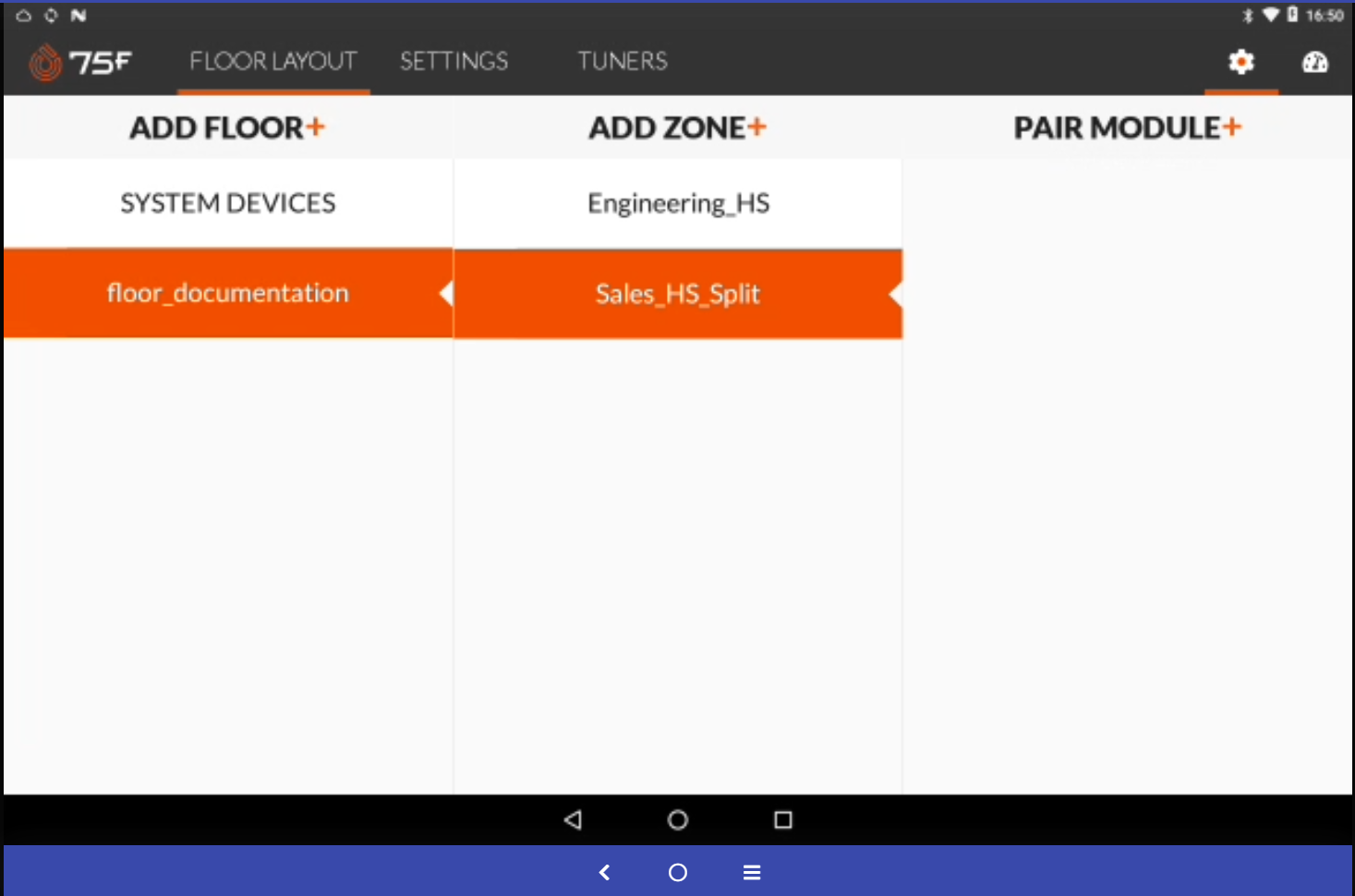

From the CCU screen,
- Select the Device type as HS Split.
- Select the CPU and Economizer module
Pair the device with the CCU as per the given instructions
Setting HyperLite to Pairing Mode
From the Home screen.
- Press the '+' and '-' navigation buttons together on the home screen.

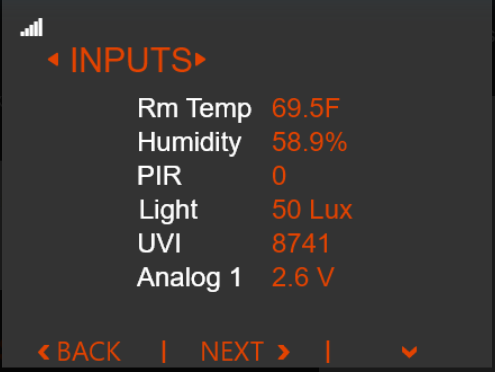

The Inputs screen displays.
- Press the next navigation button to navigate to the installer option screen
- Press the down arrow
to navigate to the Pair with CCU option.
- Press the select button to set the Hyperlite to pairing mode.

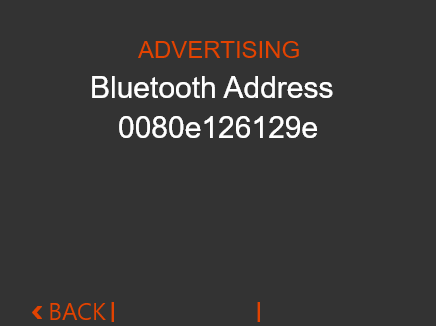

The advertising screen broadcasts the Bluetooth address of the HyperLite
- Click Pair
- Click the Bluetooth address of the HyperLite

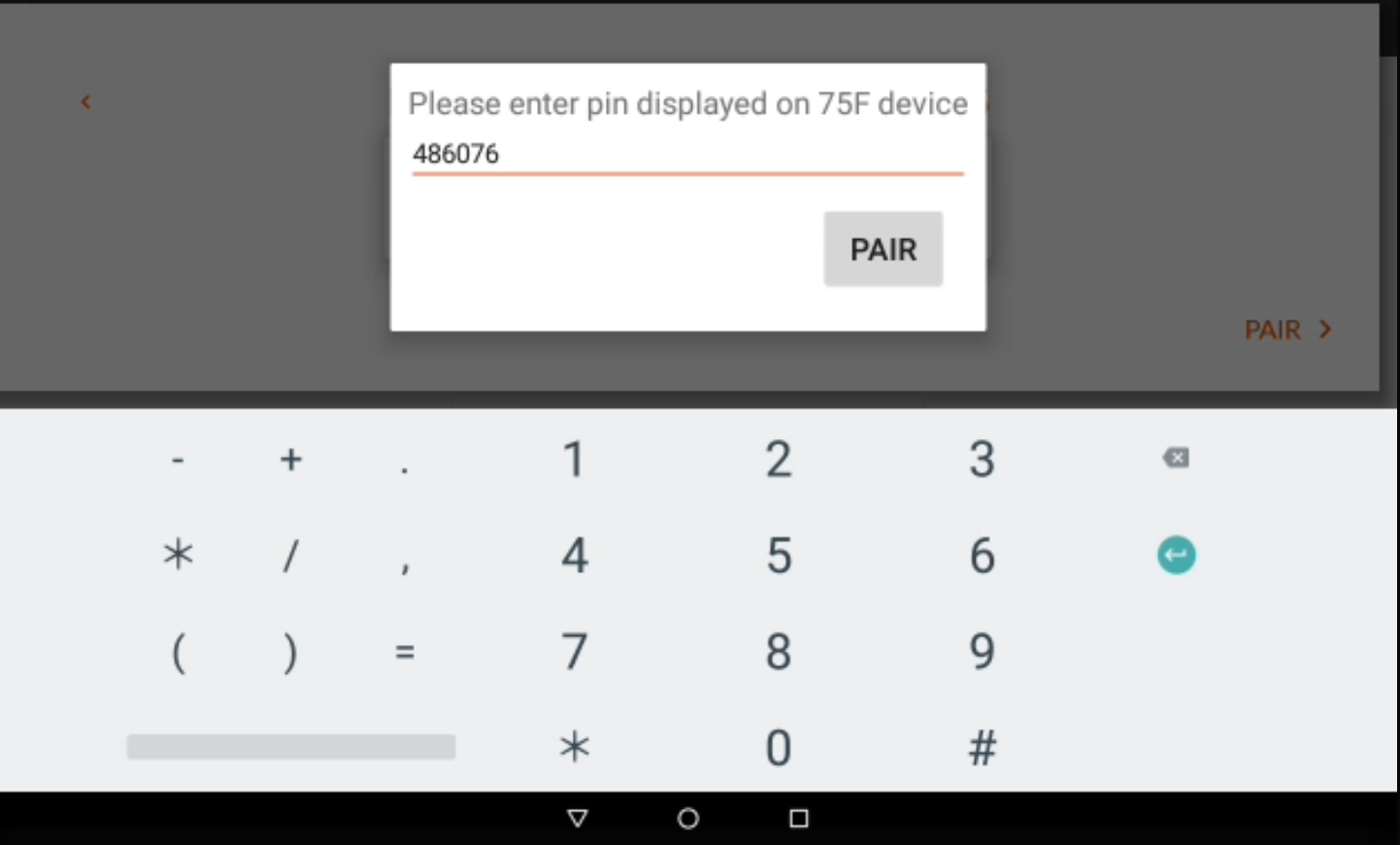

The window to enter the pairing pin from the device displays
- Locate the pin generated from the HyperLite screen.
- Enter the PIN as displayed on the device.
- Click Pair to confirm
The pairing would take a few minutes and the configuration screen for the profile displays
| Configuration

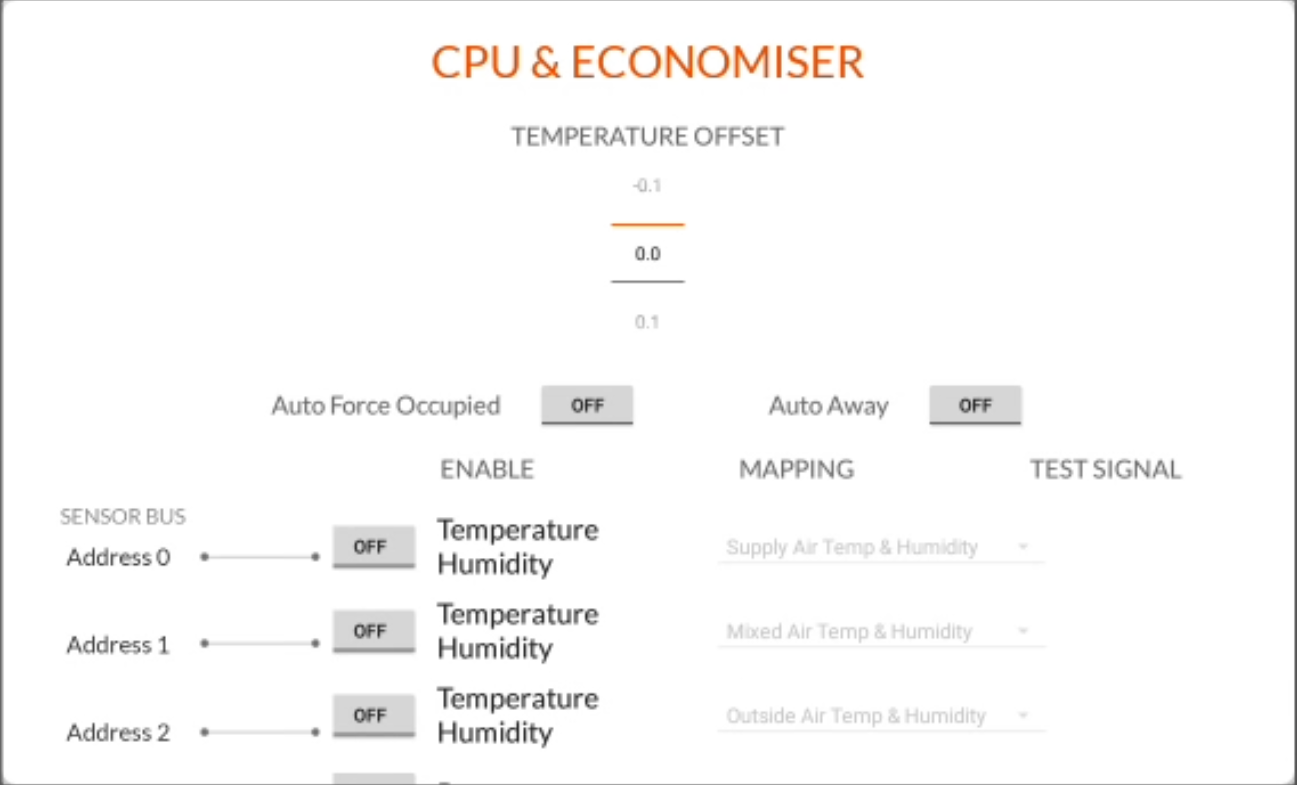

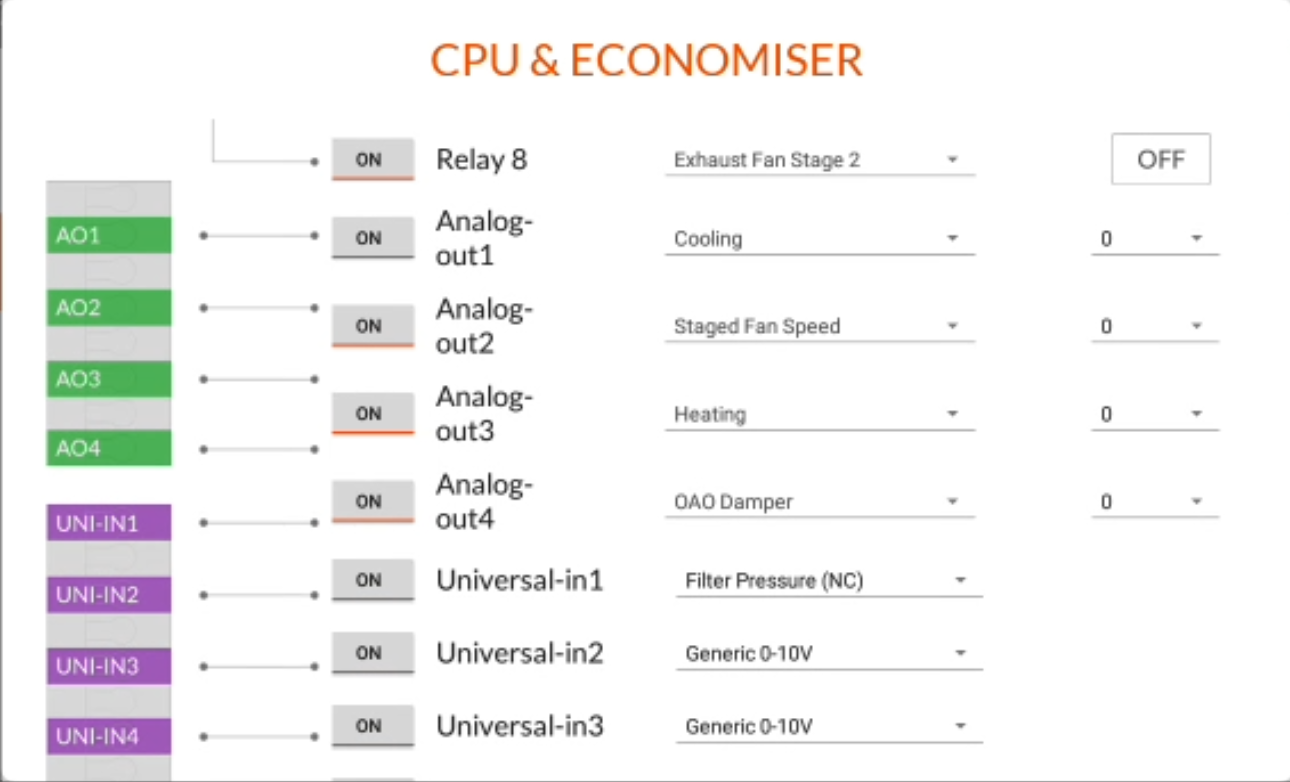

Once the pairing is done, the configuration screen displays as below with the parameters that can be configured.
| Configuration Parameters
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Temperature Offset |
To set the offset temperature |
0 (°F) |
Range from -10 to + 10 in .1 increments |
|
Enable Auto Force Occupied |
To enable Auto force occupied Note: Auto Forced occupied/forced occupied and Auto-Away cannot work together. |
Disabled
|
Enable |
|
Enable Auto-Away |
To enable auto-away Note: Auto Forced occupied/forced occupied and Auto Away cannot work together. |
Disabled
|
NA |
|
Sensor Bus Address Setting Configuration, based on sensors Used |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Address 0 |
When a sensor is used for Supply Air Temperature and Humidity sensing |
Disabled |
Supply Air Temp & Humidity |
|
Address 1 |
When a sensor is used for Mixed Air Temperature and Humidity sensing |
Disabled |
Mixed Air Temp & Humidity |
|
Address 2 |
When a sensor is used for Outside Air Temperature and Humidity sensing |
Disabled |
Outside Air Temp & Humidity |
|
Address 3 |
When a sensor is used for Duct Static Pressure sensing |
Disabled |
Duct Static Pressure |
|
Relay Based Controls |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Relay 1 |
To enable staged conditioning |
Cooling Stage 1 |
Cooling Stage 1 Cooling Stage 2 Cooling Stage 3 Heating Stage 1 Heating Stage 2 Heating Stage 3 Fan Low Speed Fan Medium Speed Fan High Speed Fan Enabled Occupied Enabled Humidifier Dehumidifier Exhaust Fan Stage 1 Exhaust Fan Stage 2 |
|
Relay 2 |
To enable staged conditioning |
Cooling Stage 2 |
|
|
Relay 3 |
To enable staged conditioning |
Fan low speed |
|
|
Relay 4 |
To enable staged conditioning |
Heating Stage 1 |
|
|
Relay 5 |
To enable staged conditioning |
Heating Stage 2 |
|
|
Relay 6 |
To enable staged conditioning |
Fan High Speed |
|
|
Relay 7 |
To enable staged equipment control |
Exhaust Fan Stage 1 |
|
|
Relay 8 |
To enable staged conditioning |
Exhaust Fan Stage 2 |
|
| Analog-Based Modulating Controls | |||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Analog out 1 |
To enable modulating Cooling/Heating conditioning or OAO Damper control or Linear/ Staged Fan control for cooling and heating conditioning |
Cooling |
Cooling Linear Fan Speed Heating OAO Damper Staged Fan Speed |
|
Analog out 2 |
To enable modulating Cooling/Heating conditioning or OAO Damper control or Linear/ Staged Fan control for cooling and heating conditioning |
Staged Fan speed |
|
|
Analog out 3 |
To enable modulating Cooling/Heating conditioning or OAO Damper control or Linear/ Staged Fan control for cooling and heating conditioning |
Heating |
|
|
Analog out 4 |
To enable modulating Cooling/Heating conditioning or OAO Damper control or Linear/ Staged Fan control for cooling and heating conditioning |
OAO Damper |
|
|
Thermistor/ Digital Based Universal Inputs |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Universal-in1 |
To enable Digital/Analog/Thermistor based input sensing |
Supply Air Temperature |
Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) Current TX (0-100Amps) Current TX (0-150Amps) Supply Air Temperature Mixed Air Temperature Outside Air Temperature Filter Pressure (NC) Filter Pressure (NO) Condensate (NC) Condensate (NO) Duct Static Pressure (0-1") Duct Static Pressure (0-2") Generic 0-10V Generic 1-100KOhm |
|
Universal-in2 |
To enable Digital/Analog/Thermistor based input sensing |
Mixed Air Temperature |
|
|
Universal-in3 |
To enable Digital/Analog/Thermistor based input sensing |
Outside Air Temperature |
|
|
Universal-in4 |
To enable Digital/Analog/Thermistor based input sensing |
Duct Static Pressure (0-2") |
|
|
Universal-in5 |
To enable Digital/Analog/Thermistor based input sensing |
Current TX (0-50Amps) |
|
|
Universal-in6 |
To enable Digital/Analog/Thermistor based input sensing |
Condensate (NO) |
|
|
Universal-in7 |
To enable Digital/Analog/Thermistor based input sensing |
Filter Pressure (NO) |
|
|
Universal-in8 |
To enable Digital/Analog/Thermistor based input sensing |
Generic 1-100KOhm |
|
|
IAQ Threshold & Target Configuration |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
CO2 Threshold |
To set the CO2 Threshold value to control the OAO damper opening. |
4000 ppm |
Disable, and range from 0 ppm to 4000 ppm in 10 ppm increments |
|
CO2 Target |
To set the CO2 Target value for the CCU level alerts |
4000 ppm |
Disable, and range from 0 ppm to 4000 ppm in 10 ppm increments. |
|
VOC Threshold |
To set the VOC threshold value for the device level alerts |
4000 ppb |
Disable, and range from 0 ppb to 10000 ppb in 100 ppb increments. |
|
VOC Target |
To set the VOC target value for the CCU level alerts |
5000 ppb |
Disable, and range from 0 ppb to 10000 ppb in 100 ppb increments. |
|
PM 2.5 Target |
To set the PM 2.5 threshold value for the device level alerts |
25 ug/m³ |
Disable, and range from 0 ug/m³ to 1000 ug/m³ in 5 ug/m³ increments. |
- Configure the required parameters as below.
Based on the parameters configured for the Relays and Analog Outs additional parameters are made available for the configuring as below
For default parameters configured for under relays and Analog outs as below
The following Additional parameters are made available for Configuration
|
FanOuts for Staged Cooling and Heating |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
|
Fan-out During Cooling Stage 1 |
To set the analog out values for Fan Speed for stage 1 cooling |
7V |
Range from 0V to 10V in 1V increments |
|
Fan-out During Cooling Stage 2 |
To set the analog out values for Fan Speed for stage 2 cooling |
10V |
Range from 0V to 10V in 1V increments |
|
Fan-out During Heating Stage 1 |
To set the analog out values for Fan Speed for stage 1 heating |
7V |
Range from 0V to 10V in 1V increments |
|
Fan-out During Heating Stage 2 |
To set the analog out values for Fan Speed for stage 2 heating |
10V |
Range from 0V to 10V in 1V increments |
|
Fan-out During Heating Stage 3 |
To set the analog out values for Fan Speed for stage 3 heating |
10V |
Range from 0V to 10V in 1V increments |
Test Signal
This is used for troubleshooting and testing the equipment if the configuration and the field setup are in sync, and the device is communicating properly with the controlled equipment. Also at any point, you can override the value of the output the algorithm decides.
We can use the test signal for relays to turn them on or for analog out to ramp up and see if the equipment works according to commands from the device.
Test Signal Time Out
once enabled it will be active for an hour if the screen is not changed, after an hour of no interaction on the screen. zone screen displays and the test signal will be OFF.
If the screen changes from the test signal configuration screen it will be timed out in one minute (time for the algorithm to run next).
Note: The test signal for modulating output is in deci volts ranging from 0.0dV to 100.0dV.
| Operation of Staged Fan Speed Control at Analog out2
The above options will appear based on the number of heating and cooling stages associated with the relays and if there are no heating/cooling stages then the staged fan cannot be associated with the AOs.
This means the user can now decide at exactly what speed the VFD, or analog fan should function when the cooling or heating stages are triggered, which effectively takes care of any kind of disproportionate operation between the cooling/heating stages and the analog fan.
This means now the analog fan operates at least at 75-80% of its maximum speed when the cooling/heating stage 1 is triggered.
Also, when the no cooling or heating stages are triggered due to zero loop output, we can have a small amount of fan loop output, that could provide a small percentage of fan speed, managed by altering the Analog Fan speed multiplier, and tuner parameter.
|
AnalogOuts for Min, Max Cooling, and Heating |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
| Analog Out 1 at Min Cooling | To set the analog out values minimum cooling | 2V | Range from 0V to 10V in 1V increments |
| Analog Out 1 at Max Cooling | To set the analog out values maximum cooling | 10V | Range from 0V to 10V in 1V increments |
| Analog Out 3 at Min Heating | To set the analog out values minimum heating | 2V | Range from 0V to 10V in 1V increments |
| Analog Out 3 at Max Heating | To set the analog out values maximum cooling | 10V | Range from 0V to 10V in 1V increments |
|
AnalogOuts for Min, Max OAO Damper Positions |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
| Analog Out 4 at Min OAO Damper | To set the analog out values for minimum OAO Damper position | 2V | Range from 0V to 10V in 1V increments |
| Analog Out 4 at Max OAO Damper | To set the analog out values for maximum OAO Damper position | 10V | Range from 0V to 10V in 1V increments |
| Analog Out for Staged Fan Speeds | |||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
| Analog Out 2 at FanLow | To set the analog out for Fan low stage | 70% | Range from 0% to 100% in 1% increments |
| Analog Out 2 at FanMedium | To set the analog out for the Fan medium stage | 80% | Range from 0% to 100% in 1% increments |
| Analog Out 2 at FanHigh | To set the analog out for the Fan high stage | 100% | Range from 0% to 100% in 1% increments |
| Outside Damper Open %, Exhaust fan Stage Thresholds, Hysteresis & Co2 Damper Opening Rate | |||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
| Outside Damper Min Open (%) | To set a percentage for the Outside Damper minimum open position | 0% | Range from 0% to 100% in 10% increments |
| Exhaust Fan Stage 1 Threshold (%) | To set a percentage for the Exhaust Fan Stage 1 Threshold | 50% | Range from 0% to 100% in 10% increments |
| Exhaust Fan Stage 2 Threshold (%) | To set a percentage for the Exhaust Fan Stage 2 Threshold | 90% | Range from 0% to 100% in 10% increments |
| Exhaust Fan Hysteresis | To set a percentage for the Exhaust Fan stages Relay deactivation | 5% | Range from 0% to 25% in 1% increments |
Additionally, when the Linear Speed is set for the Analog Out 2 during the configuration as below:
The following parameters are made available for configuring
|
Analog Outs for Linear Fan Speed |
|||
|
Parameter |
Purpose |
Default Value |
Values in the drop-down list |
| Analog Out 2 at Min Linear Fan Speed | To set the analog out values for minimum Linar Fan Speed | 2V | Range from 0V to 10V in 1V increments |
| Analog Out 4 at Max Linear Fan Speed | To set the analog out values for maximum Linear Fan Speed | 10V | Range from 0V to 10V in 1V increments |
| IAQ Parameters Display Settings in the HyperStat Device
The profile also allows the user to set IAQ parameters that can be displayed in the HyperStat device's home screen.
Note: Only two of the IAQ parameters can be set at a time, to be displayed on the HyperStat device's home screen, or none can be enabled.
Before the parameters are enabled, the HyperStat device screen is showcased, as below:
When parameters are enabled and thresholds set as below.

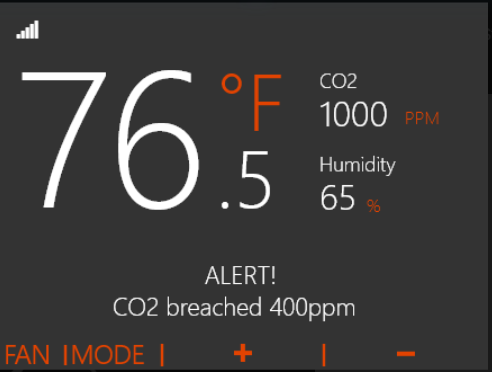

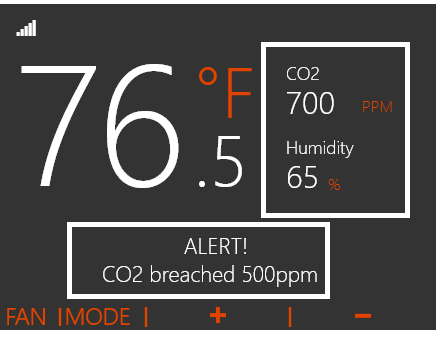

The enabled parameter values and the threshold breach message are displayed on the HyperStat device's screen as below.
When parameters are enabled and thresholds set as below:
The enabled parameter values are displayed on the HyperStat device screen along, with an alert message for a breach in any of the four IAQ parameters as below:
The configuration also provides an option to disable the targets and thresholds for the IAQ parameters CO2, VOC, and PM2.5 as below.
- Click Save to confirm the configuration changes.
| Multi-Module Criteria & Nuances
Like the other devices & profiles under the ClimaVision system, the HyperStat Split and the CPU+Economizer profile also support the multi-module concept.
Below are the few criteria set and nuances followed during such multi-module configuration in a zone for a site.
- Only up to three HyperStat Split device / CPU+Economizer profiles can be paired within a zone.
-
At any time in a multi-module zone, all the modules within the zone will have the same schedule state, and the same is indicated on the zone level.

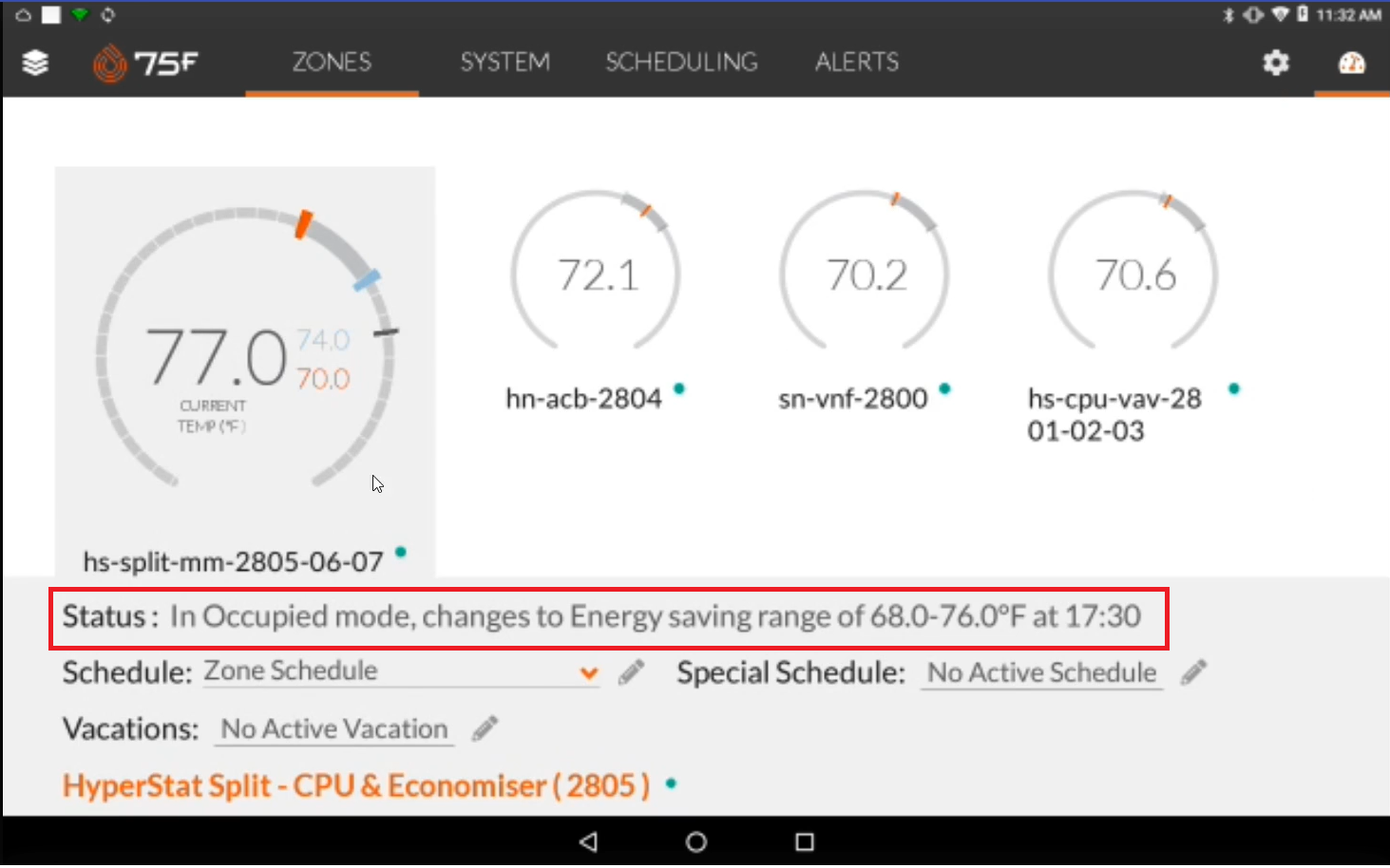

In CCU

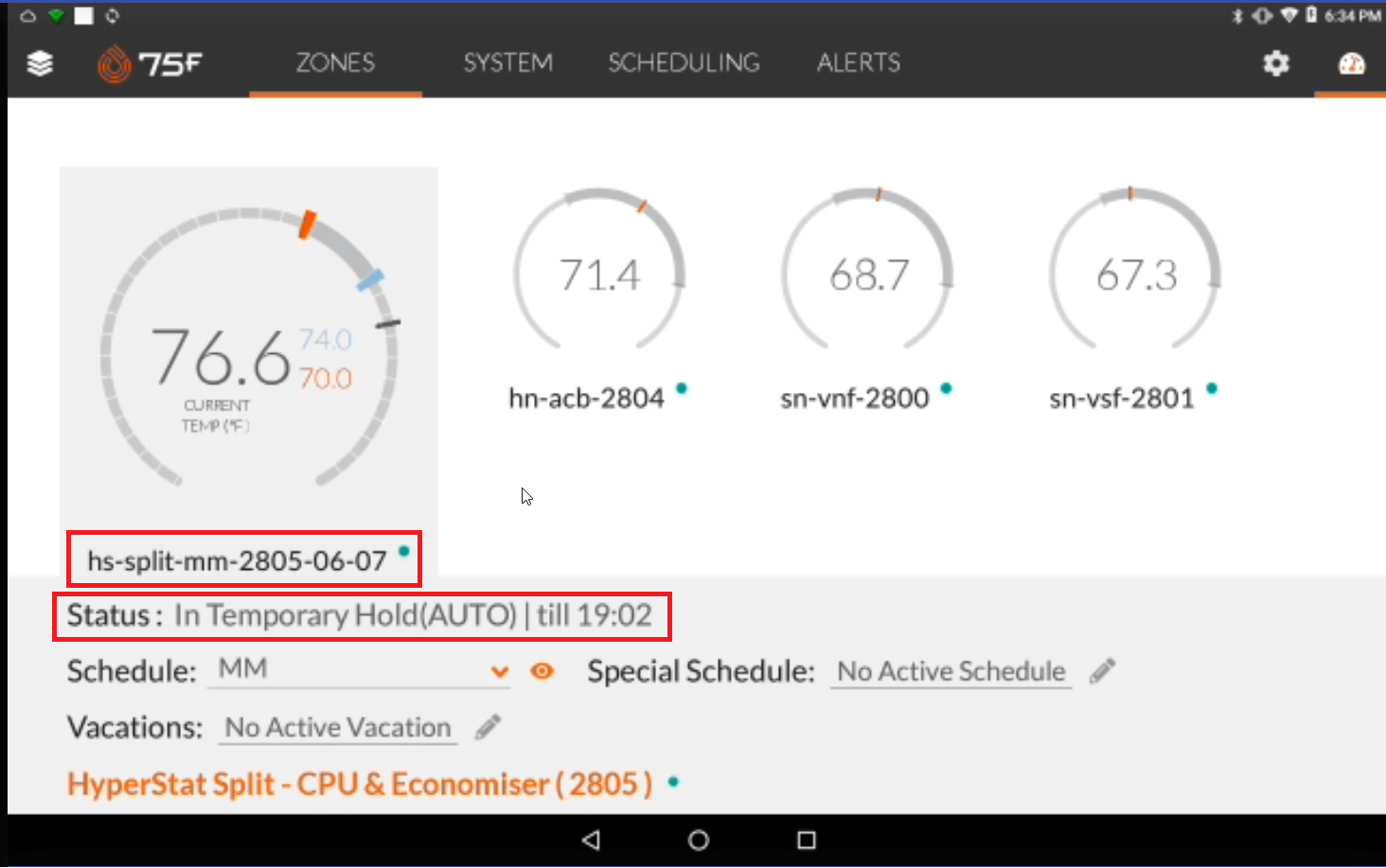

In Portals
-
Any external schedule influencers once triggered will influence the entire zone, irrespective of whether the other modules are enabled via configuration for that state.
-
Once the schedule state is consumed by the zone from the module of the highest rank in the multimodule, then the desired temperatures are inherited by other modules in the multimodule zone.
For more information refer to Effects of Schedule States in the Building
| Post Configuration
The zone paired with CPU & Economizer profile is displayed in the CCU as below.
You can see widgets configured in the heatmap pages in the portals as below:
The widgets with the OAO details in the portal are visualized as below.
| Modes & Operations
As in the other HyperStat profiles, the CPU & economizer profile of HyperStat split as well supports the following fan and conditioning modes.
Fan Modes
- Off
- Auto
- Fan Low Current Occupied Period
- Fan Low Occupied Period
- Fan Low All Times
- Fan Medium Current Occupied Period
- Fan Medium Occupied Period
- Fan Medium All Times
- Fan High Current Occupied Period
- Fan High Occupied Period
- Fan High All Time
Based on the fan stages configured in the configuration window, the fan stages are made available in CCU and the portal for selection as user intents.

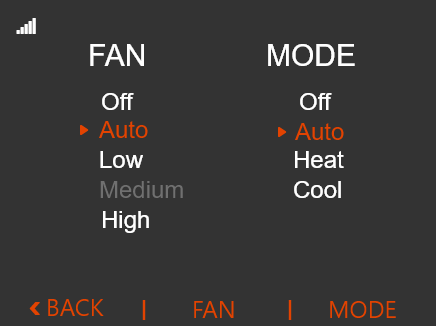

Note: The HyperStat Split hardware supports only the following fan modes at its end,
And when a change is made, it would translate to the following in the CCU.
- Auto------ Auto
- Low------Fan Low Current Occupied Period
- Medium-------Fan Medium Current Occupied Period
- High-------Fan High Current Occupied Period
Conditioning Modes
- Off
- Auto
- Cool Only
- Heat Only
| Controls and Triggers Strategy
| Controls | Trigger Strategy |
| Cooling Stages | Cooling stages trigger when the zone demands cooling, based on the current temperature. The cooling stages switch ON based on the cooling loop output, whose values are scaled for the different stages. And switches off based on conditioned current temperature values. |
| Heating Stages |
Heating stages trigger when the zone demands to heat, based on the current temperature. The heating stages switch ON based on the heating loop output, whose values are scaled for the different stages. And switches off based on conditioned current temperature values. |
| Fan Stages |
Fan stages trigger based on the fan loop output which is a result of cooling loop and heating loop outputs, during cooling and heating operation respectively. Fan control configured as modulating using analog out the percentages for the low, medium, and high are altered to 30% 60%, and 100% respectively. |
| Fan Enable |
Fan enable is a provision introduced to enable additional fan control, which switches "ON" during the occupied schedule, and when any conditioning is happening during the unoccupied schedule. Example:
Note: Fan Enabled is not a control option for the Fan stages. the fan stages control needs to be mapped separately for the system to start conditioning. |
| Occupied Enable | A relay mapped to Occupied Enable is "ON" whenever the zone is in an occupied schedule and "OFF" when any conditioning happens during an unoccupied schedule. |
| Humidifier |
A Relay mapped to the humidifier is turned on whenever the humidity level for the CPU drops below the target Minimum Inside Humidity, a tuner value. And shows the user a target humidity control in Zone Screen on CCU and Facilisight portal |
| De Humidifier |
A Relay mapped to the dehumidifier is turned on whenever the humidity level for the CPU goes above the target Minimum Inside Humidity, a tuner value. And shows the user a target humidity control in Zone Screen on CCU and Facilisight portal |
| Exhaust Fan Stages |
Exhaust stages trigger based on the economizing loop output. Stage 1 triggers when the economizing loop output is at 50% (Default). Stage 2 triggers when the economizing loop is at 90% (Default). The exhaust threshold percentage for the economizing loop can be defined during the configuration using the Exhaust Fan Stage 1(Threshold) and Exhaust Fan Stage 2 (Threshold). There is a hysteresis associated with it to prevent short cycling of the equipment, which can be defined using the parameter Exhaust Fan Hysteresis (%) during configuration. Example: For default hysteresis of 5% the Exhaust Fan stage 2 deactivates at 90-5 = 85% of the Economizing loop output. And Exhaust Fan stage 1 deactivates at 50-5 = 45% of the Economizing loop output |
| OAO Control
Outside Air Optimization (OAO) as we know is bringing in the outside air into the room space when conditions are favorable for free cooling.
The OAO control trigger with the CPU & Economizer is driven by the outsideAirFinalLoopOutput
The factors contributing to the outsideAirFinalLoopOutput vary based on the parameters configured during the profile configuration.
The table below talks about the possible scenarios, and the respective contributing factors for the outsideAirFinalLoopOutput.
| Scenarios | Favorable / Unfavorable Conditions | Contributor for the Final Loop output |
|
The system uses just the Outside & Inside Air Temperature & Humidity |
If the Outside Air Temperature is < standaloneEconomizingDryBulbThreshold (an OAO tuner parameter = 55°F) |
Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= economizingLoopOutput (which uses the outside air temperature sensed and the 55°F for the error calculation of the loop) |
|
Else If the Outside Air Temperature is slightly > standaloneEconomizingDryBulbThreshold (an OAO tuner parameter = 55°F), Then, the system would look for the following And, If Outside Enthalpy (product of Outside Air temperature and humidity)+standaloneEnthalpyDuctCompensationOffset (Tuner parameter, which is by default 0) < Inside Enthalpy (product of Inside Air temperature and humidity) |
Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= economizingLoopOutput (which uses the outside Enthalpy and Inside Enthalpy for the error calculation of the loop) | |
| If the Outside Air temperature is not within the Tuner parameters, standaloneEconomizingMinTemperature (0°F) & standaloneEconomizingMaxTemperature (70°F) | Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= 0 as there will be no economizingLoopOutput | |
| And If the Outside Air temperature is not within the Tuner parameters, standaloneEconomizingMinHumidity (0%) & standaloneEconomizingMaxHumidity (100%) | Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= 0 as there will be no economizingLoopOutput | |
| The system uses Outside, and inside Air Temperature and humidity along with the CO2 Threshold (If configured) |
Then when Zone CO2 (A sensed parameter) > Zone CO2 Threshold (A configuration parameter), the Demand Control Ventilation loop kicks in. DCVLoopOutput= (Zone CO2- Zone CO2 Threshold)/zoneCO2DamperOpeningRate (A configuration parameter) |
Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= economizingLoopOutput, DCVLoopOutput or outsideDamperMinOpen (a configuration parameter) whichever is greatest among the three is considered |
|
The system uses Outside, and inside Air Temperature and humidity, with the CO2 Threshold & the Mixed Air Temperature MAT (If configured) |
If Mixed Air Temperature is Between the Tuner parameters standaloneOutsideDamperMixedAirTarget (50°F) & standaloneEconomizingMaxTemperature (70°F) |
Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput= economizingLoopOutput, DCVLoopOutput or outsideDamperMinOpen (a configuration parameter) whichever is greatest among the three is considered |
|
If Mixed Air Temperature is > Tuner parameter standaloneEconomizingMaxTemperature (70°F) or Mixed Air Temperature is < Tuner parameter standaloneOutsideDamperMixedAirMinimum (44°F) |
Then, the OAO damper position moves towards the minimum position. | |
|
If Mixed Air Temperature is Between the Tuner parameters standaloneOutsideDamperMixedAirMinimum (44°F) & standaloneOutsideDamperMixedAirTarget (50°F) |
Then, outsideAirFinalLoopOutput= OutsideAirLoopOutput* Where, OutsideAirLoopOutput= economizingLoopOutput, DCVLoopOutput or outsideDamperMinOpen (a configuration parameter) whichever is greatest among the three is considered |
| OAO Tuners
- standaloneEconomizingDryBulbThreshold = 55°F
- standaloneEconomizingMinTemperature= 0°F
- standaloneEconomizingMaxTemperature= 70°F
- standaloneEconomizingMinHumidity= 0 %
- standaloneEconomizingMaxHumidity= 100%
- standaloneOutsideDamperMixedAirMinimum= 44°F
- standaloneOutsideDamperMixedAirTarget= 50F
- standaloneEnthalpyDuctCompensationOffset= 0°F
- standaloneDuctTemperatureOffset= 0°F
| Equip Graphics for Hyperstat Split - CPU & Economizer
Equipment graphics is available for all the terminal profiles. It provides a graphical representation of system-level equipment and enables monitoring of key point parameters associated with terminal profiles.
The highlighted list of points is predefined for visualization alongside the graphic for the respective profile.
| Feature Availability Versions
| Feature | Hardware/Firmware | Version |
|
The HyperStat Split CPU+ Economizer profile support |
CM | 3.35 and above. |
| The HyperStat Split CPU+ Economizer profile support | HyperStat Split | 100.7 and above |
|
The HyperStat Split CPU+ Economizer profile support |
Connect Module | 1.0 and above |
|
The fan control during recirculate, and the tuner Minfanruntimepostconditioning supports as a part of the Title 24 enhancements |
CM | 3.47 and above. |
|
The fan control during recirculate, and the tuner Minfanruntimepostconditioning supports as a part of the Title 24 enhancements |
HyperStat Split | 100.12 and above |
Comments
0 comments
Please sign in to leave a comment.
