|Overview
The Carrier® on the software side supports profiles to support Modbus based Energy Meter, which uses Modbus as a communication protocol to communicate with the BMS, The profile is used to aggregate the consumption data of the Energy Meter and plot the aggregated data in the trending charts of Carrier BMS application the ClimaVision Web UI and the ClimaVision Web UI mobile app
The Carrier system provides three kinds of profiles that support the Modbus Energy Meter energy consumption data reading and aggregation in BMS.
- A Modbus Energy Meter profile can be configured at the system level to track the energy consumption of a larger area in the building where a CCU is used to aggregate the consumption data and visualize it in the BMS.
- A Modbus Energy Meter profile can be configured at the zone level to track the energy consumption of a smaller area in the building where a CCU is used to aggregate the consumption data and visualize it in the BMS.
- A Modbus Energy Meter profile can be configured at the zone level to track the energy consumption of a smaller area in the building, where the SmarNode is used to aggregate the consumption information to a CCU which in turn is visualized in the BMS.
|Configuring a Modbus Energy Meter Profile at Zone Level.

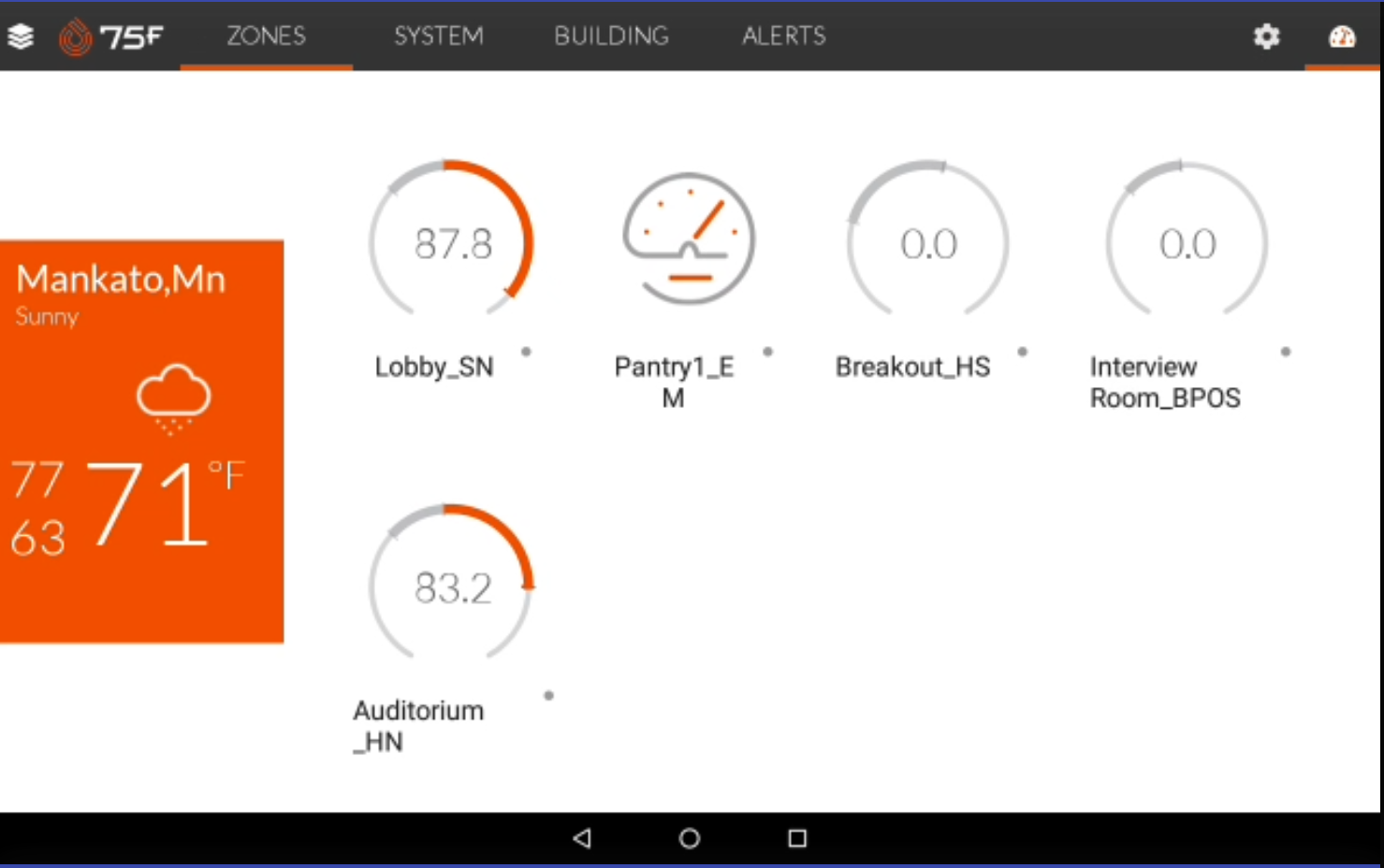

From the CCU zone page.
- Click the settings icon.

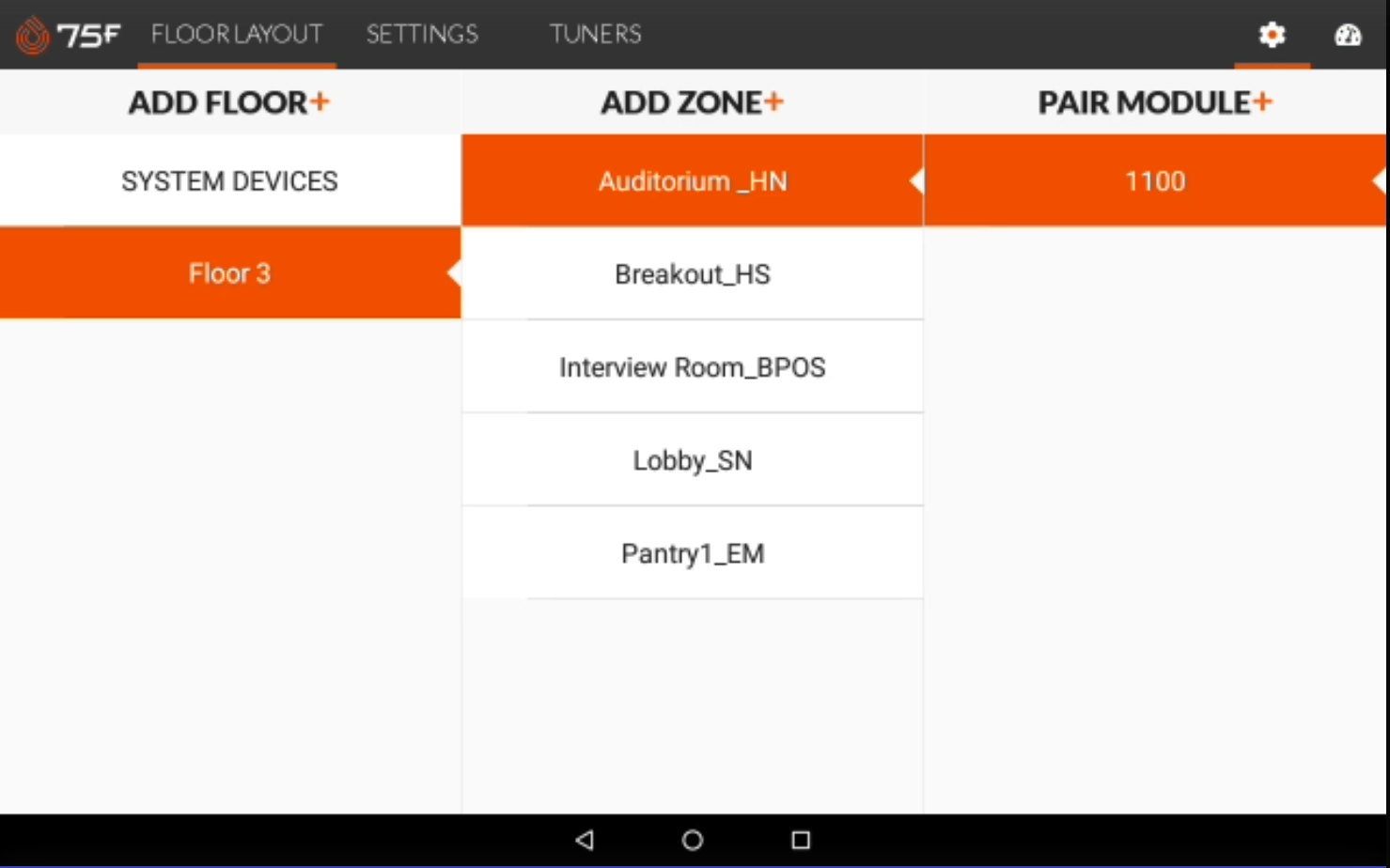

The floor layout screen is displayed.
- Click Add Zone.

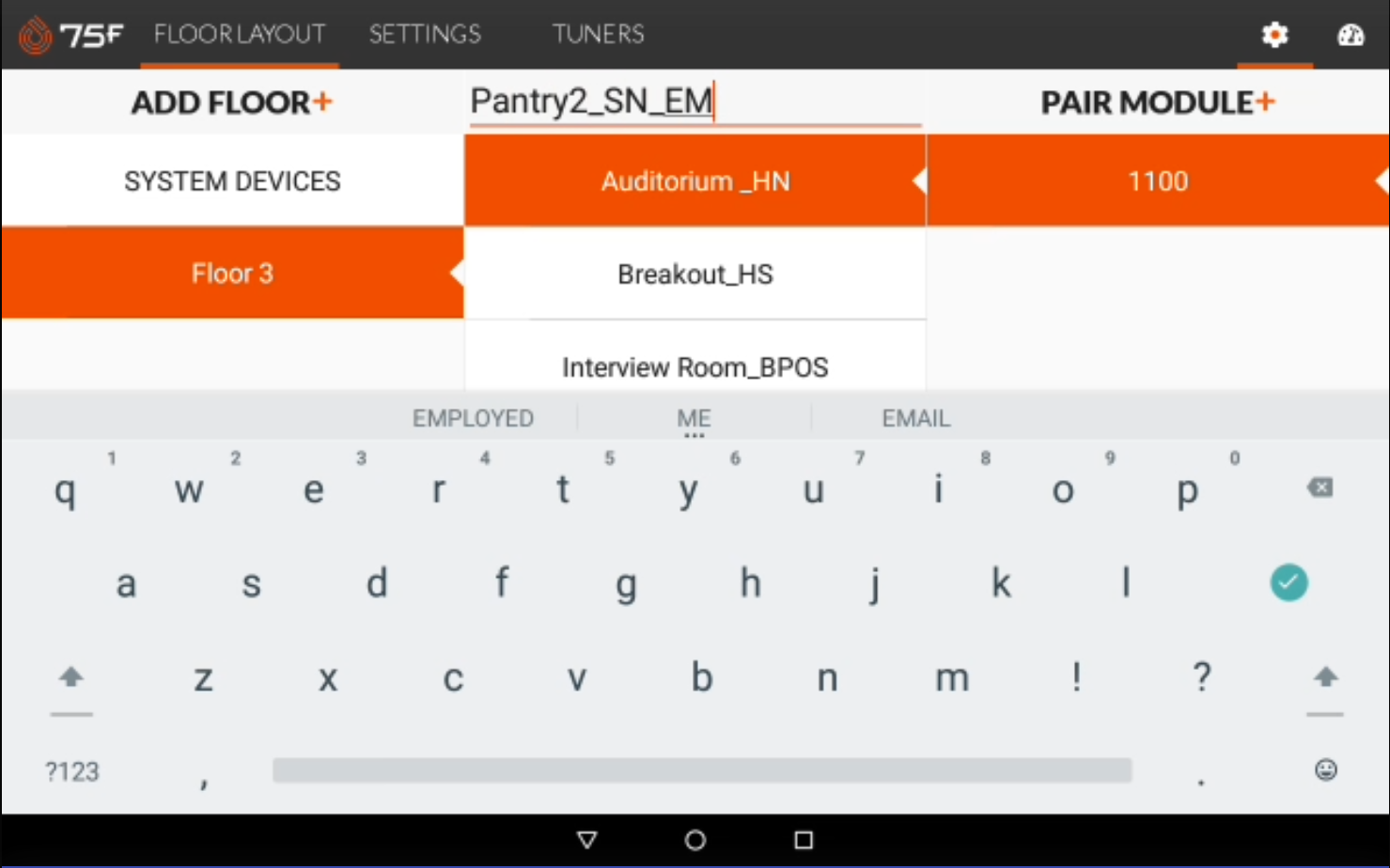

- Enter a name for the Modbus zone you need to pair.

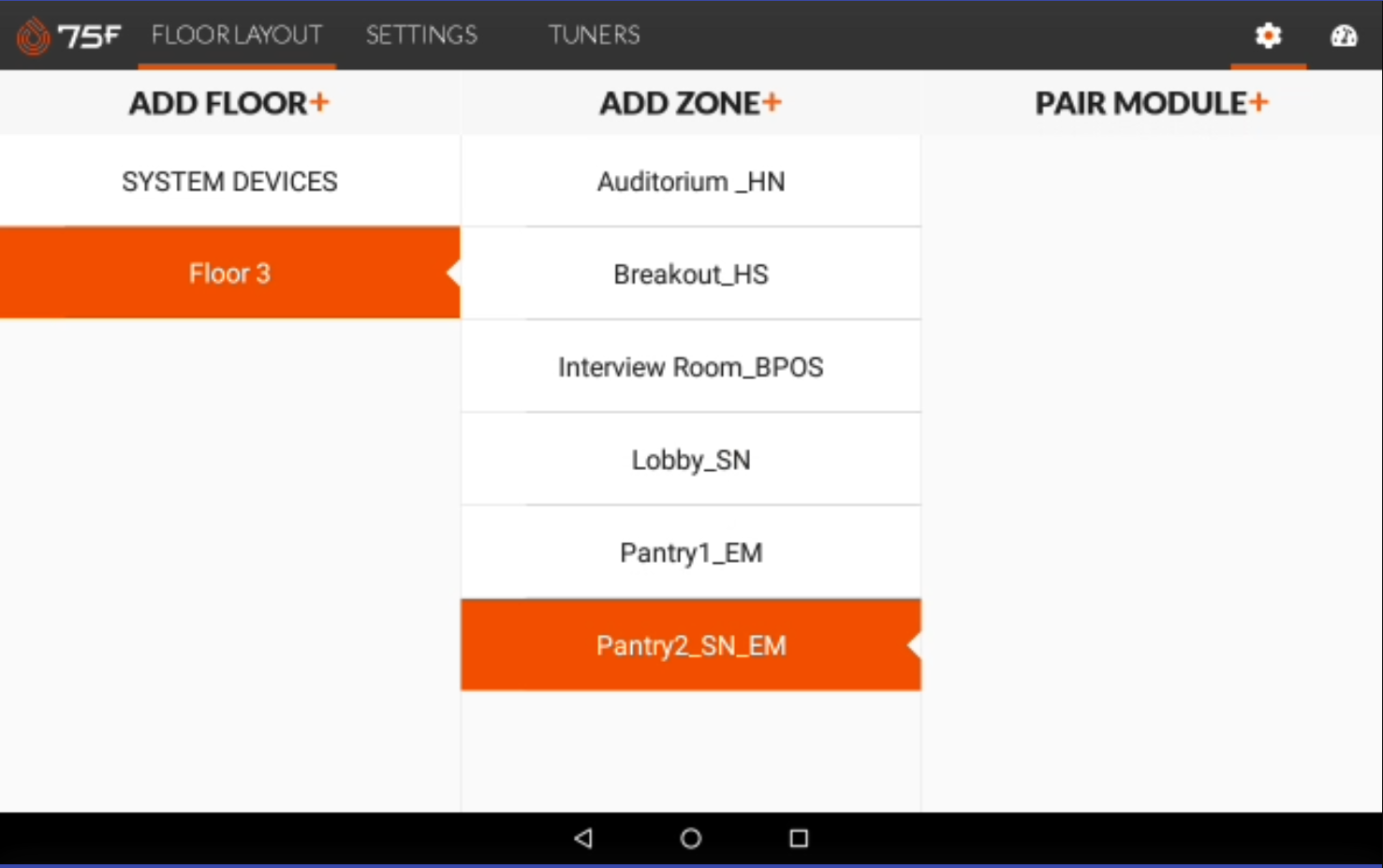

The zone is created.
- Click Pair Module.
The Select Device Type screen is displayed.
- Click SM SmarNode | HN HelioNode option from the available list.

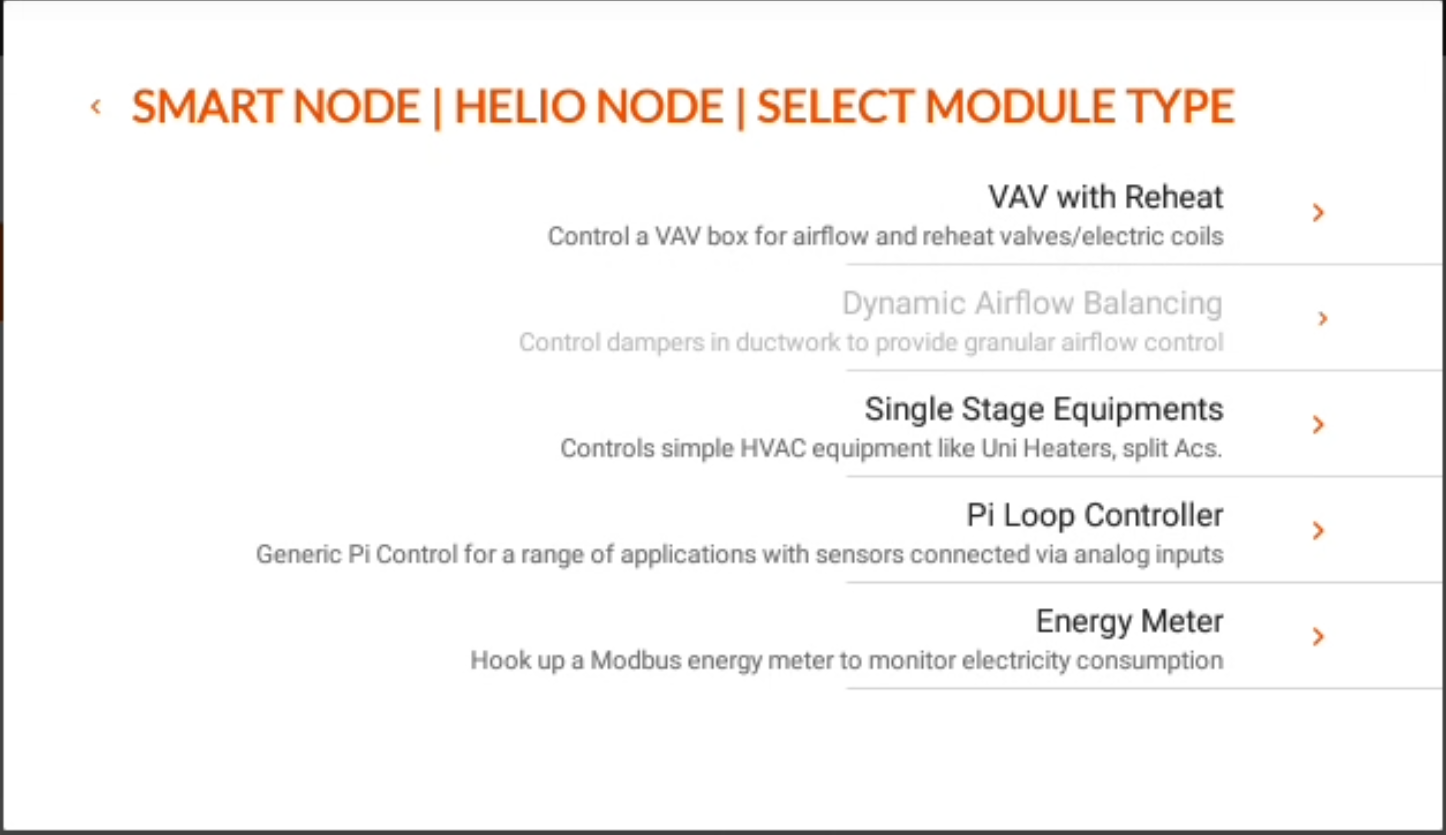

The SmarNode |HelioNode| Select Module Type screen is displayed.
- Click the Energy Meter option.

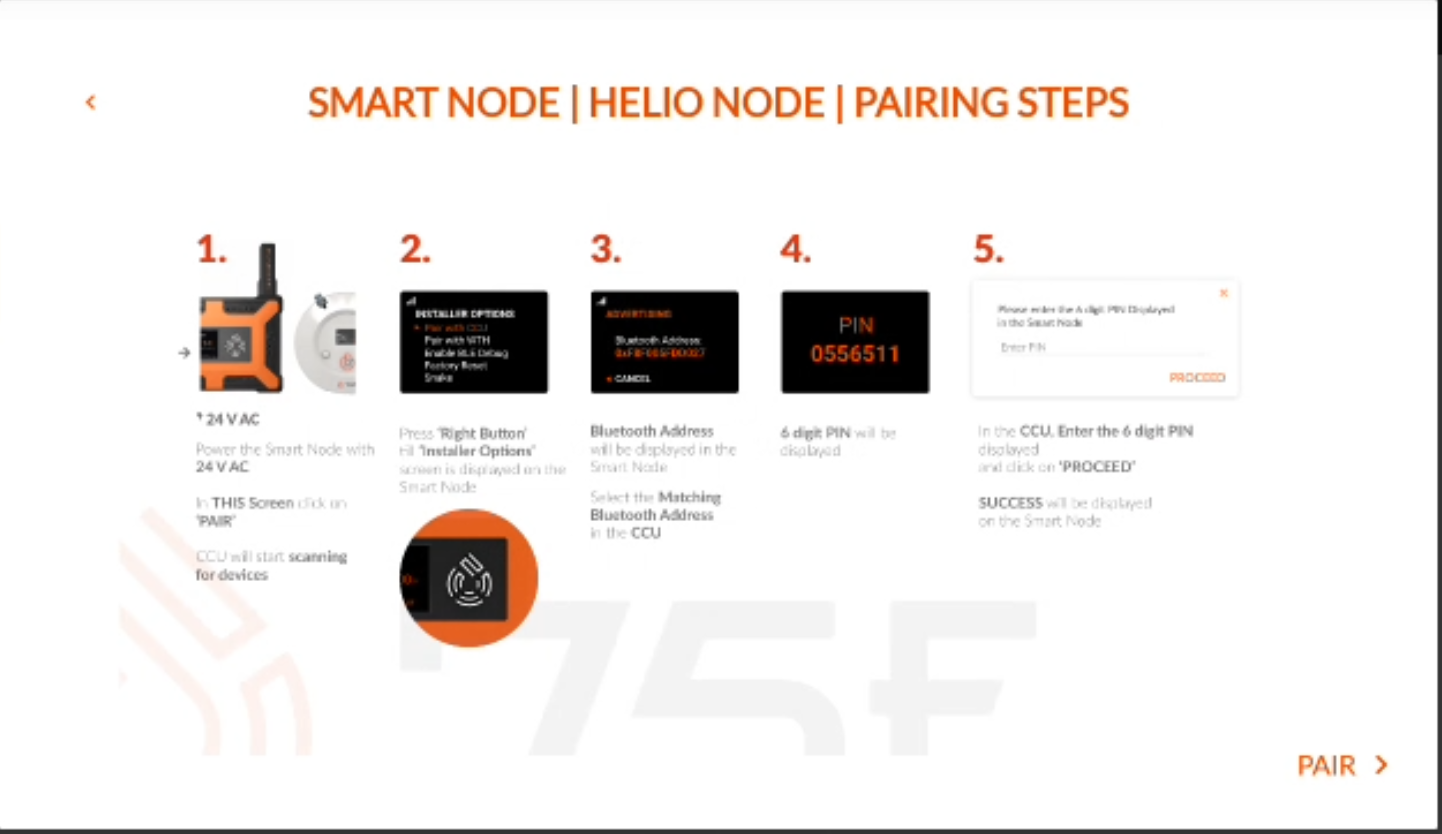

The SmarNode | HelioNode | Pairing Steps screen is displayed.
- Click Pair

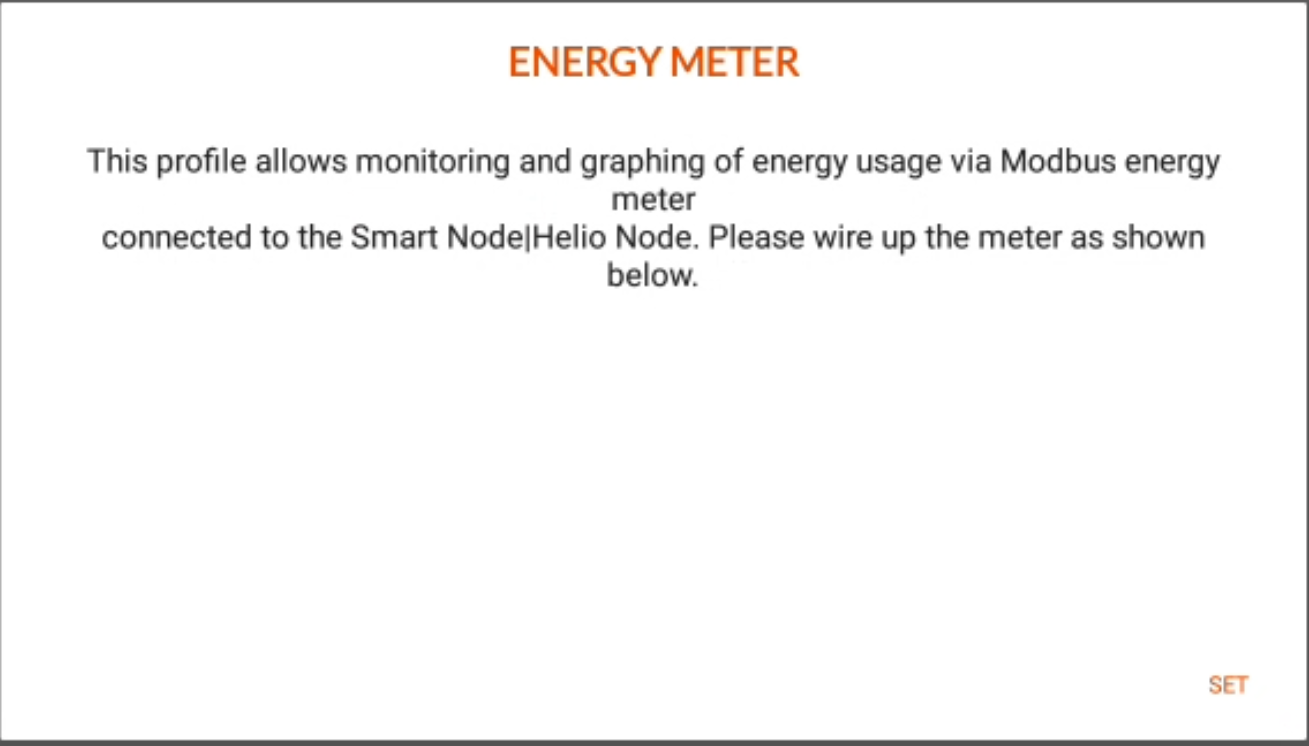

The Energy Meter profile configuration screen is displayed.
- Click Set to confirm.

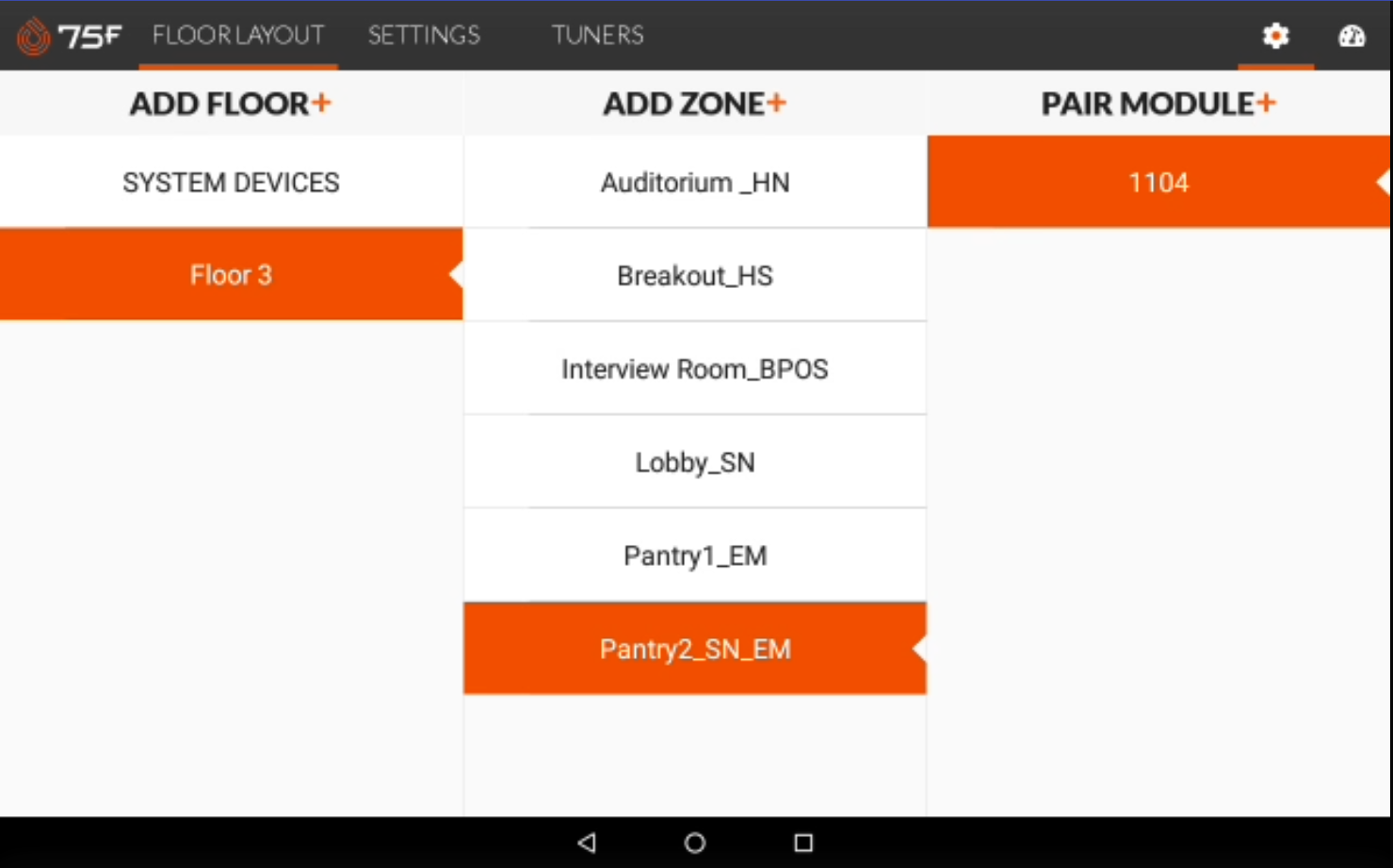

The Energy Meter profile at the zone level is configured and ready for visualization in the CCU.
