| Overview

True CFM (Cubic Feet per Minute) is a unit of airflow that is been used by the ASHRAE 62.1 indoor air quality standards. It mandates that a minimum amount of airflow is maintained as long as the space is occupied. One of the primary reasons for which True CFM is adopted since legacy systems and senior facility management personnel use airflow measurements in CFM for ease of understanding. This further helps in maintaining common standards of measurements across HVAC systems. It is also incorporated in accordance to the Title 24 building codes which are building energy efficiency standards are designed to ensure new and existing buildings achieve energy efficiency and preserve outdoor and indoor environmental quality.

The CFM measurement is a product of velocity volume of air in the duct and the cross-sectional area of the duct.

To calculate Air Flow in Cubic Feet per Minute (CFM), we have to determine the Flow Velocity in feet per minute, then multiply this value by the Duct Cross Sectional Area. i.e.,
Air Flow in CFM (Q) = Flow Velocity in Feet Per Minute (V) x Duct Cross Sectional Area (A)

| True CFM Introduction

As a part of the adoption towards enabling the CFM in profiles for comfort and indoor air quality standards, a toggle button is introduced in the terminal profiles VAV in the Carrier system.

The feature is introduced in the following terminal profile.


  • VAV Reheat with No fan


  • VAV Reheat with Series Fan


  • VAV Reheat with Parallel Fan


| Configuring CFM

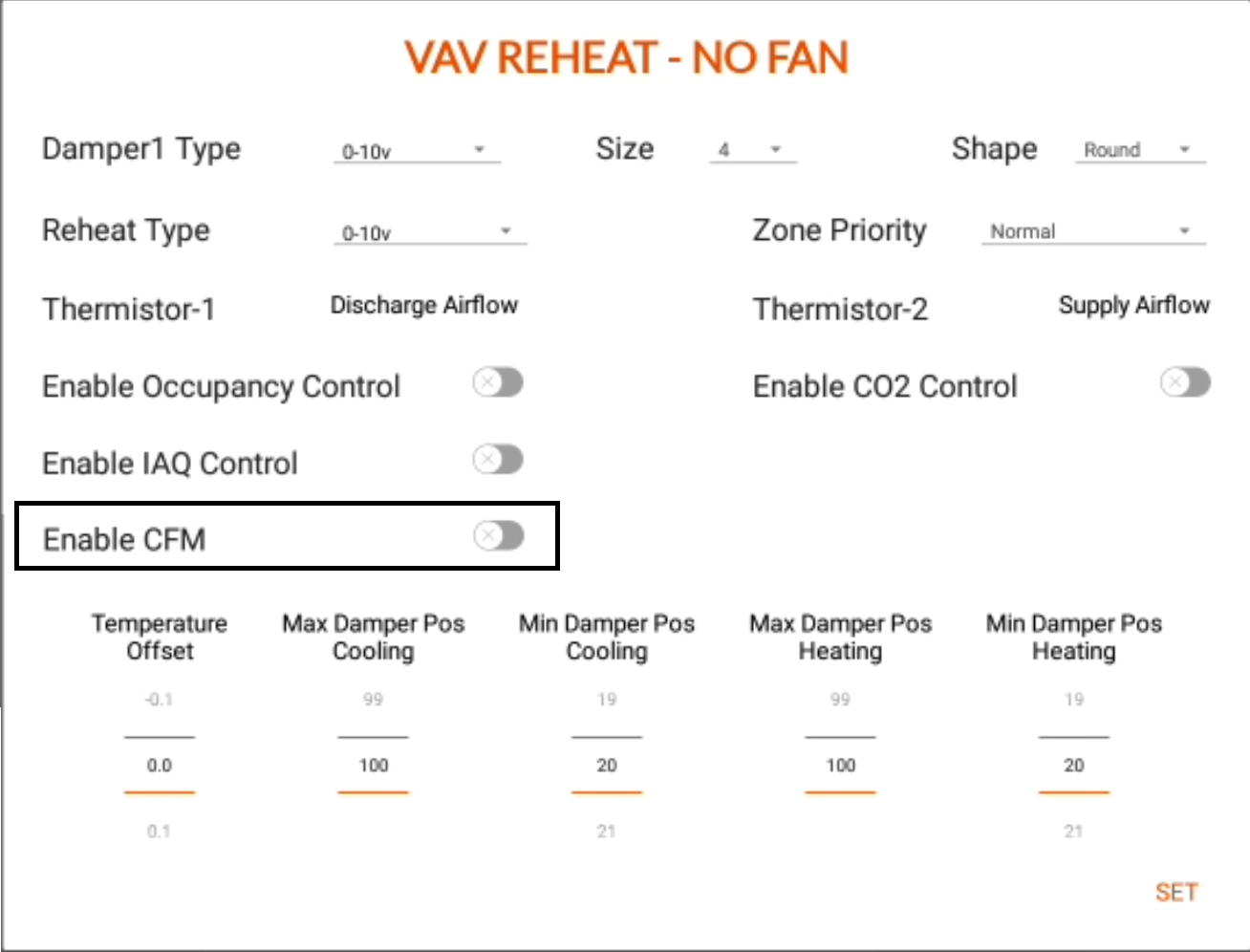

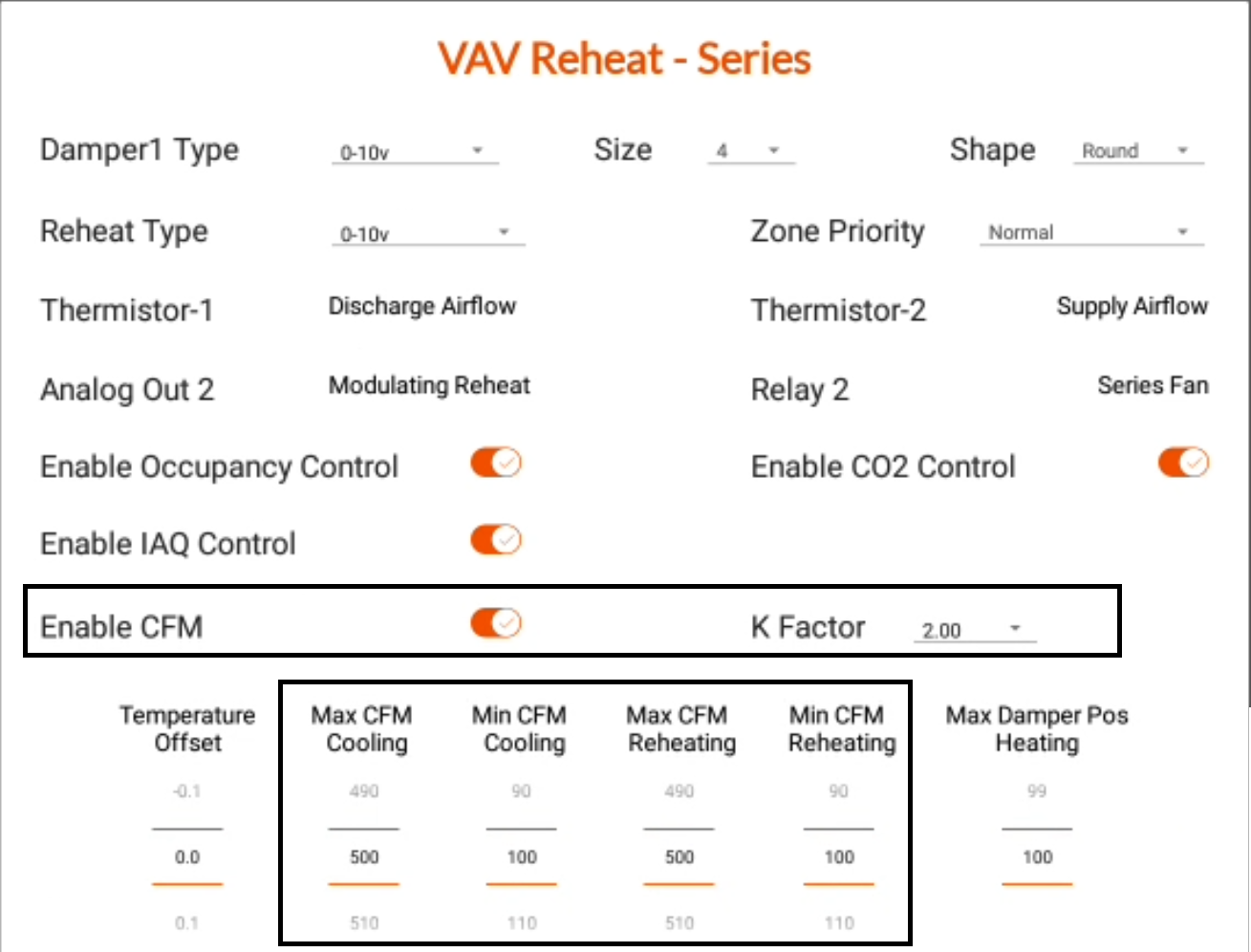

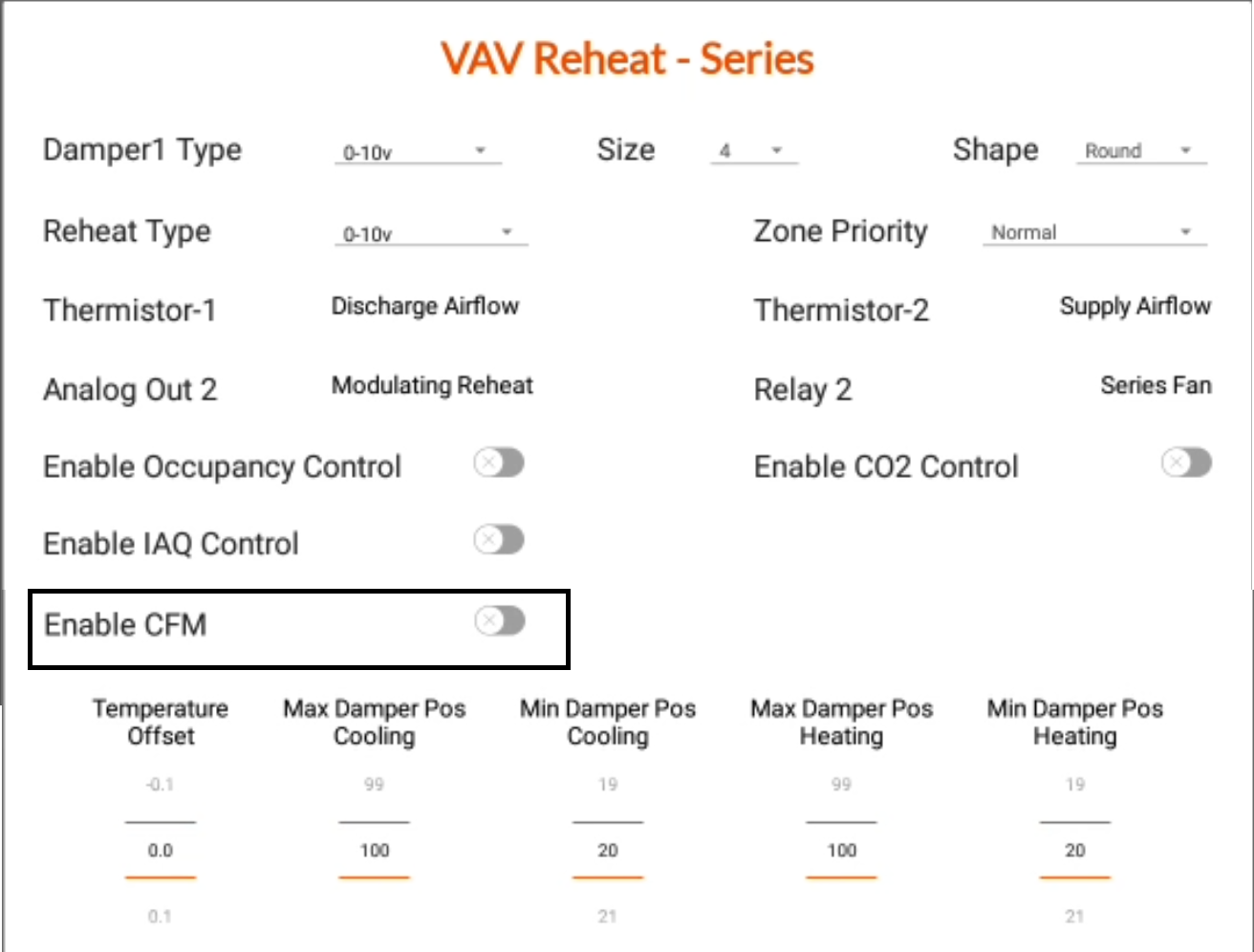

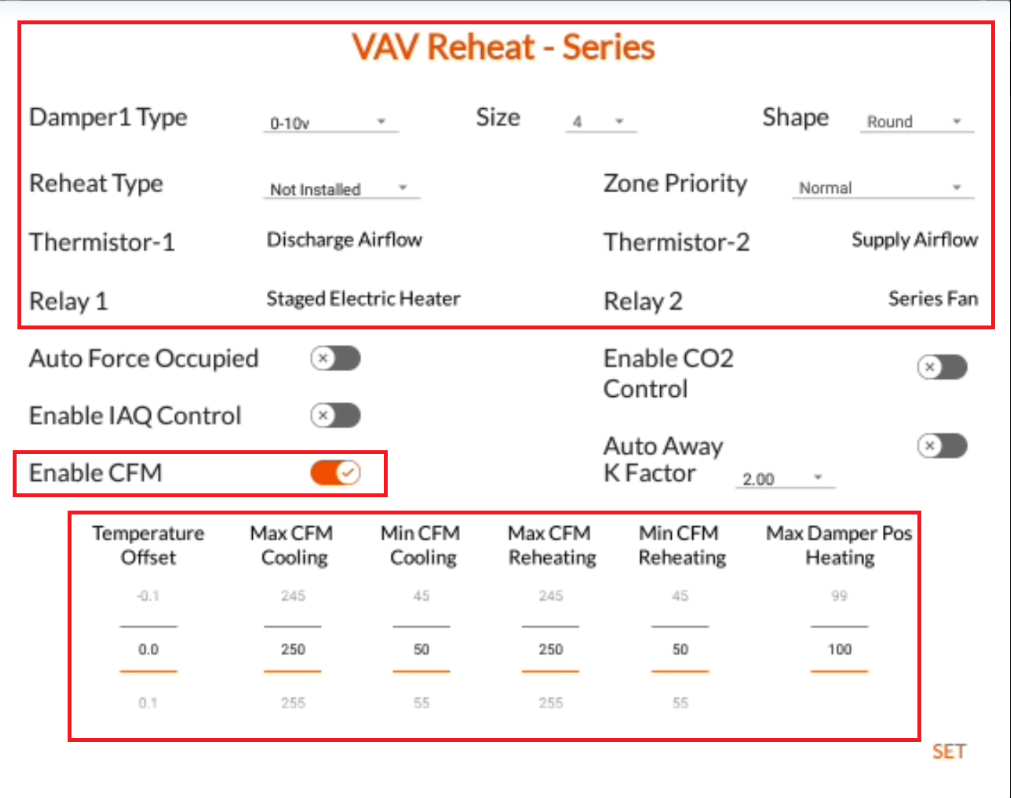

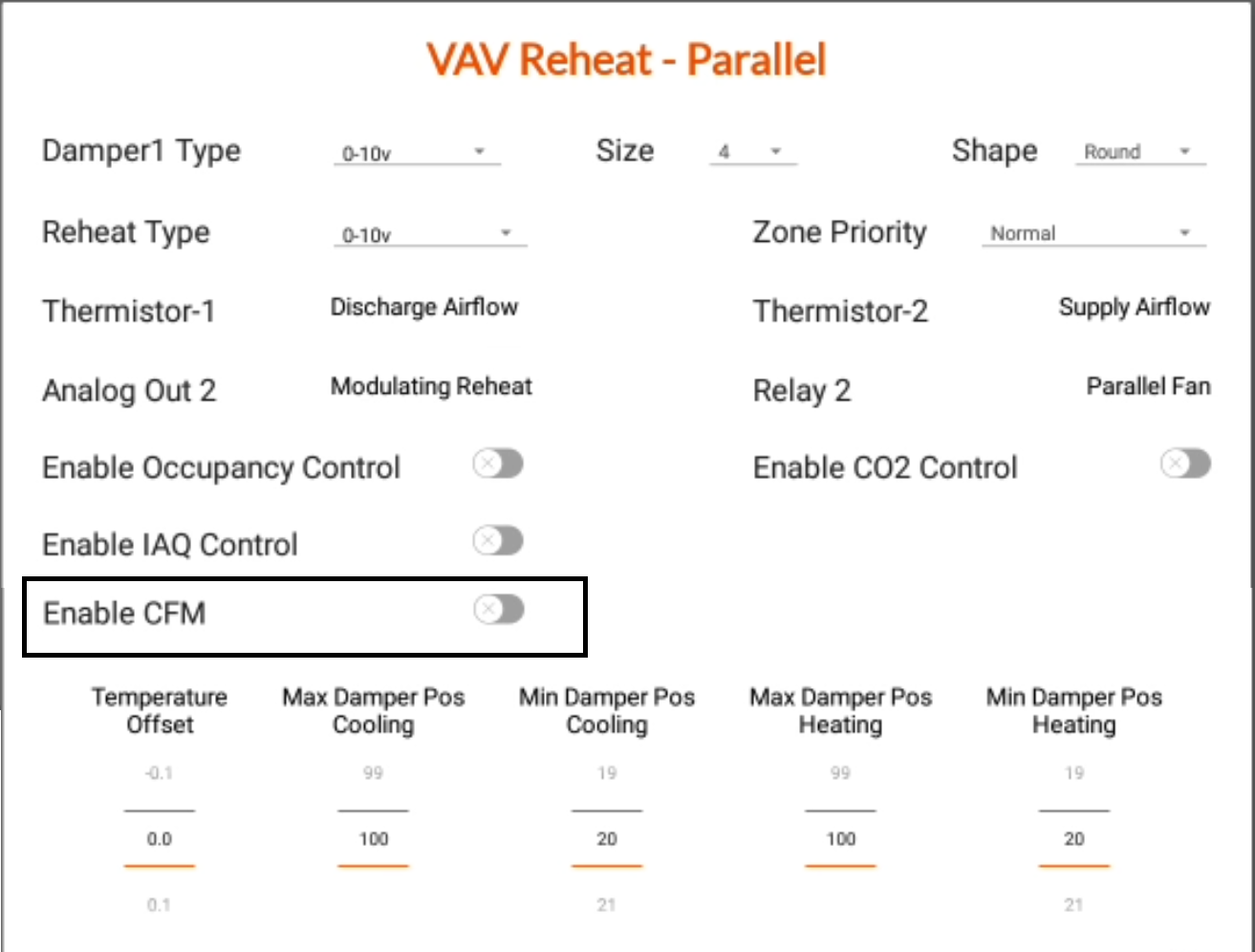

Enabling the CFM for the VAV terminal profile, would introduce additional configurable parameters in the configuration screen as below:


Along with the already existing parameter in the VAV terminal profile, the user intent parameters such as K Factor, max and min CFM Cooling, max and min CFM Reheating are introduced.

The additional parameters introduced are the same for VAV Reheat with no fan and VAV Reheat with parallel fan terminal profiles.

| CFM Measurement Setup

As a part of the adoption of measuring and communicating the Airflow in CFM. At the ductwork, end of the system the following setup from the Carrier system hardware is used.


Carrier has developed a new differential pressure sensor that connects to a pitot tube and directly measures the airflow pressure difference between velocity pressure and static pressure. This allows a translation into velocity of the airstream. Coupled with knowing the cross-sectional area of the duct, the actual cubic feet per minute flow rate can be inferred.

| Operation

With the Introduction of CFM, the following are the changes that are made to the Algorithm and operation.

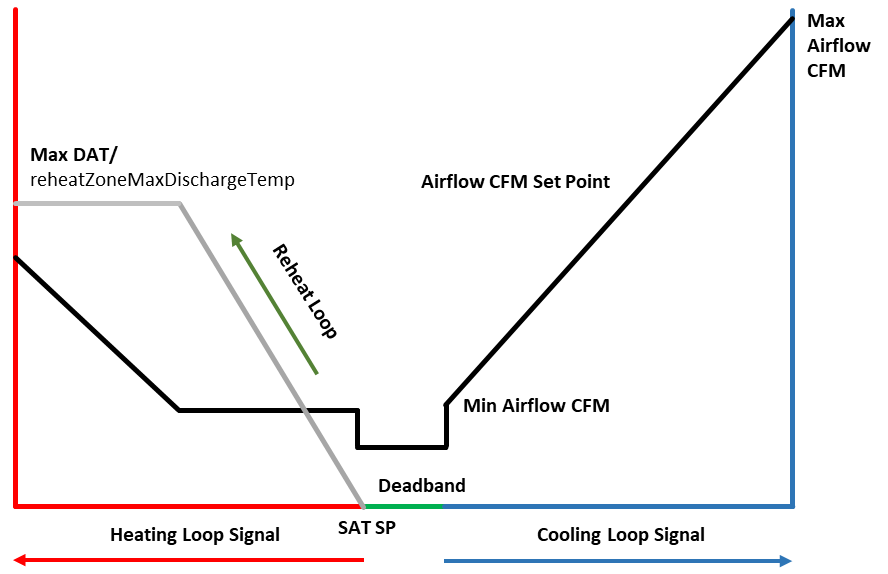

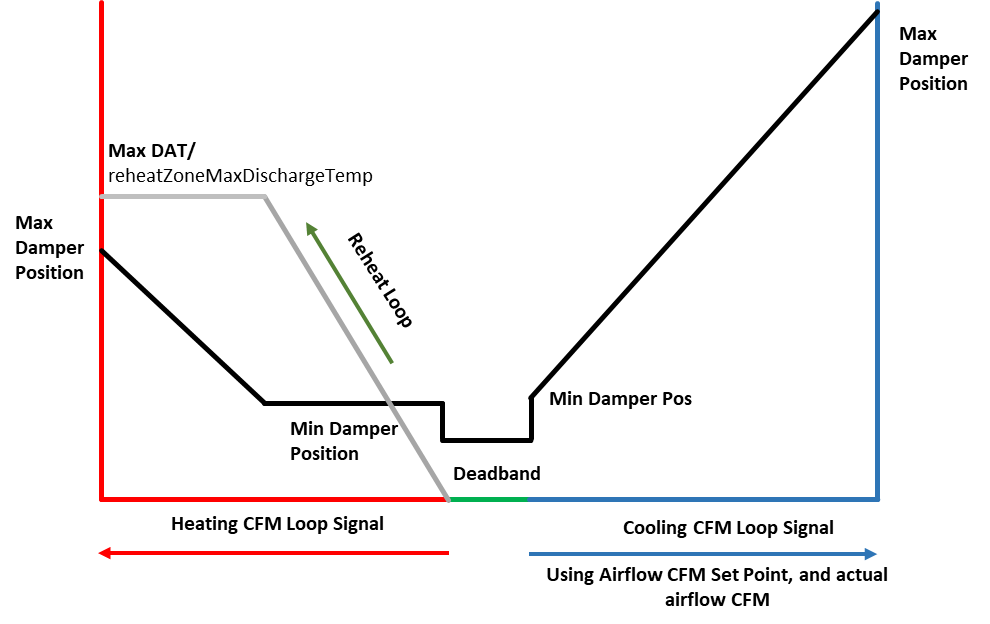

CFM for VAV damper control

  • When the system is in cooling mode the CFM parameters used are

maxCFMCooling and  minCFMCooling (when the terminal needs cooling)

maxCFMReHeating and minCFMReHeating (when the terminal needs reheating)

  • When the system is in heating mode the CFM parameters used are :

maxDamperPosHeating and minCFMReHeating

Note: In case the system is in heating, the min CFM is maintained, and the damper position is used as per standard VVT-C operation using normalization strategy.

Once the current CFM per damper that is controlled by the SmarNode is calculated, the system shall adhere to the min and max values. If the CFM is below the minimum threshold, then the damper opens, and if it is above the maximum CFM the damper closes.

Note: The system does not maintain the Minimum CFM levels during auto-away and forced occupied modes.

| CFM Related Widgets & Visualization

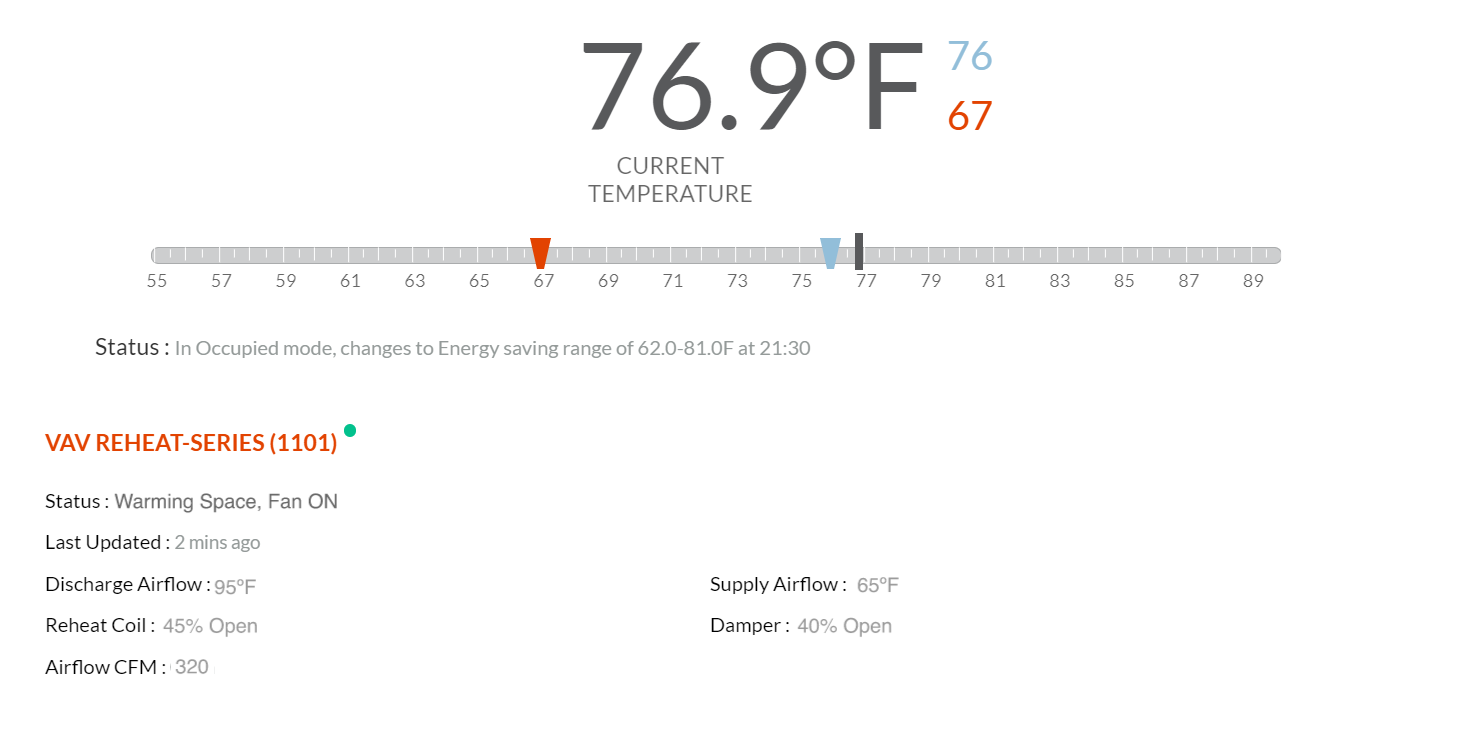

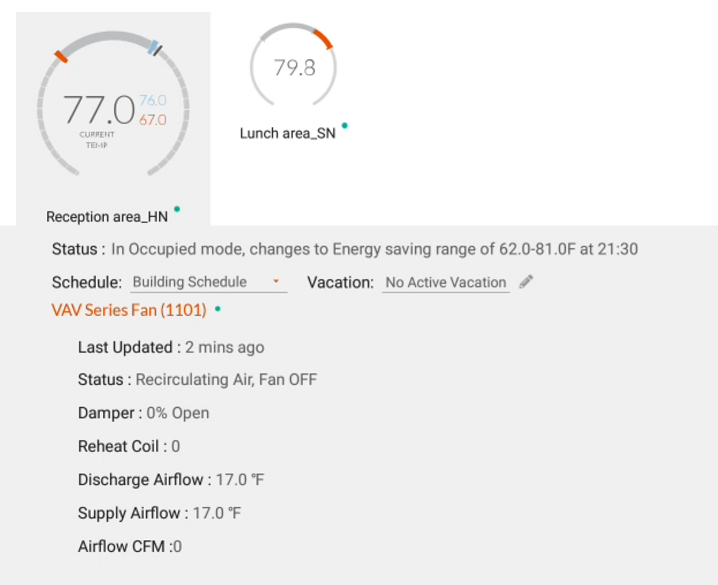

As a part of the adoption towards visualizing information related the Airflow in CFM. At the portals and the CCU end of the system, the following are made available.

Predefined Widgets:

  • VAV



Portal User Intent

  • VAV



CCU Zone User Intent

  • VAV
