Control a Heat Pump with a HyperStat Split using the CPU Profile

The Heat Pump profile is coming in June 2025, but if you need to control a Heat Pump prior to that, there is a way with the CPU profile.

This is a temporary solution to make it work, so some things like the points on displays look a little if you set it up to accommodate heating. For summer job when no heating is required it looks okay.

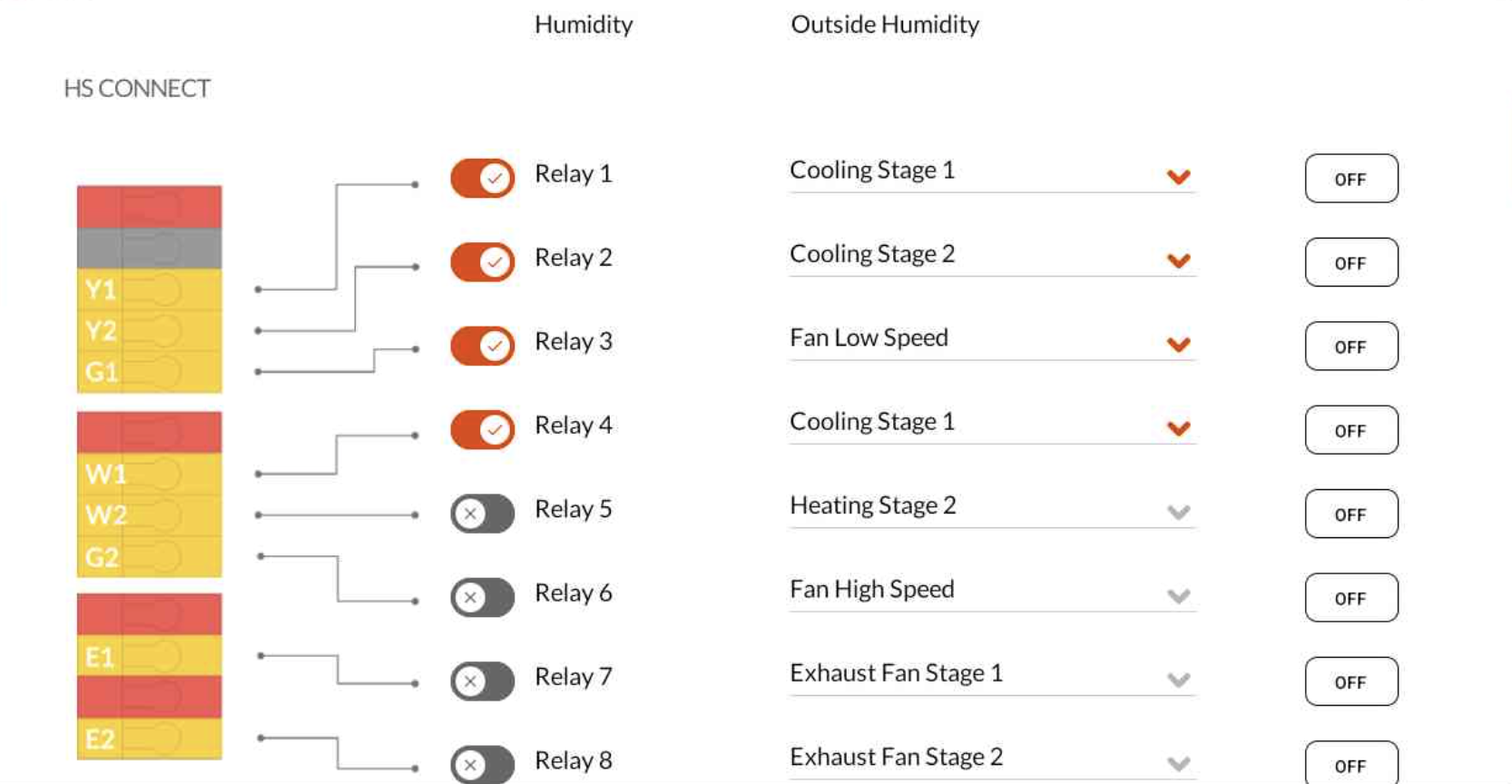

For Cooling only: Wire Compressor 1 Relay to Cooling Stage 1 and Compressor 2 Relay to Cooling Stage 2. Put Fan 1 Relay to Fan Stage 1 and Fan 2 Relay to Fan Stage 2. Then depending on O or B type just wire that changeover to Cooling Stage 1 or Heating Stage 1 respectively

If Cooling and Heating are needed from the unit then you map the Compressor Stage 1 Relay to Fan Stage 2 etc. That looks a little weirder on trends but essentially that Fan Stage turns on when there is a load(heating or cooling) and that will kick on the compressor.

Use the configuration settings below for a Heat Pump with the CPU profile with cooling only:
